EC-106
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
DTC Inspection Priority ChartNBS004SZ
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-173, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010. Refer
to EC-176, "
DTC U1010 CAN COMMUNICATION" .
Priority Detected items (DTC)
1
U1000 U1001 CAN communication line
U1010 CAN communication
P0101 P0102 P0103 Mass air flow sensor
P0112 P0113 P0127 Intake air temperature sensor
P0117 P0118 P0125 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0128 Thermostat function
P0181 P0182 P0183 Fuel tank temperature sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 P0345 Camshaft position sensor (PHASE)
P0460 P0461 P0462 P0463 Fuel level sensor
P0500 Vehicle speed sensor
P0643 Sensor power supply
P0605 ECM
P0700 TCM
P0705 P0850 Park/Neutral position (PNP) switch
P1550 P1551 P1552 P1553 P1554 Battery current sensor
P1610 - P1615 NATS
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor

TROUBLE DIAGNOSIS
EC-109
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Symptom Matrix ChartNBS004T1
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 1 1 2 3 2 2 2 3 2EC-685
Fuel pressure regulator system334444444 4EC-98
Fuel injector circuit 1 1 2 3 2 2 2 2EC-679
Evaporative emission system 334444444 4EC-39
Air Positive crankcase ventilation sys-
tem
334444444 41EC-51
Incorrect idle speed adjustment 1 1 1 1 1EC-77
Electric throttle control actuator 1 1 2 3 3 2 2 2 2 2 2EC-613,
EC-624
Ignition Incorrect ignition timing adjustment 3 3 1 1 1 1 1 1EC-77
Ignition circuit 11222 22 2EC-666
Main power supply and ground circuit22333 33 23EC-166
Mass air flow sensor circuit
1
122
222 2EC-205,
EC-214
Engine coolant temperature sensor circuit
333EC-226,
EC-238
Air fuel ratio (A/F) sensor 1 circuitEC-246
,
EC-256
,
EC-265
,
EC-274
,
EC-655
Throttle position sensor circuit
22EC-231
,
EC-354
,
EC-533
,
EC-535
,
EC-640
Accelerator pedal position sensor circuit 3 2 1EC-626
,
EC-633
,
EC-647
Knock sensor circuit 2 3EC-371
Crankshaft position sensor (POS) circuit 2 2EC-376
Camshaft position sensor (PHASE) circuit 3 2EC-383
Vehicle speed signal circuit 2 3 3 3EC-481
Power steering pressure sensor circuit 2 3 3EC-487

TROUBLE DIAGNOSIS
EC-111
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Air Air duct
55 5 55 5EM-17
Air cleanerEM-17
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-17
Electric throttle control actuatorEM-19
Air leakage from intake manifold/
Collector/GasketEM-24
Cranking Battery
111111
11SC-4
Generator circuitSC-23
Starter circuit 3SC-10
Signal plate 6EM-123
PNP switch 4AT- 11 3
Engine Cylinder head
55555 55 5EM-101
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-123
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-64
CamshaftEM-84
Intake valve timing controlEM-64
Intake valve
3EM-84
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-26
, EX-
3Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 5EM-29
, LU-
18 , LU-10 ,
LU-14
Oil level (Low)/Filthy oilLU-7
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

TROUBLE DIAGNOSIS
EC-113
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Engine Control Component Parts LocationNBS004T2
1. IPDM E/R 2. ICC brake hold relay
(ICC models only)3. Battery current sensor
4. Cooling fan relay 5. Power steering pressure sensor 6. Refrigerant pressure sensor
7. Intake valve timing control solenoid
valve (bank 1)8. Cooling fan motor-2 9. Cooling fan control module
10. Intake valve timing control solenoid
valve (bank 2)11. Cooling fan motor-1 12. Mass air flow sensor
(with intake air temperature sensor)
13. Ignition coil (with power transistor)
and spark plug (bank 2)14. Camshaft position sensor (PHASE)
(Bank 2)15. Electric throttle control actuator
16. Fuel injector (bank 2) 17. Knock sensor 18. Fuel injector (bank 1)
19. EVAP canister purge volume con-
trol solenoid valve20. Camshaft position sensor (PHASE)
(Bank 1)21. Engine coolant temperature sensor
22. Ignition coil (with power transistor)
and spark plug (bank 1)23. EVAP service port
PBIB2781E

TROUBLE DIAGNOSIS
EC-115
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
: Vehicle front

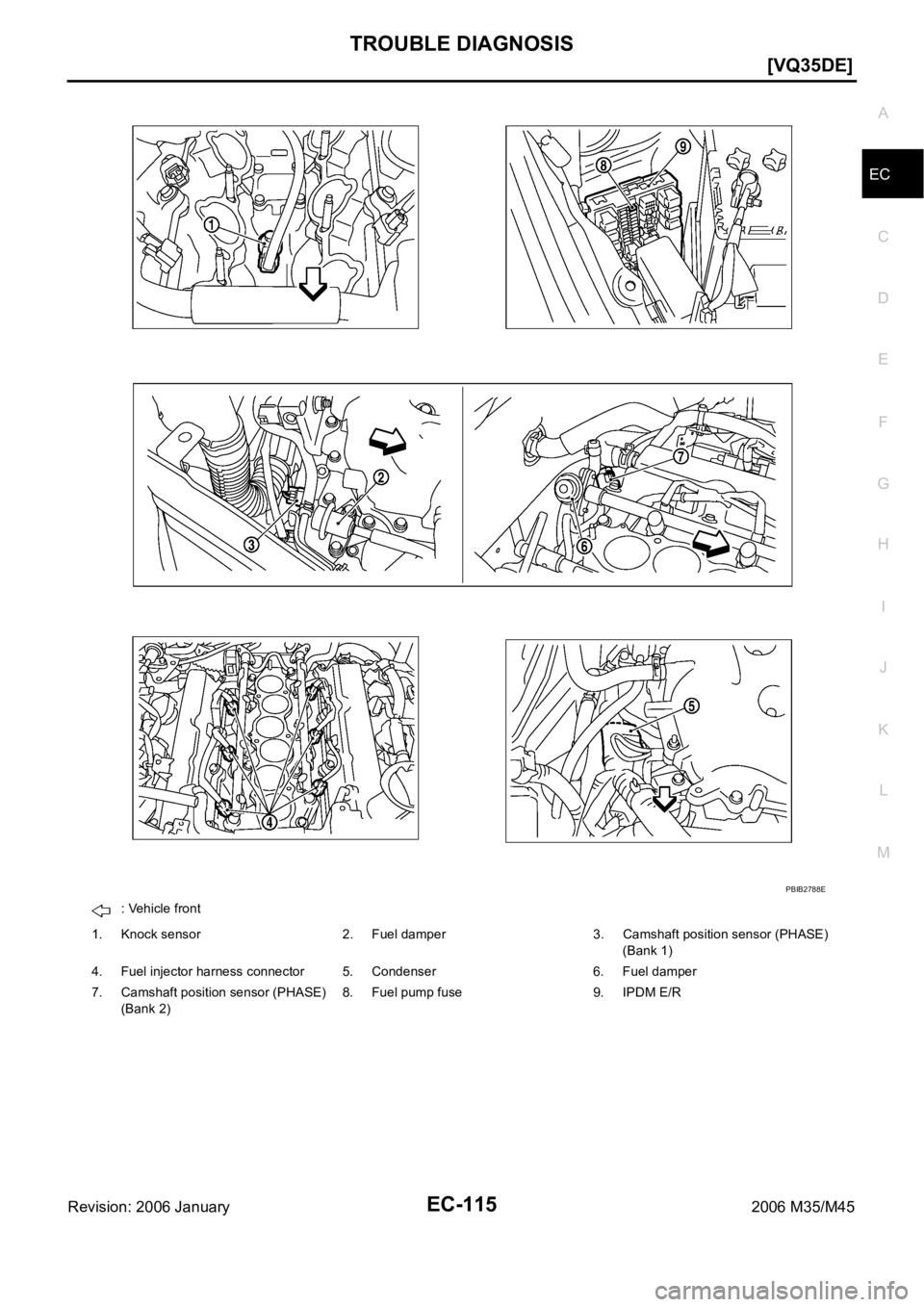

1. Knock sensor 2. Fuel damper 3. Camshaft position sensor (PHASE)
(Bank 1)
4. Fuel injector harness connector 5. Condenser 6. Fuel damper
7. Camshaft position sensor (PHASE)
(Bank 2)8. Fuel pump fuse 9. IPDM E/R
PBIB2788E

EC-126
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
12 R/GPower steering pressure
sensor[Engine is running]Steering wheel: Being turned0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned0.4 - 0.8V
13 WCrankshaft position sensor
(POS)[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 2.0V
[Engine is running]
Engine speed: 2,000 rpm1.0 - 2.0V
14 LCamshaft position sensor
(PHASE) (bank 2)[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]
Engine speed: 2,000 rpm1.0 - 4.0V
15 W Knock sensor[Engine is running]
Idle speedApproximately 2.5V
16 G/W
A/F sensor 1 (bank 1)[Engine is running]
Warm-up condition
Idle speedApproximately 3.1V
35 BR/WApproximately 2.6V
56 GApproximately 2.3V
75 GRApproximately 2.3V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E

EC-128
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
33 LGCamshaft position sensor
(PHASE) (bank 1)[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]
Engine speed is 2,000 rpm1.0 - 4.0V
34 Y/GIntake air temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
38 G/RFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]
Warm-up condition
Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]
Warm-up condition
Idle speed8 - 12V
45 VEVAP canister purge vol-
ume control solenoid valve[Engine is running]
Idle speed
Accelerator pedal: Not depressed even
slightly, after engine startingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)BATTERY VOLTAGE
(11 - 14V)
47 LSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
48 L/BSensor power supply
(EVAP control system pres-
sure sensor)[Ignition switch: ON]Approximately 5V
49 B/YSensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)[Ignition switch: ON]Approximately 5V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB1039E
PBIB1040E
SEC990C
SEC991C

EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUP-
PORTSELF-DIAGNOS-
TIC RESULTS
DATA
MONI-
TORDATA
MONI-
TOR
(SPEC)ACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT
STATUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)
Camshaft position sensor
(PHASE)
Mass air flow sensor
Engine coolant temperature sen-
sor
Air fuel ratio (A/F) sensor 1
Heated oxygen sensor 2
Wheel sensor
Accelerator pedal position sensor
Throttle position sensor
Fuel tank temperature sensor
EVAP control system pressure
sensor
Intake air temperature sensor
Knock sensor
Refrigerant pressure sensor
Closed throttle position switch
(accelerator pedal position sensor
signal)
Air conditioner switch
Park/neutral position (PNP) switch
Stop lamp switch
Power steering pressure sensor
Battery voltage
Load signal
Fuel level sensor
Battery current sensor
ICC steering switch
ASCD steering switch
ICC brake switch
ASCD brake switch
