CLIMATE CONTROLLED SEAT
SE-137
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

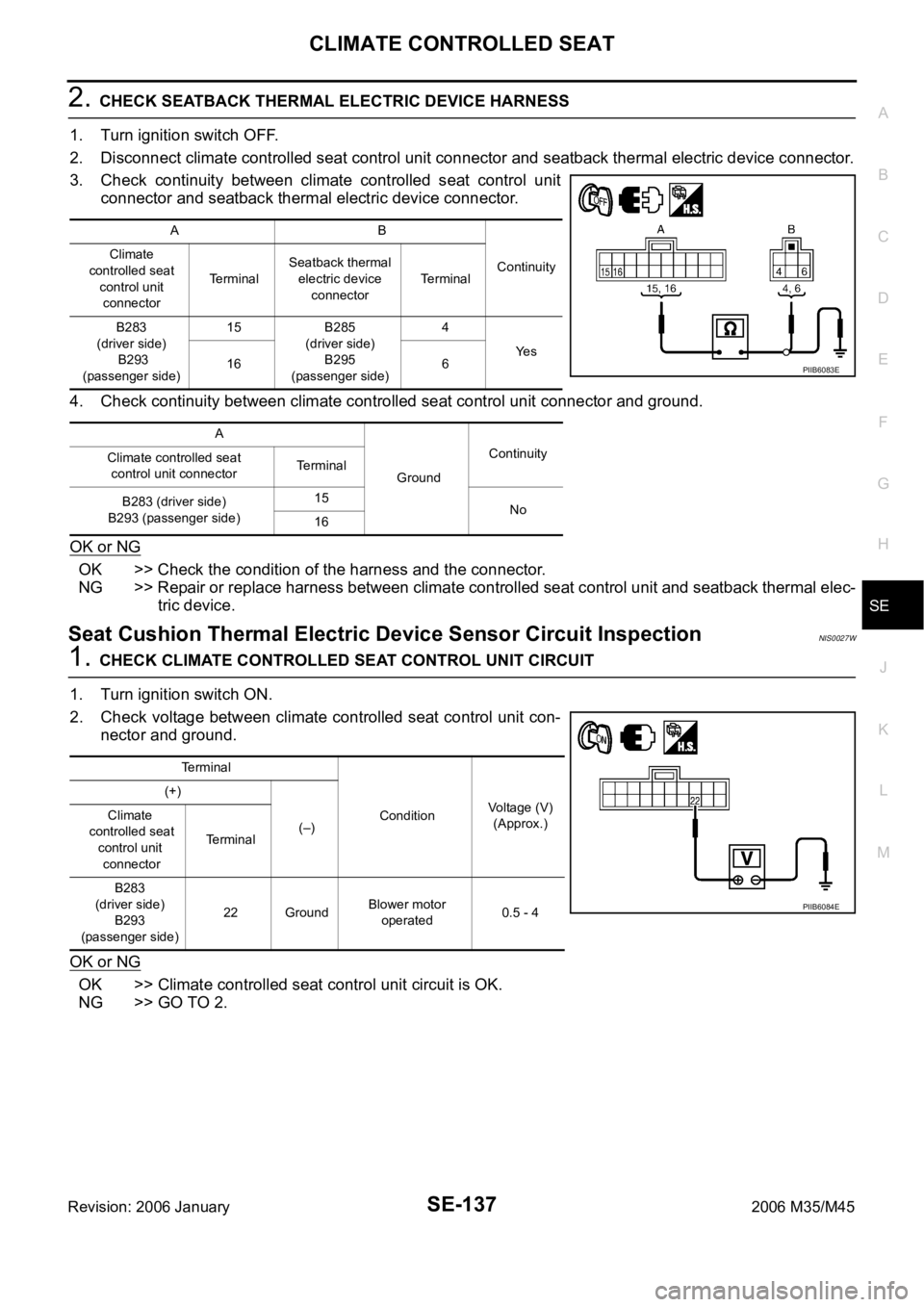

2. CHECK SEATBACK THERMAL ELECTRIC DEVICE HARNESS
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat control unit connector and seatback thermal electric device connector.
3. Check continuity between climate controlled seat control unit
connector and seatback thermal electric device connector.
4. Check continuity between climate controlled seat control unit connector and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between climate controlled seat control unit and seatback thermal elec-
tric device.
Seat Cushion Thermal Electric Device Sensor Circuit InspectionNIS0027W
1. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between climate controlled seat control unit con-
nector and ground.
OK or NG
OK >> Climate controlled seat control unit circuit is OK.
NG >> GO TO 2.
AB
Continuity Climate
controlled seat
control unit
connectorTerminalSeatback thermal
electric device
connectorTerminal
B283
(driver side)
B293
(passenger side)15 B285
(driver side)
B295
(passenger side)4
Ye s
16 6
A
GroundContinuity
Climate controlled seat
control unit connectorTerminal
B283 (driver side)
B293 (passenger side)15
No
16
PIIB6083E
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Climate
controlled seat
control unit
connectorTe r m i n a l
B283
(driver side)
B293
(passenger side)22 GroundBlower motor
operated0.5 - 4
PIIB6084E

SE-138
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45

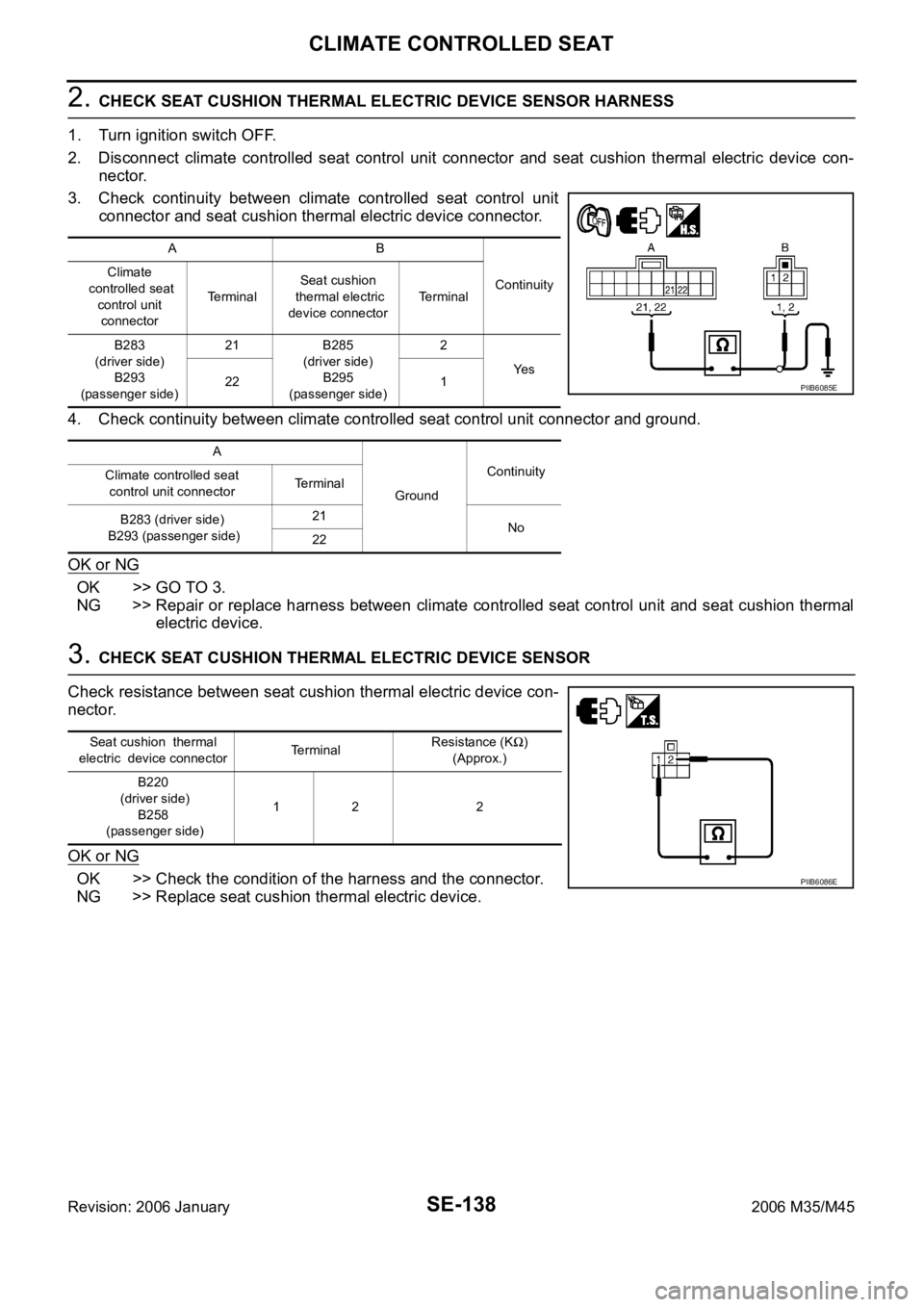

2. CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE SENSOR HARNESS
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat control unit connector and seat cushion thermal electric device con-
nector.
3. Check continuity between climate controlled seat control unit
connector and seat cushion thermal electric device connector.
4. Check continuity between climate controlled seat control unit connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between climate controlled seat control unit and seat cushion thermal
electric device.
3. CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE SENSOR
Check resistance between seat cushion thermal electric device con-
nector.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace seat cushion thermal electric device.
AB
Continuity Climate
controlled seat
control unit
connectorTe r m i n a lSeat cushion
thermal electric
device connectorTerminal
B283
(driver side)
B293
(passenger side)21 B285
(driver side)
B295
(passenger side)2
Ye s
22 1
A
GroundContinuity
Climate controlled seat
control unit connectorTerminal
B283 (driver side)
B293 (passenger side)21
No
22
PIIB6085E
Seat cushion thermal
electric device connectorTerminal Resistance (K)
(Approx.)
B220
(driver side)
B258
(passenger side)12 2
PIIB6086E

CLIMATE CONTROLLED SEAT
SE-139
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

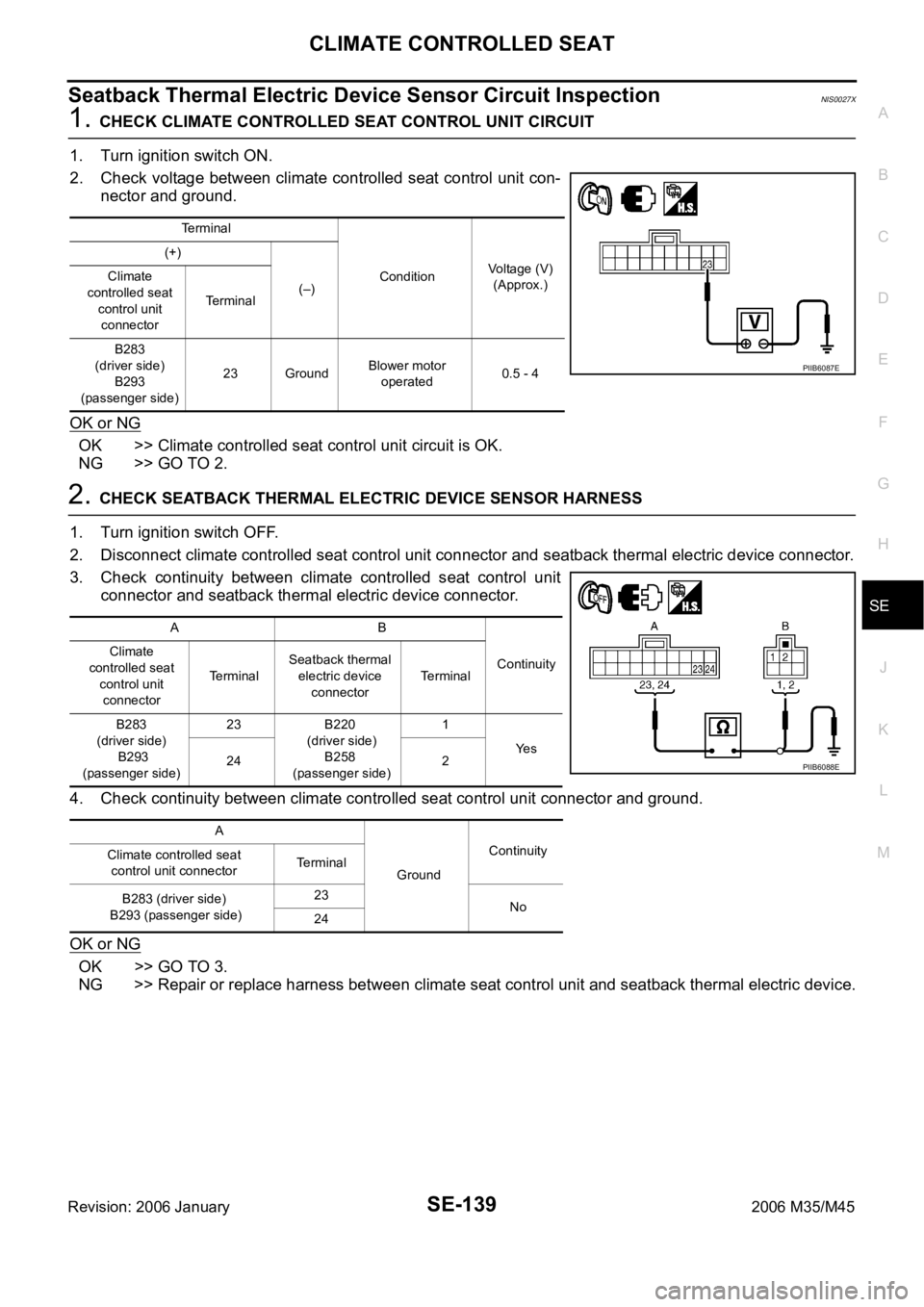

Seatback Thermal Electric Device Sensor Circuit InspectionNIS0027X
1. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between climate controlled seat control unit con-
nector and ground.
OK or NG
OK >> Climate controlled seat control unit circuit is OK.
NG >> GO TO 2.
2. CHECK SEATBACK THERMAL ELECTRIC DEVICE SENSOR HARNESS
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat control unit connector and seatback thermal electric device connector.
3. Check continuity between climate controlled seat control unit
connector and seatback thermal electric device connector.
4. Check continuity between climate controlled seat control unit connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between climate seat control unit and seatback thermal electric device.
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Climate
controlled seat
control unit
connectorTe r m i n a l
B283
(driver side)
B293
(passenger side)23 GroundBlower motor
operated0.5 - 4
PIIB6087E
AB
Continuity Climate
controlled seat
control unit
connectorTerminalSeatback thermal
electric device
connectorTerminal
B283
(driver side)
B293
(passenger side)23 B220
(driver side)
B258
(passenger side)1
Ye s
24 2
A
GroundContinuity
Climate controlled seat
control unit connectorTerminal
B283 (driver side)
B293 (passenger side)23
No
24
PIIB6088E

SE-140
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
3. CHECK SEATBACK THERMAL ELECTRIC DEVICE SENSOR
Check resistance between seatback thermal electric device connec-
tor.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace seatback thermal electric device.
Climate Controlled Seat Blower Motor Circuit InspectionNIS0027Y
1. CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect climate controlled seat control unit and climate controlled seat blower motor connector.
3. Check continuity between climate controlled seat control unit
connector and climate controlled seat blower motor connector.
4. Check continuity between climate controlled seat control unit connector and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between climate controlled seat control unit and climate controlled seat
blower motor.
Seatback thermal electric
device connectorTe r m i n a l Resistance
(K)
(Approx.)
B220
(driver side)
B258
(passenger side)12 2
PIIB6086E
AB
Continuity Climate
controlled seat
control unit
connectorTe r m i n a lClimate controlled
seat blower motor
connectorTerminal
B283
(driver side)
B293
(passenger side)7
B282
(driver side)
B292
(passenger side)3
Ye s 14 2
17 4
18 1
A
GroundContinuity
Climate controlled seat
control unit connectorTerminal
B283
(driver side)
B293
(passenger side)7
No 14
17
18
PIIB6089E

SRS-1
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SRS
A
B
SRS
Revision: 2006 January2006 M35/M45
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
Occupant Classification System Precaution ............ 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ..............................................
..... 5
Front Seat Belt Pre-Tensioner with Load Limiter ...... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag ................................................. 6
Occupant Classification System (OCS) ................... 7
Passenger Air Bag Status Condition ........................ 7
Component Parts of Occupant Classification Sys-
tem ........................................................................... 7
TROUBLE DIAGNOSIS .............................................. 8
Trouble Diagnosis Introduction ................................. 8
DIAGNOSIS FUNCTION ....................................... 8
HOW TO PERFORM TROUBLE DIAGNOSIS
FOR QUICK AND ACCURATE REPAIR ............... 8
WORK FLOW ........................................................ 9
Component Parts Location ..................................... 10
Schematic ............................................................... 11
Wiring Diagram — SRS — ..................................... 12
CONSULT-II Function ............................................ 17
DIAGNOSIS MODE FOR CONSULT-II ............... 17
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II .............................................. 17
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 18
Self-Diagnosis Function (Without CONSULT-II) ..... 18
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II ...................................... 18
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 18
SRS Operation Check ............................................ 19
DIAGNOSTIC PROCEDURE 1 ........................... 19Trouble Diagnosis with CONSULT-II ...................... 21
DIAGNOSTIC PROCEDURE 2 ........................... 21
DIAGNOSTIC PROCEDURE 3 ........................... 25
DIAGNOSTIC PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 2) .............. 27
DIAGNOSTIC PROCEDURE 5 ........................... 27
Trouble Diagnosis without CONSULT-II ................. 32
DIAGNOSTIC PROCEDURE 6 ........................... 32
WARNING LAMP FLASH CODE CHART ........... 32
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ......................................................... 36
DIAGNOSTIC PROCEDURE 7 ........................... 36
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................... 37
DIAGNOSTIC PROCEDURE 8 ........................... 37
DRIVER AIR BAG MODULE .................................... 38
Removal and Installation ........................................ 38
REMOVAL ........................................................
... 38
INSTALLATION ................................................... 39
SPIRAL CABLE ........................................................ 40
Removal and Installation ........................................ 40
REMOVAL ........................................................
... 40
INSTALLATION ................................................... 40
FRONT PASSENGER AIR BAG MODULE .............. 42
Removal and Installation ........................................ 42
REMOVAL ........................................................
... 42
INSTALLATION ................................................... 42
SIDE CURTAIN AIR BAG MODULE ........................ 43
Removal and Installation ........................................ 43
REMOVAL ........................................................
... 43
INSTALLATION ................................................... 44
CRASH ZONE SENSOR ........................................... 45
Removal and Installation ........................................ 45
REMOVAL ........................................................
... 45
INSTALLATION ................................................... 45
SIDE AIR BAG (SATELLITE) SENSOR ................... 46
Removal and Installation ........................................ 46
REMOVAL ........................................................
... 46
INSTALLATION ................................................... 46

SRS-2Revision: 2006 January2006 M35/M45 FRONT SEAT BELT PRE-TENSIONER ................... 47
Removal and Installation ........................................ 47
DIAGNOSIS SENSOR UNIT ..................................... 48
Removal and Installation ........................................ 48
REMOVAL ........................................................
... 48
INSTALLATION .................................................... 48
ECU DISCRIMINATED NO. ................................. 48
OCCUPANT CLASSIFICATION SYSTEM CON-
TROL UNIT ................................................................ 49
Removal and Installation ........................................ 49COLLISION DIAGNOSIS .......................................... 50
For Frontal Collision ................................................ 50
SRS INSPECTION (FOR FRONTAL COLLI-
SION) ................................................................... 50
For Side Collision .................................................... 52
WHEN THE SIDE AIR BAG IS ACTIVATED IN
THE SIDE COLLISION: ....................................... 52
WHEN SRS IS NOT ACTIVATED IN THE SIDE
COLLISION: ......................................................... 52
SRS INSPECTION (FOR SIDE COLLISION) ...... 52

PRECAUTIONS
SRS-3
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 January2006 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NHS0008O
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NING :
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” ServiceNHS0008P
Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.
Diagnosis sensor unit must always be installed with their arrow marks “” pointing towards the front of the
vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.
The spiral cable must be aligned with the neutral position since its rotations are limited. Do not turn steer-
ing wheel and column after removal of steering gear.
Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and seat mounted front side air bag module standing with the stud bolt side facing
down.
Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Always replace instrument panel pad following front passenger air bag deployment.
Occupant Classification System PrecautionNHS0008Q
Replace occupant classification system control unit and passenger front seat cushion as an assembly.
Refer to SE-165, "
Passenger's Seat Components" .

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
SRS-5
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 January2006 M35/M45
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)PFP:28556
SRS ConfigurationNHS0008S
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ON or START posi-
tion.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module and front passenger air bag module are activated in a frontal col-
lision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows;
PHIA1120E
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag module
——
Front passenger air bag module
——
Front LH seat belt pre-tensioner
——
Front RH seat belt pre-tensioner
——
Front LH side air bag module —
—
Front RH side air bag module — —
LH side curtain air bag module ——
RH side curtain air bag module — —
