SERVICE INFORMATION FOR ELECTRICAL INCIDENT GI-29
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.
CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

CONSULT-II CHECKING SYSTEM GI-39
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
2. If necessary, turn on the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or “System Shortcut” (eg: ENGINE) on the screen.
4. Touch necessary system on "SELECT SYSTEM" screen. If necessary system is not indicated, check power supply and
ground of system control unit. If it is normal, refer to GI-39,
"CONSULT-II Data Link Connector (DLC) Circuit" .
5. Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.
CONSULT-II Data Link Connector (DLC) CircuitNAS0006O
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.
SAIA0450E
BCIA0030E
BCIA0031E
Symptom Check item
CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication line. Refer to LAN-3, "Precautions When Using CON-
SULT-II" .

GI-40
CONSULT-II CHECKING SYSTEM
Revision: 2006 December 2006 FX35/FX45

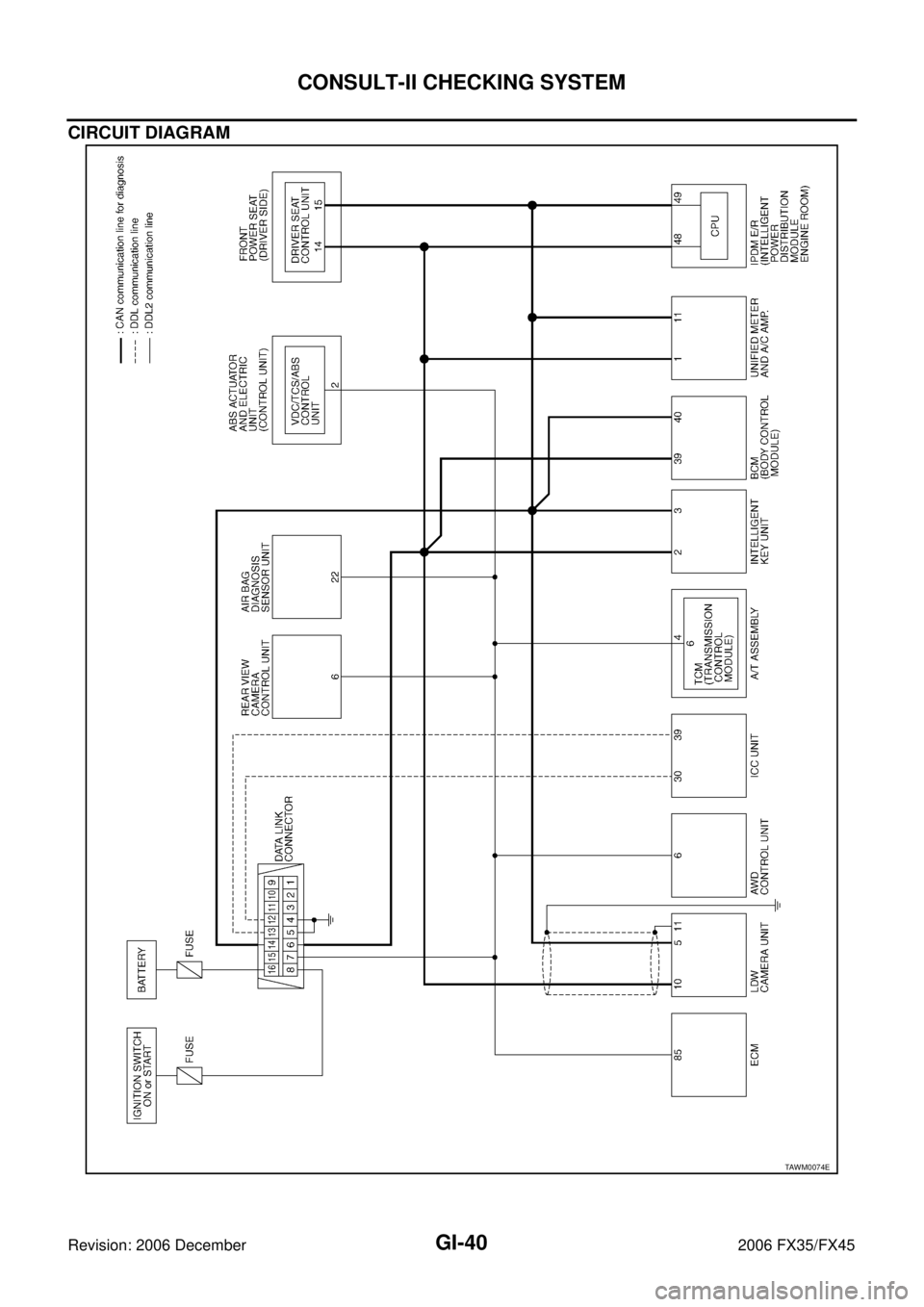

CIRCUIT DIAGRAM
TAWM0074E

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION GW
A
B
GW
Revision: 2006 December 2006 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Handling for Adhesive and Primer ...................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
WINDSHIELD GLASS ........................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ ... 12
BACK DOOR WINDOW GLASS ........................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
POWER WINDOW SYSTEM ................................. ... 15
Component Parts and Harness Connector Location ... 15
System Description ............................................. ... 16
MANUAL OPERATION .................................... ... 16
AUTO OPERATION ......................................... ... 18 POWER WINDOW SERIAL LINK ....................
... 19
POWER WINDOW LOCK ................................ ... 19
RETAINED POWER OPERATION ................... ... 19
ANTI-PINCH SYSTEM ..................................... ... 19
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................ ... 19
CAN Communication System Description ........... ... 20
CAN Communication Unit .................................... ... 20
Schematic ............................................................ ... 21
Wiring Diagram — WINDOW — .......................... ... 22
Terminal and Reference Value for BCM .............. ... 26
Terminal and Reference Value for Power Window
Main Switch ......................................................... ... 27
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) .............................. ... 28
CONSULT-II Function (BCM) .............................. ... 29
CONSULT-II OPERATION ................................ ... 29
ACTIVE TEST .................................................. ... 29
WORK SUPPORT ............................................ ... 29
DATE MONITOR .............................................. ... 29
Work Flow ............................................................ ... 30
Trouble Diagnosis Symptom Chart ...................... ... 30
Check BCM Power Supply and Ground Circuit ... ... 32
Check Power Window Main Switch Power Supply
Circuit .................................................................. ... 33
Check Front Power Window Switch (Passenger
Side) Power Supply and Ground Circuit .............. ... 34
Check Front Power Window Motor (Driver Side) Cir-
cuit ....................................................................... ... 35
Check Front Power Window Motor (Passenger
Side) Circuit ......................................................... ... 36
Check rear Power Window Motor (LH) Circuit ..... ... 36
Check Rear Power Window Motor (RH) Circuit ... ... 39
Check Limit Switch Circuit (Driver Side) .............. ... 41
Check Limit Switch Circuit (Passenger Side) ...... ... 43
Check Encoder Circuit (Driver Side) .................... ... 44
Check Encoder Circuit (Passenger Side) ............ ... 46
Check Door Switch .............................................. ... 49
Check Front Door Key Cylinder Switch ............... ... 51

GW-2Revision: 2006 December 2006 FX35/FX45 Check Power Window Serial Link (Passenger Side)
... 53
Check Power Window Lock Switch ..................... ... 55
SIDE WINDOW GLASS ......................................... ... 56
Removal and Installation ..................................... ... 56
REMOVAL ........................................................ ... 56
INSTALLATION ................................................. ... 57
FRONT DOOR GLASS AND REGULATOR .......... ... 58
Removal and Installation ..................................... ... 58
DOOR GLASS .................................................. ... 58
REGULATOR ASSEMBLY ............................... ... 59
Disassembly and assembly ................................. ... 60
REGULATOR ASSEMBLY ............................... ... 60
Inspection after Installation .................................. ... 60
SETTING OF LIMIT SWITCH ........................... ... 60
FITTING INSPECTION ..................................... ... 60
REAR DOOR GLASS AND REGULATOR ............ ... 62
Removal and Installation ..................................... ... 62
DOOR GLASS .................................................. ... 62
REGULATOR ASSEMBLY ............................... ... 63
Disassembly and assembly ................................. ... 64
REGULATOR ASSEMBLY ............................... ... 64
Fitting Inspection ................................................. ... 64
INSIDE MIRROR .................................................... ... 65
Wiring Diagram — I/MIRR — ............................... ... 65
Removal and Installation ..................................... ... 66
REMOVAL ........................................................ ... 66
INSTALLATION ................................................. ... 66
COMPASS ........................................................ ... 66
REAR WINDOW DEFOGGER ............................... ... 67
Component Parts and Harness Connector Location ... 67
System Description .............................................. ... 67
CAN Communication System Description ........... ... 68
CAN Communication Unit .................................... ... 68 Schematic ............................................................
... 69
Wiring Diagram — DEF — ................................... ... 70
Terminal and Reference Value for BCM ............... ... 74
Terminal and Reference Value for IPDM E/R ....... ... 74
CONSULT-II Function (BCM) ............................... ... 75
CONSULT-II OPERATION ................................ ... 75
DATA MONITOR ............................................... ... 75
ACTIVE TEST ................................................... ... 75
Work Flow ............................................................ ... 76
Trouble Diagnoses Symptom Chart ..................... ... 76
Check BCM Power Supply and Ground Circuit ... ... 77
Check Rear Window Defogger Switch Circuit ...... ... 78
Check rear Window Defogger Power Supply Circuit ... 79
Check Rear Window Defogger Circuit ................. ... 81
Check Door Mirror Defogger Power Supply Circuit ... 82
Check Driver Side Door Mirror Defogger Circuit .. ... 84
Check Passenger Side Door Mirror Defogger Circuit ... 85
Check Rear Window Defogger Signal ................. ... 85
Check Filament .................................................... ... 87
Filament Repair .................................................... ... 87
REPAIR EQUIPMENT ...................................... ... 87
REPAIRING PROCEDURE .............................. ... 88
DOOR MIRROR ...................................................... ... 89
Wiring Diagram — MIRROR — ........................... ... 89
Trouble Diagnosis ................................................ ... 91
Removal and Installation ...................................... ... 92
REMOVAL ......................................................... ... 92
INSTALLATION ................................................. ... 92
Disassembly and Assembly ................................. ... 92
DISASSEMBLY ................................................. ... 92
ASSEMBLY ....................................................... ... 93

GW-22
POWER WINDOW SYSTEM
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — WINDOW —NIS001QU
TIWM1681E

INSIDE MIRROR GW-65
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 December 2006 FX35/FX45
INSIDE MIRRORPFP:96321
Wiring Diagram — I/MIRR —NIS001RY
TIWM1683E

GW-70
REAR WINDOW DEFOGGER
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — DEF — NIS001S5
TIWM1685E
