EM-252
[VK45DE]
CYLINDER BLOCK
Revision: 2006 December 2006 FX35/FX45
c. Push out piston pin with stick of outer diameter approximately 20 mm (0.8 in).
12. Remove rear oil seal retainer from cylinder block.
Insert screwdriver or similar tool between rear end of crankshaft counter weight and rear oil seal
retainer, and separate liquid gasket to remove.
CAUTION:
Be careful not to damage the mating surfaces.
13. Using screwdriver or similar tool, and lever off rear oil seal from rear oil seal retainer.
14. Remove main bearing cap as follows:
Before loosening main bearing cap bolts, measure the crankshaft end play. Refer to EM-265, "CRANK-
SHAFT END PLAY" .
Loosen main bearing cap bolts in several different steps.
a. Remove cover attached to the rear left side of cylinder block (next to the starter motor housing).
NOTE:
Bolts (No. 27 shown in the figure) are installed on the inside of
cover.
b. Loosen side bolts (M10) starting from 30 to 21 to remove.
c. Loosen main bearing cap sub bolts (M9) starting from 20 to 11 to remove.
d. Loosen main bearing cap bolts (M12) starting from 10 to 1 to remove.
e. Using main bearing cap remover (SST), remove main bearing cap.
15. Remove crankshaft.
16. Remove main bearings and thrust bearings from cylinder block and main bearing caps. CAUTION:
Identify installation positions, and store them without mixing them up.
EMM0072D
PBIC0090E
PBIC0091E
GI-4
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
Precautions for Procedures without Cowl Top CoverNAS0005Z
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
General PrecautionsNAS00060
Do not operate the engine for an extended period of time without
proper exhaust ventilation.
Keep the work area well ventilated and free of any flammable
materials. Special care should be taken when handling any flam-
mable or poisonous materials, such as gasoline, refrigerant gas,
etc. When working in a pit or other enclosed area, be sure to
properly ventilate the area before working with hazardous mate-
rials.
Do not smoke while working on the vehicle.
Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before working
on the vehicle.
These operations should be done on a level surface.
When removing a heavy component such as the engine or tran-
saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.
Before starting repairs which do not require battery power:
Turn off ignition switch.
Disconnect the negative battery terminal.
If the battery terminals are disconnected, recorded memory of
radio and each control unit is erased.
Battery posts, terminals and related accessories contain lead
and lead compounds. Wash hands after handling.
PIIB3706J
SGI285
SGI231
SEF289H
HOW TO USE THIS MANUAL GI-21
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 December 2006 FX35/FX45
Detectable Lines and Non-Detectable Lines
In some wiring diagrams, two kinds of lines, representing wires, with different weight are used.
A line with regular weight (wider line) represents a “detectable
line for DTC (Diagnostic Trouble Code)”. A “detectable line for
DTC” is a circuit in which ECM can detect its malfunctions with
the on board diagnostic system.
A line with less weight (thinner line) represents a “non-detect-
able line for DTC”. A “non-detectable line for DTC” is a circuit in
which ECM cannot detect its malfunctions with the on board
diagnostic system.
SGI862-B
LT-34
HEADLAMP - XENON TYPE -
Revision: 2006 December 2006 FX35/FX45
Aiming AdjustmentNKS002VS
PREPARATION BEFORE ADJUSTING
For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level ground.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
CAUTION:
Be sure aiming switch is set to “0” when performing aiming
adjustment.
2. Use adjusting screws to perform aiming adjustment.
PKIC9684E
PKIB3650E
LT-88
FRONT FOG LAMP
Revision: 2006 December 2006 FX35/FX45
Aiming AdjustmentNKS002X9
Front fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming
adjustment, make sure of the following.
Keep all tires inflated to correct pressure.
Place vehicle on level ground.
See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and
tools). Have the driver or equivalent weight placed in driver seat.
Adjust aiming in the vertical direction by turning adjusting screw.
1. Set the distance between the screen and the center of front fog lamp lens as shown at left.
2. Turn front fog lamps ON.
3. Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (3.94 in) below the height of
front fog lamp centers as shown at left.
When performing adjustment, if necessary, cover headlamps
and opposite front fog lamp.
PKIC9713E
PKIB1672E
PKIB1673E
OIL PUMP LU-19
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45

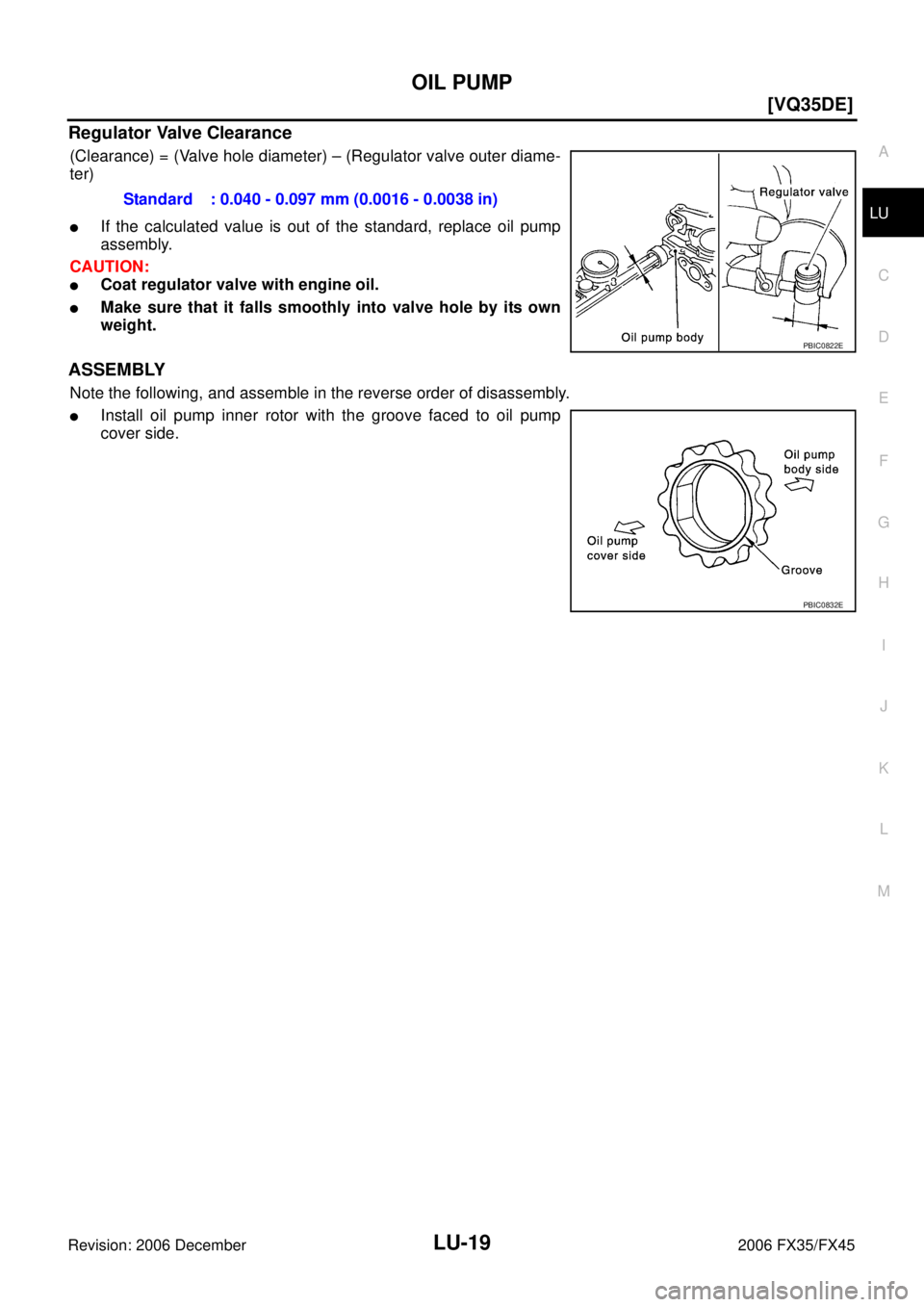

Regulator Valve Clearance
(Clearance) = (Valve hole diameter) – (Regulator valve outer diame-
ter)
If the calculated value is out of the standard, replace oil pump
assembly.
CAUTION:
Coat regulator valve with engine oil.
Make sure that it falls smoothly into valve hole by its own
weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor with the groove faced to oil pump
cover side. Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0822E
PBIC0832E
OIL PUMP LU-33
[VK45DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 December 2006 FX35/FX45
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position 6)
OIL PUMP INNER DIAMETER TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)
If the measured/calculated values are out of the standard, replace oil pump assembly.
Regulator Valve Clearance
(Clearance) = D1 (Valve hole diameter) – D2 (Regulator valve outer
diameter of valve)
If the calculated value is out of the standard, replace oil pump
assembly.
CAUTION:
Coat regulator valve with engine oil.
Make sure that it falls smoothly into regulator valve hole by
its own weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor and oil pump outer rotor with the
punched marks on the oil pump cover side.
PBIC0142E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0143E
PBIC0144E
MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D E
F
G H
I
J
K
M
SECTION MA
A
B
MA
Revision: 2006 December 2006 FX35/FX45
MAINTENANCE
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
GENERAL MAINTENANCE .................................. ..... 4
Explanation of General Maintenance .................. ..... 4
PERIODIC MAINTENANCE .................................. ..... 7
Introduction of Periodic Maintenance .................. ..... 7
Schedule 1 .......................................................... ..... 8
EMISSION CONTROL SYSTEM MAINTE-
NANCE ............................................................. ..... 8
CHASSIS AND BODY MAINTENANCE .......... ..... 9
Schedule 2 .......................................................... ... 10
EMISSION COMTROL SYSTEM MAINTE-
NANCE ............................................................. ... 10
CHASSIS AND BODY MAINTENANCE .......... .... 11
RECOMMENDED FLUIDS AND LUBRICANTS ... ... 12
Fluids and Lubricants .......................................... ... 12
SAE Viscosity Number ........................................ ... 13
GASOLINE ENGINE OIL ................................. ... 13
Anti-Freeze Coolant Mixture Ratio ...................... ... 13
ENGINE MAINTENANCE (VQ35DE ENGINE) ...... ... 14
Checking Drive Belts ........................................... ... 14
Drive Belts Tension Adjustment .......................... ... 14
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ..................................................... ... 15
A/C COMPRESSOR BELT .............................. ... 15
Changing Engine Coolant ................................... ... 15
DRAINING ENGINE COOLANT ...................... ... 15
REFILLING ENGINE COOLANT ..................... ... 16
FLUSHING COOLING SYSTEM ...................... ... 17
Checking Fuel Lines ............................................ ... 17
Changing Air Cleaner Filter ................................. ... 18
VISCOUS PAPER TYPE .................................. ... 18
Changing Engine Oil ........................................... ... 18
Changing Oil Filter .............................................. ... 19
REMOVAL ........................................................ ... 19
INSTALLATION ................................................ ... 19
INSPECTION AFTER INSTALLATION ............ ... 20
Changing Spark Plugs (Platinum-Tipped Type) .. ... 20
REMOVAL ........................................................ ... 20 INSPECTION AFTER REMOVAL ....................
... 20
INSTALLATION ................................................ ... 21
Checking EVAP Vapor Lines ............................... ... 21
ENGINE MAINTENANCE (VK45DE ENGINE) ...... ... 22
Checking Drive Belts ........................................... ... 22
Tension Adjustment ............................................. ... 22
Changing Engine Coolant .................................... ... 22
DRAINING ENGINE COOLANT ....................... ... 23
REFILLING ENGINE COOLANT ...................... ... 23
FLUSHING COOLING SYSTEM ...................... ... 24
Checking Fuel Lines ............................................ ... 25
Changing Air Cleaner Filter ................................. ... 25
VISCOUS PAPER TYPE .................................. ... 25
Changing Engine Oil ............................................ ... 25
Changing Oil Filter ............................................... ... 26
REMOVAL ........................................................ ... 26
INSTALLATION ................................................ ... 26
INSPECTION AFTER INSTALLATION ............. ... 27
Changing Spark Plugs (Platinum-Tipped Type) ... ... 27
REMOVAL ........................................................ ... 27
INSPECTION AFTER REMOVAL .................... ... 27
INSTALLATION ................................................ ... 28
Checking EVAP Vapor Lines ............................... ... 28
CHASSIS AND BODY MAINTENANCE ................ ... 29
Checking Exhaust System ................................... ... 29
Checking A/T Fluid .............................................. ... 29
Changing A/T Fluid .............................................. ... 31
Checking Transfer Fluid ...................................... ... 31
Changing Transfer Fluid ...................................... ... 32
Checking Propeller Shaft ..................................... ... 32
Checking Differential Gear Oil ............................. ... 32
Changing Differential Gear Oil ............................. ... 33
Balancing Wheels (Bonding Weight Type) .......... ... 33
REMOVAL ........................................................ ... 33
WHEEL BALANCE ADJUSTMENT .................. ... 33
Tire Rotation ........................................................ ... 35
Checking Brake Fluid Level and Leaks ............... ... 35
Checking Brake Lines and Cables ...................... ... 35
Changing Brake Fluid .......................................... ... 35
Checking Disc Brake ........................................... ... 36
