2006 Hyundai Sonata Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
29
HNF5027
9. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
HNF5023
4. Using a socket wrench of the correct size,
remove the headlight assembly mounting
bolts.
HNF5024
5. Disconnect the power cord from the back of
the headlight.
HNF5025
6. Turn the plastic cover counterclockwise
and remove it.
HNF5026
7. Disconnect the connector from the bulb base in
the back of the headlight.
8. Push the bulb spring to remove the headlight
bulb.

6
DO-IT-YOURSELF MAINTENANCE
30

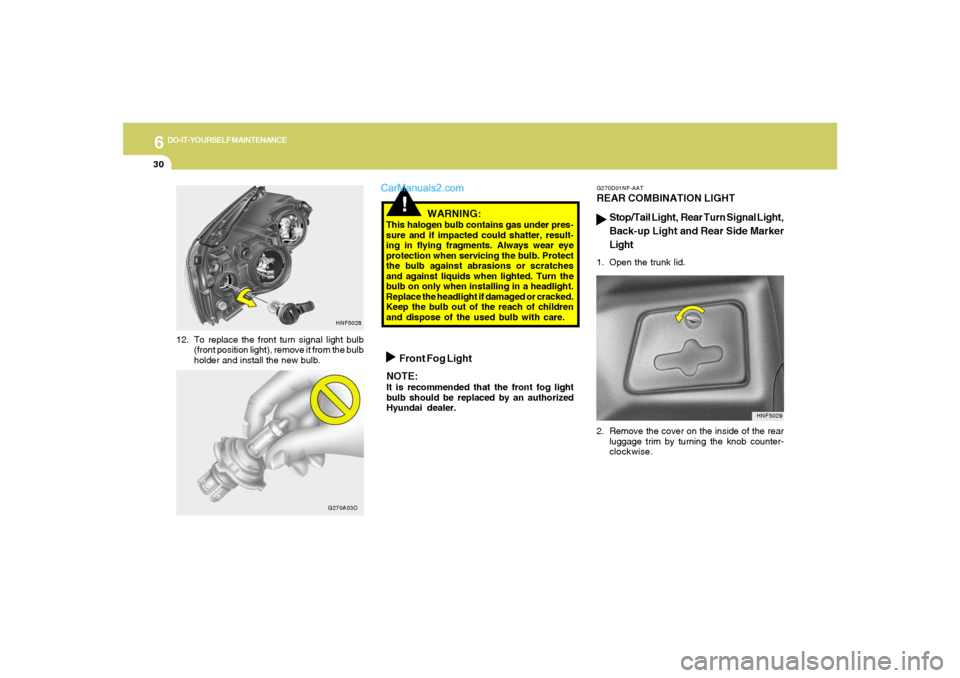

12. To replace the front turn signal light bulb
(front position light), remove it from the bulb
holder and install the new bulb.
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
HNF5028
G270A03O
Front Fog Light
NOTE:
It is recommended that the front fog light
bulb should be replaced by an authorized
Hyundai dealer.
G270D01NF-AATREAR COMBINATION LIGHT
Stop/Tail Light, Rear Turn Signal Light,
Back-up Light and Rear Side Marker
Light1. Open the trunk lid.
2. Remove the cover on the inside of the rear
luggage trim by turning the knob counter-
clockwise.
HNF5029

6
DO-IT-YOURSELF MAINTENANCE
31
3. To replace the rear combination light (stop/
tail light, rear side marker light and rear turn
signal light), remove it from the bulb holder
and install the new bulb.
(1) Stop/tail light
(2) Rear side marker light
(3) Rear turn signal light
HNF5030-A
HNF5042
4. Loosen the mounting screws of the trunk lid
trim with a phillips screwdriver and remove
the trunk lid trim.
5. To replace the rear combination light (back-
up light and stop/tail light), remove the socket
by turning it counterclockwise.
6. Install the new bulb.
G270C01L-AATLUGGAGE COMPARTMENT
LIGHT1. Open the trunk lid.
2. Remove the luggage compartment light cover
on the rear package tray panel with a flat-
head screwdriver.
HNF5031-A

6
DO-IT-YOURSELF MAINTENANCE
32
HNF5032
3. Disconnect the power cord.
HTB284
4. Replace with a new bulb.
G270G01L-AATINTERIOR LIGHT
HNF5034
1. Remove the plastic cover with a flat-head
screwdriver.
HNF5035
Screwdriver
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
33
G270K01L-AATGLOVE BOX ILLUMINATED LIGHT1. Open the glove box.
2. Remove the glove box illuminated light cover
with a flat-head screwdriver.
HNF5036
Screwdriver
G270G01NFG270G02NF G270L01L-AAT
MAP LIGHT1. Remove the plastic cover with a flat-head
screwdriver.2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
34
3. Disconnect the power cord.
HJM5039
HTB284
4. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
35
Socket Type
BAY 15d
w2.1 x 9.5d
BAY 15d
sv6-7, 6
BAY 15d
BAY15s
w2.1 x 9.5d
w2.1 x 9.5d No.
1
2
3
4
5
6
7Socket Type
P x 26d
P14,5s
BAY15d
w2.1 x 9.5d
sv6-7,6
PGJ13
BAY15d
w2.1 x 4.6d
BULB WATTAGESG280A01NF-AAT
G280A01NF-A
Part Name
Stop / Tail Light
High Mounted Rear Stop Light
Tail Light
Luggage Compartment Light
Rear Side Marker Light
Rear Turn Signal Light
Back-up Light
License Plate Light Part Name
Headlight
Front Turn Signal Light/Front Position Light
Map Light
Interior Light
Front Fog Light
Front Side Marker Light
Front Door Edge Warning LightNo.
8
9
10
11
12
13
14
15 Wattage
55
55
28/8
10
10
27
8
8
Low beam
High beam
Wattage
28/8
16
28/8
5
5
27
16
5

6
DO-IT-YOURSELF MAINTENANCE
36
FUSE PANEL DESCRIPTIONG200C01NF-AATEngine Compartment
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
HNF4005
