BEFORE DRIVING YOUR VEHICLE
3RUNNING-IN RECOMMEN- DATIONSBEFORE DRIVING YOUR VEHICLE SAFETY CHECKS
Drive range1st
2nd 3rd
4th 5th
!
B010A01P-GAT Be sure you know your vehicle and its equipment and how to use it safely. B010B01P-GAT Before entering the vehicle
o Check that windows, mirrors and lights are clean.
o Check if any tire is low or flat.
o Look for fluid leaks.
o Check that area is clear if you're about to back up.
B010C03P-GAT After entering the vehicle
o Lock all doors.
o The driver and passengers are wear- ing properly adjusted seat belts.
o The head restraints are properly adjusted, if so equipped.
o Adjust inside and outside mirrors.
o Check warning lights for correct
operation, with the ignition key in the position "ON".
o Check all gauges, for normal opera- tion. WARNING: (Diesel only)
To ensure that sufficient vacuum exists within the brake system dur-ing cold weather start-up condi- tions, it is necessary to run the engine at idle after starting the en-gine. NOTE: Fluid levels, such as engine oil, engine coolant, brake fluid, and windshield washer fluid, should be checked daily and/or weekly, orwhenever you refuel. Further details are described in the "CONSUMER INFORMATION" sec-tion. B020A01P-GAT During the running-in period for the first 1,000km(600miles), it is advisable to drive your new vehicle using the following precautions as a guideline toaid long life as well as future economy and performance.
1. Do not race the engine at high
speeds.
2. Avoid rapid starting, acceleration,
braking and prolonged high-speedrunning.
3. Keep to the running-in speed limit
shown below.
Please note that the legal speed limitsdisplayed must be adhered to.
4. Do not exceed loading limits.
5. Refrain from towing a trailer.
km/h (mph)
Running-in speed 0~25(0~16)
20~50(13~31) 30~80(19~50)
40~(25~) 50~(32~)

1BEFORE DRIVING YOUR VEHICLE
4
B030A01P-GAT BEFORE OPERATION PRECAUTIONS FOR NEWVEHICLE The performance and life of a vehicle depend largely on how the vehicle is handled when new.To maintain the parts smoothly and sustain high performance for a long time to come, be sure to observe thefollowing points. Make sure that your vehicle does not miss the first 5,000 km inspec- tions. After the first 5,000 km of driving, take your vehicle to your nearest service shop for inspection. B040A01P-GAT OPERATION IN FOREIGN COUN- TRIES If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
!
B055A02P-GAT LOADING YOUR VEHICLE Never load the luggage and people to exceed GVWR(MLW) and GAWR ofyour vehicle. You can find the GVWR(MLW) and GAWR -maximum loading capacities-on the VIN plate. The GVWR(Gross Vehicle Weight Rating) or MLW(Maximum LoadedWeight) means total weight of the ve- hicle, all occupants, fuel and cargo. And GAWR means the maximumweights that the front and rear axles can endure the weights including ve- hicle itself weight.
WARNING:
Improperly loading your car canseriously affect its steering and braking performance causing a crash in which you may be seri-ously injured or killed. NOTE: Your warranty does not cover parts or components that fail because of overloading.

1
BEFORE DRIVING YOUR VEHICLE
5
B070A01P-GAT MAINTENANCE It is necessary to maintain your vehicle in top operating condition in order to enjoy safe and pleasant driving.Some maintenance items can be done by the owner (Consumer information), while others should be done only by anauthorized dealer (periodic inspection and maintenance). For the maintenance items to be doneby the owner, prepare the appropriate materials and tools and follow the pro- cedures given in the "Consumer infor- mation" section of this manual. However, the periodic inspection andmaintenance should not be attempted by the owner, but should be done by an authorized HYUNDAI dealer.Correct performance of the periodic inspection and maintenance items re- quires specialized knowledge andequipment. Having these items performed by an authorized HYUNDAI dealer with thelatest technology and equipment will ensure that your vehicle is maintained for optimum performance, economy,and safety. In addition, having all periodic inspec-tion and maintenance done by an au-thorized HYUNDAI dealer is a prereq- uisite for validity of the warranty on your vehicle in the event of a claim.Refer to the separate "Service Book- let" for the periodic inspection and maintenance items and intervals. B080A01P-GAT INSTALLATION OF ACCESSO- RIES Consult an authorized HYUNDAI dealer when installing accessories.
o Installation of some accessories
may be restricted by regulations.
o Improper installation of electrical
parts could cause fire.
o Never use tires or wheels which do not meet specifications. For wheel and tire sizes, refer to the"CONSUMER INFORMATION" section of this manual.
VEHICLE IDENTIFICATION NUMBER (VIN)
B050A02P-GAT The vehicle identification plate is at- tached on the fender inner panel asshown in the illustration. The vehicle identification number (VIN) is the num- ber used in registering your car and inall legal matters pertaining to its own- ership, etc. HSRFL049

1BEFORE DRIVING YOUR VEHICLE
6
HSRFL051
HSR008
The vehicle identification number is stamped as shown in the illustration.Please use this number when ordering replacement parts. Minibus/Van
Truck B060A01P-GAT ENGINE NUMBER Diesel Engine
The engine number is stamped on the engine cylinder block as shown in the illustration.
B060A01P
B060B01P
2.5 4D56
B060C01P
2.5 CRDi
2.6 N/A
Gasoline Engine
B060D01P
2.4 DOHC

1
BEFORE DRIVING YOUR VEHICLE
7
B880B01HP-1
IMMOBILIZER SYSTEMKEYS
B030A01A-AAT
For greater convenience, the same key operates all the locks in your Hyundai.However, because the doors can be locked without a key, carrying a spare key is recommended in case you acci-dentally lock one key inside the car. B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keysto your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in thevehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number.
B030A01E
B030B01EB880A01P-GAT (Minibus/Van) (If installed) The immobilizer system is an anti-theft device, designed to prevent and deterautomobile theft. B880B02P-GAT Keys
Without Theft-alarm system
LightPurple
Black Master key
ID key

1BEFORE DRIVING YOUR VEHICLE
8
All of the locks fitted to the vehicle are operated by the same key. However,since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the keydoes not become locked inside the vehicle by mistake. For greater convenience, your Hyundaihas two types of keys as shown in the illustration. ID key This key must be used first to register a unique ID code in the ICU. This IDcode is then recorded onto the master keys. Both sides of the key has a Hyundai logo.With Theft-alarm system
ID key B880B01P-1 B880C01A-GAT Key Numbers The vehicle key number is recorded on a metal tag attached to the keys when the vehicle is first delivered to you.Without Theft-alarm system
With Theft-alarm system
Master key This key is for general use. It will open all locks on your vehicle.One side of the key has the Hyundai logo and the other side has the "M" symbol.If your vehicle is equipped with Theft- alarm system, the master keys with the function of transmitter will be pro-vided. (E.C only) NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine.
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID key in a place where you remember andrecord your password. If you don't have both the password and ID key, consult your authorized Hyundaidealer.
! B880C01HP-1
B880C01P-1
Master key

1
BEFORE DRIVING YOUR VEHICLE
9
The key number should be recorded and kept in a safe place in case theneed to order further keys arise. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after delivery. In addition, key numbers cannot be provided byHyundai for security reasons. If you need additional keys or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number and ID key. B880D02E-GAT Limp home procedures
1. To set the password, you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num- bers. For example, turn the ignition key once for digit number "1", andtwice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number
of digits by following the same pro- cedures 1 and 2.
4. If all of four digits have been tried
successfully, from this time, youhave to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine willnot start.
NOTE: If the engine dies while driving after limp home procedure, you can startyour engine within 8 seconds in condition of ignition OFF without limp home procedure again. After doing the limp home procedure, you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
B880D02P
In case the immobilizer system is out of order, you cannot start the enginewithout the limp home procedures with ignition key. The following procedure is how to startthe engine with the function of the limp home. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.

1BEFORE DRIVING YOUR VEHICLE
10
!

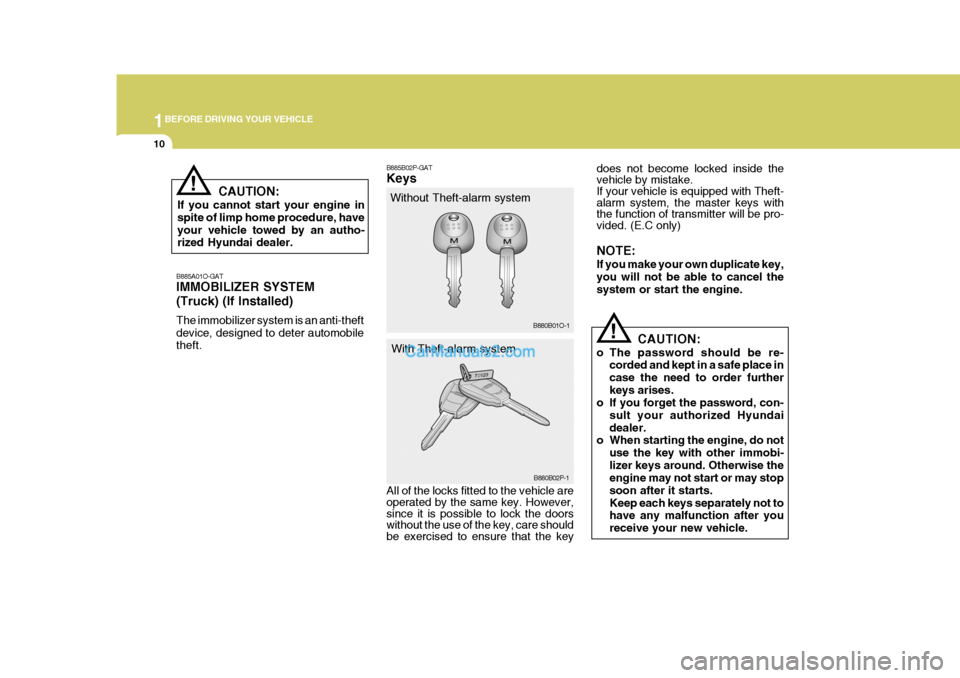

B885A01O-GAT IMMOBILIZER SYSTEM (Truck) (If Installed) The immobilizer system is an anti-theft device, designed to deter automobile theft. B885B02P-GAT Keys
Without Theft-alarm system
B880B01O-1
With Theft-alarm system
!
B880B02P-1 CAUTION:
o The password should be re- corded and kept in a safe place in case the need to order furtherkeys arises.
o If you forget the password, con-
sult your authorized Hyundaidealer.
o When starting the engine, do not
use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stop soon after it starts.Keep each keys separately not to have any malfunction after you receive your new vehicle.
CAUTION:
If you cannot start your engine inspite of limp home procedure, haveyour vehicle towed by an autho- rized Hyundai dealer.
All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside thevehicle by mistake.If your vehicle is equipped with Theft- alarm system, the master keys with the function of transmitter will be pro-vided. (E.C only) NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.
