2006 Hyundai Azera Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
28
3. To replace the turn signal light and side
marker light, remove it from the bulb
holder and install the new bulb.
(1) Turn signal light
(2) Side marker light
G270D03TG-A
Turn Signal Light/Side Marker
Light
1. Open the trunk lid.2. Remove the cover on the inside of rear
luggage trim by turning the knob coun-
terclockwise.
G270D02TG-A
G270D01TG-AATREAR COMBINATION LIGHT
Stop/Tail Light
NOTE:The stop/tail light should be replaced by
an authorized Hyundai dealer because
the light is LED (Light Emitting Diode)
type.
Turn signal lightSide marker
light
G270D01TG-A
Stop/Tail light
Stop/Tail light
Back-up light

6
DO-IT-YOURSELF MAINTENANCE
29
3. To replace the back-up light, remove
the socket by turning it counterclock-
wise.
4. Install the new bulb.
HTG5030
G270C01TG-AATLUGGAGE COMPARTMENT LIGHT1. Open the trunk lid.
2. Remove the luggage compartment light
cover by pushing the knob.
G270C01TG-A
HTG5042
2. Loosen the mounting screws of the trunk
lid trim with a phillips screwdriver and
remove the trunk lid trim.
Back-up Light
1. Open the trunk lid.

6
DO-IT-YOURSELF MAINTENANCE
30
G270L01TG
G270L02TG G270L01L-AAT

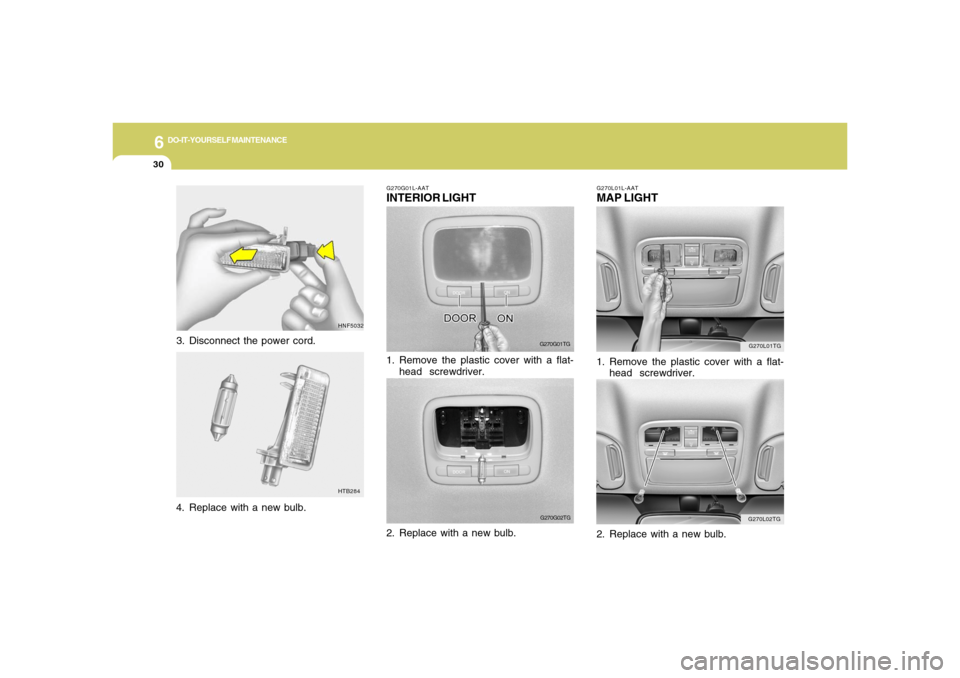

MAP LIGHT1. Remove the plastic cover with a flat-
head screwdriver.
2. Replace with a new bulb.
G270G01L-AATINTERIOR LIGHT
G270G01TG
1. Remove the plastic cover with a flat-
head screwdriver.
G270G02TG
2. Replace with a new bulb.
HNF5032
3. Disconnect the power cord.
HTB284
4. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
31
G270K02TG
G270K01TG-AATGLOVE BOX ILLUMINATED LIGHT1. Open the glove box.
2. Remove the glove box illuminated light
cover with a flat-head screwdriver.
G270K01TG
3. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
32
BULB WATTAGESG280A01TG-AAT
G280A01TG-A
Socket Type
P14,5s
PX26d
BAY15d
W2.1X9.5d
S8.5
BA9s
PGJ19-1
BAY15d
LED TypePart Name
Door Edge Warning Light
Stop/Tail Light (Outside)
Stop/Tail Light (Inside)
High Mounted Rear Stop Light
Luggage Compartment Light
Rear Side Marker Light
Rear Turn Signal Light
Back-up Light
License Plate Light Part Name
Headlight
Front Turn Signal Light/
Front Position Light
Front Map Light
Interior Light
Rear Map Light
Front Fog Light
Front Side Marker Light
Side Repeater Light (If Installed) No.
1
2
3
4
5
6
7
8No.
9
10
11
12
13
14
15
16
17 Wattage
55
55
28/8
10
10
10
35
8
0.75Wattage
5
2.4/0.4
2.4/0.4
1
5
5
27
16
5Socket Type
-
LED Type
LED Type
LED Type
S8.5
W2.1X9.5d
BA15s
W2.1X9.5d
W2.1X9.5d High Beam
Low Beam

6
DO-IT-YOURSELF MAINTENANCE
33
FUSE PANEL DESCRIPTIONG200C01TG-AATEngine Compartment
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you
inspect the fuse box on your vehicle, refer to the fuse box label.
HTG4005

6
DO-IT-YOURSELF MAINTENANCE
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
HORN
TAIL
ECU
IG1
DRL
FR FOG
A/CON
F/PUMP
DIODE
ATM
STOP
H/LP LO RH
S/ROOF
H/LP WASHER
H/LP HI
ECU (B+)
SNSR3
SNSR1
SNSR2
B/UP
IGN COIL
ECU (IG1)
H/LP LO
ABSPROTECTED COMPONENTS
ABS/ESC Control module, Multipurpose check connector
ABS/ESC Control module, Multipurpose check connector
Fuse(FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN)
Defogger relay
Blower relay
Fuse(P/WDW LH, P/WDW RH)
Start relay, Ignition switch(IG2, START)
Engine control unit relay
Fuse(KEY SOL, ECS/RR FOG), Power connector
Ignition switch(ACC, IG1)
Fusible link(ABS1, ABS2, RR HTD, BLOWER)
Horn relay
Tail light relay
PCM
(Spare)
Burglar alarm horn relay
Front fog light relay
A/C Relay
Fuel pump relay
(Spare)
ATM Control relay
Stop light switch
HID Relay
Overhead console lamp
Headlight washer motor
Headlight relay (HIGH)
PCM
Injector#1~#6, A/C Relay, Cooling fan relay
Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2, Variable intake manifold valve
Oxygen Sensor#1~#4
Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor
Ignition coil#1~#6, Condenser
PCM
Headlight relay(LOW)
ABS/ESC Control module, Multipurpose check connector
ABS1
ABS2
I/P (B+)1
RR HTD
BLOWER
P/WDW
IGN2
ECU RLY
I/P (B+)2
IGN1
ALTFUSE RATING
40A
20A
40A
40A
40A
40A
40A
30A
30A
30A
150A
15A
20A
10A
10A
15A
15A
10A
20A
-
20A
15A
15A
15A
20A
20A
10A
10A
15A
15A
10A
20A
10A
20A
10A
DESCRIPTION
FUSIBLE
LINK
FUSE

6
DO-IT-YOURSELF MAINTENANCE
35
G200E01TG-AATInner Panel
HTG4003-1
