2006 HONDA ODYSSEY Indicator

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or the LOCK
(0) position.The appropriate light comes on in
this display if the tailgate or any door
is not closed tightly.
All the lights in the monitor come on
f or a f ew seconds when you turn the
ignition switch to the ON (II)
position.
On the Touring model, you will also
see a ‘‘CHECK LEFT SLIDING
DOOR’’ or ‘‘CHECK RIGHT
SLIDING DOOR’’ message in the
multi-inf ormation display. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
133
146
On EX and EX-L models only
Instrument Panel Indicators
Immobilizer System
Indicator Door and T ailgate Open Monitor
Power Sliding
Door Indicator
Inst rument s and Cont rols
67
U.S. Canada

The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash.This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
When the indicator comes on, there
is about 1.93 U.S. gal (7.3
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
On Touring models, you will also see
a ‘‘FUEL LOW’’ message in the
multi-inf ormation display.
344
Instrument Panel Indicators
Turn Signal and
Hazard Warning
Indicators
Low Fuel Indicator
68
LOW FUEL
INDICATOR

This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
comes on (see page ).
On the Touring model, you will also
see a ‘‘WASHER FLUID LOW’’
message in the multi-inf ormation
display.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position with the headlight
switch of f and the parking brake set.
It should go of f if you turn on the
headlights or release the parking
brake. If it comes on at any other
time, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights.This indicator comes on when you
turn on the cruise control system by
pressing the master button (see page
).
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
This indicator comes on when you
turn on the fog lights. See page f or inf ormation on f og light
operation. On the Touring model, you will also
see a ‘‘CHECK DRL SYSTEM’’ in
the multi-information display.
127
129
127 269
269
339
Canadian models only
Canadian models only
Touring models only
Instrument Panel Indicators
Cruise Control Indicator
Washer Level Indicator Cruise Main Indicator
High Beam Indicator ‘‘Daytime Running
Lights’’ Indicator
Fog L ight Indicator
Inst rument s and Cont rols
69

This indicator comes on when there
is a system message in the multi-
inf ormation display. Press the INFO
button on the steering wheel to see
the message (see page ).
Most of the time, this indicator
comes on along with other indicators
in the instrument panel such as the
seat belt reminder indicator, SRS
indicator, VSA system indicator, etc.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
odometer/trip meter display. See
page f or more inf ormation on
the maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service. 79
321
On Touring model
On EX-L and Touring models On LX, EX and EX-L models
Instrument Panel Indicators
System Message
Indicator
Fuel Economy
Indicator Maintenance Minder
Indicator
70

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset button until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the outside temperature
display by pressing the Select/Reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0.’’
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.If equipped
Gauges
Odometer
Outside T emperature Indicator
Trip Meter
72

In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
On the Touring model, the odometer,
trip meter, and the outside
temperature indicator are displayed
in the multi-inf ormation display. See
page f or more inf ormation.(Odometer/trip meter message)
If the system still detects a loose or
missing f uel cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f and check or
retighten the f uel cap at least3clicks.
The MIL goes out af ter3days of
normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears on the odometer/trip meter
display af ter you start the engine.
Turn the engine of f , and conf irm the
f uel cap is installed. If it is, loosen
the cap, then retighten it 1 click.
When you restart the engine, the
message appears again. To clear the
message, press and hold the select/
reset button until the message goes
away.
77
378
On LX, EX and EX-L models
Gauges
Check Fuel Cap Indicator
Inst rument s and Cont rols
73

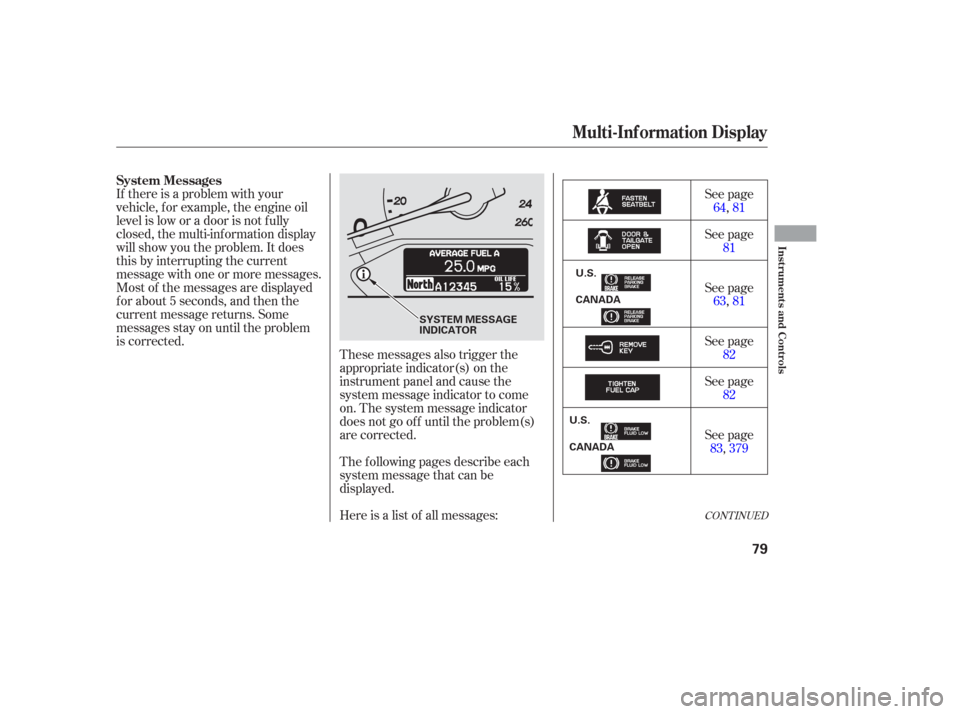

If there is a problem with your
vehicle, f or example, the engine oil
level is low or a door is not f ully
closed, the multi-inf ormation display
will show you the problem. It does
this by interrupting the current
message with one or more messages.
Most of the messages are displayed
f or about 5 seconds, and then the
current message returns. Some
messages stay on until the problem
is corrected.These messages also trigger the
appropriate indicator(s) on the
instrument panel and cause the
system message indicator to come
on. The system message indicator
does not go of f until the problem(s)
are corrected.
The f ollowing pages describe each
system message that can be
displayed.
Here is a list of all messages: See page
64,81
See page 81
See page 63,81
See page 82
See page 82
See page 83,379
CONT INUED
System Messages
Multi-Inf ormation Display
Inst rument s and Cont rols
79
SYSTEM MESSAGE
INDICATOR
U.S.
CANADAU.S.
CANADA

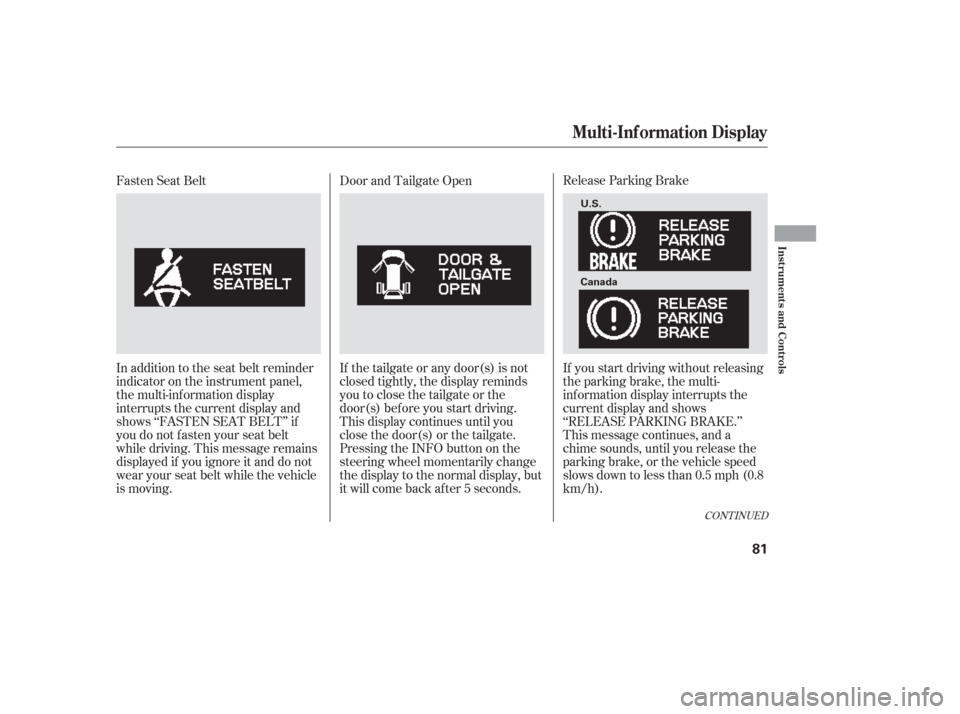

Release Parking Brake
If you start driving without releasing
the parking brake, the multi-
inf ormation display interrupts the
current display and shows
‘‘RELEASE PARKING BRAKE.’’
This message continues, and a
chime sounds, until you release the
parking brake, or the vehicle speed
slows down to less than 0.5 mph (0.8
km/h).
Door and Tailgate Open
If the tailgate or any door(s) is not
closed tightly, the display reminds
you to close the tailgate or the
door(s) bef ore you start driving.
This display continues until you
close the door(s) or the tailgate.
Pressing the INFO button on the
steering wheel momentarily change
the display to the normal display, but
it will come back af ter 5 seconds.
Fasten Seat Belt
In addition to the seat belt reminder
indicator on the instrument panel,
the multi-information display
interrupts the current display and
shows ‘‘FASTEN SEAT BELT’’ if
you do not f asten your seat belt
while driving. This message remains
displayed if you ignore it and do not
wear your seat belt while the vehicle
is moving.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
81
U.S.
Canada
