2006 HONDA CIVIC Owners Manual

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
f resh air mode.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C
(if equipped). The system automatically
turns on the A/C, selects , and
switches to recirculation mode. Each
indicatorinthebuttonisonwhen
the MAX A/C is turned on.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
73 1. 2. 3.4.
If equipped
Vents, Heating, and A/C
Rear Window Def ogger Button
Mode Control Button MAX A/C Button
Ventilation
Features
103
——y

y
(#y
y

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system.Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C: Set the f an to the desired speed.
Select MAX A/C mode.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool. Turn the fan on.
If the A/C is of f , turn it on (if
equipped).
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
1.2.3.
3.4. 5.
1. 2. 1. 2. 3.
66 1. 2. 3. 4.
If equipped
If the interior is very warm,
Vents, Heating, and A/C
Using the Heater
Using the A /C Dehumidif y the Interior
104
——y

y
(#y
y

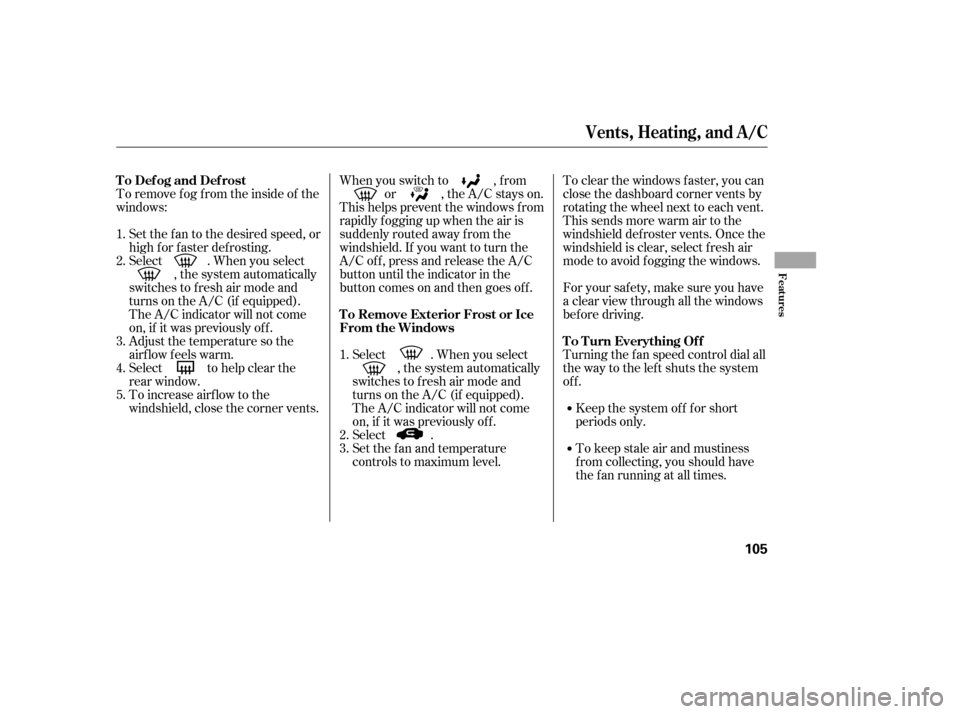

To remove f og f rom the inside of the
windows:Set the f an to the desired speed, or
high f or f aster def rosting.
Select . When you select , the system automatically
switches to f resh air mode and
turns on the A/C (if equipped).
The A/C indicator will not come
on, if it was previously of f .
Adjust the temperature so the
airflow f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents. When you switch to , f rom
or , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button until the indicator in the
buttoncomesonandthengoesoff.
Select . When you select , the system automatically
switches to f resh air mode and
turns on the A/C (if equipped).
The A/C indicator will not come
on, if it was previously of f .
Select .
Set the f an and temperature
controls to maximum level. To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
Turning the f an speed control dial all
the way to the left shuts the system
of f .
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
5.
1. 2. 3.
1. 2. 3. 4.
Vents, Heating, and A/C
T o Def og and Def rost
T o Remove Exterior Frost or Ice
From the WindowsTo Turn Everything Of f
Features
105
——
y

y
(#y
y

Read the appropriate pages in this
section f or operation of the audio
systems installed in your vehicle.page to for A and B type
page to for C type
If your vehicle has a dif f erent audio
system, ref er to its manual f or
operating instructions. 108121
120
138
Audio System
(A type)
106
U.S. LX and Canadian DX, DX-G, LX, and EX models
——y
y
(#y
y

Audio System
(B type)(C type)
Features
107
U.S. EX model without navigation system U.S. EX model with navigation system
——
y

y
(#y

y

Playing the Radio
(A type)(B type)
108
U.S. EX model without navigation system
PRESET BARS TUNE/SOUND KNOB PRESET BARSAUTO SELECT BUTTON
AM/FM BUTTON
SEEK BAR SEEK BAR
AM
BUTTON
FM
BUTTON
SCAN
BUTTON
AUTO SELECT BUTTON
PWR/VOL KNOB TUNE/SOUND KNOB
PWR/VOL KNOB
SCAN
BUTTON
U.S. LX and Canadian DX, DX-G, LX, and EX models
——y

y
(#y


y

µ
µ
µ
µ
µ µ
CONT INUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button (AM or FM button). On the
FM band, ST will be displayed if the
stationisbroadcastinginstereo.
Stereo reproduction in AM is not
available.
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, the
preset bars, and AUTO SELECT. If you do nothing, the system will
then scan f or the next strong station
and play it f or 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
Each side of the bars
(1 6) can store one station on AM,
and two stations on FM.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about 10 seconds. Repeat steps 1 through 3 to store a total of six stations on AM and
twelve stations on FM.
Pick a preset number (1 6), and
hold it until you hear a beep.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
12 stations.
1. 2.3. 4.
Playing the Radio
To Play the Radio
To Select a Station PRESET
TUNE SEEK
SCAN
Features
109
——y
y
(#y

y

µYou will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.
press the
A. SEL button. This restores the
presets you originally set. Press the SOUND (TUNE) knob
repeatedly to display the bass (BAS),
treble (TRE), fader (FAD), balance
(BAL), and speed-sensitive volume
compensation (SVC) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the SOUND
(TUNE) knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘ ’’ in
the display. The system will
automatically return the display to
the selected audio mode about 5
seconds af ter you stop adjusting a
mode.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars.
To turn of f auto select,
Playing the Radio
Adjusting the Sound
AUTO SELECT
110
