2006 FORD TAURUS fuel cap release

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire pressure
warning
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9

9. TRACTION CONTROL (if equipped)
System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for several
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.
Warning messages that have been reset are divided into three categories:
•They will not disappear until a condition is changed.
•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition OFF-ON cycle has been
completed.
This acts as a reminder that these warning conditions still exist within
the vehicle.
Warnings Status
Driver’s door ajar Warning cannot be reset (CLOSE
DOOR TO RESET) will be displayed
Passenger door ajar
Left rear door ajar
Right rear door ajar
Park brake engaged RELEASE PARK BRAKE will be
displayed
Check engine temp Warning returns after 10 minutes
Transmission overheated
Check transmission
Low fuel level
Check fuel cap
Check charging system
Oil pressure low
Check brake system
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
59

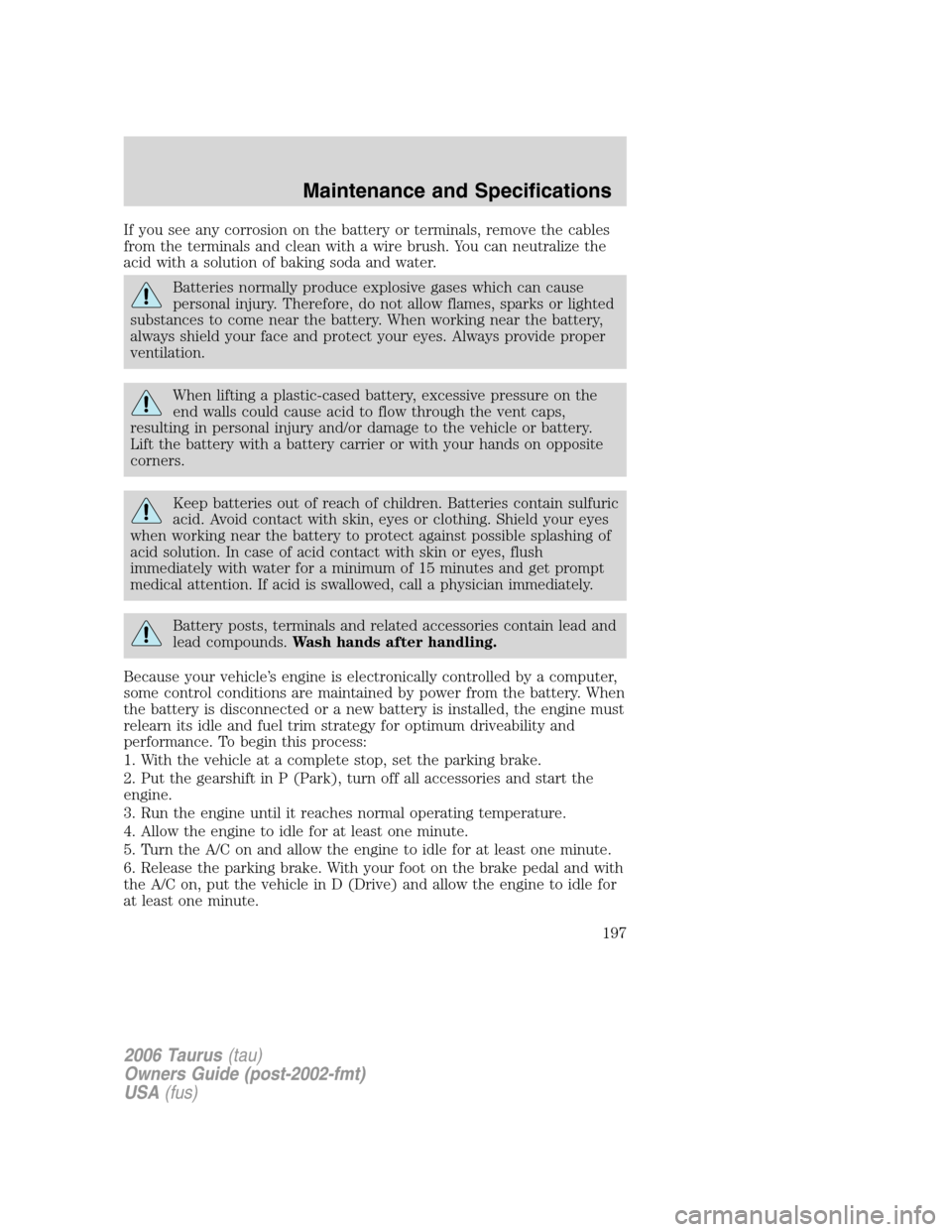

If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
Batteries normally produce explosive gases which can cause
personal injury. Therefore, do not allow flames, sparks or lighted
substances to come near the battery. When working near the battery,
always shield your face and protect your eyes. Always provide proper
ventilation.
When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the battery with a battery carrier or with your hands on opposite
corners.
Keep batteries out of reach of children. Batteries contain sulfuric
acid. Avoid contact with skin, eyes or clothing. Shield your eyes
when working near the battery to protect against possible splashing of
acid solution. In case of acid contact with skin or eyes, flush
immediately with water for a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed, call a physician immediately.
Battery posts, terminals and related accessories contain lead and
lead compounds.Wash hands after handling.
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
197

Safety belts (see Safety
restraints) ........................80, 84–88
Safety defects, reporting ..........182
Safety restraints ..............80, 84–88
belt minder ...............................90
extension assembly ..................94
for adults .............................85–87
for children .....................104–105
lap belt ......................................89
Occupant Classification
Sensor ........................................82
safety belt maintenance ...........94
warning light and chime ....89–90
Safety seats for children ..........107
Safety Compliance
Certification Label ....................222
Seat belts
(see Safety restraints) ...............80
Seats ............................................77
child safety seats ....................107
front seats .................................78
Servicing your vehicle ..............189
Setting the clock
AM/FM/Cassette ........................15
AM/FM/CD .................................18
Spare tire
(see Changing the Tire) ...........162
Spark plugs,
specifications .............217, 220–221
Specification chart,
lubricants ...........................219–220
Speed control ..............................45
Starting a flex fuel vehicle .......143
Starting your
vehicle ........................140–141, 143
jump starting ..........................168Steering wheel
tilting .........................................41
T
Tilt steering wheel ......................41
Tires ...........................116–117, 162
alignment ................................128
care ..........................................126
changing ..........................162, 164
checking the pressure ............119
inspecting and inflating .........118
label .........................................126
replacing ..................................121
rotating ....................................128
safety practices .......................127
sidewall information ...............121
snow tires and chains ............130
spare tire .................................163
terminology .............................117
tire grades ...............................117
treadwear ........................116, 126
Towing .......................................136
recreational towing .................139
trailer towing ..........................136
wrecker ....................................173
Traction control ........................147
Transaxle
fluid, refill capacities ..............218
lubricant specifications ..........220
Transmission .............................148
brake-shift interlock (BSI) ....148
fluid, checking and adding
(automatic) .............................215
lubricant specifications ..........219
Trunk .....................................62, 64
remote release ....................62, 67
Turn signal ..................................32
V
Vehicle dimensions ...................221
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
231
