2006 FORD SUPER DUTY Owners Manual

F–350 Crew Cab
DimensionBody style
Crew Cab
Chassis Cab -
inches (mm)Crew Cab,
Short box -
inches (mm)Crew Cab,
Long box -
inches (mm)

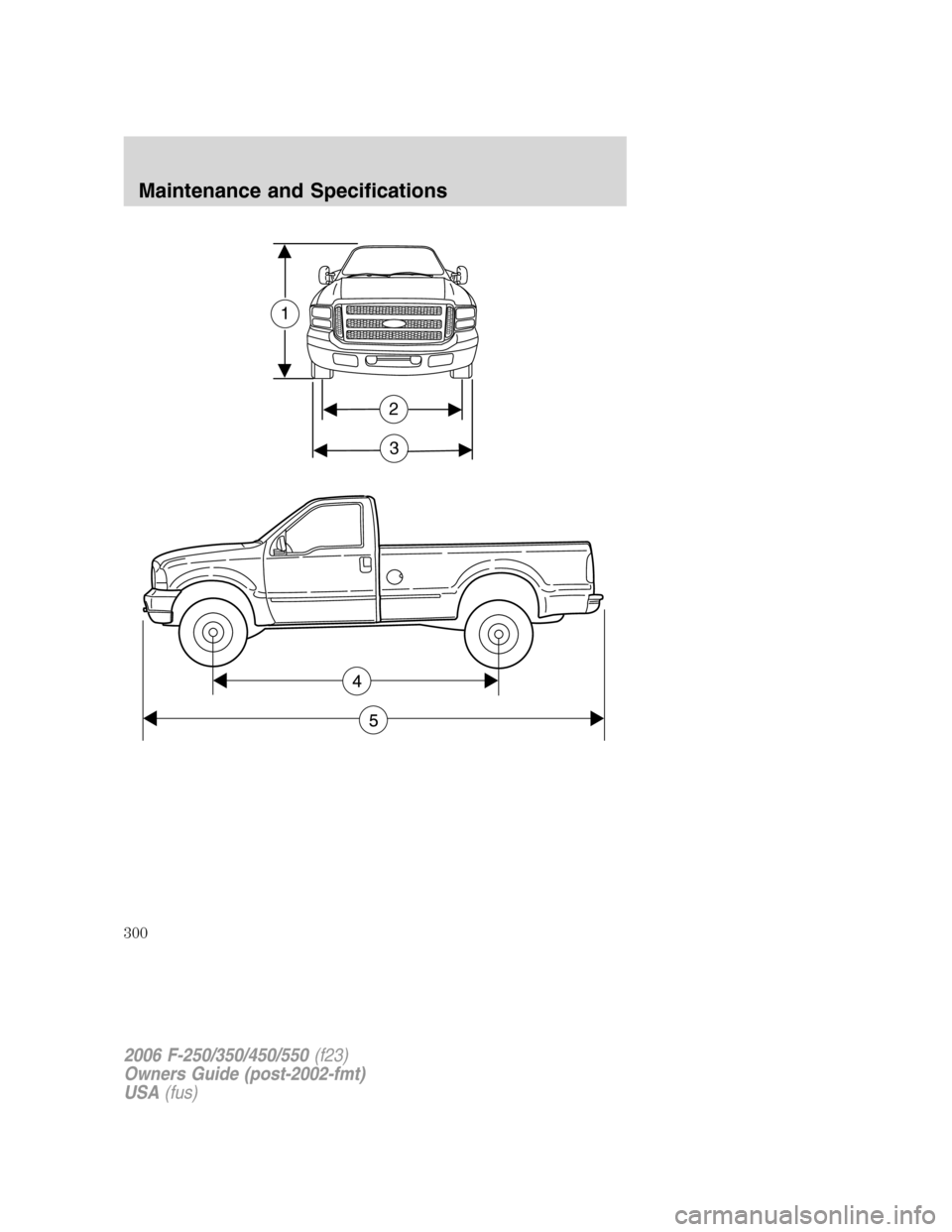

(1) Overall
height77.9 (1979)
a/
77.9 (1979)b/
81.8 (2078)c/
80.8 (2052)d
77.8 (1976)a/
77.6 (1971)b/
81.8 (2078)c/
80.1 (2035)d
77.6 (1971)a/
77.4 (1966)b/
81.7 (2075)c/
80.0 (2032)d
(2a) Track -
Front68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
(2b) Track -
Rear68.1 (1730)a,c/
71.0 (1803)b,d67.2 (1706)a,c/
74.6 (1896)b,d67.2 (1706)a,c/
74.6 (1896)b,d
(3) Overall
width79.9 (2029)a,c/
92.2 (2342)b, d79.9 (2029)a,c/
95.5 (2426)b, d79.9 (2029)a,c
95.5 (2426)b,d
(4) Wheelbase 176.2 (4475) 156.2 (3967) 172.4 (4379)
(5) Overall
length261.0 (6629) 245.6 (6238) 261.8 (6650)
a4x2 Single Rear Wheel (SRW)b4x2 Dual Rear Wheel (DRW)c4x4 Single Rear Wheel (SRW)d4x4 Dual Rear Wheel (DRW)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm)Regular
Cab
Chassis 4x4
– inches
(mm)SuperCab
Chassis
4x2/4x4 –
inches
(mm)Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height80.6 (2047)
a
80.5
(2045)b,c
80.2 (2037)d
80.7 (2050)a
80.5 (2045)b
80.0
(2032)c,d
80.5 (2045) 80.8 (2052) -
4x2
80.9 (2055) -
4x4
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm)Regular
Cab
Chassis
Cab 4x4 –
inches
(mm)Crew Cab
Chassis
Cab 4x2 –
inches
(mm)Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height81.7 (2075)
a
81.4
(2068)b,c
81.1 (2060)d
81.7 (2075)a
81.2 (2062)b
81.1 (2060)c
80.7 (2050)d
81.5 (2070) 81.4 (2068)
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

2
3
1
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

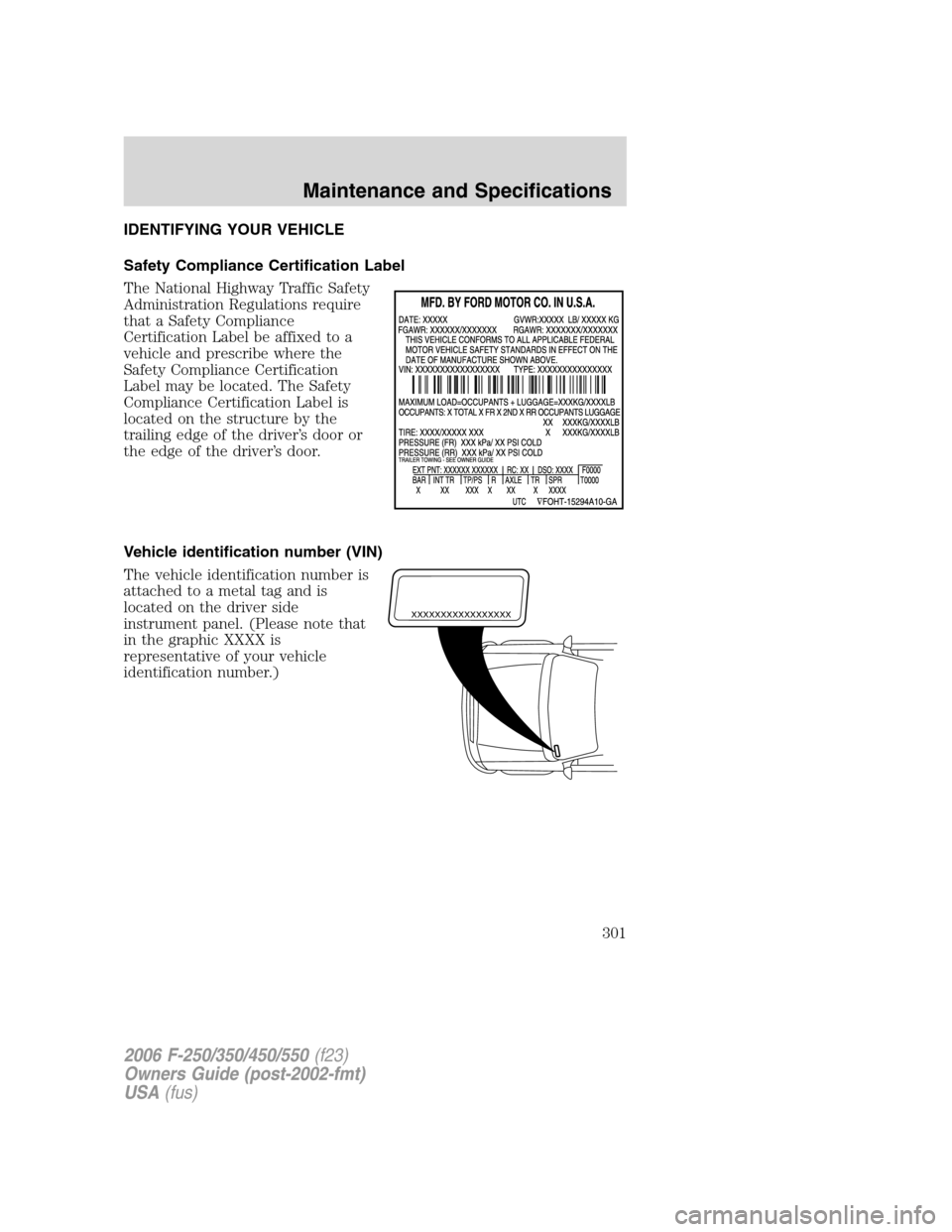

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle Safety
Compliance Certification Label. The following table tells you which
transmission or transaxle each code represents.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
302

Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (ZF M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
BFive-speed automatic, TorqShift (diesel
engine)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
303

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada authorized
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford’s rigorous engineering and safety specifications. Ford Motor
Company will repair or replace any properly authorized dealer-installed
Genuine Ford Accessory found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessory will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the authorized dealer are covered for the
full length of your New Vehicle’s Limited Warranty — 3 years or 36,000
miles (60,000 km) (whichever occurs first). Contact your authorized
dealer for details and a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tip
Daytime Running Lamps (DRLs)
Deflectors
Front end covers
Running boards
Sliding rear windows - manual and power
Splash guards
Step bars
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
