Remote Vehicle Start
Your vehicle may have a remote start feature. This
feature allows you to start the engine from outside
the vehicle. It may also start the vehicle’s heating or
air conditioning systems and rear window defogger.
When the remote start system is active and the vehicle
has an automatic climate control system, it may
automatically regulate the inside temperature. Normal
operation of the system will return after the key is
turned to ON. SeeAutomatic Climate Control System
on page 3-27for additional information.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require
a person using remote start to have the vehicle in
view when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is
low on fuel. Your vehicle may run out of fuel.
The remote start feature provides two separate starts,
each with 10 minutes of engine running time.
The remote vehicle start feature needs to be reset
after your vehicle’s engine is started two times using
the transmitter’s remote start button. The remote
start system is reset by inserting the vehicle’s key into
the ignition switch and turning it to ON. SeeIgnition
Positions on page 2-23for information regarding
the ignition positions on your vehicle.You can start your vehicle’s engine from approximately
197 feet (60 m) away. However, the range may be
less while the vehicle is running, and as a result you
may need to be closer to your vehicle to turn it off than
you were to turn it on.
There are other conditions which may affect the
performance of the transmitter, seeRemote Keyless
Entry System on page 2-5.
/(Remote Start):If your vehicle has the remote
start feature, the keyless entry transmitter will have a
button with this symbol on it.
To start the vehicle using the remote start feature,
do the following:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button,
then immediately press and hold the transmitter’s
remote start button until the vehicle’s turn signal
lights ash.
3. When the vehicle starts, the parking lamps will
turn on and remain on while the engine is running.
The engine will shut off automatically after
10 minutes, unless a time extension has been
done, or the vehicle’s key is inserted into the
ignition switch and turned to ON.
If you enter the vehicle after a remote start, and
the engine is still running, insert the key into the
ignition switch and turn it to ON to drive the vehicle.
2-9

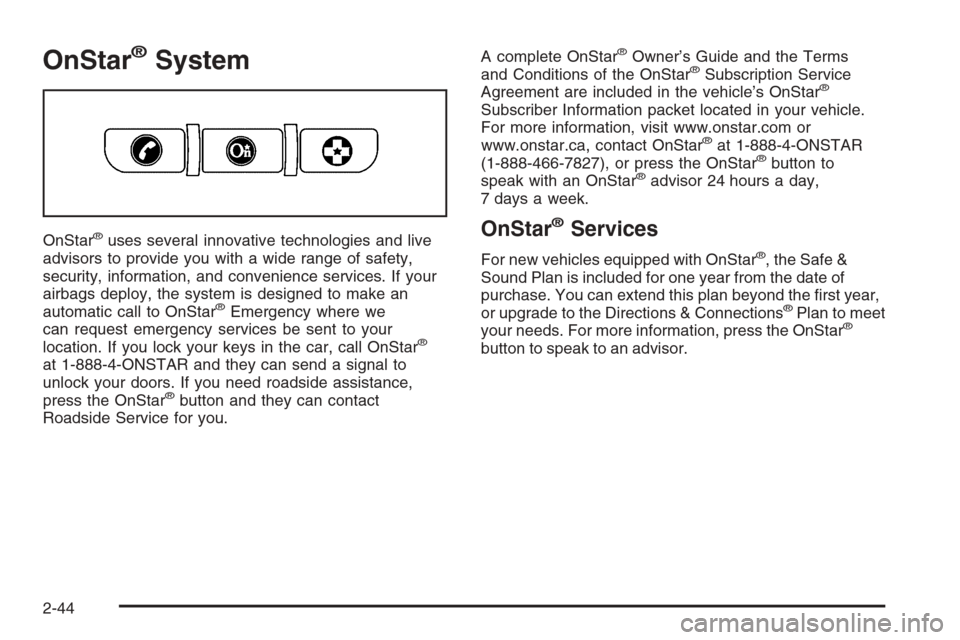

OnStar®System
OnStar®uses several innovative technologies and live
advisors to provide you with a wide range of safety,
security, information, and convenience services. If your
airbags deploy, the system is designed to make an
automatic call to OnStar
®Emergency where we
can request emergency services be sent to your
location. If you lock your keys in the car, call OnStar
®
at 1-888-4-ONSTAR and they can send a signal to
unlock your doors. If you need roadside assistance,
press the OnStar
®button and they can contact
Roadside Service for you.A complete OnStar
®Owner’s Guide and the Terms
and Conditions of the OnStar®Subscription Service
Agreement are included in the vehicle’s OnStar®
Subscriber Information packet located in your vehicle.
For more information, visit www.onstar.com or
www.onstar.ca, contact OnStar
®at 1-888-4-ONSTAR
(1-888-466-7827), or press the OnStar®button to
speak with an OnStar®advisor 24 hours a day,
7 days a week.
OnStar®Services
For new vehicles equipped with OnStar®, the Safe &
Sound Plan is included for one year from the date of
purchase. You can extend this plan beyond the rst year,
or upgrade to the Directions & Connections
®Plan to meet
your needs. For more information, press the OnStar®
button to speak to an advisor.
2-44

Cigarette Lighter
Your vehicle may have a cigarette lighter. To use the
lighter, located on the instrument panel below the
climate controls, push it in all the way and let go.
When it is ready, it will pop back out by itself.
Notice:Holding a cigarette lighter in while it is
heating will not allow the lighter to back away from
the heating element when it is hot. Damage from
overheating may occur to the lighter or heating
element, or a fuse could be blown. Do not hold a
cigarette lighter in while it is heating.
Notice:If you put papers, pins, or other ammable
items in the ashtray, hot cigarettes or other
smoking materials could ignite them and possibly
damage your vehicle. Never put ammable items in
the ashtray.
Climate Controls
Climate Control System
With this system you can control the heating, cooling
and ventilation for your vehicle. If your vehicle has
the remote start feature, the climate control system
will function as part of the remote start feature.
SeeRemote Keyless Entry System Operation
on page 2-6.
Operation
9
(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the fan
speed. The fan must be on to run the air-conditioning
compressor.
3-22

To change the air delivery settings, turn the right knob
to select one of the following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets, and the remaining air to
the oor outlets. Some air may be directed toward
the side windows.
6(Floor):This mode directs most of the air to the
oor outlets with some air directed to the side window
outlets and windshield.
:(Outside Air):Press the right side of this button
to turn the outside air mode on. When this mode is
selected, air from outside the vehicle will circulate
throughout your vehicle. When the button is pressed,
an indicator light will come on to let you know that
it is activated. The outside air mode can be used
with all modes, but it cannot be used with the
recirculation mode. Pressing this button will cancel
the recirculation mode.
?(Recirculation):Press the left side of the button
to turn the recirculation mode on. When recirculation
mode is selected, the air inside the vehicle will be
recirculated through the climate control system and
the vehicle, not from outside your vehicle. This mode
is helpful when you are trying to limit odors from
entering your vehicle and for maximum air conditioning
performance in hot weather. When the button is
pressed, an indicator light above the button will come
on to let you know that it is activated. The recirculation
indicator light will blink three times if you try to use
recirculation in a mode that it can not be used in.
Only use this mode when it is needed for comfort,
since window fogging will rapidly occur if the air
conditioning compressor is not engaged.
Pressing this button will cancel the outside air mode.
When you switch to the defog or defrost modes
the system will automatically move from recirculation
to outside air. When the vehicle or fan is turned off
and back on, the system will default to outside air
automatically. Only use recirculation mode when it is
needed for comfort, since window fogging may occur.
3-23

Temperature Control:Turn the center knob clockwise
or counterclockwise to increase or decrease the
temperature inside your vehicle.
When it’s cold outside 0°F (−18°C) or lower, use the
engine coolant heater, if equipped, to provide warmer air
faster to your vehicle. An engine coolant heater warms
the coolant that the engine uses to provide heat to
warm the inside of your vehicle. For more information,
seeEngine Coolant Heater on page 2-26.
#(Air Conditioning):Press this button to turn the air
conditioning system on or off. When the air conditioning
button is pressed, an indicator light will come on to
let you know that air conditioning is activated.
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the
time it takes for your vehicle to cool down. It also
helps the system to operate more efficiently.For quick cool down on hot days, do the following:
1. Select the vent mode.
2. Select the highest fan speed.
3. Select air conditioning.
4. Select the recirculation mode.
5. Select the coolest temperature.
Using these settings together for long periods of time
may cause the air inside of your vehicle to become too
dry. To prevent this from happening, after the air in
your vehicle has cooled, turn the recirculation mode off.
The air-conditioning system removes moisture from
the air, so you may sometimes notice a small amount
of water dripping underneath your vehicle while idling
or after turning off the engine. This is normal.
3-24

Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass.
This can be minimized if the climate control system is
used properly. There are two modes to choose from
to clear fog or frost from your windshield. Use the
defog mode to clear the windows of fog or moisture
and warm the passengers. Use the defrost mode
to remove fog or frost from the windshield more quickly.
Turn the right knob to select the defog or defrost mode.
-(Defog):This mode splits the air between the
windshield and the oor outlets with a small amount
directed to the side windows. When you select this
mode, the system turns off recirculation automatically.
The air-conditioning compressor will run unless the
outside temperature is at or below freezing. The
air-conditioning compressor will operate although
the indicator light will not be on. The air-conditioning
indicator light will turn off when defog is selected.If the air-conditioning button is pressed while in defog
mode, the indicator light will turn on. If the button
is pressed again, the light will turn off. The recirculation
mode cannot be selected while in the defog mode.
Do not drive the vehicle until all the windows are clear.
1(Defrost):This mode directs most of the air to
the windshield with some air directed to the oor vents.
In this mode, the system will automatically force
outside air into your vehicle. The air-conditioning
compressor will run unless the outside temperature is
at or below freezing. The air-conditioning compressor
will operate although the indicator light will not be
on. The air-conditioning indicator light will turn off when
defrost is selected. If the air-conditioning button is
pressed while in defrost mode, the indicator light will
turn on. If the button is pressed again, the light will
turn off. Recirculation cannot be selected while in the
defrost mode.
To help clear the windshield quickly, do the following:
1. Select the defrost mode.
2. Select the highest temperature.
3. Select the highest fan speed.
3-25

Automatic Climate Control System
If your vehicle has this system, you can automatically
control the heating, cooling and ventilation in your
vehicle.
Automatic Operation
AUTO (Automatic):Select AUTO on both the fan speed
control and the air delivery mode control knobs to activate
the automatic system. When automatic operation is
active the system will control the inside temperature and
air delivery.Use the steps below to place the entire system in
automatic mode:
1. Place the fan knob and the mode knob to AUTO.
The display will now show the current set
temperature. When auto is selected, the air
conditioning operation and air inlet will be
automatically controlled. The air conditioning
compressor will run when the outside temperature
is over about 40°F (4°C). The air inlet will normally
be set to outside air. If it’s hot outside, the air
inlet may automatically switch to recirculate inside
air to help quickly cool down your vehicle.
2. Set the temperature.
To nd your comfort setting, start with an initial
temperature setting and allow about 20 minutes
for the system to regulate. Press the up or
down arrow temperature buttons to adjust the
temperature setting as necessary. If you choose
the temperature setting of 60°F (15°C) the
system will remain at the maximum cooling
setting. If you choose the temperature setting of
90°F (32°C) the system will remain at the maximum
heat setting. Choosing either maximum setting
will not cause the vehicle to heat or cool any faster.
Be careful not to cover the sensor located on the
top of the instrument panel near the windshield.
This sensor regulates air temperature based on
sun load, and also turns on your headlamps.
3-27

6(Floor):This mode directs most of the air to the oor
outlets with some air directed to the side window outlets
and windshield.
:(Outside Air):Press the right side of this button
to turn the outside air mode on. When this mode is
selected, air from outside the vehicle will circulate
throughout your vehicle. When the button is pressed,
an indicator light will come on to let you know that it is
activated. The outside air mode can be used with all
modes, except with the recirculation mode. Pressing
this button will cancel the recirculation mode.
?(Recirculation):Press the left side of the button
to turn the recirculation mode on. When recirculation
mode is selected, the air inside the vehicle will be
recirculated through the climate control system and
the vehicle, not from outside your vehicle. This mode
is helpful when you are trying to limit odors from
entering your vehicle and for maximum air conditioning
performance in hot weather. When the button is
pressed, an indicator light above the button will come
on to let you know that it is activated. The recirculation
indicator light will blink three times if you try to use
recirculation in a mode that it can not be used in.
Only use this mode when it is needed for comfort,
since window fogging will rapidly occur if the air
conditioning compressor is not engaged.Pressing this button cancels the auto recirculation
feature. Each time the vehicle is started, the system
will revert to the auto recirculation function.
If you select recirculation while in defrost, defog or
oor, the light on the button will ash three times and
go out to let you know this is not allowed. This is
to prevent window fogging.
When the weather is cool or damp, operating the system
in recirculation for extended periods of time may cause
fogging of the vehicle’s windows. To clear the fog, select
either defog or defrost. Make sure the air conditioning is
on. You will want to allow the air conditioning to run
automatically to help dehumidify the air.
xw(Temperature Control):Press the up and
down arrows to increase or decrease the temperature
inside the vehicle.
#(Air Conditioning):Press this button to turn the air
conditioning compressor on and off. A light above the
button will illuminate when the air conditioning is on.
When air conditioning is selected or in AUTO mode,
the system will run the air conditioning automatically to
cool and dehumidify the air entering the vehicle.
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the time
it takes for your vehicle to cool down. It also helps
the system to operate more efficiently.
3-29
