•When the winter cover is used, the temperature
sensor found on the inside rearview mirror will not
function properly. The temperature that is shown will
be incorrect.
Installation Instructions
The following instructions explain how to install and
remove your vehicle’s winter cover. When installing
or removing the cover please refer to the “Usage
Guidelines” mentioned previously. When you first try to fit
the cover it may appear to be undersized. This is due to
the nature of the special vinyl, which will stretch during
installation to ensure a tight fit. For this reason, the initial
installation of the cover is best performed when the winter
cover is warm. If you are required to use a front license
plate, simply cut the black stitches on the back of the
patch.
Grille Cover Installation
1. Pre-bend all the small black tabs into the
shape of a J.
2. Fasten the snaps.
3. Wrap the elastic loop around the hood stopper.
4. Hook all the tabs to the edge of the grille.
5. Hook all clips to the bottom of the grille.
Lower Cover Installation
1. Pre-bend all of the small black tabs into the
shape of a J.
2. Fasten each tab to
edge of the bumper,
as illustrated.
To remove the winter cover, reverse the steps listed
previously.
2-7
ProCarManuals.com
Page 10 of 100
Fuel Operated Heater (FOH)
(Van Models Only)
If your vehicle includes a fuel operated heater (FOH),
it will enhance heater performance and will reduce the
amount of time it takes to warm the inside of your vehicle
in cold conditions below 40°F (4.4°C). The fuel operated
heater is installed in the frame rail on the driver’s side of
the vehicle and uses diesel to warm up the engine
coolant, which finally warms up the passenger’s cabin
air. The FOH works automatically, depending on the
fuel level, engine coolant temperature and outside air
temperature. It works only with the engine running.
Engine Coolant Heater
In very cold weather, 0°F (−18°C) or colder, the engine
coolant heater can help. You’ll get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The cord is located in the engine compartment,
on the passenger’s side of the vehicle, near the
right side engine mount.
3. Plug it into a normal, grounded 110-volt AC outlet.
{CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a re. You could be seriously injured.
Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord
will not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.
2-8
ProCarManuals.com
Page 11 of 100

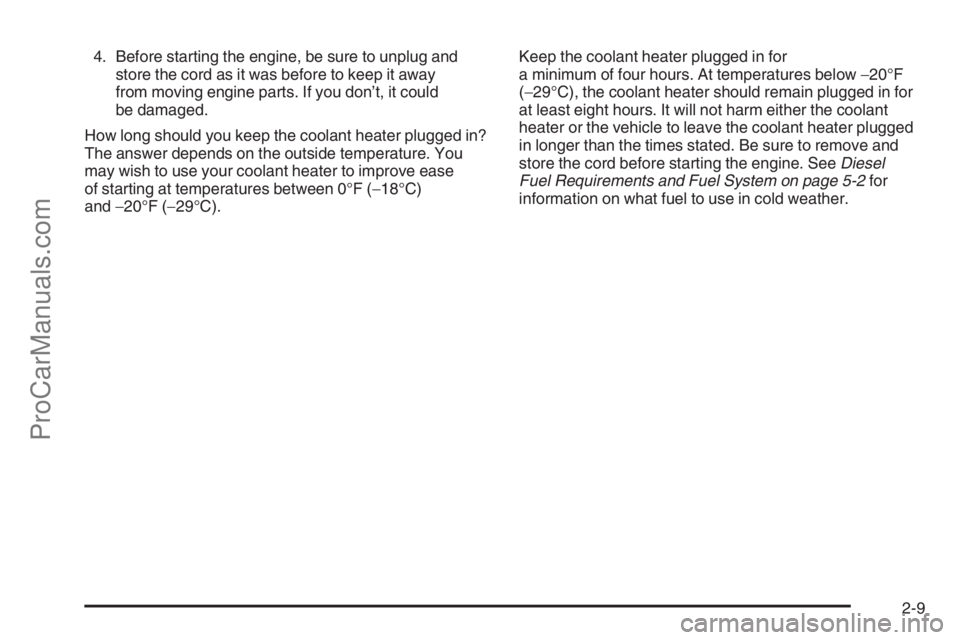

4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you don’t, it could
be damaged.
How long should you keep the coolant heater plugged in?
The answer depends on the outside temperature. You
may wish to use your coolant heater to improve ease
of starting at temperatures between 0°F (−18°C)
and−20°F (−29°C).Keep the coolant heater plugged in for
a minimum of four hours. At temperatures below−20°F
(−29°C), the coolant heater should remain plugged in for
at least eight hours. It will not harm either the coolant
heater or the vehicle to leave the coolant heater plugged
in longer than the times stated. Be sure to remove and
store the cord before starting the engine. SeeDiesel
Fuel Requirements and Fuel System on page 5-2for
information on what fuel to use in cold weather.
2-9
ProCarManuals.com
Page 12 of 100
✍NOTES
2-10
ProCarManuals.com
Page 13 of 100

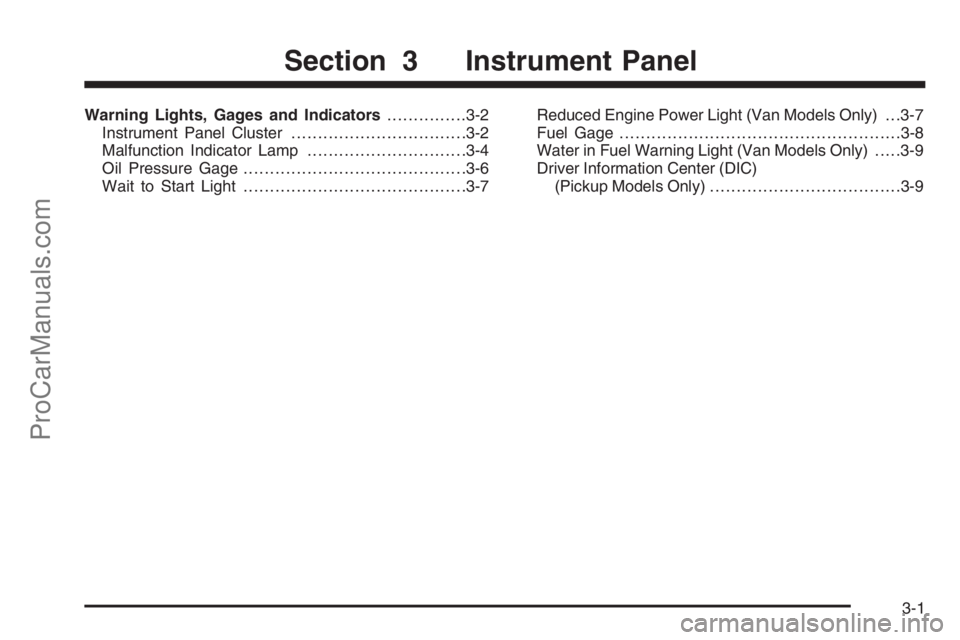

Warning Lights, Gages and Indicators...............3-2
Instrument Panel Cluster.................................3-2
Malfunction Indicator Lamp..............................3-4
Oil Pressure Gage..........................................3-6
Wait to Start Light..........................................3-7Reduced Engine Power Light (Van Models Only) . . .3-7
Fuel Gage.....................................................3-8
Water in Fuel Warning Light (Van Models Only).....3-9
Driver Information Center (DIC)
(Pickup Models Only)....................................3-9
Section 3 Instrument Panel
3-1
ProCarManuals.com
Page 14 of 100
Warning Lights, Gages and Indicators
Instrument Panel Cluster
United States Pickup automatic transmission version shown, manual transmission and Canada similar
3-2
ProCarManuals.com
Page 15 of 100
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re
going, about how much fuel you have and many other things you’ll need to know to drive safely and economically.United States Van version shown, Canada similar
3-3
ProCarManuals.com
Page 16 of 100
Malfunction Indicator Lamp
Check Engine Light
Your vehicle has a computer which monitors operation
of the fuel, timing, and emission control systems.
This system is called OBD II (On-Board
Diagnostics-Second Generation) and is intended to
assure that emissions are at acceptable levels for the life
of the vehicle, helping to produce a cleaner environment.The check engine light comes on to indicate when service
is required. Malfunctions often will be indicated by the
system before any problem is apparent. This may prevent
more serious damage to your vehicle. This system is also
designed to assist your service technician in correctly
diagnosing any malfunction.
Notice:If you keep driving your vehicle with this
light on, after awhile, your emission controls may not
work as well, your fuel economy may not be as good,
and your engine may not run as smoothly. This could
lead to costly repairs that may not be covered by
your warranty.
Notice:Modi cations made to the engine,
transmission, exhaust, intake, or fuel system of
your vehicle or the replacement of the original tires
with other than those of the same Tire Performance
Criteria (TPC) can affect your vehicle’s emission
controls and may cause this light to come on.
Modi cations to these systems could lead to costly
repairs not covered by your warranty. This may
also result in a failure to pass a required Emission
Inspection/Maintenance test. Pickup Models
Van Models
3-4
ProCarManuals.com
