2006 CHEVROLET AVEO Owners Manual

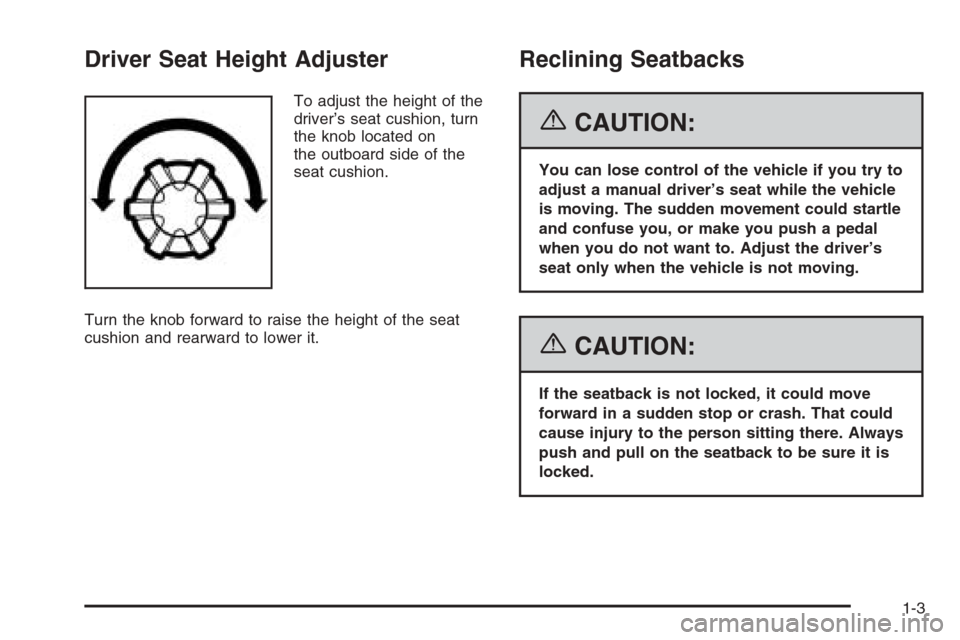

Driver Seat Height Adjuster
To adjust the height of the
driver’s seat cushion, turn
the knob located on
the outboard side of the
seat cushion.
Turn the knob forward to raise the height of the seat
cushion and rearward to lower it.
Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
1-3

Your seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard
side of the seats.
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.
1-4

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there, not
at your pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chances of a neck injury
in a crash.
1-5

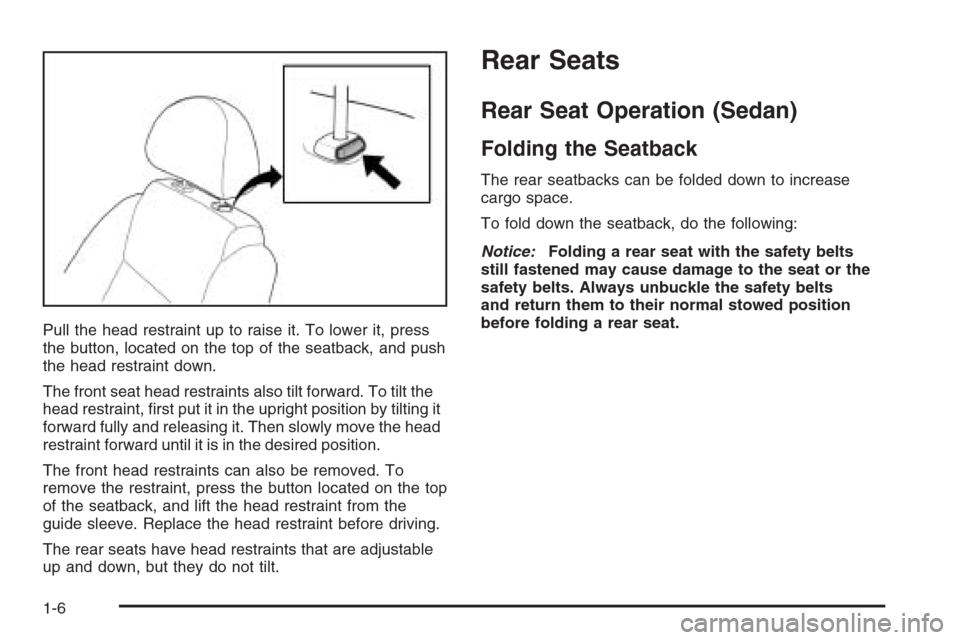

Pull the head restraint up to raise it. To lower it, press
the button, located on the top of the seatback, and push
the head restraint down.
The front seat head restraints also tilt forward. To tilt the
head restraint, first put it in the upright position by tilting it
forward fully and releasing it. Then slowly move the head
restraint forward until it is in the desired position.
The front head restraints can also be removed. To
remove the restraint, press the button located on the top
of the seatback, and lift the head restraint from the
guide sleeve. Replace the head restraint before driving.
The rear seats have head restraints that are adjustable
up and down, but they do not tilt.
Rear Seats
Rear Seat Operation (Sedan)
Folding the Seatback
The rear seatbacks can be folded down to increase
cargo space.
To fold down the seatback, do the following:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1-6

1. Remove the safety belt strap from the safety belt
guide by pulling it through the slot.
2. Push the head restraints all the way down.3. Pull up the release knob located on top of the rear
seatback.
4. Fold the rear seatback forward and down.
1-7

To return the seatback to the upright position, do the
following:
1. Hook the safety belts into the retaining clips.
2. Lift the seatback up and push it to its original
position.
3. Unhook the safety belts from the retaining clips.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Push down and rearward firmly on the top of the
seatback until it latches securely in the fully
upright position.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
5. Insert the safety belt strap back into the safety belt
guide.
1-8

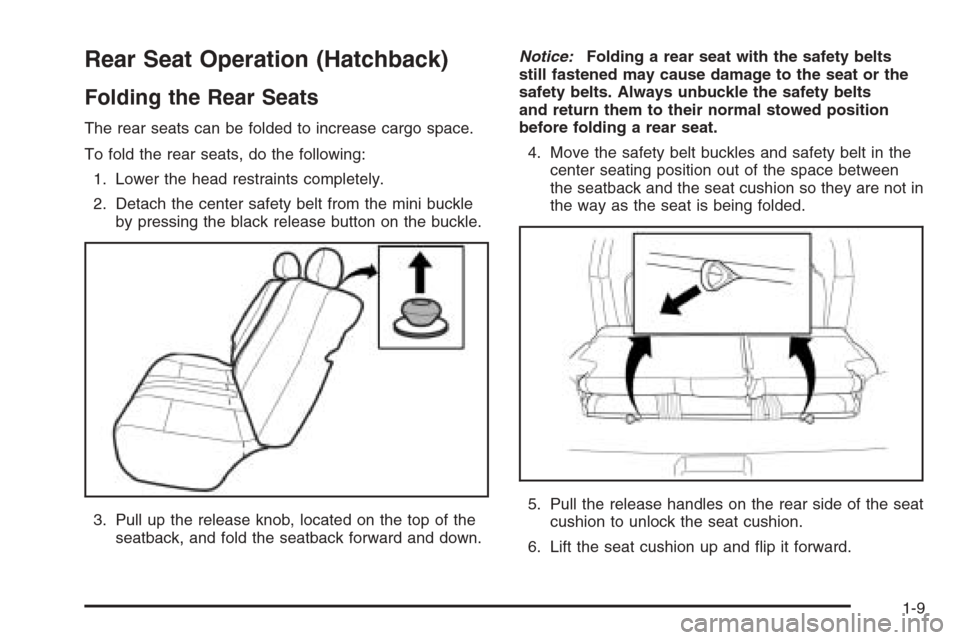

Rear Seat Operation (Hatchback)
Folding the Rear Seats
The rear seats can be folded to increase cargo space.
To fold the rear seats, do the following:
1. Lower the head restraints completely.
2. Detach the center safety belt from the mini buckle
by pressing the black release button on the buckle.
3. Pull up the release knob, located on the top of the
seatback, and fold the seatback forward and down.Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
4. Move the safety belt buckles and safety belt in the
center seating position out of the space between
the seatback and the seat cushion so they are not in
the way as the seat is being folded.
5. Pull the release handles on the rear side of the seat
cushion to unlock the seat cushion.
6. Lift the seat cushion up and flip it forward.
1-9

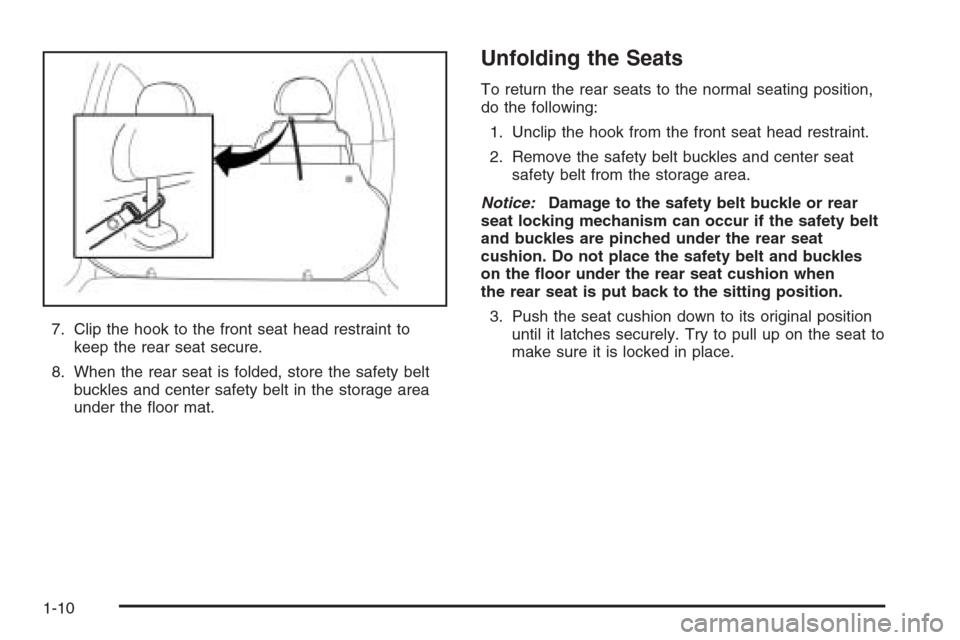

7. Clip the hook to the front seat head restraint to
keep the rear seat secure.
8. When the rear seat is folded, store the safety belt
buckles and center safety belt in the storage area
under the floor mat.
Unfolding the Seats
To return the rear seats to the normal seating position,
do the following:
1. Unclip the hook from the front seat head restraint.
2. Remove the safety belt buckles and center seat
safety belt from the storage area.
Notice:Damage to the safety belt buckle or rear
seat locking mechanism can occur if the safety belt
and buckles are pinched under the rear seat
cushion. Do not place the safety belt and buckles
on the oor under the rear seat cushion when
the rear seat is put back to the sitting position.
3. Push the seat cushion down to its original position
until it latches securely. Try to pull up on the seat to
make sure it is locked in place.
1-10
