2006 CHEVROLET AVALANCHE fuel additives

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
Your Vehicle..............................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-6
California Fuel...............................................5-6
Additives.......................................................5-6
Fuel E85 (85% Ethanol)..................................5-7
Fuels in Foreign Countries...............................5-8
Filling the Tank..............................................5-9
Filling a Portable Fuel Container.....................5-11
Checking Things Under the Hood....................5-11
Hood Release..............................................5-12
Engine Compartment Overview.......................5-14
Engine Oil...................................................5-18
Engine Oil Life System..................................5-21
Engine Air Cleaner/Filter................................5-23
Automatic Transmission Fluid.........................5-25
Engine Coolant.............................................5-28
Coolant Surge Tank Pressure Cap..................5-30
Engine Overheating.......................................5-30Overheated Engine Protection
Operating Mode........................................5-32
Cooling System............................................5-32
Engine Fan Noise.........................................5-38
Power Steering Fluid.....................................5-39
Windshield Washer Fluid................................5-40
Brakes........................................................5-41
Battery........................................................5-44
Jump Starting...............................................5-45
Rear Axle.......................................................5-51
Four-Wheel Drive............................................5-52
Front Axle......................................................5-53
Bulb Replacement..........................................5-54
Halogen Bulbs..............................................5-54
Headlamps..................................................5-55
Front Turn Signal, Sidemarker and
Parking Lamps..........................................5-57
Front Turn Signal, Sidemarker and
Daytime Running Lamps.............................5-59
Daytime Running Lamps (DRL).......................5-61
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-61
License Plate Lamp......................................5-62
Replacement Bulbs.......................................5-63
Windshield Wiper Blade Replacement..............5-63
Section 5 Service and Appearance Care
5-1

Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl (MMT).
General Motors recommends against the use of
gasolines containing MMT. SeeAdditives on page 5-6
for additional information.
California Fuel
If your vehicle is certied to meet California Emissions
Standards, it is designed to operate on fuels that
meet California specications. See the underhood
emission control label. If this fuel is not available
in states adopting California emissions standards, your
vehicle will operate satisfactorily on fuels meeting
federal specications, but emission control system
performance may be affected. The malfunction indicator
lamp may turn on and your vehicle may fail a
smog-check test. SeeMalfunction Indicator Lamp on
page 3-43. If this occurs, return to your authorized
GM dealer for diagnosis. If it is determined that
the condition is caused by the type of fuel used, repairs
may not be covered by your warranty.
Additives
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from forming,
allowing your emission control system to work
properly. In most cases, you should not have to add
anything to your fuel. However, some gasolines contain
only the minimum amount of additive required to
meet U.S. Environmental Protection Agency regulations.
To help keep fuel injectors and intake valves clean,
or if your vehicle experiences problems due to
dirty injectors or valves, look for gasoline that is
advertised as TOP TIER Detergent Gasoline. Also, your
GM dealer has additives that will help correct and
prevent most deposit-related problems.
Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available in
your area. General Motors recommends that you use
these gasolines if they comply with the specications
described earlier. However, E85 (85% ethanol)
and other fuels containing more than 10% ethanol must
not be used in vehicles that were not designed for
those fuels.
5-6

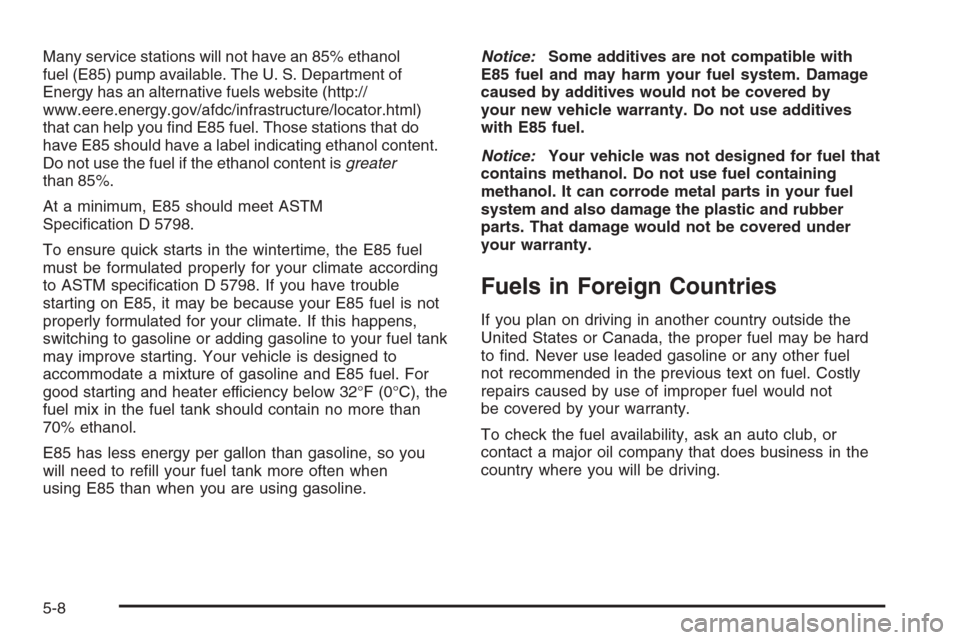

Many service stations will not have an 85% ethanol
fuel (E85) pump available. The U. S. Department of
Energy has an alternative fuels website (http://
www.eere.energy.gov/afdc/infrastructure/locator.html)
that can help you nd E85 fuel. Those stations that do
have E85 should have a label indicating ethanol content.
Do not use the fuel if the ethanol content isgreater
than 85%.
At a minimum, E85 should meet ASTM
Specication D 5798.
To ensure quick starts in the wintertime, the E85 fuel
must be formulated properly for your climate according
to ASTM specication D 5798. If you have trouble
starting on E85, it may be because your E85 fuel is not
properly formulated for your climate. If this happens,
switching to gasoline or adding gasoline to your fuel tank
may improve starting. Your vehicle is designed to
accommodate a mixture of gasoline and E85 fuel. For
good starting and heater efficiency below 32°F (0°C), the
fuel mix in the fuel tank should contain no more than
70% ethanol.
E85 has less energy per gallon than gasoline, so you
will need to rell your fuel tank more often when
using E85 than when you are using gasoline.Notice:Some additives are not compatible with
E85 fuel and may harm your fuel system. Damage
caused by additives would not be covered by
your new vehicle warranty. Do not use additives
with E85 fuel.
Notice:Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in your fuel
system and also damage the plastic and rubber
parts. That damage would not be covered under
your warranty.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to nd. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.
5-8

A
Accessories and Modications............................ 5-3
Accessory Power Outlet(s)...............................3-21
Adding a Snow Plow or Similar Equipment.........4-52
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-68
Additives, Fuel................................................. 5-6
Adjustable Throttle and Brake Pedal..................2-30
Air Cleaner/Filter, Engine.................................5-23
Air Conditioning......................................3-22, 3-24
Airbag
Passenger Status Indicator...........................3-35
Readiness Light..........................................3-34
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
Airbag System................................................1-54
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-68
How Does an Airbag Restrain?......................1-61
Passenger Sensing System...........................1-63
Servicing Your Airbag-Equipped Vehicle..........1-68
What Makes an Airbag Inate?......................1-61
What Will You See After an Airbag Inates?....1-62
When Should an Airbag Inate?....................1-59
Where Are the Airbags?...............................1-56
Antenna, Fixed Mast......................................3-114
Antenna, XM™ Satellite Radio Antenna
System.....................................................3-115
Anti-Lock Brake System (ABS)........................... 4-7
Anti-Lock Brake, System Warning Light..............3-39Appearance Care
Aluminum or Chrome-Plated Wheels.............5-109
Care of Safety Belts...................................5-106
Chemical Paint Spotting..............................5-110
Cleaning Exterior Lamps/Lenses..................5-107
Cleaning the Inside of Your Vehicle..............5-103
Fabric/Carpet............................................5-105
Finish Care...............................................5-107
Finish Damage..........................................5-110
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-106
Leather....................................................5-105
Sheet Metal Damage..................................5-110
Tires........................................................5-109
Underbody Maintenance.............................5-110
Vehicle Care/Appearance Materials...............5-111
Washing Your Vehicle.................................5-107
Weatherstrips............................................5-106
Windshield and Wiper Blades......................5-108
Ashtray(s)......................................................3-21
Audio System(s).............................................3-70
Audio Steering Wheel Controls....................3-112
Care of Your CD and DVD Player................3-114
Care of Your CDs and DVDs .......................3-114
Chime Level Adjustment.............................3-115
Fixed Mast Antenna...................................3-114
Navigation/Radio System, see Navigation
Manual...................................................3-98
Radio with CD............................................3-72
Radio with Six-Disc CD................................3-83
1

E
Electrical System...........................................5-113
Center Instrument Panel Fuse Block.............5-116
Fuses and Circuit Breakers.........................5-113
Instrument Panel Fuse Block.......................5-114
Power Windows and Other Power Options....5-113
Underhood Fuse Block...............................5-117
Windshield Wiper Fuses.............................5-113
Engine
Air Cleaner/Filter.........................................5-23
Battery.......................................................5-44
Check and Service Engine Soon Light............3-43
Coolant......................................................5-28
Coolant Heater............................................2-31
Coolant Temperature Gage...........................3-41
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-14
Exhaust.....................................................2-44
Fan Noise..................................................5-38
Oil .............................................................5-18
Oil Life System...........................................5-21
Overheated Protection Operating Mode...........5-32
Overheating................................................5-30
Starting......................................................2-29
Entry/Exit Lighting...........................................3-20
Event Data Recorders (EDR)............................. 7-9
Extender, Safety Belt.......................................1-28Exterior Cargo Lamps......................................3-19
Exterior Lamps...............................................3-14
F
Filter
Engine Air Cleaner......................................5-23
Finish Damage.............................................5-110
Fixed Mast Antenna.......................................3-114
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-9
Flat Tire........................................................5-84
Flat Tire, Changing.........................................5-84
Flat Tire, Storing...........................................5-100
Fluid
Automatic Transmission................................5-25
Power Steering...........................................5-39
Windshield Washer......................................5-40
Fog Lamps ....................................................3-17
Four-Wheel Drive....................................2-35, 5-52
Front Armrest Storage Area..............................2-64
Front Axle......................................................5-53
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
E85 (85% Ethanol)........................................ 5-7
Filling a Portable Fuel Container....................5-11
Filling Your Tank........................................... 5-9
Fuels in Foreign Countries.............................. 5-8
5
