2006 CADILLAC SRX Owners Manual

Securing a Child Restraint in the
Right Front Seat Position
If your child restraint has the LATCH system, seeLower
Anchors and Tethers for Children (LATCH) on page 1-40.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child seat in this
position if a national or local law requires that the
top tether be anchored, or if the instructions that come
with the child restraint say that the top tether must
be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 1-40if the child restraint
has a top tether.
Your vehicle has a right front passenger’s airbag.Never
put a rear-facing child restraint in this seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because the
back of the rear-facing child restraint would be
very close to the inating airbag. Always secure
a rear-facing child restraint in a rear seat.A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat, you will be using the
lap-shoulder belt to secure the child restraint in this
position. Be sure to follow the instructions that came with
the child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Because your vehicle has a right front passenger’s
airbag, always move the seat as far back as it will
go before securing a forward-facing child restraint.
SeePower Seats on page 1-2orManual Passenger
Seat on page 1-2.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-51

4. Tilt the latch plate to adjust the belt if needed. 5. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-52

6. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint. You
may nd it helpful to use your knee to push down on
the child restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Airbag System
Your vehicle has six airbags:
A frontal airbag for the driver and another frontal
airbag for the right front passenger,
A seat-mounted side impact airbag for the driver
and another for the right front passenger,
A roof-mounted side impact airbag for the driver
and passenger directly behind the driver, and
A roof-mounted side impact airbag for the right front
passenger and the person seated directly behind
that passenger.
Frontal airbags are designed to help reduce the risk of
injury from the force of an inating airbag. But these
airbags must inate very quickly to do their job
and comply with federal regulations.
1-53

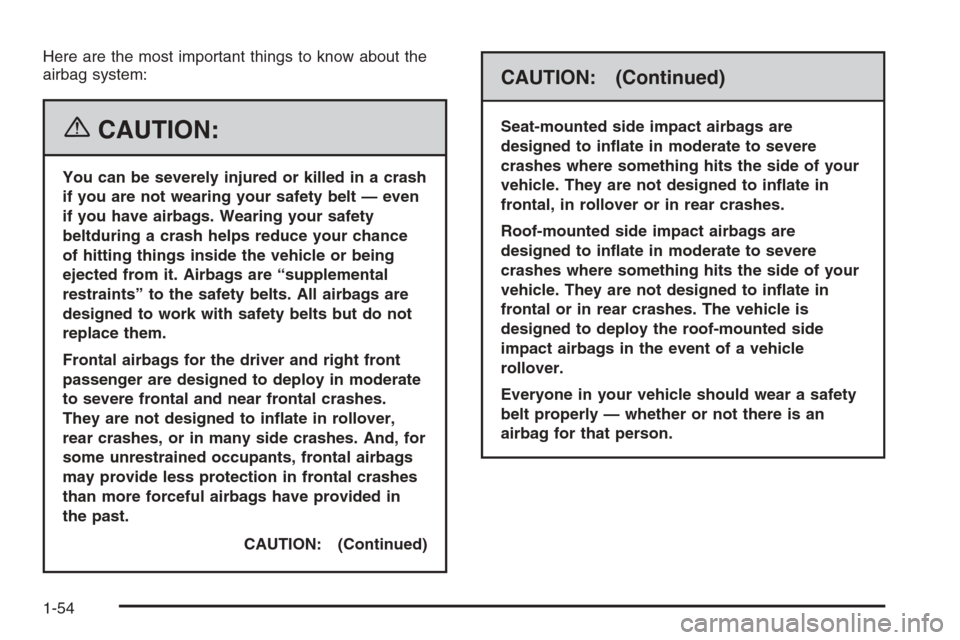

Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety
beltduring a crash helps reduce your chance
of hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts but do not
replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy in moderate
to severe frontal and near frontal crashes.
They are not designed to inate in rollover,
rear crashes, or in many side crashes. And, for
some unrestrained occupants, frontal airbags
may provide less protection in frontal crashes
than more forceful airbags have provided in
the past.
CAUTION: (Continued)
CAUTION: (Continued)
Seat-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of your
vehicle. They are not designed to inate in
frontal, in rollover or in rear crashes.
Roof-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of your
vehicle. They are not designed to inate in
frontal or in rear crashes. The vehicle is
designed to deploy the roof-mounted side
impact airbags in the event of a vehicle
rollover.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-54

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-30orInfants and
Young Children on page 1-33.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-38
for more information.
1-55

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The front passenger’s frontal airbag is in the instrument
panel on the passenger’s side.
1-56

The driver’s side impact airbag is in the side of the
driver’s seatback closest to the door.The right front passenger’s side impact airbag is in the
side of the passenger’s seatback closest to the door.
1-57

The roof-mounted side impact airbag for the driver and
the passenger directly behind the driver is in the
ceiling above the side windows.The roof-mounted side impact airbag for the front
passenger and the passenger directly behind the front
passenger is in the ceiling above the side windows.
1-58
