2006 BUICK RANDEZVOUS glove box

OnStar®System.............................................2-32
Universal Home Remote System......................2-34
Universal Home Remote System Operation......2-35
Storage Areas................................................2-38
Glove Box...................................................2-38
Cupholder(s)................................................2-38
Cell Phone Storage Area...............................2-39
Overhead Console........................................2-39
Floor Console Storage Area...........................2-39Front Armrest Storage Area...........................2-39
Rear Storage Area........................................2-40
Roof Rack System........................................2-40
Convenience Net..........................................2-43
Cargo Cover................................................2-43
Rear Convenience Center..............................2-43
Sunroof.........................................................2-46
Vehicle Personalization...................................2-47
Memory Seat...............................................2-47
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. They could
operate the power windows or other controls or
even make the vehicle move. The children or
others could be badly injured or even killed.
Do not leave the keys in a vehicle with children.
Your vehicle’s key can be used for the ignition as well
as the driver’s door lock, the oor console, and the glove
box. If you need a new key, contact your dealer, who
can obtain the correct key code.
2-3

Outside Convex Mirror
{CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror is convex. A convex mirror’s
surface is curved so more can be seen from the driver’s
seat. It also makes things appear farther away than they
really are.
Outside Heated Mirrors
If the vehicle has this feature, the outside rearview
mirrors are heated when the rear window defogger is
turned on. See “Rear Window Defogger” underClimate
Control System on page 3-28,Dual Climate Control
System on page 3-30,orDual Automatic Climate Control
System on page 3-33.
OnStar®System
OnStar®uses global positioning system (GPS) satellite
technology, wireless communications, and live advisors
to provide you with a wide range of safety, security,
information, and convenience services. If your airbags
deploy, the system is designed to make an automatic call
to OnStar
®Emergency where we can request emergency
services be sent to your location. If you lock your keys in
the car, call OnStar
®at 1-888-4-ONSTAR and they can
send a signal to unlock your doors. If you need roadside
assistance, press the OnStar
®button and they will get
you the help you need.
A complete OnStar
®User’s Guide and the Terms and
Conditions of the OnStar®Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com or
www.onstar.ca. Contact OnStar
®at 1-888-4-ONSTAR
(1-888-466-7827), or press the OnStar®button to speak
to an OnStar®advisor 24 hours a day, 7 days a week.
2-32

Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com or
www.onstar.ca.
OnStar®Services
For new vehicles equipped with OnStar®, the Safe and
Sound Plan is included for one year from the date of
purchase. You can extend this plan beyond the
rst year, or upgrade to the Directions and Connections
®
Plan to meet your needs. For more information, press
the OnStar®button to speak to an advisor.
Safe and Sound Plan

Advanced Automatic Collision Notication
Automatic Notication of Airbag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Tracking
AccidentAssist
Remote Door Unlock/Vehicle Alert
Remote Diagnostics
Online Concierge
Directions and Connections®Plan

All Safe and Sound Plan Services
Driving Directions
RideAssist
Information and Convenience Services
OnStar®Personal Calling
As an OnStar®subscriber, the Personal Calling capability
allows you to make hands-free calls using a wireless
system that is integrated into the vehicle. Calls can be
placed nationwide using simple voice commands with no
additional contracts and no additional roaming charges.
To nd out more about OnStar
®Personal Calling, refer
to the OnStar®User’s Guide in the vehicle’s glove box,
visit www.onstar.com or www.onstar.ca, or speak to
an OnStar
®advisor by pressing the OnStar®button or
calling 1-888-4-ONSTAR (1-888-466-7827).
OnStar®Virtual Advisor
Your vehicle may have Virtual Advisor. It is a feature
of OnStar®Personal Calling that uses your minutes
to access weather, local traffic reports, and stock quotes.
By pressing the phone button and giving a few simple
voice commands, you can browse through the
various topics. Customize your information prole at
www.myonstar.com. See the OnStar
®user’s guide
for more information.
2-33

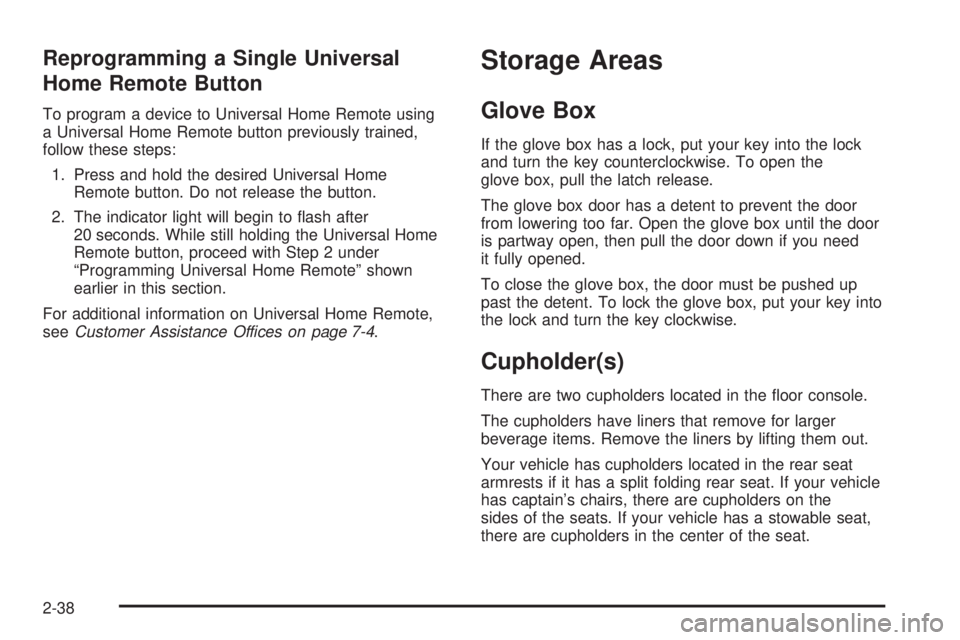

Reprogramming a Single Universal
Home Remote Button
To program a device to Universal Home Remote using
a Universal Home Remote button previously trained,
follow these steps:
1. Press and hold the desired Universal Home
Remote button. Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the Universal Home
Remote button, proceed with Step 2 under
“Programming Universal Home Remote” shown
earlier in this section.
For additional information on Universal Home Remote,
seeCustomer Assistance Offices on page 7-4.
Storage Areas
Glove Box
If the glove box has a lock, put your key into the lock
and turn the key counterclockwise. To open the
glove box, pull the latch release.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need
it fully opened.
To close the glove box, the door must be pushed up
past the detent. To lock the glove box, put your key into
the lock and turn the key clockwise.
Cupholder(s)
There are two cupholders located in the oor console.
The cupholders have liners that remove for larger
beverage items. Remove the liners by lifting them out.
Your vehicle has cupholders located in the rear seat
armrests if it has a split folding rear seat. If your vehicle
has captain’s chairs, there are cupholders on the
sides of the seats. If your vehicle has a stowable seat,
there are cupholders in the center of the seat.
2-38

To adjust the crossrail(s), the sunroof stop (A),
if equipped, must be removed.
To remove the sunroof stop, do the following:
1. Find the tool (B) located in a bag in the glove box
labeled TOOL KIT-ACSRY.
2. Use the tool to remove the screw located in the
side rail assembly in front of the front crossrail.
3. Repeat for the other side.
4. Put the tool and the screws back in the plastic bag
in the glove box.To adjust the crossrails, lift the release levers on each
side to unlock them. Slide the crossrails forward or
backward, as needed, to accommodate loads of
various sizes.
After repositioning the crossrails, push the release lever
down. This will lock the crossrails in place.
Notice:Opening the sunroof when the luggage
rack crossrails are not in the full-rear position could
cause damage to the sunroof or luggage rack.
Verify the luggage rack crossrails are in the full-rear
position before opening the sunroof.
When you are done using the crossrails you must
replace the sunroof stop.
To replace the sunroof stop, do the following:
1. Put the crossrails in the full rear position.
2. Using the tool, put the screws back into each side
rail assembly. Make sure the screws are in the
rst hole in front of the crossrail.
2-42

The main components of the instrument panel are the following:
A. Exterior/Interior Lamps Control. SeeExterior Lamps
on page 3-14andInterior Lamps on page 3-16.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
C. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-38.
E. Shift Lever. SeeAutomatic Transaxle Operation
on page 2-23.
F. Instrument Panel Outlets. SeeOutlet Adjustment
on page 3-36.
G. Audio System. SeeAudio System(s) on page 3-74.
H. Audio Steering Wheel Controls. SeeAudio
Steering Wheel Controls on page 3-132.
I. Head-Up Display Switch and Driver Information
Center (DIC) Controls (If Equipped). SeeHead-Up
Display (HUD) on page 3-21andDIC Controls
and Displays on page 3-62.J. Hood Release. SeeHood Release on page 5-9.
K. Ignition Switch. SeeIgnition Positions on page 2-20.
L. Climate Controls. SeeClimate Control System
on page 3-28,Dual Climate Control System
on page 3-30orDual Automatic Climate Control
System on page 3-33.
M. Instrument Panel Switchbank. SeeInstrument Panel
Switchbank on page 3-20.
N. Front Armrest Storage. SeeFront Armrest Storage
Area on page 2-39.
O. Ashtray/Cigarette Lighter/Accessory Power
Outlet/Cell Phone Storage/Cupholders. See
Ashtray(s) and Cigarette Lighter on page 3-27,
Accessory Power Outlet(s) on page 3-26,Cell Phone
Storage Area on page 2-39,Floor Console Storage
Area on page 2-39andCupholder(s) on page 2-38.
P. Floor Console Fuse Block. SeeFloor Console
Fuse Block on page 5-101.
Q. Glove Box. SeeGlove Box on page 2-38.
3-5

Accessory Inator
Your vehicle may have an accessory inator. With it,
you can inate things like air mattresses and basketballs,
and you can also use it to bring your tires up to the
proper pressure.
The accessory inator is located in the rear compartment
on the driver’s side. To remove the cover, pull the tab on
the cover and pull it off.
This is the symbol on the
accessory inator switch.
There may be an accessory inator kit stored in the
glove box. It includes a 20-foot (6 m) hose with an
air pressure gage and nozzle adapters.{CAUTION:
Inating something too much can make it
explode, and you or others could be injured. Be
sure to read the inator instructions, and inate
any object only to its recommended pressure.
To use your accessory inator system, do the following:
1. Turn the ignition to ACCESSORY or ON.
2. Attach the appropriate nozzle adapter, if required,
to the end of the hose that has the pressure gage.
3. Attach that end of the hose to the object you wish
to inate.
4. Remove the protective cap covering the outlet.
5. Attach the other end of the hose to the outlet.
6. Press the accessory inator switch. The light in the
switch will come on to show the system is working.
If the accessory inator system does not turn on or the
light does not come on, the fuse may be blown or
installed incorrectly. SeeFuses and Circuit Breakers
on page 5-101or see your dealer for service.
Your accessory inator will automatically shut off after
about 10 minutes. The light in the switch will blink. After
about one minute you can use the system again. Press
the inator switch and the indicator light will come on.
5-68
