Liftgate Release
Your vehicle is equipped with a liftgate release
touchpad, located on the inner side of the liftgate
handle.To open the liftgate using the touchpad, do the following:
1. Put the vehicle in PARK (P).
2. Unlock all of the doors.
3. Lift up on the liftgate handle.
If your vehicle has a remote keyless entry transmitter,
you may unlock the liftgate by pressing the REAR button
on the transmitter, then open the liftgate manually by
lifting up on the liftgate handle. Pressing REAR while
the Content Theft-Deterrent is active allows you to open
the liftgate while all other doors remain locked. See
Content Theft-Deterrent on page 2-15
Notice:If you open the liftgate without checking
for overhead obstructions such as a garage
door, you could break the liftgate glass. Always
check to make sure the area above the liftgate
is clear before opening it. Liftgate Handle
2-12

Once armed, the alarm will go off if someone tries to
enter the vehicle without using the optional remote
keyless entry transmitter or the key, or tries to turn the
ignition on without using the correct key. The horn
will sound and the headlamps and parking lamps will
ash any time the alarm sounds.
When the content theft-deterrent system is armed, the
liftgate may be opened by pressing the REAR button on
the remote keyless entry transmitter. The alarm will
go into standby mode. Once the liftgate is closed, the
alarm will be armed. See “Liftgate Release” under
Liftgate on page 2-11for more information on how to
open the liftgate.
Arming with the Power Lock Switch
The content theft-deterrent alarm system will arm
when you use either power door lock switch to lock
the doors while any door or the liftgate is open and the
key is removed from the ignition. The security light,
located on top of the instrument panel, will start ashing
when the system is armed.
Within ve seconds, after the security light begins to
ash, any door can be manually unlocked and opened,
without sounding the alarm. A door unlocked manually
will remain unlocked until locked again.
Arming with the Remote Keyless Entry
Transmitter
Your alarm system will arm when you press LOCK
once on your remote keyless entry transmitter to lock
the doors. The alarm system light will come on for
30 seconds and then start ashing to let you know
the system is armed.
Within the 30 second delay after the security light
comes on, and an additional ve seconds after the light
begins to ash, any door can be manually unlocked
and opened, without sounding the alarm.
If LOCK is pressed on your remote keyless entry
transmitter twice within ve seconds, any door can be
manually unlocked and opened within ve seconds after
the security light begins to ash, without sounding the
alarm. A door unlocked manually will remain unlocked
until locked again.
2-16

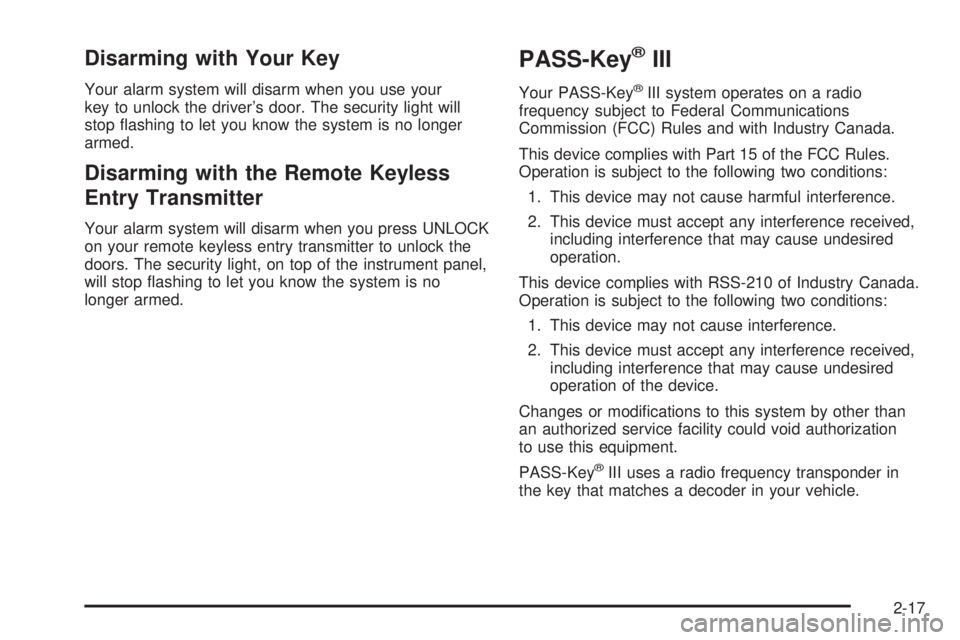

Disarming with Your Key
Your alarm system will disarm when you use your
key to unlock the driver’s door. The security light will
stop ashing to let you know the system is no longer
armed.
Disarming with the Remote Keyless
Entry Transmitter
Your alarm system will disarm when you press UNLOCK
on your remote keyless entry transmitter to unlock the
doors. The security light, on top of the instrument panel,
will stop ashing to let you know the system is no
longer armed.
PASS-Key®III
Your PASS-Key®III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization
to use this equipment.
PASS-Key
®III uses a radio frequency transponder in
the key that matches a decoder in your vehicle.
2-17

Message Center.............................................3-51
Passenger Seatbelt Reminder Message...........3-51
Service Traction System Warning Message......3-51
Traction Active Message................................3-52
Engine Coolant Temperature Warning
Message..................................................3-52
Charging System Indicator Message................3-53
Reduced Engine Power Message....................3-53
Low Oil Pressure Message............................3-54
Change Engine Oil Message..........................3-55
Door Ajar Warning Message...........................3-55
Rear Hatch Ajar Warning Message..................3-55
Check Gas Cap Message..............................3-56
PASS-Key
®III Security Message....................3-56
All-Wheel Drive Disable Warning Message.......3-56
Low Washer Fluid Warning Message...............3-57
Low Fuel Warning Message...........................3-57
Low Brake Fluid Warning Message.................3-58
Service Vehicle Soon Message.......................3-58
Program Mode Message................................3-59
Remote Keyless Entry Transmitter Battery
Low Warning Message...............................3-59
Parking Lamp Warning Message.....................3-60
Highbeam Out Warning Message....................3-60Driver Information Center (DIC).......................3-60
DIC Controls and Displays.............................3-62
DIC Vehicle Personalization............................3-64
Audio System(s).............................................3-74
Setting the Time...........................................3-75
Radio with CD..............................................3-76
Radio with Cassette and CD..........................3-87
Radio with Six-Disc CD................................3-100
Navigation/Radio System..............................3-114
Rear Seat Entertainment System...................3-115
Rear Seat Audio (RSA)................................3-129
Theft-Deterrent Feature................................3-132
Audio Steering Wheel Controls......................3-132
Radio Reception.........................................3-133
Care of the Cassette Tape Player.................3-134
Care of Your CDs and DVDs........................3-135
Care of the CD and DVD Player...................3-135
Fixed Mast Antenna....................................3-135
XM™ Satellite Radio Antenna System............3-135
Section 3 Instrument Panel
3-2

Headlamp Exit Delay
If your vehicle has headlamp exit delay, it will keep
the headlamps and parking lamps on at night for
30 seconds if the following conditions are met:
The ignition is turned to OFF.
The exterior lamp control is in the AUTO position.
LOCK is pressed on the remote keyless entry
transmitter.
It is dark enough outside.
After 30 seconds, the headlamps and parking lamps
will turn off.
The lamps will turn off before the 30 seconds if the
following conditions are met:
The ignition is turned to ON.
The exterior lamp control is turned out of the
AUTO position.
If your vehicle is equipped with the Driver Information
Center (DIC), seeDIC Vehicle Personalization on
page 3-64to program the headlamp exit delay feature.
Entry Lighting
If your vehicle has entry lighting, the interior of your
vehicle will illuminate for 25 seconds so you can
see inside your vehicle before you enter. To activate
entry lighting, do one of the following:
Unlock a door using the key when the interior lamp
control is in the DOOR position, and when the
ignition is in OFF.
Press UNLOCK on the remote keyless entry
transmitter when the interior lamp control is in the
DOOR position, and when the ignition is in OFF.
After 25 seconds, the interior lamps will fade out.
The lamps will turn off before 25 seconds if you do
one of the following:
Press LOCK on the remote keyless entry
transmitter.
Press the front of the power door lock switch.
Turn the ignition to ON.
When any door is opened, entry lighting is cancelled.
The interior lamps will stay on while any door or
the liftgate is open, and fade out when all the doors
are closed.
3-17

Delayed Lighting
If your vehicle has delayed lighting, it will continue to
illuminate the interior for 25 seconds after all doors have
been closed. The lamps will continue to illuminate
when the following conditions are met:
A door is opened then closed.
The interior lamp control is in the DOOR position.
The ignition is in OFF.
After 25 seconds, the interior lamps will fade out.
The lamps will fade out before the 25 seconds if you
do one of the following:
Turn the ignition to ON.
Press LOCK on the remote keyless entry
transmitter.
Press the front of the power door lock switch.
If your vehicle is equipped with the Driver Information
Center (DIC), you can program this feature on or
off. SeeDIC Vehicle Personalization on page 3-64.
Exit Lighting
If your vehicle is equipped with exit lighting, the interior
lamps will come on for about 30 seconds whenever
you remove the key from the ignition if the following
conditions are met:
The vehicle is in PARK (P).
The key is out of the ignition.
The interior lamp control is in the DOOR position.
All of the doors are closed.
After 30 seconds, the interior lamps will fade out.
The interior lamps will fade out before 30 seconds
if you do one of the following:
Turn the ignition to ON.
Press LOCK on the remote keyless entry
transmitter.
Press the front of the power door lock switch.
If your vehicle is equipped with the Driver Information
Center (DIC), you can program this feature on or
off. SeeDIC Vehicle Personalization on page 3-64.
3-18

Perimeter Lighting
If your vehicle has perimeter lighting, it will turn on the
headlamps and parking lamps for 25 seconds when
the following conditions are met:
The ignition is turned to OFF.
The exterior lamp control is in the AUTO position.
UNLOCK is pressed on the remote keyless
entry transmitter.
It is dark enough outside.
After 25 seconds, the headlamps and parking lamps
will turn off.
The lamps will turn off before the 25 seconds if you
do one of the following:
Turn the ignition to ON.
Turn the exterior lamp control out of the
AUTO position.
If your vehicle is equipped with the Driver Information
Center (DIC), you can program this feature on or off.
See “Lock Feedback” underDIC Vehicle Personalization
on page 3-64.
Front Reading Lamps
There are two reading lamps located on the
rearview mirror.
To turn either reading lamp on or off, press the button
located next to each lamp. These lamps will come
on each time you open the doors, if the interior lamp
control is in the ON or DOOR position.
Rear Reading Lamps
There are two reading lamps with coat hooks above
the rear doors.
To turn on or off either reading lamp, press the lens
of the lamp.
Cargo Lamp
The cargo lamp is located in the rear of the vehicle,
above the liftgate opening. It comes on automatically
each time you open the doors, if the interior lamp control
is in the DOOR position.
There are two reading lamps located on the cargo lamp.
To turn either reading lamp on or off, press the button
located next to the lamp.
3-19

Program Mode Message
If you receive this message, your vehicle is in program
mode. If your vehicle is equipped with the Driver
Information Center (DIC), you are ready to begin
programming your vehicle’s customization features.
SeeDIC Vehicle Personalization on page 3-64for
more information.
Remote Keyless Entry Transmitter
Battery Low Warning Message
If you receive this message, the battery in the remote
keyless entry needs to be replaced. See “Battery
Replacement” underRemote Keyless Entry System
Operation on page 2-5for instructions. United States
Canada
United StatesCanada
3-59
