2006 BUICK LACROSSE Owner's Manual

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
1-59

If your vehicle has a roof-mounted side impact airbag
for the driver and the person seated directly behind the
driver, it is located in the ceiling above the side
windows.If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the person directly
behind that passenger, it is located in the ceiling above
the side windows.
1-60

{CAUTION:
If something is between an occupant and an
airbag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has
roof-mounted side impact airbags, never
secure anything to the roof of your vehicle
by routing the rope or tiedown through any
door or window opening. If you do, the path
of an inating side impact airbag will be
blocked. The path of an inating airbag
must be kept clear.
When Should an Airbag Inate?
The driver’s and right front passenger’s frontal airbags
are designed to inate in moderate to severe frontal or
near-frontal crashes. But they are designed to inate only
if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account a
variety of desired deployment and non-deployment
events and are used to predict how severe a crash is
likely to be in time for the airbags to inate and help
restrain the occupants. Whether your frontal airbags will
or should deploy is not based on how fast your vehicle is
traveling. It depends largely on what you hit, the direction
of the impact and how quickly your vehicle slows down.
In addition, your vehicle has “dual-stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle has electronic frontal sensors which help the
sensing system distinguish between a moderate frontal
impact and a more severe frontal impact. For moderate
frontal impacts, these airbags inate at a level less than
full deployment. For more severe frontal impacts, full
deployment occurs. If the front of your vehicle goes
straight into a wall that does not move or deform, the
threshold level for the reduced deployment is about
12 to 16 mph (19 to 26 km/h), and the threshold level
for a full deployment is about 18 to 22 mph
(29 to 35.5 km/h).
1-61

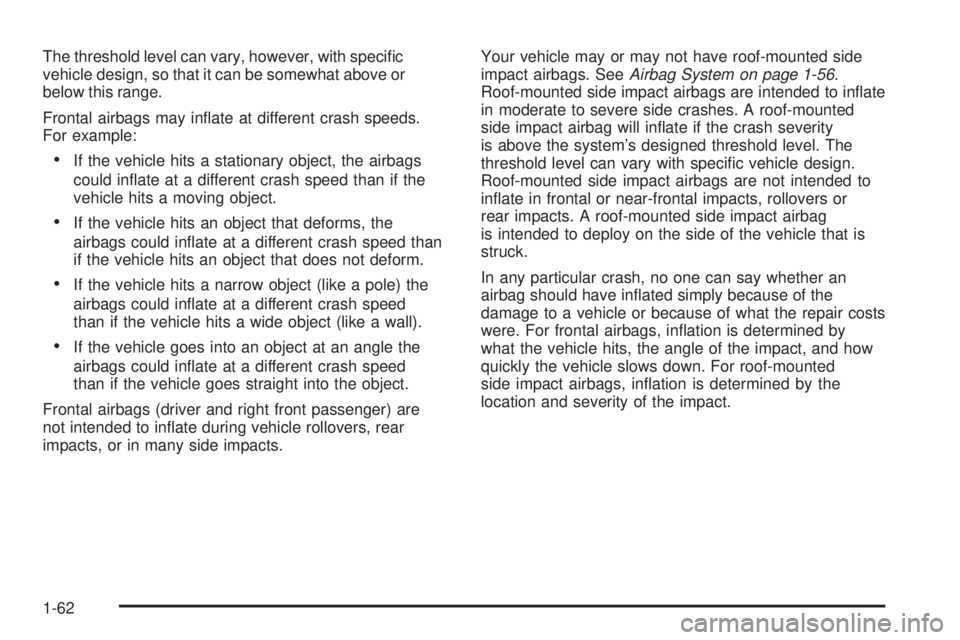

The threshold level can vary, however, with specic
vehicle design, so that it can be somewhat above or
below this range.
Frontal airbags may inate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could inate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could inate at a different crash speed
than if the vehicle goes straight into the object.
Frontal airbags (driver and right front passenger) are
not intended to inate during vehicle rollovers, rear
impacts, or in many side impacts.Your vehicle may or may not have roof-mounted side
impact airbags. SeeAirbag System on page 1-56.
Roof-mounted side impact airbags are intended to inate
in moderate to severe side crashes. A roof-mounted
side impact airbag will inate if the crash severity
is above the system’s designed threshold level. The
threshold level can vary with specic vehicle design.
Roof-mounted side impact airbags are not intended to
inate in frontal or near-frontal impacts, rollovers or
rear impacts. A roof-mounted side impact airbag
is intended to deploy on the side of the vehicle that is
struck.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For roof-mounted
side impact airbags, ination is determined by the
location and severity of the impact.
1-62

What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. The sensing
system triggers a release of gas from the inator, which
inates the airbag. The inator, airbag, and related
hardware are all part of the airbag modules inside the
steering wheel and in the instrument panel in front of the
right front passenger. For vehicles with roof-mounted side
impact airbags, there are also airbag modules in the
ceiling of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Side impact airbags would not
help you in many types of collisions, including many
frontal or near frontal collisions, rollovers, and rear
impacts, primarily because an occupant’s motion is
not toward those airbags. Airbags should never
be regarded as anything more than a supplement to
safety belts, and then only in moderate to severe frontal
or near-frontal collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions for side impact airbags.
1-63

What Will You See After an
Airbag Inates?
After a frontal airbag inates, it quickly deates, so
quickly that some people may not even realize
the airbag inated. Roof-mounted side impact airbags
deate more slowly and may still be at least partially
inated minutes after the vehicle comes to rest. Some
components of the airbag module — the steering wheel
hub for the driver’s airbag, the instrument panel for
the right front passenger’s airbag, or the ceiling of your
vehicle near the side windows — may be hot for a
short time. The parts of the airbag that come into contact
with you may be warm, but not too hot to touch.
There will be some smoke and dust coming from the
vents in the deated airbags. Airbag ination does
not prevent the driver from seeing out of the windshield
or being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
{CAUTION:
When an airbag inates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
1-64

In many crashes severe enough to inate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from
the right front passenger airbag.
Airbags are designed to inate only once. After
they inate, you will need some new parts for
your airbag system. If you do not get them, the
airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers other
parts that need to be replaced.
Your vehicle has a crash sensing and diagnostic
module which records information after a crash.
SeeVehicle Data Collection and Event Data
Recorders on page 7-10.
Let only qualied technicians work on your airbag
system. Improper service can mean that your
airbag system will not work properly. See your
GM dealer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system. The
passenger airbag status indicator on the instrument
panel will be visible when you turn your ignition key
to RUN or START. The words ON and OFF will
be visible during the system check. If you use remote
start to start your vehicle from a distance, if equipped,
you may not see the system check. When the
system check is complete, either the word ON or the
word OFF will be visible. SeePassenger Airbag Status
Indicator on page 3-35.
The passenger sensing system will turn off the right
front passenger’s frontal airbag under certain conditions.
The driver’s airbags are not part of the passenger
sensing system.Passenger Airbag
Status Indicator
1-65

The passenger sensing system works with sensors
that are part of the right front passenger’s seat.
The sensors are designed to detect the presence
of a properly-seated occupant and determine if
the passenger’s frontal airbag should be enabled
(may inate) or not.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
We recommend that child restraints be secured in a
rear seat, including an infant riding in a rear-facing infant
seat, a child riding in a forward-facing child seat, and
an older child riding in a booster seat.
Your vehicle has a rear seat that will accommodate a
rear-facing child restraint. A label on your sun visor says,
“Never put a rear-facing child seat in the front.” This
is because the risk to the rear-facing child is so great,
if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Even though the passenger sensing system
is designed to turn off the passenger’s frontal
airbag if the system detects a rear-facing child
restraint, no system is fail-safe, and no one
can guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
If you need to secure a forward-facing child
restraint in the right front seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in
a rear seat.
1-66
