2006 Acura TSX engine

If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Bef ore downshif ting, make sure the
engine will not go into the
tachometer’s red zone.The 6-speed manual transmission
has an electric lockout so you cannot
accidentally shif t f rom f if th to
reverse instead of sixth while the
vehicle is moving. If you cannot shif t
to reverse when the vehicle is
stopped:
Apply the parking brake, and turn
the ignition key to the
ACCESSORY (I) or the LOCK (0)
position.
Press the clutch pedal, and shif t to
reverse.
With the clutch pedal still pressed,
start the engine.
If you need to use this procedure to
shif t to reverse, your vehicle may be
developing a problem. Have the
vehicle checked by your dealer. 1.
2.
3.
Manual T ransmission
Engine Speed L imiter Reverse L ockout
Driving
243
——y
y
(yy

µµ
µ
µ
CONT INUED
Use this position f or
your normal driving. The
transmission automatically selects a
suitable gear for the vehicle speed
and acceleration. You may notice the
transmission shif ting up at higher
speeds when the engine is cold. This
helps the engine warm up f aster. Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop brief ly with
the engine idling. Shif t to the Park
position if you need to leave your
vehicle and apply the parking brake.
Press on the brake pedal when you
are moving the shif t lever f rom
neutral to another gear.
To avoid transmission damage, come
to a complete stop bef ore shif ting
into Park. The shif t lever must be in
Park bef ore you can remove the key
from the ignition switch.
Press the brake
pedal, and move the shif t lever f rom
Park to reverse. To shif t f rom
reverse to neutral, come to a
completestop,andthenshift.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning of f or
starting the engine. To shif t out of
Park, you must press on the brake
pedal and have your f oot of f the
accelerator pedal.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page . 249
To shift from:
PtoR
RtoP
NtoR
DtoD DtoN
DtoD NtoDRtoN Do this:
Press the brake pedal
and move the lever.
Move the lever.
3
3
Automatic Transmission
Drive (D) Neutral (N)
Reverse (R)
Park (P)
Shif t L ock ReleaseDriving
245
——y
y
(yy

µ
µ

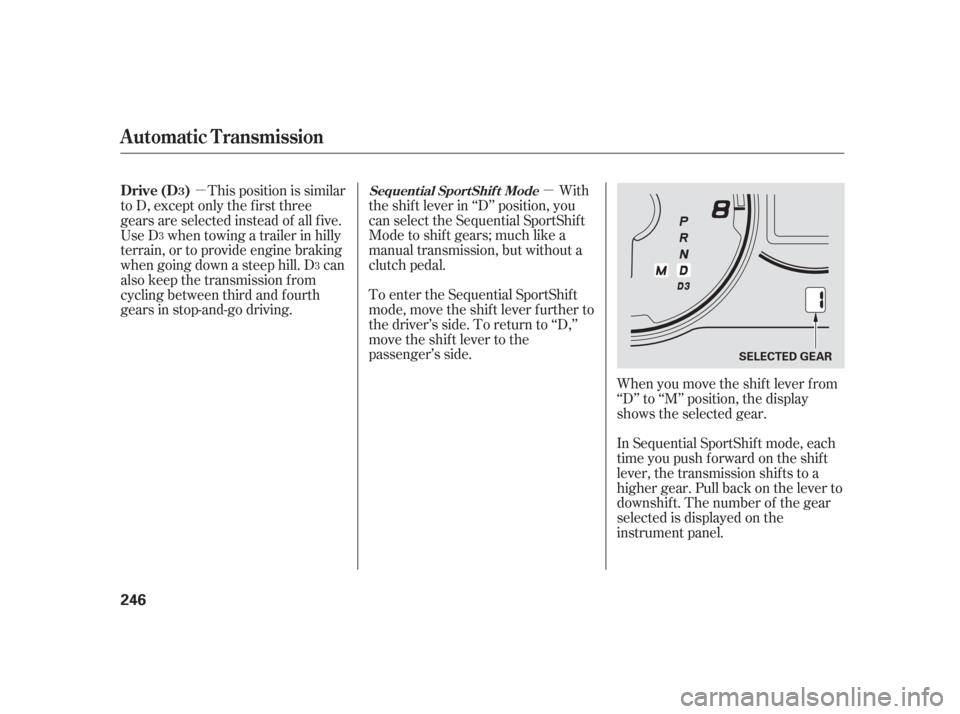

When you move the shif t lever f rom
‘‘D’’ to ‘‘M’’ position, the display
shows the selected gear.
In Sequential SportShif t mode, each
time you push f orward on the shif t
lever, the transmission shif ts to a
higher gear. Pull back on the lever to
downshif t. The number of the gear
selected is displayed on the
instrument panel.
With
the shif t lever in ‘‘D’’ position, you
can select the Sequential SportShif t
Mode to shif t gears; much like a
manual transmission, but without a
clutch pedal.
To enter the Sequential SportShif t
mode, move the shif t lever f urther to
the driver’s side. To return to ‘‘D,’’
move the shift lever to the
passenger’s side.
This position is similar
to D, except only the first three
gears are selected instead of all f ive.
Use D when towing a trailer in hilly
terrain, or to provide engine braking
when going down a steep hill. D can
also keep the transmission f rom
cycling between third and f ourth
gears in stop-and-go driving.
3
3
Automatic Transmission
Sequential SportShif t ModeDrive (D )3
246
SELECTED GEAR
——yy
(yy

à
à
൵
ൠµ
ൠµ
CONT INUED
If the vehicle speed slows to below
the redline of the selected lower gear
position while the indicator is
f lashing, the transmission will
downshif t and the display will show
the selected lower gear. If you try to manually downshif t at a
speed that would cause the engine to
exceed the redline in a lower gear,
the transmission will not downshif t.
Thegearindicatorwillflashthe
numberof thelowergearseveral
times, then return to the higher gear. The transmission will also shif t
automatically as the vehicle comes to
a complete stop. It will downshif t to
f irst gear when the vehicle speed is
under 6 mph (10 km/h). Downshif ting gives you more power
when climbing, and provides engine
brakingwhengoingdownasteephill.
The transmission may automatically
downshif t f rom the higher gear to
the lower gear under the f ollowing
conditions:
The vehicle speeds drops below5 4:33mph(52km/h)
4 3:20mph(32km/h)
If you drive uphill between 54:4533mph
(72 52 km/h)
43:3320mph
(52 32 km/h)
32:2010mph
(32 16 km/h)
If you press the brake pedal as you
drive downhill.
When you accelerate away f rom a
stop, the transmission will be in f irst
gear. The transmission will not
automatically upshift. Watch the
tachometer and upshif t manually
bef ore the engine reaches redline.
The transmission remains in the
selectedgear(5,4,3,2,or1).There
is no automatic downshif t when you
push the accelerator pedal to the
f loor.
Automatic Transmission
Driving
247
Up shift
Down shift
——yy
(yy

CONT INUED
This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.Set the parking brake.
Remove the key from the ignition
switch.
If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Putaclothonthenotchof the
shif t lock release slot cover. Using
a small f lat-tipped screwdriver or a
metal f ingernail f ile, caref ully pry
on the notch of the cover to
remove it.
1.
2.
3.
Automatic Transmission
Shif t L ock Release
Engine Speed L imiter
Driving
249
COVER
——yy
(yy

Insert the key in the shift lock
release slot.
Push down on the key while you
move the shift lever out of Park to
neutral.Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the lef t side.
Return the key to the ignition
switch, depress the brake pedal
and restart the engine.
If you need to use the shif t lock
release, it means your vehicle is
developing a problem. Have the
vehicle checked by your dealer. 6.
5. 4.
Automatic Transmission
250
SHIFT LOCK RELEASE SLOT
——yy
(yy

Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Be extra
cautious in your driving.
Your vehicle is equipped with disc
brakes at all f our wheels. A power
assist helps reduce the ef f ort needed
on the brake pedal. The anti-lock
brake system (ABS) helps you retain
steering control when braking very
hard.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.All f our brakes have audible brake
wear indicators.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal f or
the brakes to occasionally squeal or
squeak when you apply them.
Resting your f oot on the pedal keeps
the brakes applied lightly, builds up
heat, increases wear, and reduces
their ef f ectiveness. It also keeps
your brake lights on all the time,
conf using drivers behind you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by taking your f oot of f the
accelerator and downshif ting to a
lower gear.
Braking System
Braking System Design Brake Wear Indicators
252
——yy
(yy

The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surf aces. It does this
by regulating the engine’s output,
and by selectively applying the
brakes.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety. When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times.When VSA activates, you will see the
VSA activation indicator blink.
If this indicator comes on while
driving, pull to the side of the road
when it is saf e, and turn of f the
engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on, or comes
back on while driving, have the VSA
system inspected by your dealer.If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.
When the VSA system indicator
comes on, you will also see a
‘‘CHECK VSA SYSTEM’’ message in
the multi-information display.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
CONT INUED
Vehicle Stability Assist (VSA) System
VSA A ctivation Indicator
VSA System Indicator
Driving
255
