17-32EPS Components
Circuit Diagram (cont’d)
EPS CONTROL UNIT
CONNECTOR A (2P)
EPS CONTROL UNIT
CONNECTOR B (2P)
DATA LINK CONNECTOR (DLC)
GAUGE CONTROL MODULE (TACH) 36P CONNECTOR
UNDER-DASH FUSE/RELAY BOX CONNECTOR F (34P)
EPS CONTROL UNIT
CONNECTOR D (28P)
EPS CONTROL UNIT
CONNECTOR C (2P) TORQUE SENSOR
3P CONNECTOR
UNDER-DASH FUSE/RELAY BOX
CONNECTOR Q (16P)
UNDER-HOOD FUSE/RELAY BOX
CONNECTOR B (1P)
ECM/PCM CONNECTOR A (44P) EPS MOTOR 1P
CONNECTOR EPS MOTOR 2P
CONNECTOREPS MOTOR ANGLE
SENSOR 6P CONNECTOR
Wire side of female terminals
Wire side of female terminals
Terminal side of male terminals
Terminal side of female terminals
Wire side of female terminals
Wire side of female terminals
08/08/21 14:54:03 61SNR030_170_0033
ProCarManuals.com
DYNOMITE -2009-


(#'

)
´
18-61
Circuit Diagram
BATTERYUNDER-HOOD
FUSE/RELAY BOX
G1
H1WHT 36
IGNITION SWITCH
No. 10
(7.5 A)
No. 2
(60 A)
No. 2
(50 A)
No. 1
(100 A)
No. 7
(7.5 A)
UNDER-DASH
FUSE/RELAY BOX
G19
D2
TPMS INDICATOR ECM/PCM WHT
RED
WHT
RED
BLK TPMS CONTROL UNIT
CAN
CONTROLLER
RED WHT RED WHT
VOLTAGE
REGULATOR8
10 IG1
B BRN
3
GND BLK
G502 G504 K-LINE
:12V
:5V
CAN H
CAN L
IG1
POWER CIRCUIT
INDICATOR
DRIVER
CIRCUIT IG1 HOT in ON (II) and START (III)
DATA LINK
CONNECTOR (DLC) LT BLUBLU
RED
BLU
2
11
LOW TIRE PRESSURE
INDICATOR
GAUGE CONTROL MODULE (TACH)
1
A36
A37 19
6
14 7
4 7Q10
Q9
MICU
(cont’d)
08/08/21 14:58:58 61SNR030_180_0061
ProCarManuals.com
DYNOMITE -2009-


18-62TPMS
Circuit Diagram (cont’d)
DATA LINK CONNECTOR (DLC)
TPMS CONTROL UNIT 20P CONNECTOR
UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (16P)
ECM/PCM CONNECTOR A (44P) GAUGE CONTROL MODULE (TACH) 36P CONNECTOR
Wire side of female terminals
Terminal side of female terminals Wire side of female terminals
Wire side of female terminals
Terminal side of female terminals
08/08/21 14:58:58 61SNR030_180_0062
ProCarManuals.com
DYNOMITE -2009-

Î(#'
)

´

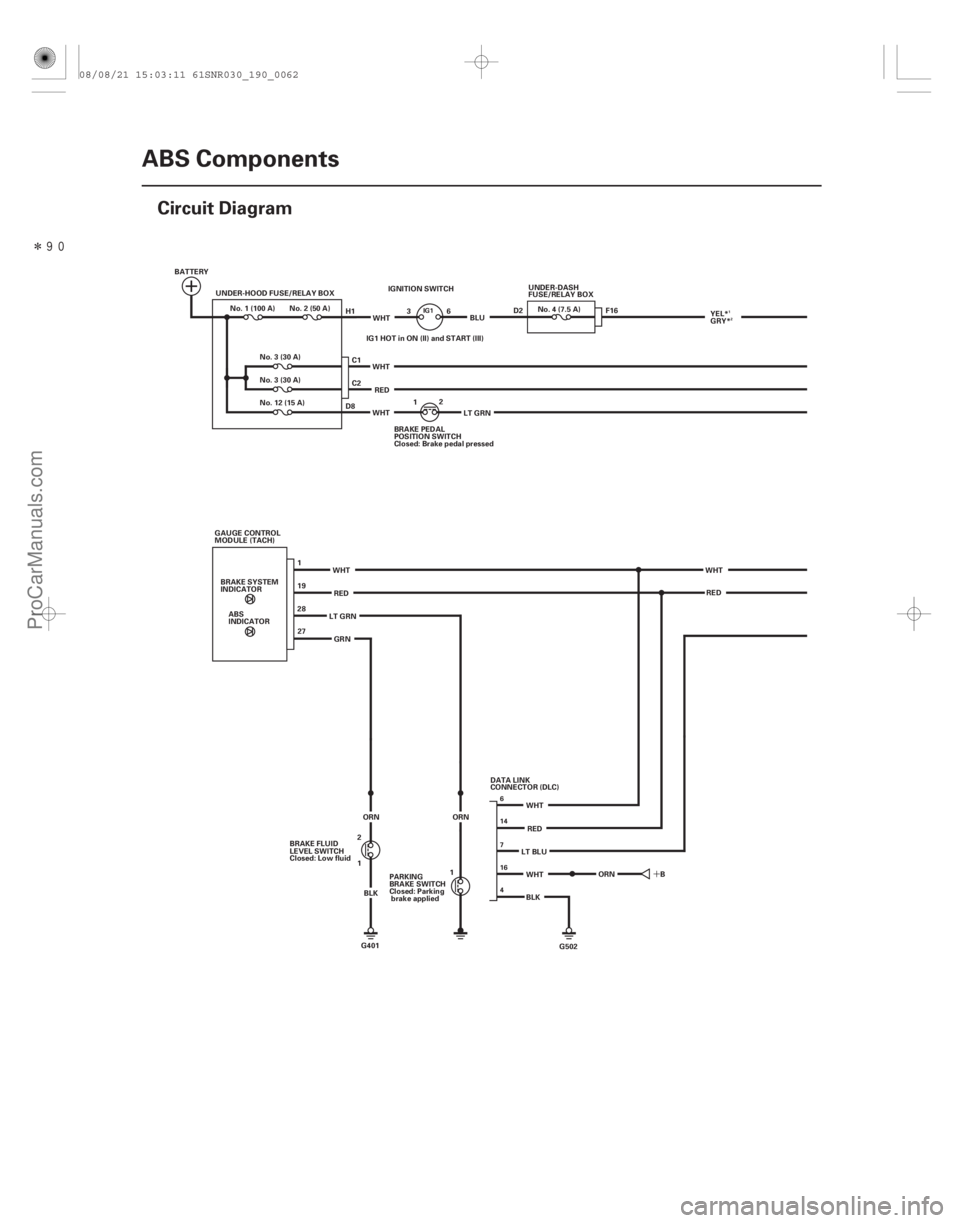

19-62ABS Components
Circuit Diagram
BATTERY
UNDER-HOOD FUSE/RELAY BOX
1
19
2827
G502
BLK
WHT
RED
WHT
WHT
RED
ABS
INDICATOR
BRAKE SYSTEM
INDICATOR
GAUGE CONTROL
MODULE (TACH)
LT GRNGRN
LT BLUWHT
RED
IGNITION SWITCH
IG1 HOT in ON (II) and START (III) WHT
LT GRN
WHT
RED BLU
WHT BRAKE PEDAL
POSITION SWITCH
Closed: Brake pedal pressed1
2
C1
C2 UNDER-DASH
FUSE/RELAY BOX
No. 4 (7.5 A)
No. 3 (30 A)
No.1(100A) No.2(50A)
No. 3 (30 A)
No. 12 (15 A) F16
B
G401
BRAKE FLUID
LEVEL SWITCH
Closed: Low fluid
1 2
BLK
ORN
H1
D8
3
6
ORN
1
PARKING
BRAKE SWITCH
Closed: Parking
brake applied DATA LINK
CONNECTOR (DLC)D2
YEL*
GRY*
ORN
6
16
4 7 14
IG11
2
08/08/21 15:03:11 61SNR030_190_0062
ProCarManuals.com
DYNOMITE -2009-



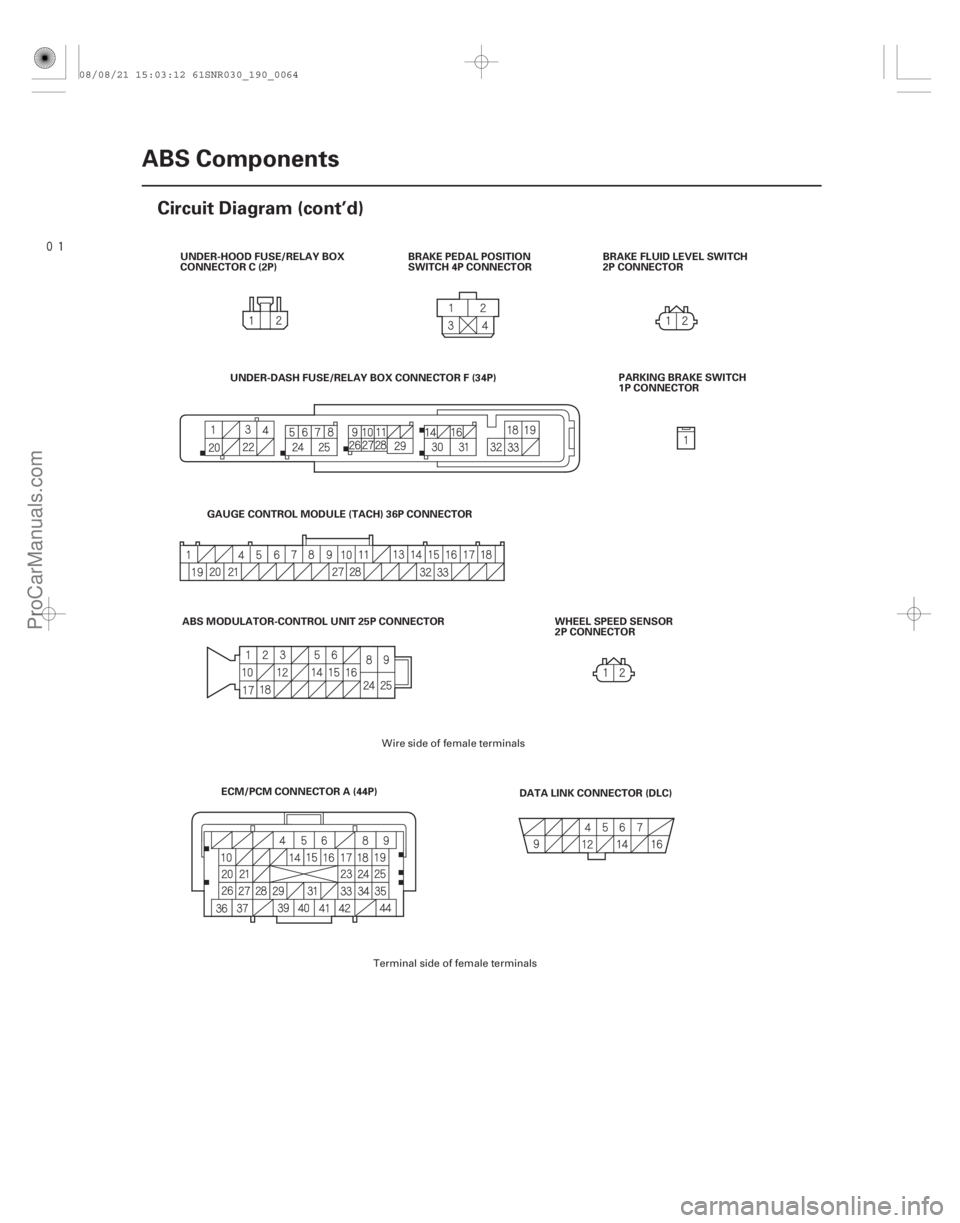

19-64ABS Components
Circuit Diagram (cont’d)
UNDER-HOOD FUSE/RELAY BOX
CONNECTOR C (2P)
BRAKE PEDAL POSITION
SWITCH 4P CONNECTORBRAKE FLUID LEVEL SWITCH
2P CONNECTOR
DATA LINK CONNECTOR (DLC)
ECM/PCM CONNECTOR A (44P)
ABS MODULATOR-CONTROL UNIT 25P CONNECTOR PARKING BRAKE SWITCH
1P CONNECTOR
WHEEL SPEED SENSOR
2P CONNECTOR
UNDER-DASH FUSE/RELAY BOX CONNECTOR F (34P)
GAUGE CONTROL MODULE (TACH) 36P CONNECTOR
Wire side of female terminals
Terminal side of female terminals
08/08/21 15:03:12 61SNR030_190_0064
ProCarManuals.com
DYNOMITE -2009-

Î(#'
)
´ ´

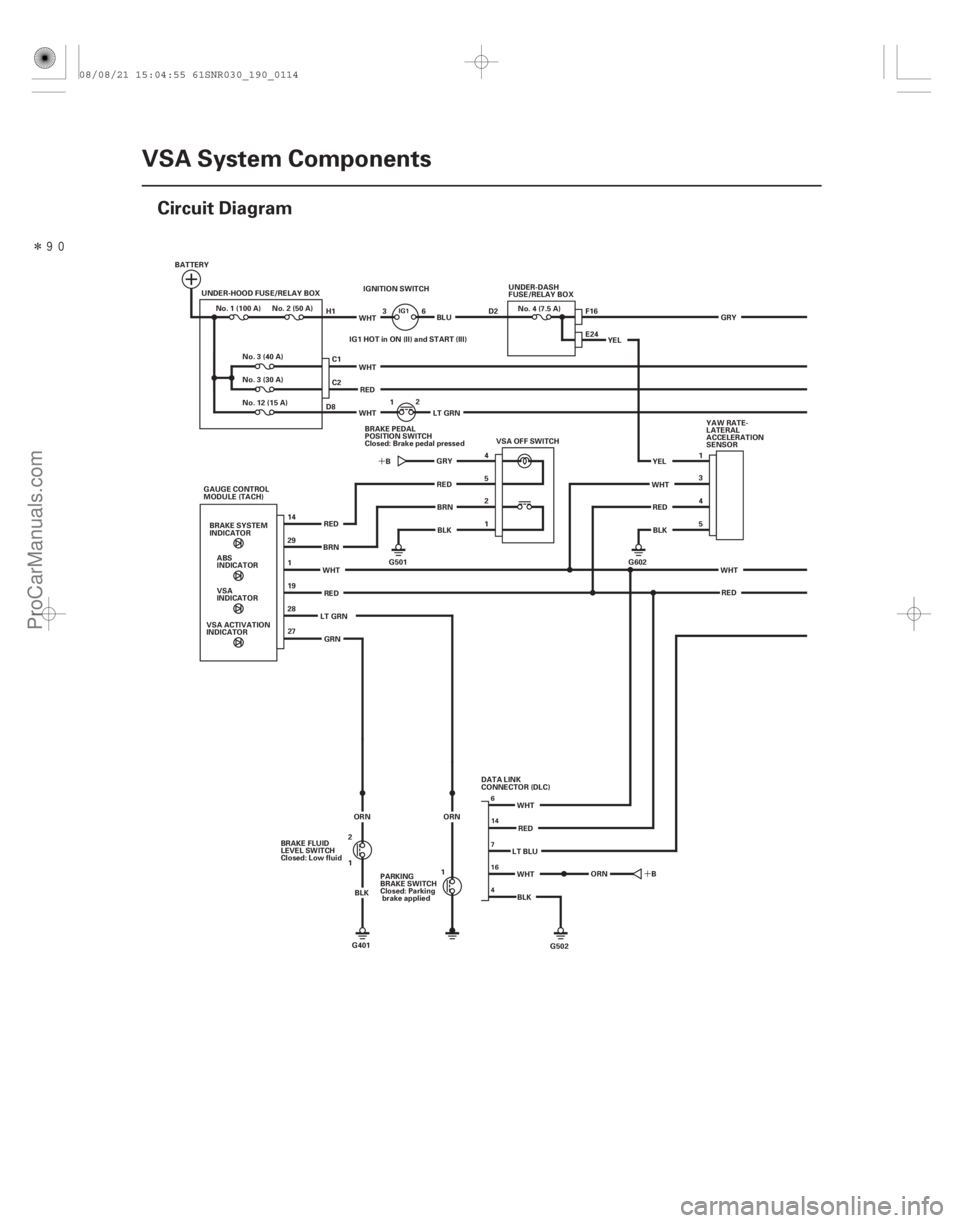

19-114VSA System Components
Circuit Diagram
UNDER-DASH
FUSE/RELAY BOX
No. 4 (7.5 A)
IGNITION SWITCH
IG1 HOT in ON (II) and START (III)
BRAKE PEDAL
POSITION SWITCH
Closed: Brake pedal pressed 1
2
WHTRED
YAW RATE-
LATERAL
ACCELERATION
SENSOR
WHT RED 1
3
4
YEL
5
BLK
4
2
1 VSA OFF SWITCH
WHT
WHT
RED
5
No. 3 (40 A)
No.1(100A) No.2(50A)
No. 3 (30 A)
No. 12 (15 A)
UNDER-HOOD FUSE/RELAY BOX
BATTERY
ABS
INDICATOR
BRAKE SYSTEM
INDICATOR
1
VSA ACTIVATION
INDICATOR VSA
INDICATOR
19
28
27
GAUGE CONTROL
MODULE (TACH)
BRNB
WHT
29
RED
GRN
14
RED
G501
C2 C1
E24
F16
YEL
G602
BLU
LT GRN GRYREDBRN
BLK
WHT
LT GRN GRY
H1
D8 36 D2
G502
BLK
WHT
RED
WHT
LT BLU
B
G401
BRAKE FLUID
LEVEL SWITCH
Closed: Low fluid
1 2
BLK
ORN ORN
1
PARKING
BRAKE SWITCH
Closed: Parking
brake applied DATA LINK
CONNECTOR (DLC)
ORN
IG1
6
16
4 714
08/08/21 15:04:55 61SNR030_190_0114
ProCarManuals.com
DYNOMITE -2009-



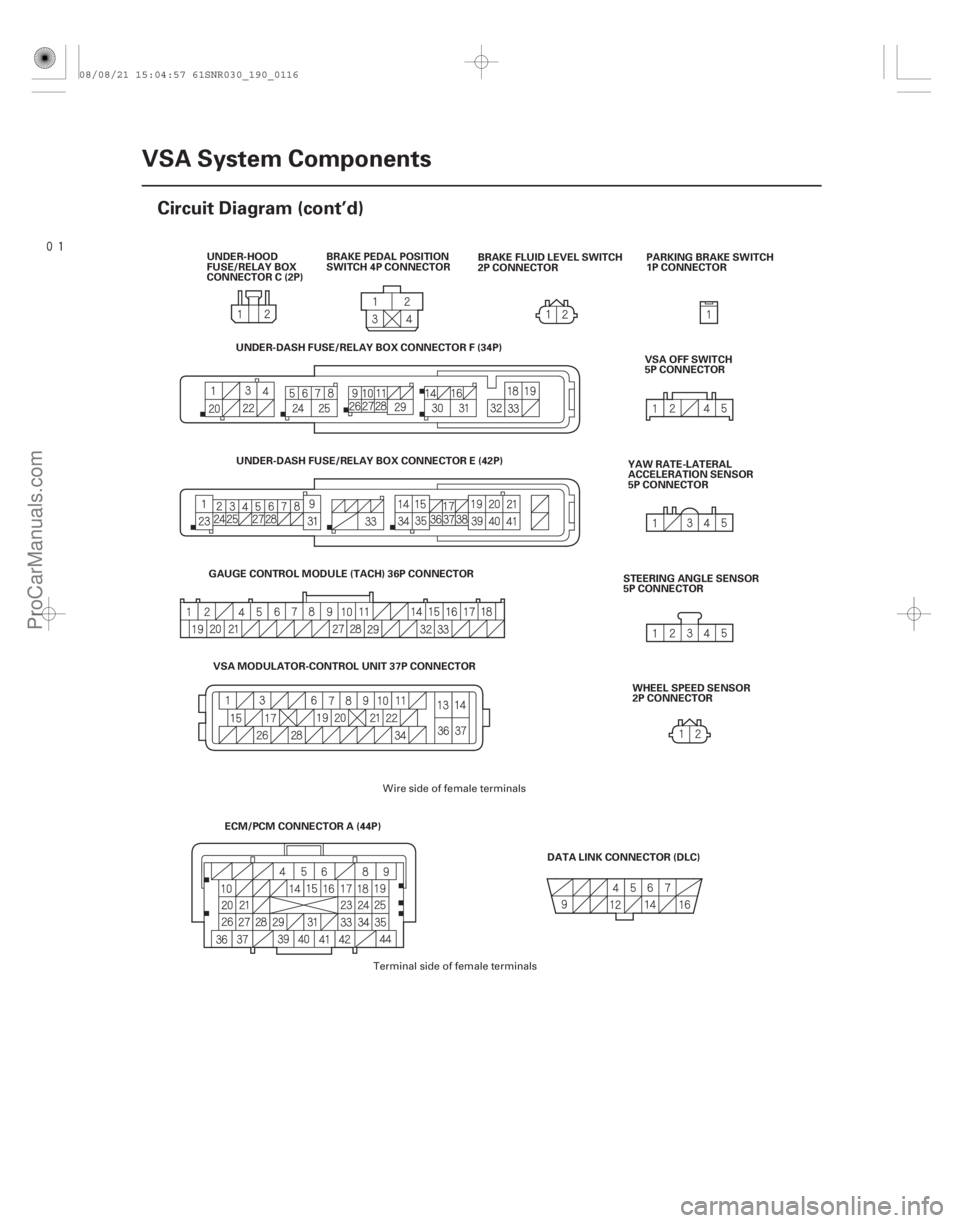

19-116VSA System Components
Circuit Diagram (cont’d)
BRAKE PEDAL POSITION
SWITCH 4P CONNECTOR
PARKING BRAKE SWITCH
1P CONNECTOR
DATA LINK CONNECTOR (DLC) VSA OFF SWITCH
5P CONNECTOR
YAW RATE-LATERAL
ACCELERATION SENSOR
5P CONNECTOR
STEERING ANGLE SENSOR
5P CONNECTOR
BRAKE FLUID LEVEL SWITCH
2P CONNECTOR
UNDER-HOOD
FUSE/RELAY BOX
CONNECTOR C (2P)
WHEEL SPEED SENSOR
2P CONNECTOR
ECM/PCM CONNECTOR A (44P)
GAUGE CONTROL MODULE (TACH) 36P CONNECTOR
VSA MODULATOR-CONTROL UNIT 37P CONNECTOR UNDER-DASH FUSE/RELAY BOX CONNECTOR F (34P)
UNDER-DASH FUSE/RELAY BOX CONNECTOR E (42P)
Wire side of female terminals
Terminal side of female terminals
08/08/21 15:04:57 61SNR030_190_0116
ProCarManuals.com
DYNOMITE -2009-

(#'
)

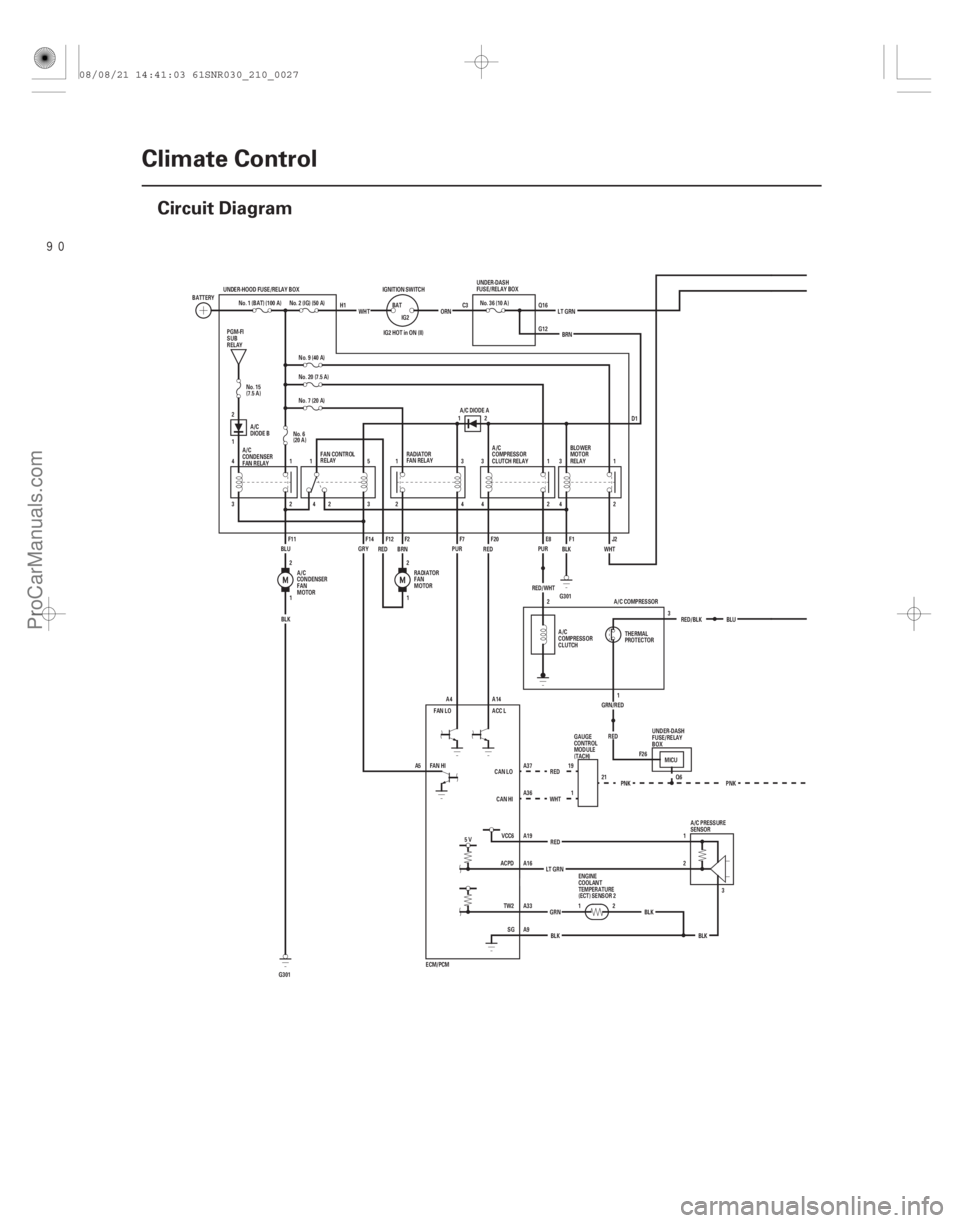

21-26Climate Control
Circuit Diagram
PNK
RED/BLK
12
1 2
Q6
1 2
GRN/REDRED
IG2 HOT in ON (II)
CAN HI
CAN LO
FAN HI ACC L
FAN LO A14
A4
A5 13
A/C COMPRESSOR
2
RED/WHT
BLU
F26 MICU
1
19
21
A37
A36
BLK
A9 A33 A16 A19 PNK
WHT RED
1
23
RED
LT GRN
5V
BLK
VCC6
ACPD
TW2 GRN12
SG BLK
No. 15
(7.5 A)
(20 A) No. 6 A/C DIODE A
GRY RED
WHT
LT GRN
BRN
42 3 5
1 IG2
BAT
ORNNo. 36 (10 A)
BRN
BLK RED
BLU
2
1
G301 ECM/PCM
BATTERY
No. 1 (BAT) (100 A)
24
2
3
PUR
13
41 No. 9 (40 A)
No. 2 (IG) (50 A)
1
3
42
WHT
BLK
G301
No.20(7.5A)
1
3
2
4
PUR
UNDER-HOOD FUSE/RELAY BOX IGNITION SWITCH
UNDER-DASH
FUSE/RELAY BOX
RADIATOR
FAN RELAY
FAN CONTROL
RELAY
A/C
CONDENSER
FAN RELAY A/C
COMPRESSOR
CLUTCH RELAY
BLOWER
MOTOR
RELAY
RADIATOR
FAN
MOTOR
PGM-FI
SUB
RELAY
A/C
CONDENSER
FAN
MOTOR
ENGINE
COOLANT
TEMPERATURE
(ECT) SENSOR 2A/C PRESSURE
SENSOR
GAUGE
CONTROL
MODULE
(TACH)
A/C
COMPRESSOR
CLUTCH
UNDER-DASH
FUSE/RELAY
BOX
THERMAL
PROTECTOR
A/C
DIODE B
H1 C3 Q16
G12
D1
F11 F14 F12 F2 F7 F20 E8 F1 J2 No. 7 (20 A)
