2006 ACURA CSX bolt pattern

Î
 Î
Î
Specified Torque:
8x1.25mm
27 N·m (2.8 kgf·m, 20 lbf·ft)
13-59
Liquid gasket
D
39 N·m
(4.0 kgf·m,
29 lbf·ft)
C
B
A
B
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
B
44 N·m
(4.5 kgf·m, 33 lbf·ft)
G
H
F
A
39 N·m
(4.0 kgf·m,
33 lbf·ft)
6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft) D
E
C
C
15. Tighten the 8 mm flange bolts in a crisscross pattern in several steps.
16. Clean any dirt or oil from the mating surface of the change lever assembly and the transmission
housing. Apply liquid gasket, P/N 08718-0001
evenly to the mating surface of the change lever
assembly and the transmission housing. Install the
component within 5 minutes of applying the liquid
gasket.
NOTE:  If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket. 17. Installthe8x14mmdowelpins(B)andthechange
lever assembly (C) with harness bracket A.
18. Apply liquid gasket, P/N 08718-0001, evenly to the threads of the inter lock bolt (D). Install the
component within 5 minutes of applying the liquid
gasket.
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
19. Install the drain plug (A) and the 10 mm flange bolt (B) with new washers (C). Install the filler plug (D)
finger-tight with new sealing washer (E).
20. Apply MTF to a new O-ring (F). Then install the output shaft (countershaft) speed sensor (G) with
the O-ring and the plain washer (H).
(cont’d)
Replace.Replace.
Replace.
Replace.
08/08/21 14:46:29 61SNR030_130_0061
ProCarManuals.com
DYNOMITE -2009-

Î 
Î
13-102 Manual Transmission
Transmission Disassembly (cont’d)
A
B
A
D B
C
D
D A
B
A
7. Loosen the 8 mm flange bolts in a crisscross pattern in several steps, then remove them with
transmission hanger A and transmission hanger B.
8. Remove the 32 mm sealing cap (A).
9. While expanding the 72 mm snap ring (B) on the countershaft ball bearing with snap ring pliers, lift
the transmission housing (C). Release the snap ring
pliers, and remove the transmission housing and
the three 14 x 20 mm dowel pins (D). 10. Remove the reverse idler gear (A) and the reverse
idler gear shaft (B).
11. Remove the reverse shift fork (A).
08/08/21 14:47:56 61SNR030_130_0104
ProCarManuals.com
DYNOMITE -2009-







Specified Torque:
8x1.25mm
27 N·m (2.8 kgf·m, 20 lbf·ft)
13-136
Manual Transmission
Transmission Reassembly (cont’d)
Liquid gasket A
CB
6x1.0mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft) D
39 N·m
(4.0 kgf·m,
29 lbf·ft)
B
14. Tighten the 8 mm flange bolts in a crisscross
pattern in several steps.
15. Clean any dirt or oil from the mating surface of the change lever assembly and the transmission
housing. Apply liquid gasket, P/N 08718-0001,
evenly to the mating surface of the change lever
assembly and the transmission housing. Install the
component within 5 minutes of applying the liquid
gasket.
NOTE:  If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket. 16. Installthe8x14mmdowelpins(B)andthechange
lever assembly (C) with harness bracket A.
17. Apply liquid gasket, P/N 08718-0001, evenly to the threads of the inter lock bolt (D). Install the
component within 5 minutes of applying the liquid
gasket.
NOTE: If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
 If too much time has passed after applying the liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.
08/08/21 14:48:44 61SNR030_130_0138
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
 )
 Î
Î
(#'


 ) Special Tools Required
13-14013-140 M/T Differential
Differential Carrier, Final Driven
Gear Replacement
Carrier Bearing Replacement
A
B 11x1.0mm(10)
121N·m(12.3kgf·m,89lbf·ft)
B
A
B
A
1. Loosen the bolts in a crisscross pattern in several steps, then remove the bolts and the final driven
gear (A) from the differential carrier (B).
2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Tighten the bolts
in a crisscross pattern in several steps. Inner driver handle, 40 mm 07746-0030100
1. Check the carrier bearings for wear and rough rotation. If they rotate smoothly and their rollers
show no signs of wear, the bearings are OK.
2. Remove the carrier bearings (A) with a commercially available bearing puller (B).
08/08/21 14:48:56 61SNR030_130_0142
ProCarManuals.com
DYNOMITE -2009-

Î
Îµµ
Specified Torque:
8x1.25mm
27 N·m (2.8 kgf·m, 20 lbf·ft)
Standard: 0 0.10 mm (0 0.039 in.) 80 mm Shim
Type Part Number Thickness
13-143
00746-0030100
3. Install the transmission housing onto the clutchhousing, then tighten the 8 mm flange bolts in a
crisscross pattern in several steps (see step 14 on
page 13-136).
4. Use the 40 mm inner driver handle to bottom the differential assembly in the clutch housing.
5. Measure the clearance between the 80 mm shim and the bearing outer race in transmission housing. 6. If the clearance exceeds the standard, select a new
80 mm shim from the following table. If the
clearance measured in step 5 is within the standard,
go to step 9.
A 41441-PL3-B00 1.00 mm (0.0394 in.)B 41442-PL3-B00 1.10 mm (0.0433 in.)
C 41443-PL3-B00 1.20 mm (0.0472 in.)
D 41444-PL3-B00 1.30 mm (0.0512 in.) E 41445-PL3-B00 1.40 mm (0.0551 in.)F 41446-PL3-B00 1.50 mm (0.0591 in.)
G 41447-PL3-B00 1.60 mm (0.0630 in.) H 41448-PL3-B00 1.70 mm (0.0669 in.) J 41449-PL3-B00 1.80 mm (0.0709 in.)
K 41450-PL3-B00 1.05 mm (0.0413 in.) L 41451-PL3-B00 1.15 mm (0.0453 in.)
M 41452-PL3-B00 1.25 mm (0.0492 in.) N 41453-PL3-B00 1.35 mm (0.0531 in.) P 41454-PL3-B00 1.45 mm (0.0571 in.)
Q 41455-PL3-B00 1.55 mm (0.0610 in.) R 41456-PL3-B00 1.65 mm (0.0650 in.)
S 41457-PL3-B00 1.75 mm (0.0689 in.)
7. Remove the bolts and transmission housing.
8. Replace the thrust shim selected in step 6, then recheck the clearance.
9. Reinstall the transmission housing.
08/08/21 14:48:58 61SNR030_130_0145
ProCarManuals.com
DYNOMITE -2009-


(#'



 )
ÌÏ

(#'


 ) Special Tools Required

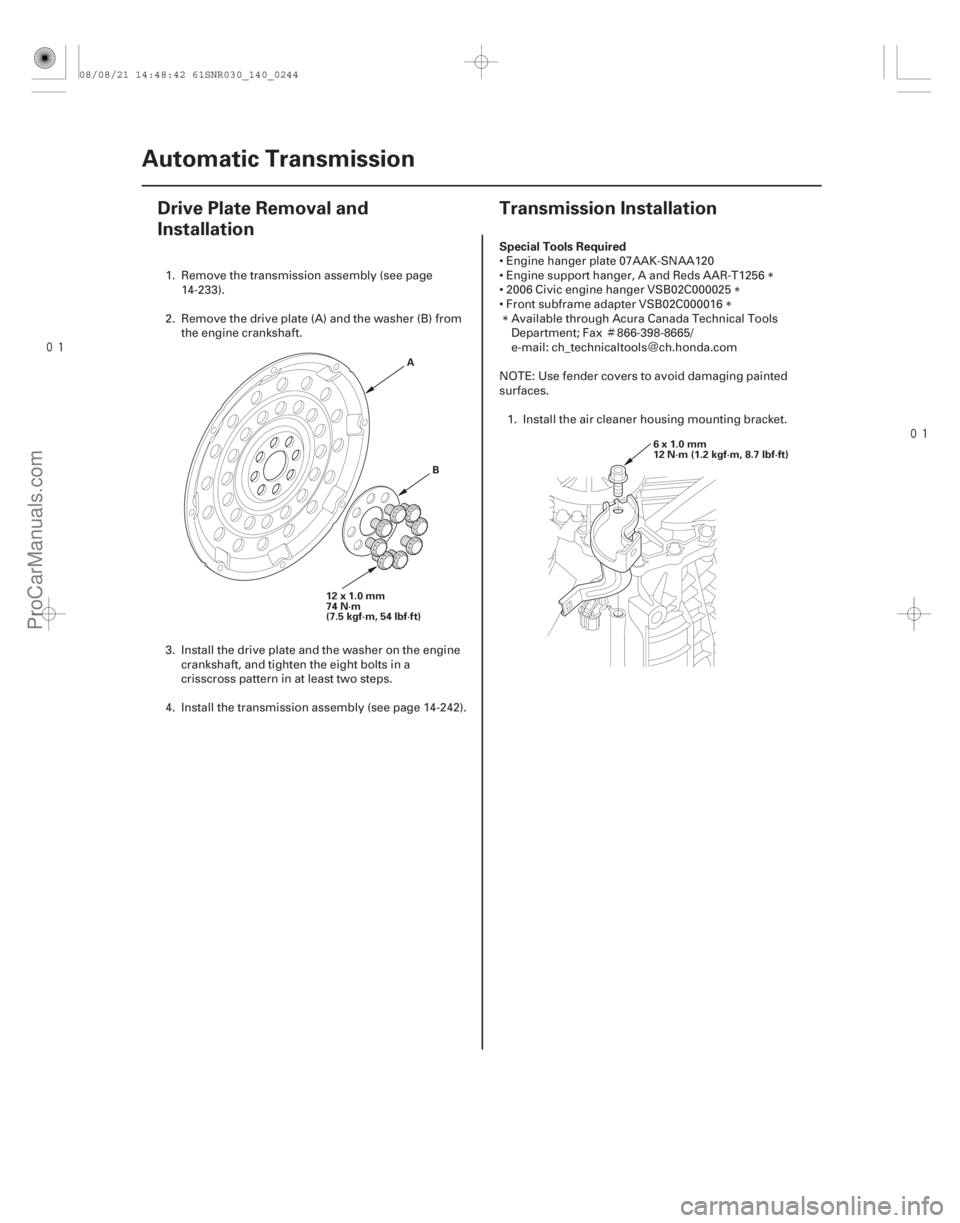

14-24214-242 Automatic Transmission
Drive Plate Removal and
Installation
Transmission Installation
A
B
12x1.0mm
74 N·m
(7.5 kgf·m, 54 lbf·ft) 6x1.0mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)
1. Remove the transmission assembly (see page
14-233).
2. Remove the drive plate (A) and the washer (B) from the engine crankshaft.
3. Install the drive plate and the washer on the engine crankshaft, and tighten the eight bolts in a
crisscross pattern in at least two steps.
4. Install the transmission assembly (see page 14-242).  Engine hanger plate 07AAK-SNAA120
 Engine support hanger, A and Reds AAR-T1256
 2006 Civic engine hanger VSB02C000025
 Front subframe adapter VSB02C000016
Available through Acura Canada Technical Tools
Department; Fax 866-398-8665/
e-mail: ch_technicaltools ch.honda.com
NOTE: Use fender covers to avoid damaging painted
surfaces. 1. Install the air cleaner housing mounting bracket.
08/08/21 14:48:42 61SNR030_140_0244
ProCarManuals.com
DYNOMITE -2009-





14-245
B
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft) A
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
6x1.0mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
D
6x1.0mm
14 N·m
(1.4 kgf·m,
10 lbf·ft)A
B
C
E
F
VSB02C000016
A
B
C

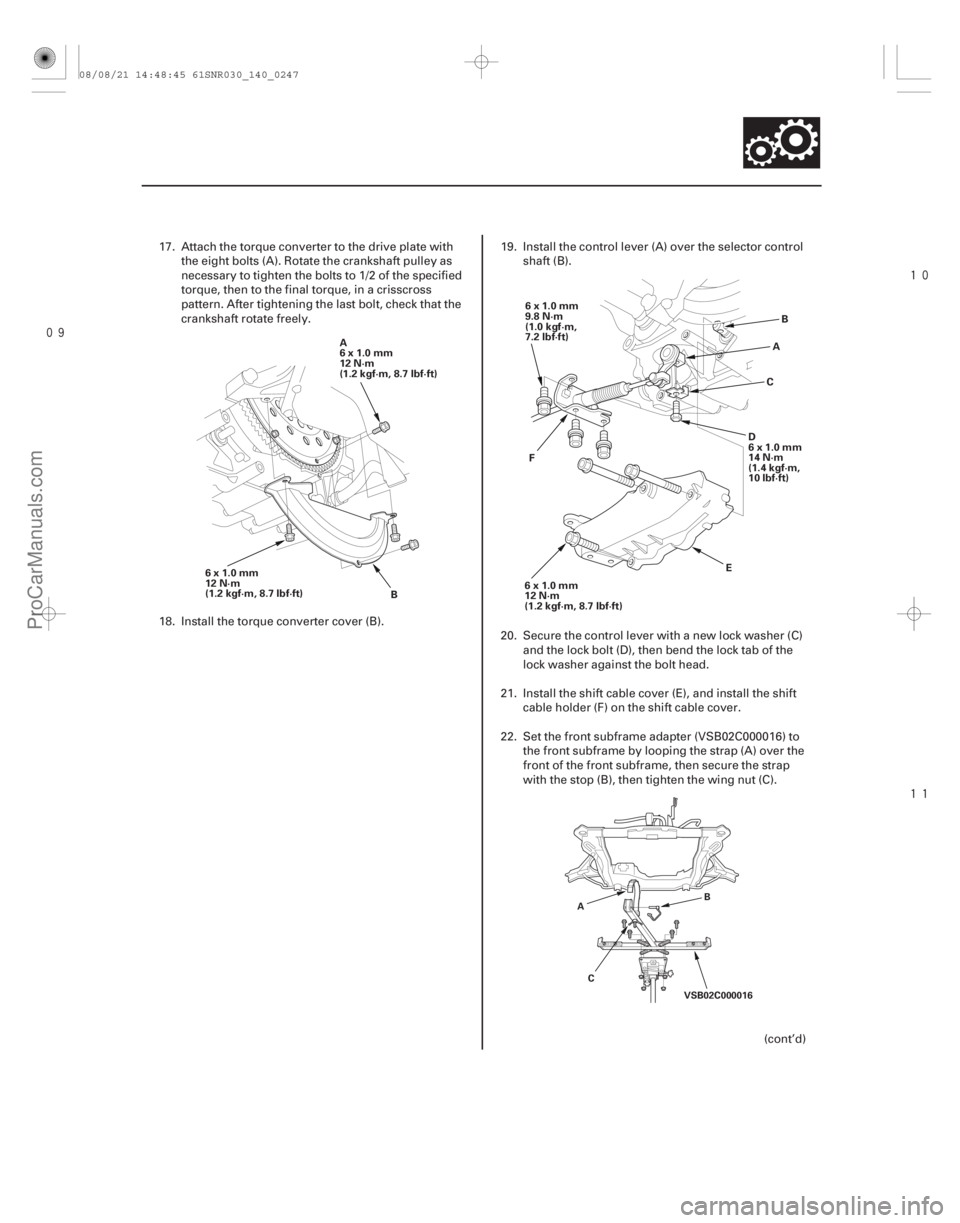

17. Attach the torque converter to the drive plate with the eight bolts (A). Rotate the crankshaft pulley as
necessary to tighten the bolts to 1/2 of the specified
torque, then to the final torque, in a crisscross
pattern. After tightening the last bolt, check that the
crankshaft rotate freely.
18. Install the torque converter cover (B). 19. Install the control lever (A) over the selector control
shaft (B).
20. Secure the control lever with a new lock washer (C) and the lock bolt (D), then bend the lock tab of the
lock washer against the bolt head.
21. Install the shift cable cover (E), and install the shift cable holder (F) on the shift cable cover.
22. Set the front subframe adapter (VSB02C000016) to the front subframe by looping the strap (A) over the
front of the front subframe, then secure the strap
with the stop (B), then tighten the wing nut (C).
(cont’d)
08/08/21 14:48:45 61SNR030_140_0247
ProCarManuals.com
DYNOMITE -2009-

Î

µµ
14-347
10x1.25mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)
A D
E C
F
G
A A
B
B: 0 7 mm (0 0.28 in.)
A

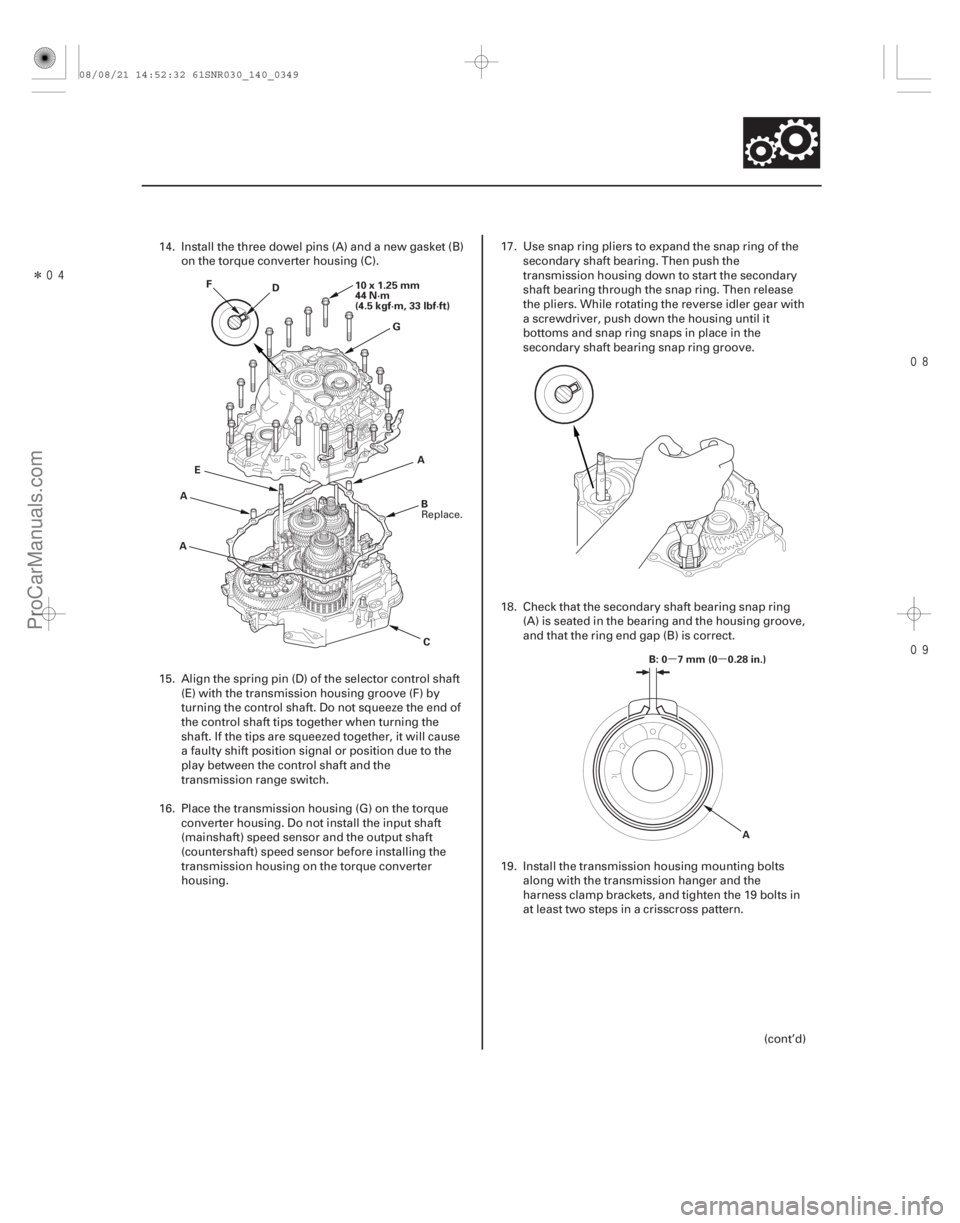

14. Install the three dowel pins (A) and a new gasket (B)on the torque converter housing (C).
15. Align the spring pin (D) of the selector control shaft (E) with the transmission housing groove (F) by
turning the control shaft. Do not squeeze the end of
the control shaft tips together when turning the
shaft. If the tips are squeezed together, it will cause
a faulty shift position signal or position due to the
play between the control shaft and the
transmission range switch.
16. Place the transmission housing (G) on the torque converter housing. Do not install the input shaft
(mainshaft) speed sensor and the output shaft
(countershaft) speed sensor before insta lling the
transmission housing on the torque converter
housing. 17. Use snap ring pliers to expand the snap ring of the
secondary shaft bearing. Then push the
transmission housing down to start the secondary
shaft bearing through the snap ring. Then release
the pliers. While rotating the reverse idler gear with
a screwdriver, push down the housing until it
bottoms and snap ring snaps in place in the
secondary shaft bearing snap ring groove.
18. Check that the secondary shaft bearing snap ring (A) is seated in the bearing and the housing groove,
and that the ring end gap (B) is correct.
19. Install the transmission housing mounting bolts along with the transmission hanger and the
harness clamp brackets, and tighten the 19 bolts in
at least two steps in a crisscross pattern.
(cont’d)
Replace.
08/08/21 14:52:32 61SNR030_140_0349
ProCarManuals.com
DYNOMITE -2009-
