2006.5 Peugeot Boxer Owner's Manual

3
2
1
11
2

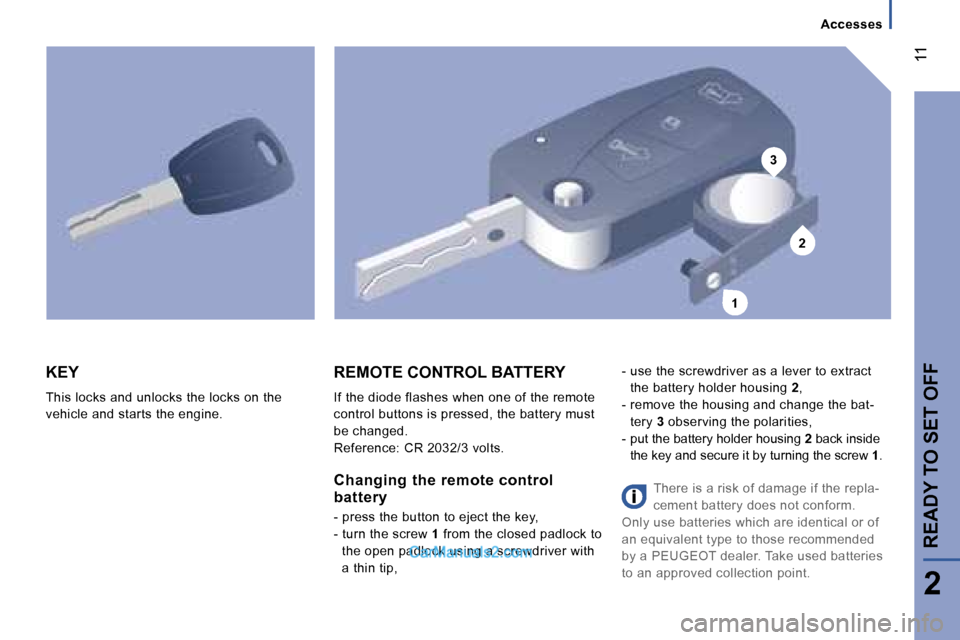

KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
REMOTE CONTROL BATTERY
If the diode flashes when one of the remote
control buttons is pressed, the battery must
be changed.
Reference: CR 2032/3 volts.
Changing the remote control
battery
- press the button to eject the key,
- turn the screw
1 from the closed padlock to
the open padlock using a screwdriver with
a thin tip, - use the screwdriver as a lever to extract
the battery holder housing 2,
- remove the housing and change the bat- tery 3 observing the polarities,
- put the battery holder housing 2 back inside
the key and secure it by turning the screw 1.
There is a risk of damage if the repla-
cement battery does not conform.
Only use batteries which are identical or of
an equivalent type to those recommended
by a PEUGEOT dealer. Take used batteries
to an approved collection point.
READY TO SET OFF
Accesses

12
Accesses
ELECTRONIC
IMMOBILISER
All of the keys contain an electronic immobi-
liser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the elec-
tronic immobiliser system.
This warning light is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a PEUGEOT
dealer. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors are opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high frequen-
cy equipment (mobile telephones, domestic
alarms…), may interfere with the operation
of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential
card,
- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your pos-
session are the only ones which can start
the vehicle.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services more
difficult in an emergency.
As a safety precaution (with children on board),
remove the key from the ignition when leaving
the vehicle, even for a short time.
ALARM
If your vehicle is fitted with an ANTI-THEFT
ALARM,
this provides:
- exterior perimeter protection by means of
detectors on the doors and bonnet and on
the electrical supply,
- anti-lift protection.
The equipment also includes a siren and
a diode which can be seen from outside,
indicating the three possible statuses of
the alarm:
- alarm activated (monitoring), slow flashing of the red diode,
- alarm not activated (not monitoring), diode off,
- alarm triggered (intrusion signal), rapid
flashing of the red diode when the vehicle
is unlocked.
Activation of the alarm
First ensure that all of the accesses are
closed correctly.
The alarm is activated by pres-
sing this padlock, the protection
is active after a few seconds.
While the alarm is monitoring,
any intrusion triggers the siren for approxi-
mately 30 seconds, accompanied by lighting
Good practice
Make a careful note of the number of the
keys. If they are lost, your PEUGEOT dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the elec-
tronic immobiliser system.

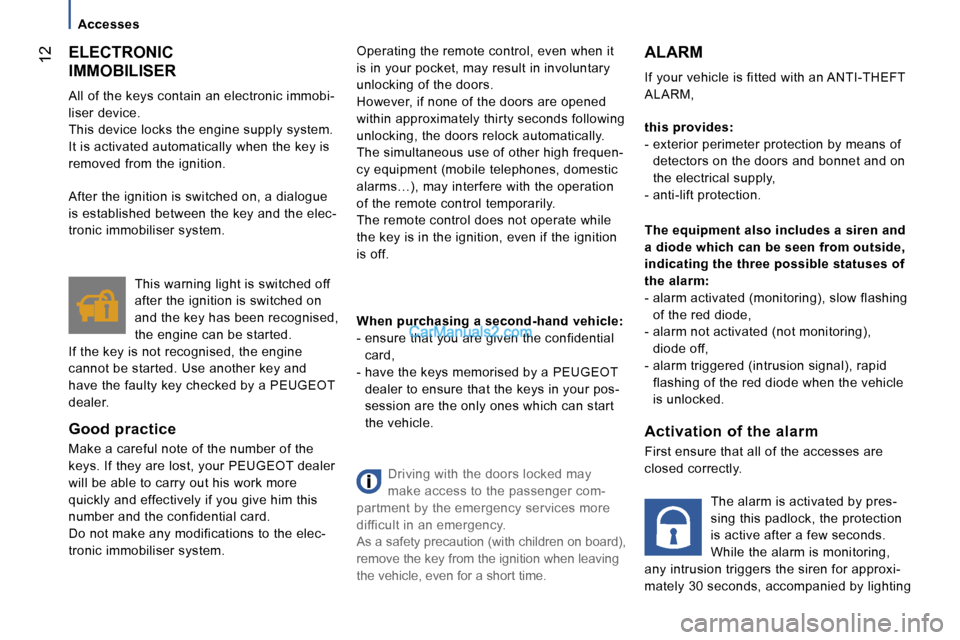

12
Accesses
ELECTRONIC
IMMOBILISER
All of the keys contain an electronic immobi-
liser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the elec-
tronic immobiliser system.
This warning light is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a PEUGEOT
dealer. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors are opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high frequen-
cy equipment (mobile telephones, domestic
alarms…), may interfere with the operation
of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential
card,
- have the keys memorised by a PEUGEOT
dealer to ensure that the keys in your pos-
session are the only ones which can start
the vehicle.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services more
difficult in an emergency.
As a safety precaution (with children on board),
remove the key from the ignition when leaving
the vehicle, even for a short time.
ALARM
If your vehicle is fitted with an ANTI-THEFT
ALARM,
this provides:
- exterior perimeter protection by means of
detectors on the doors and bonnet and on
the electrical supply,
- anti-lift protection.
The equipment also includes a siren and
a diode which can be seen from outside,
indicating the three possible statuses of
the alarm:
- alarm activated (monitoring), slow flashing of the red diode,
- alarm not activated (not monitoring), diode off,
- alarm triggered (intrusion signal), rapid
flashing of the red diode when the vehicle
is unlocked.
Activation of the alarm
First ensure that all of the accesses are
closed correctly.
The alarm is activated by pres-
sing this padlock, the protection
is active after a few seconds.
While the alarm is monitoring,
any intrusion triggers the siren for approxi-
mately 30 seconds, accompanied by lighting
Good practice
Make a careful note of the number of the
keys. If they are lost, your PEUGEOT dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the elec-
tronic immobiliser system.

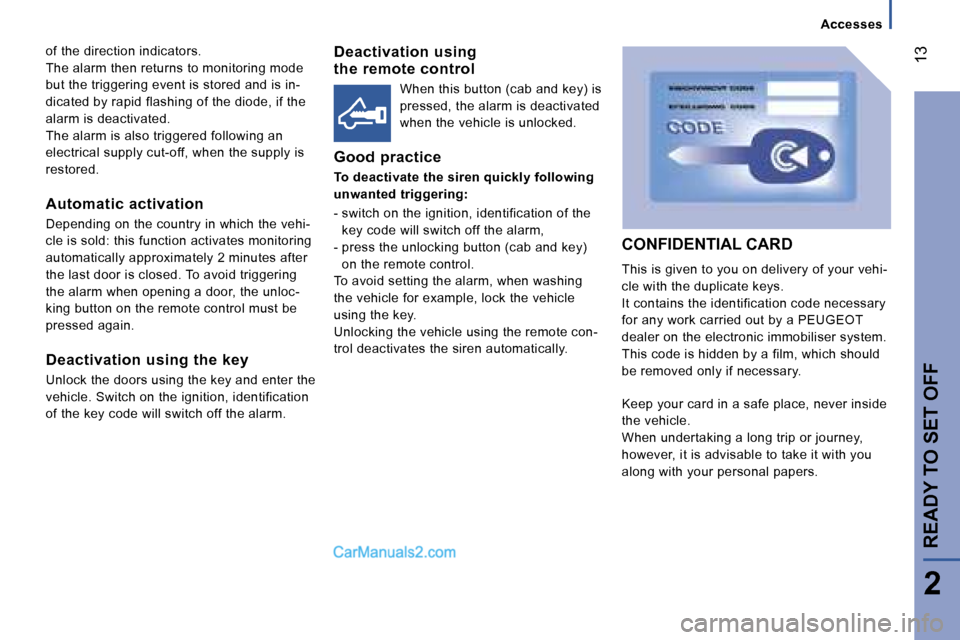

13
2
Accesses
READY TO SET OFF
of the direction indicators.
The alarm then returns to monitoring mode
but the triggering event is stored and is in-
dicated by rapid flashing of the diode, if the
alarm is deactivated.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
Automatic activation
Depending on the country in which the vehi-
cle is sold: this function activates monitoring
automatically approximately 2 minutes after
the last door is closed. To avoid triggering
the alarm when opening a door, the unloc-
king button on the remote control must be
pressed again.
Deactivation using the key
Unlock the doors using the key and enter the
vehicle. Switch on the ignition, identification
of the key code will switch off the alarm. Deactivation using
the remote control
When this button (cab and key) is
pressed, the alarm is deactivated
when the vehicle is unlocked.
Good practice
To deactivate the siren quickly following
unwanted triggering:
- switch on the ignition, identification of the key code will switch off the alarm,
- press the unlocking button (cab and key) on the remote control.
To avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.
Unlocking the vehicle using the remote con-
trol deactivates the siren automatically. CONFIDENTIAL CARD
This is given to you on delivery of your vehi-
cle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

13
2
Accesses
READY TO SET OFF
of the direction indicators.
The alarm then returns to monitoring mode
but the triggering event is stored and is in-
dicated by rapid flashing of the diode, if the
alarm is deactivated.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
Automatic activation
Depending on the country in which the vehi-
cle is sold: this function activates monitoring
automatically approximately 2 minutes after
the last door is closed. To avoid triggering
the alarm when opening a door, the unloc-
king button on the remote control must be
pressed again.
Deactivation using the key
Unlock the doors using the key and enter the
vehicle. Switch on the ignition, identification
of the key code will switch off the alarm. Deactivation using
the remote control
When this button (cab and key) is
pressed, the alarm is deactivated
when the vehicle is unlocked.
Good practice
To deactivate the siren quickly following
unwanted triggering:
- switch on the ignition, identification of the key code will switch off the alarm,
- press the unlocking button (cab and key) on the remote control.
To avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.
Unlocking the vehicle using the remote con-
trol deactivates the siren automatically. CONFIDENTIAL CARD
This is given to you on delivery of your vehi-
cle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

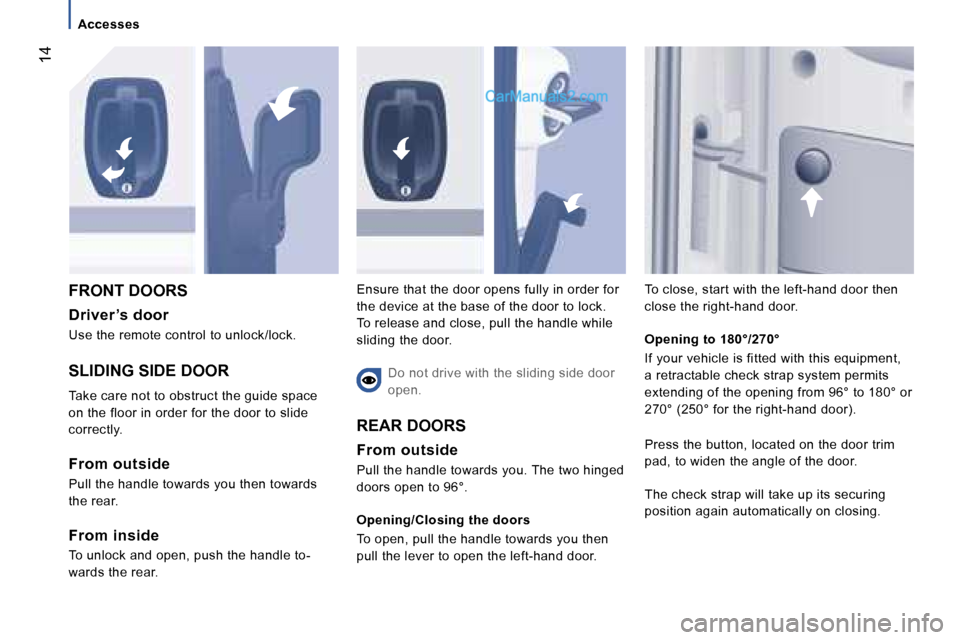

14
Accesses
FRONT DOORS
Driver ’s door
Use the remote control to unlock/lock.
SLIDING SIDE DOOR
Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.
From outside
Pull the handle towards you then towards
the rear.
From inside
To unlock and open, push the handle to -
wards the rear. Ensure that the door opens fully in order for
the device at the base of the door to lock.
To release and close, pull the handle while
sliding the door.
Do not drive with the sliding side door
open.
REAR DOORS
From outside
Pull the handle towards you. The two hinged
doors open to 96°.
Opening/Closing the doors
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.
Opening to 180°/270°
If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180° or
270° (250° for the right-hand door).
Press the button, located on the door trim
pad, to widen the angle of the door.
The check strap will take up its securing
position again automatically on closing.

15
2
Accesses
READY TO SET OFF
Cab and load space
Pressing permits electric central
locking, when the doors are
closed.
Pressing permits electric central
unlocking.
The doors can still be opened from the
inside.
If one of the doors is open or is not
closed correctly, the central locking
does not work.
The indicator light on the control: - comes on when the accesses are locked and the ignition is
switched on,
- then flashes when the accesses are locked when stationary with
the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside.
Load space
Press to lock or unlock the side
door and rear doors from the cab.
The warning light remains on on
locking.
Deadlocking
If the vehicle is deadlocked from outside, the
interior unlocking control is inoperative and its indicator light flashes. In this case, use
the key or the remote control to unlock.
Deadlocking renders the exterior and interior
door opening handles inoperative: do not
leave anyone inside the vehicle when it is
deadlocked.
Protection against attack
When the vehicle is started, the system
locks the cab and load space doors automa-
tically when you reach approximately
12 mph (20 km/h).
If none of the doors are opened during the
journey, the locking remains active.
Activation/deactivation
of the function
The function is activated/deactivated by
means of Mode, selecting "Autoclose".
Refer to the "Mode" section
in chapter 4.
Door open warning light
If this warning light comes on,
check that the cab doors, the rear
or side doors and the bonnet are
closed correctly.

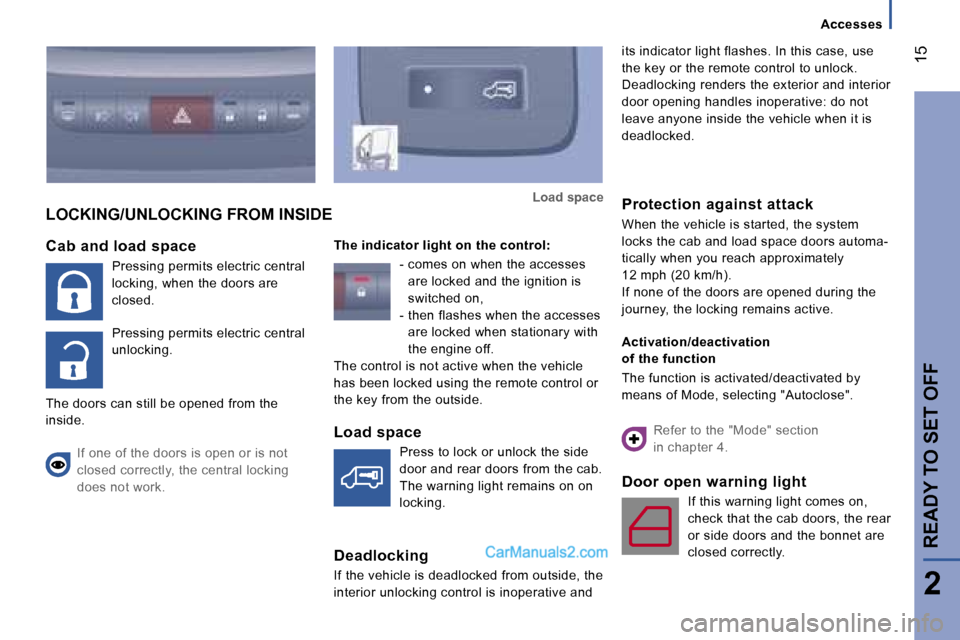

LOCKING/UNLOCKING FROM INSIDE
Load space

2
134
1
16

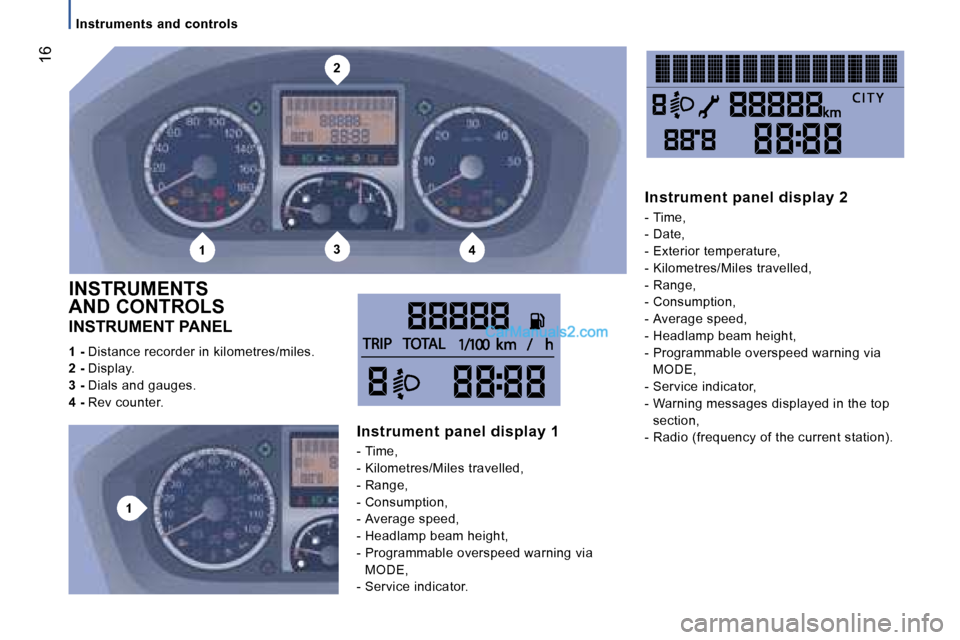

INSTRUMENT PANEL
1 - Distance recorder in kilometres/miles.
2 - Display.
3 - Dials and gauges.
4 - Rev counter.
Instrument panel display 1
- Time,
- Kilometres/Miles travelled,
- Range,
- Consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via MODE,
- Service indicator. Instrument panel display 2
- Time,
- Date,
- Exterior temperature,
- Kilometres/Miles travelled,
- Range,
- Consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via
MODE,
- Service indicator,
- Warning messages displayed in the top
section,
- Radio (frequency of the current station).
Instruments and controls
INSTRUMENTS
AND CONTROLS
