2006.5 Peugeot Boxer Owner's Manual

Introduction 1
Presentation 2
Mobile telephone with hands-free function 4
Portable equipment audio player 8

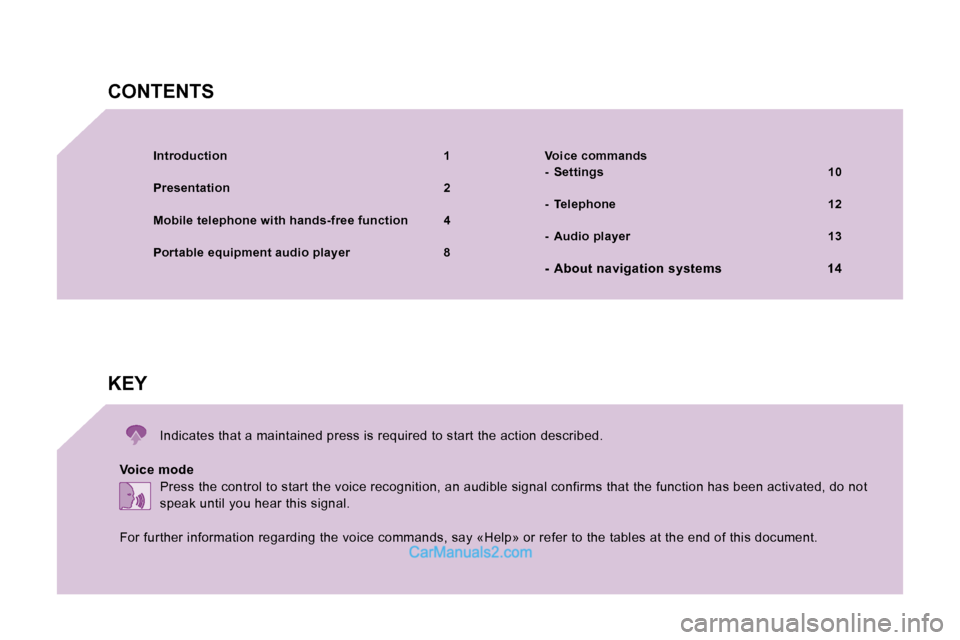

CONTENTS
KEY
Indicates that a maintained press is required to st art the action described.
Voice mode Press the control to start the voice recognition, a n audible signal confirms that the function has bee n activated, do not
speak until you hear this signal.
For further information regarding the voice command s, say «Help» or refer to the tables at the end of this document.
Voice commands
- Settings
10
- Telephone 12
- Audio player 13
- About navigation systems 14

1

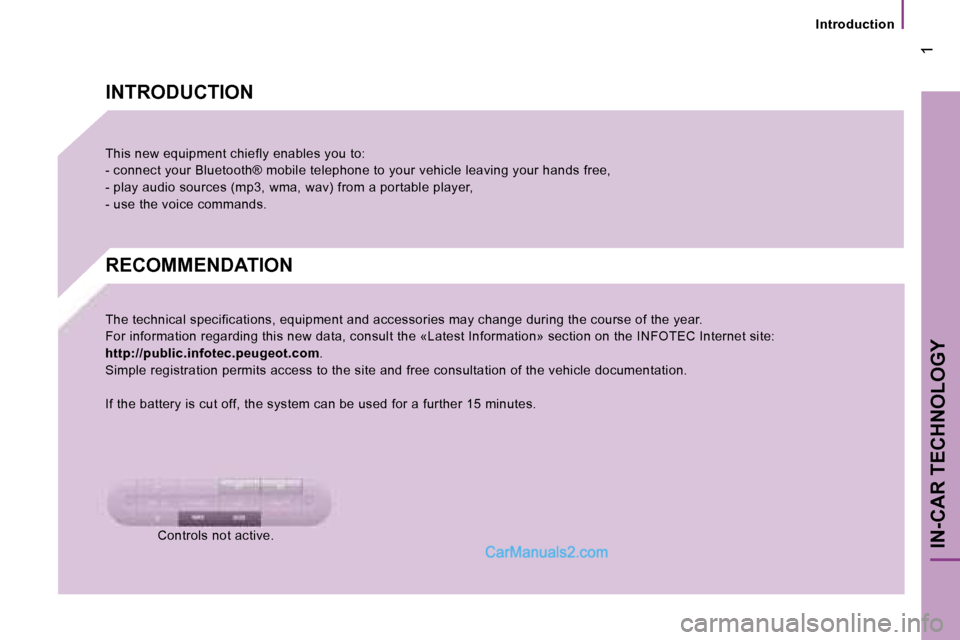

Introduction
IN-CAR TECHNOLOGY
INTRODUCTION
This new equipment chiefly enables you to:
- connect your Bluetooth® mobile telephone to your vehicle leaving your hands free,
- play audio sources (mp3, wma, wav) from a portabl e player,
- use the voice commands.
RECOMMENDATION
The technical specifications, equipment and accesso ries may change during the course of the year.
For information regarding this new data, consult th e «Latest Information» section on the INFOTEC Inter net site:
http://public.infotec.peugeot.com .
Simple registration permits access to the site and free consultation of the vehicle documentation.
If the battery is cut off, the system can be used f or a further 15 minutes.
Controls not active.

2
Presentation
PRESENTATION
DISPLAY, USB SOCKET, CONTROLS

1 F2
OSOSESC
NAMAOK
NAVF1
SOSSOSMAINOK
NAMOK
NAV F1 F2
SOSSOSMAINESC
3

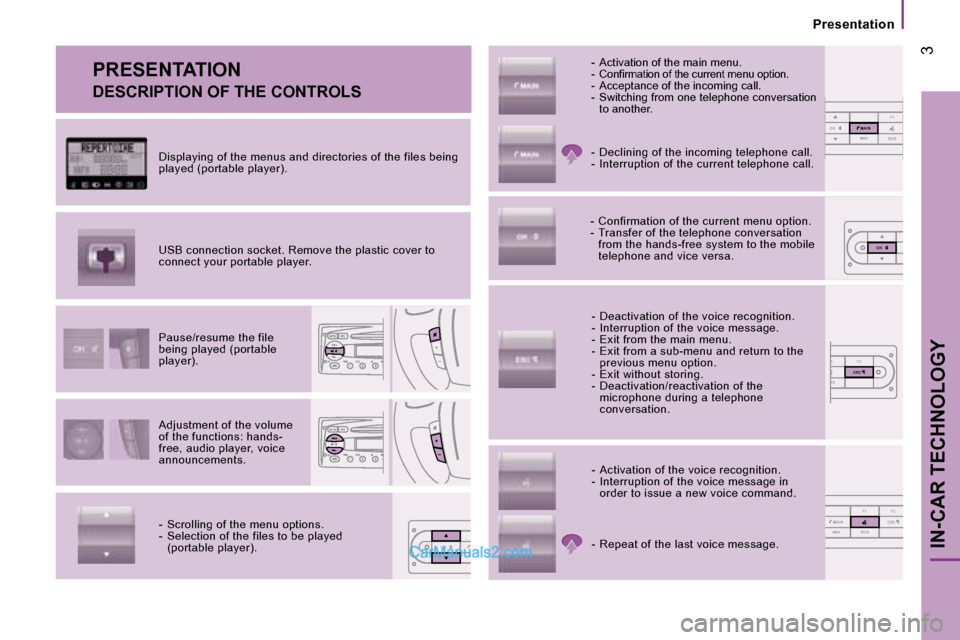

Presentation
IN-CAR TECHNOLOGY
PRESENTATION
DESCRIPTION OF THE CONTROLS
Adjustment of the volume
of the functions: hands-
free, audio player, voice
announcements.
Pause/resume the file
being played (portable
player).
USB connection socket. Remove the plastic cover to
connect your portable player.
Displaying of the menus and directories of the file
s being
played (portable player).
- Scrolling of the menu options.
- Selection of the files to be played (portable player). - Activation of the voice recognition.
- Interruption of the voice message in
order to issue a new voice command.
- Deactivation of the voice recognition.
- Interruption of the voice message.
- Exit from the main menu.
- Exit from a sub-menu and return to the
previous menu option.
- Exit without storing.
- Deactivation/reactivation of the microphone during a telephone
conversation.
- Confirmation of the current menu option.
- Transfer of the telephone conversation
from the hands-free system to the mobile
telephone and vice versa.
- Declining of the incoming telephone call.
- Interruption of the current telephone call.
- Activation of the main menu.
- Confirmation of the current menu option.- Acceptance of the incoming call.
- Switching from one telephone conversation
to another.
- Repeat of the last voice message.

4

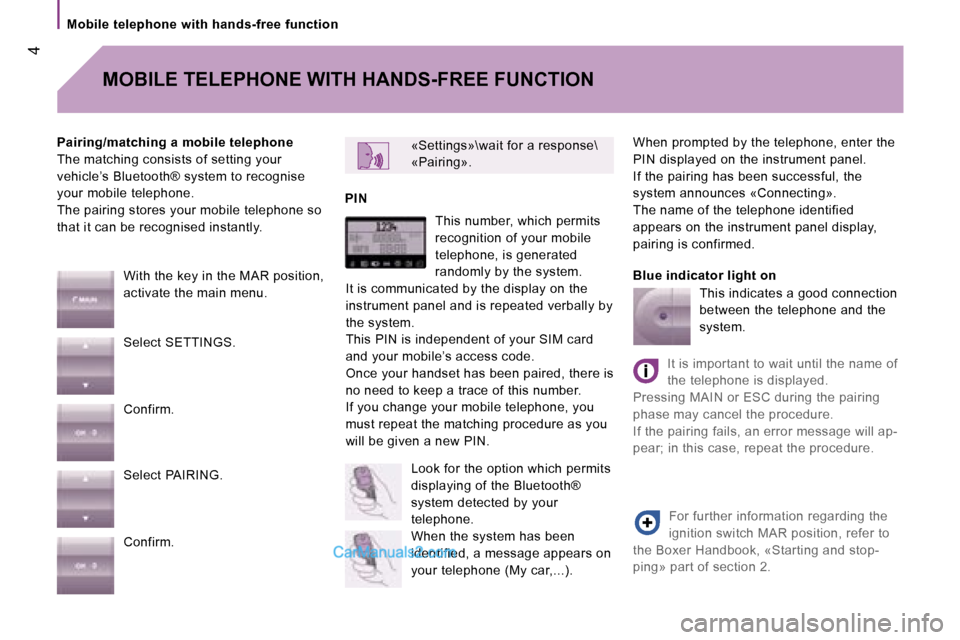

Mobile telephone with hands-free function
When prompted by the telephone, enter the
PIN displayed on the instrument panel.
If the pairing has been successful, the
system announces «Connecting».
The name of the telephone identified
appears on the instrument panel display,
pairing is confirmed.
Blue indicator light on
«Settings»\wait for a response\
«Pairing».
PIN
Pairing/matching a mobile telephone
The matching consists of setting your
vehicle’s Bluetooth® system to recognise
your mobile telephone.
The pairing stores your mobile telephone so
that it can be recognised instantly. MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
With the key in the MAR position,
activate the main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the display on the
instrument panel and is repeated verbally by
the system.
This PIN is independent of your SIM card
and your mobile’s access code.
Once your handset has been paired, there is
no need to keep a trace of this number.
If you change your mobile telephone, you
must repeat the matching procedure as you
will be given a new PIN.
Look for the option which permits
displaying of the Bluetooth®
system detected by your
telephone.
When the system has been
identified, a message appears on
your telephone (My car,...). This indicates a good connection
between the telephone and the
system.
It is important to wait until the name of
the telephone is displayed.
Pressing MAIN or ESC during the pairing
phase may cancel the procedure.
If the pairing fails, an error message will ap-
pear; in this case, repeat the procedure.
For further information regarding the
ignition switch MAR position, refer to
the Boxer Handbook, «Starting and stop-
ping» part of section 2.

5

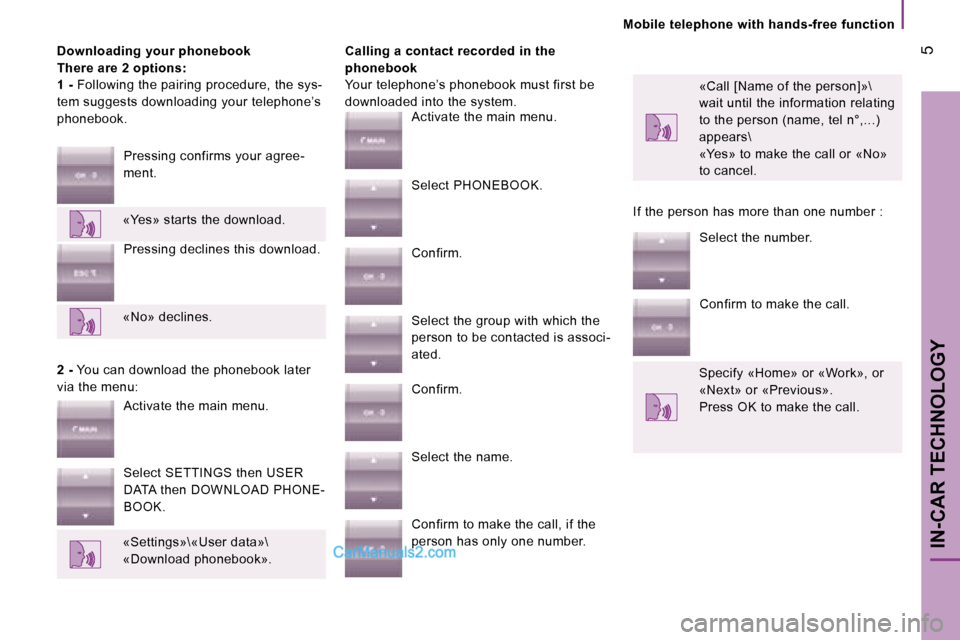

Mobile telephone with hands-free function
IN-CAR TECHNOLOGY
Downloading your phonebook
There are 2 options:
1 - Following the pairing procedure, the sys-
tem suggests downloading your telephone’s
phonebook. Calling a contact recorded in the
phonebook
Your telephone’s phonebook must first be
downloaded into the system.
«Call [Name of the person]»\
wait until the information relating
to the person (name, tel n°,...)
appears\
«Yes» to make the call or «No»
to cancel.
Pressing confirms your agree-
ment.
«Yes» starts the download. Pressing declines this download.
«No» declines.
2 - You can download the phonebook later
via the menu:
Activate the main menu.
Select SETTINGS then USER
DATA then DOWNLOAD PHONE-
BOOK.
«Settings»\«User data»\
«Download phonebook». Activate the main menu.
Select PHONEBOOK.
Confirm.
Select the group with which the
person to be contacted is associ-
ated.
Confirm.
Select the name.
Confirm to make the call, if the
person has only one number.
If the person has more than one number :
Select the number.
Confirm to make the call.
Specify «Home» or «Work», or
«Next» or «Previous».
Press OK to make the call.

6
Mobile telephone with hands-free function
Making a call by dialling a number
By means of the voice commands onlyEnding a call
Press and hold. Incoming call
If the person is recorded in
the phonebook, his name is
displayed.
«Dial / Dial a number»\
Say the number character by
character (+, #, *), digit by digit
(0 to 9)\
The system displays and
verbally repeats the number
recognised.
«Call» if the number is correct.
or
«Cancel» to cancel dialling of the number.
«Start over» to delete and start dialling
another number.
«Repeat» to hear the number again. Press to accept the call.
Press and hold to decline the call.
Press to ignore the call, however,
the call is stored in the register of
incoming calls.
During a call, if a second incoming call
is received.
Press to switch the conversation
and place the other person on
hold.
