2005 YAMAHA VX110 sensor

7-27
E
–+ELEC
Accelerator position sensor 1
output voltage at throttle lever
fully opened position:
3.75–4.35 V
Accelerator position sensor 2
output voltage at throttle lever
fully opened position:
3.50–4.50 V
Throttle valve opening angle at
throttle lever fully opened
position:
above 61°
Calculate the difference of the accelera-
tor position sensor 1 output voltage and
accelerator position sensor 2 output volt-
age at fully opened position.
Accelerator position sensor 1
output voltage – Accelerator
position sensor 2 output voltage
at fully opened position = below
0.75 V
Example:
If accelerator position sensor 1 output volt-
age is 4.009 V and accelerator position sen-
sor 2 output voltage is 3.896 V, then 4.009
– 3.896 = 0.113 V
Operate the throttle lever, and check that
the accelerator position sensor 1 and 2
output voltage changes continuously.
IGNITION SYSTEM
ProCarManuals.com

7-28
E
–+ELEC
2. Measure:
• Accelerator position sensor resistance
Out of specification →
Replace the
accelerator position sensor.
Checking steps:
 Connect the tester leads accelerator
position sensor terminals 1
, 3
.
 Measure the resistance when the fully
closed position.
Accelerator position sensor 1
resistance at fully closed
position:
0.50–0.90 kΩ
 Connect the tester leads accelerator
position sensor terminals 6
, 7
.
 Measure the resistance when the fully
closed position.
Accelerator position sensor 2
resistance at fully closed
position:
0.35–1.05 kΩ
 Move the accelerator position cam to the
fully opened position.
 Connect the tester leads accelerator
position sensor terminals 1
, 3
.
 Measure the resistance when the fully
opened position.
Accelerator position sensor 1
resistance at fully opened
position:
3.75–4.35 kΩ
 Connect the tester leads accelerator
position sensor terminals 6
, 7
.
 Measure the resistance when the fully
opened position.
Accelerator position sensor 2
resistance at fully opened
position:
3.60–4.50 kΩ
 Operate the accelerator cam, and check
that the accelerator position sensor 1 and
2 resistance changes continuously.
14
5678 3 2
14
5678 3 2
IGNITION SYSTEM
ProCarManuals.com

7-29
E
–+ELEC
CAM POSITION SENSOR
1. Measure:
Cam position sensor output voltage
Out of specification →
Replace.
NOTE:
The cam position sensor consists of two indi-
vidual sensors as shown in the illustration:
sensor 1 1
and sensor 2 2
.
To measure the output voltage, pass a
screwdriver under the cam position sensor at
measuring points A, B (center), and C in this
order.
When operating the Yamaha Diagnostic Sys-
tem, electric power is supplied to the cam
position sensor.
Test harness (3 pins):
New: YB-06877
Current: YB-06777
Test harness HM090-3 (3 pins):
New: 90890-06877
Current: 90890-06777
Cam position sensor output
voltage:
Green/orange (G/O) –
Black/orange (B/O)
Position Voltage (V)
A More than 4.8
B Less than 0.8
C More than 4.8
Measurement steps:
Remove the cam position sensor.
Connect the test harness to the cam
position sensor.
Operate the Yamaha Diagnostic System.
Pass a screwdriver under the cam posi-
tion sensor in the direction shown and
measure the output voltage.
1
2
A
B
C
IGNITION SYSTEM
ProCarManuals.com

7-31
E
–+ELECFUEL CONTROL SYSTEM
FUEL CONTROL SYSTEM
WIRING DIAGRAM
10A
10A
3A
30A20A
RR
BBR
B/W
B/O
B/O
B/R
P/R
P/R
P/W
P/W
B/O
L/B
B/WB/R
B/O
P/RP/W
G
O
W
O
OLG
WR/YP/GY/G
B
OL
PB
Pu/RPu/B
Pu/GPu/Y
P/W
R/Y
W/B
Y/WL/R
B
BBP
P
P
BBP
R/Y
B/OL/BB/OL/B
P/G
P/W
B/O
B/O
B/YB/YR/Y
R/Y
R/Y
R/YPu/G
Pu/Y
Pu/B
Pu/RR/Y
R/Y
R/Y
R/Y
R/YY/W
Y/GL/R
O
P
P
O
R
R
L
R
R
B
BLBL
B
B/GPPB
W/BR/YB RW
9 87
E
E E E FGH I3
4
56 2 1
0
A
B
C
D J
K
1Battery
2Fuse (30 A)
3Fuse (20 A)
4Fuse (10 A)
5Fuse (10 A)
6Starter relay
7Main and fuel pump relay
8Electronic control throttle valve
relay9Slant detection switch
0Sensor assembly
(intake air pressure and intake
air temperature)
AEngine temperature sensor
BThermoswitch (engine)
CThermoswitch (exhaust)
DOil pressure switch
EFuel injectorFECM
GThrottle body assembly
HAccelerator position sensor
IElectric fuel pump
JFuel sender
KMultifunction meter
ProCarManuals.com

7-34
E
–+ELECFUEL CONTROL SYSTEM
FUEL INJECTOR
Refer to “FUEL INJECTION SYSTEM”
in Chapter 4.
MAIN AND FUEL PUMP RELAY
Refer to “IGNITION SYSTEM”.
OIL PRESSURE SWITCH
Refer to “INDICATION SYSTEM”.
THERMOSWITCH (ENGINE)
Refer to “IGNITION SYSTEM”.
THERMOSWITCH (EXHAUST)
Refer to “IGNITION SYSTEM”.
SLANT DETECTION SWITCH
Refer to “IGNITION SYSTEM”.
REMOTE CONTROL UNIT
(DELUXE MODEL ONLY)
Refer to “REMOTE CONTROL SYS-
TEM (DELUXE MODEL ONLY)”.
THROTTLE POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ACCELERATOR POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ProCarManuals.com

7-35
E
–+ELECSTARTING SYSTEM
STARTING SYSTEM
WIRING DIAGRAM
WBrBRFREE
PUSHBWFREE
PUSH
Br BrFREE
PUSH
BW
W
BrBrBrBrR
RB/O
10A
10A
3A
30A20A
RR
B
BBR
BBr
BBr
B
B/W
B/O
B/O
B/R
P/R
P/R
P/W
P/W
B/O
B/WB/R
B/O
P/RP/W
W
W
WL
RY
G
O
W
O
OLG
W
Y
W
G/O
R/YY/G
BOL
BW
R/Y
Y/WL/R
B
B
G/OB/OG/OR/YB/O
R/Y
R/Y
R/Y
Y/W
Y/GL/R
Y
O
O
R
RL
R
B
BLBL
Y BrL R B
Br W
09
B
C DEF G
5 4
6
78 3 I
HJ1
2
A
1Battery
2Starter motor
3Fuse (30 A)
4Fuse (20 A)
5Fuse (3 A)
6Fuse (10 A)
7Fuse (10 A)
8Starter relay
9Main and fuel pump relay0Electronic control throttle valve
relay
ACam position sensor
BRemote control unit
CAntenna
DECM
EThrottle body assembly
FAccelerator position sensor
GElectric fuel pumpHStart switch
IEngine stop switch
JEngine shut-off switch
ProCarManuals.com

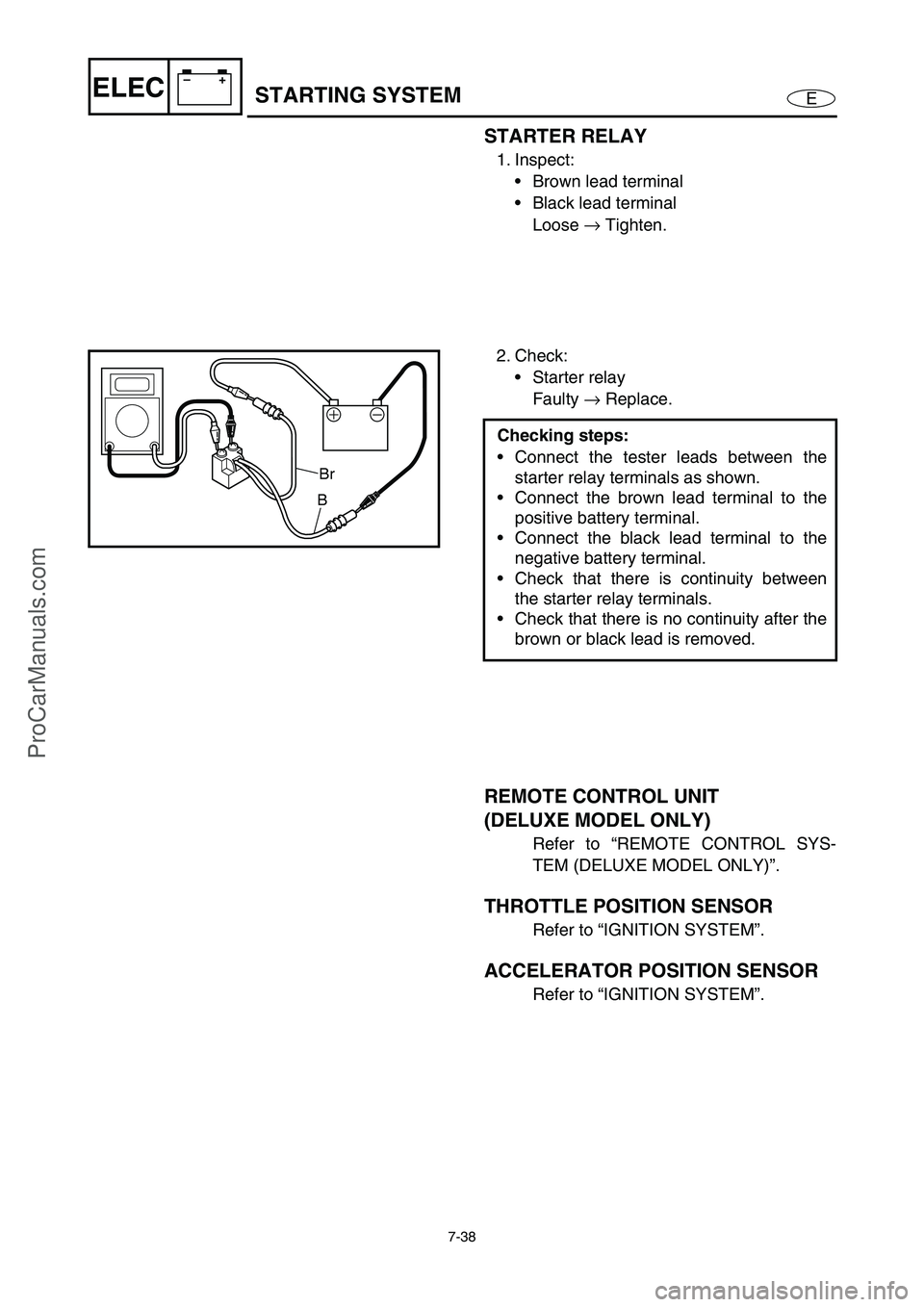

7-38
E
–+ELECSTARTING SYSTEM
STARTER RELAY
1. Inspect:
Brown lead terminal
Black lead terminal
Loose →
Tighten.
2. Check:
Starter relay
Faulty →
Replace.
Checking steps:
Connect the tester leads between the
starter relay terminals as shown.
Connect the brown lead terminal to the
positive battery terminal.
Connect the black lead terminal to the
negative battery terminal.
Check that there is continuity between
the starter relay terminals.
Check that there is no continuity after the
brown or black lead is removed.
Br
B
REMOTE CONTROL UNIT
(DELUXE MODEL ONLY)
Refer to “REMOTE CONTROL SYS-
TEM (DELUXE MODEL ONLY)”.
THROTTLE POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ACCELERATOR POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ProCarManuals.com

7-45
E
–+ELECOFF THROTTLE STEERING SYSTEM
OFF THROTTLE STEERING SYSTEM
WIRING DIAGRAM
10A
10A
3A
30A20A
RR
BBR
B/W
B/O
B/O
B/O
B/R
P/R
P/R
B/O
W/B
P/W
P/W
B/WB/R
B/O
P/RP/W
G
O
O
W
BW
O
OLG
W
W/BR/Y
W/LY/G
R/Y
BL
BPu/RPu/B
Pu/GPu/Y
R/Y
Y/WL/R
R/Y
R/Y
R/Y
R/YPu/G
Pu/Y
Pu/B
Pu/RR/Y
R/Y
R/Y
R/YY/W
Y/G
L/R
R
R
R
B
W/LBOW/LB/OO
R
98
0
0 0 0 ABC D E1
4
5
67 32
1Battery
2Starter motor
3Fuse (30 A)
4Fuse (20 A)
5Fuse (10 A)
6Fuse (10 A)
7Starter relay
8Main and fuel pump relay
9Electronic control throttle valve relay0Fuel injector
AECM
BThrottle body assembly
CAccelerator position sensor
DPickup coil
ESteering sensor
