2005 YAMAHA VX110 width

2-1
ESPECGENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Item UnitModel
VX110 Sport VX110 Deluxe
Model code
Hull F1K
Engine/jet 6D3
Dimensions
Length mm (in) 3,220 (126.8)
Width mm (in) 1,170 (46.1)
Height mm (in) 1,150 (45.3)
Dry weight kg (lb) 325 (716)
Maximum capacity Person/kg (lb) 3/240 (530)
Performance
Maximum output kW (PS) @ r/min 81.0 (110) @ 8,000
Maximum fuel consumption l/h (US gal/h,
lmp gal/h)28.0 (7.4, 6.2)
Cruising range h 2.1
Engine
Engine type 4-stroke, L4, DOHC
Displacement cm
3 (cu. in) 1,052 (64.2)
Bore ×
stroke mm (in) 76.0 ×
58.0 (2.99 ×
2.28)
Compression ratio 11.4:1
Exhaust system Wet exhaust
Lubrication system Dry sump
Cooling system Water cooled
Starting system Electric starter
Ignition system TCI
Ignition timing Degree BTDC 5–BTDC 35
Spark plug model
(manufacturer)CR9EB (NGK)
Spark plug gap mm (in) 0.7–0.8 (0.028–0.031)
Battery capacity V/Ah 12/19
Generator output A @ r/min 12–21 @ 6,000
Drive unit
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Transmission Constant mesh 1-speed
Jet thrust nozzle horizontal
angleDegree 24 + 24
Jet thrust nozzle trim angle Degree 3
Reverse system—Reverse gate
ProCarManuals.com

2-4
ESPECMAINTENANCE SPECIFICATIONS
Valve face width B
Intake mm (in) 1.91–2.64 (0.0752–0.1039)
Exhaust mm (in) 1.91–2.64 (0.0752–0.1039)
Valve seat width C
Intake mm (in) 0.90–1.10 (0.0354–0.0433)
Exhaust mm (in) 0.90–1.10 (0.0354–0.0433)
Valve margin thickness D
Intake mm (in) 0.85–1.15 (0.0335–0.0453)
Exhaust mm (in) 0.85–1.15 (0.0335–0.0453)
Valve stem diameter
Intake mm (in) 3.975–3.990 (0.1565–0.1571)
Exhaust mm (in) 4.465–4.480 (0.1758–0.1764)
Valve guide inside diameter
Intake mm (in) 4.000–4.012 (0.1575–0.1580)
Exhaust mm (in) 4.500–4.512 (0.1772–0.1776)
Valve-stem-to-valve-guide
clearance
Intake mm (in) 0.010–0.037 (0.0004–0.0015)
Exhaust mm (in) 0.020–0.047 (0.0008–0.0019)
Valve stem runout mm (in) 0.01 (0.0004)
Valve spring
Free length
Intake mm (in) 38.90 (1.53)
Exhaust mm (in) 40.67 (1.60)
Installed length
Intake mm (in) 34.50 (1.36)
Exhaust mm (in) 35.00 (1.38)
Tilt limit
Intake Degree/mm (in) 2.5/1.7 (0.067)
Exhaust Degree/mm (in) 2.5/1.8 (0.071)
Piston
Piston-to-cylinder clearance mm (in) 0.10–0.11 (0.0039–0.0043)
Piston diameter mm (in) 75.895–75.910 (2.9880–2.9886)
Measuring point H* mm (in) 5 (0.2)
Wear limit mm (in) 0.170 (0.0067)
Piston pin boss inside diameter mm (in) 17.002–17.013 (0.6694–0.6698) Item UnitModel
VX110 Sport VX110 Deluxe
ProCarManuals.com

2-5
ESPECMAINTENANCE SPECIFICATIONS
Piston pins
Outside diameter mm (in) 16.991–17.000 (0.6689–0.6693)
Wear limit mm (in) 16.986 (0.6687)
Piston ring
Top ring
Type Barrel
Dimension (B ×
T) mm (in) 0.90 ×
2.75 (0.04 ×
0.11)
End gap (installed) mm (in) 0.32–0.44 (0.0126–0.0173)
Ring groove clearance mm (in) 0.030–0.065 (0.0012–0.0026)
2nd ring
Type Taper
Dimensions (B ×
T) mm (in) 0.80 ×
2.80 (0.03 ×
0.11)
End gap (installed) mm (in) 0.43–0.58 (0.0169–0.0228)
Ring groove clearance mm (in) 0.020–0.055 (0.0008–0.0022)
Oil ring
Dimensions
(B ×
T)mm (in) 1.50 ×
2.60 (0.06 ×
0.10)
End gap (installed) mm (in) 0.10–0.35 (0.0039–0.0138)
Ring groove clearance mm (in) 0.040–0.160 (0.0016–0.0063)
Connecting rod
Big end oil clearance mm (in) 0.016–0.040 (0.0006–0.0016)
Bearing color code 1. Brown 2. Black 3. Blue 4. Green
Small end inside diameter mm (in) 17.005–17.018 (0.6695–0.6700)
Crankshaft
Crank width A mm (in) 304.8–306.0 (12.00–12.05)
Deflection limit B mm (in) 0.03 (0.0012)
Crankshaft journal oil clearance mm (in) 0.004–0.028 (0.0002–0.0011)
Bearing color code 3. Red/Red 4. Red/Brown 5. Red/Black
6. Red/Blue 7. Red/Green
Throttle body
Type/quantity IM-230/1
Manufacturer Mikuni
ID mark 6D300
Trolling speed r/min 1,550–1,750 Item UnitModel
VX110 Sport VX110 Deluxe
T
B
B
T
B
T
BBB
A
ProCarManuals.com

5-48
EPOWRCAMSHAFTS
3. Measure:
Camshaft runout
Out of specification →
Replace.
Maximum camshaft runout:
0.03 mm (0.0012 in)
4. Measure:
Camshaft-journal-to-camshaft-cap
clearance
Out of specification →
Measure the
camshaft journal diameter.
Camshaft-journal-to-camshaft-
cap clearance:
0.05–0.06 mm (0.0020–0.0024 in)
Measurement steps:
Install the camshaft into the cylinder head
(without the dowel pins and camshaft
caps).
Position a strip of Plastigauge 1
onto the
camshaft journal as shown.
Install the dowel pins and camshaft caps.
NOTE:
Tighten the intake and exhaust camshaft
cap bolts in the sequence shown.
Do not turn the camshaft when measuring
the camshaft journal-to-camshaft cap
clearance with the Plastigauge.
T R..
Camshaft cap bolt:
10 N  m (1.0 kgf  m, 7.2 ft  lb)
Remove the camshaft caps and then
measure the width of the Plastigauge 1
.
10 1 4 5 8
17 5 1 4 8 15 9 12 149 3 2
7 6
18 7 3 2 6
13 11 10 16
ProCarManuals.com

5-66

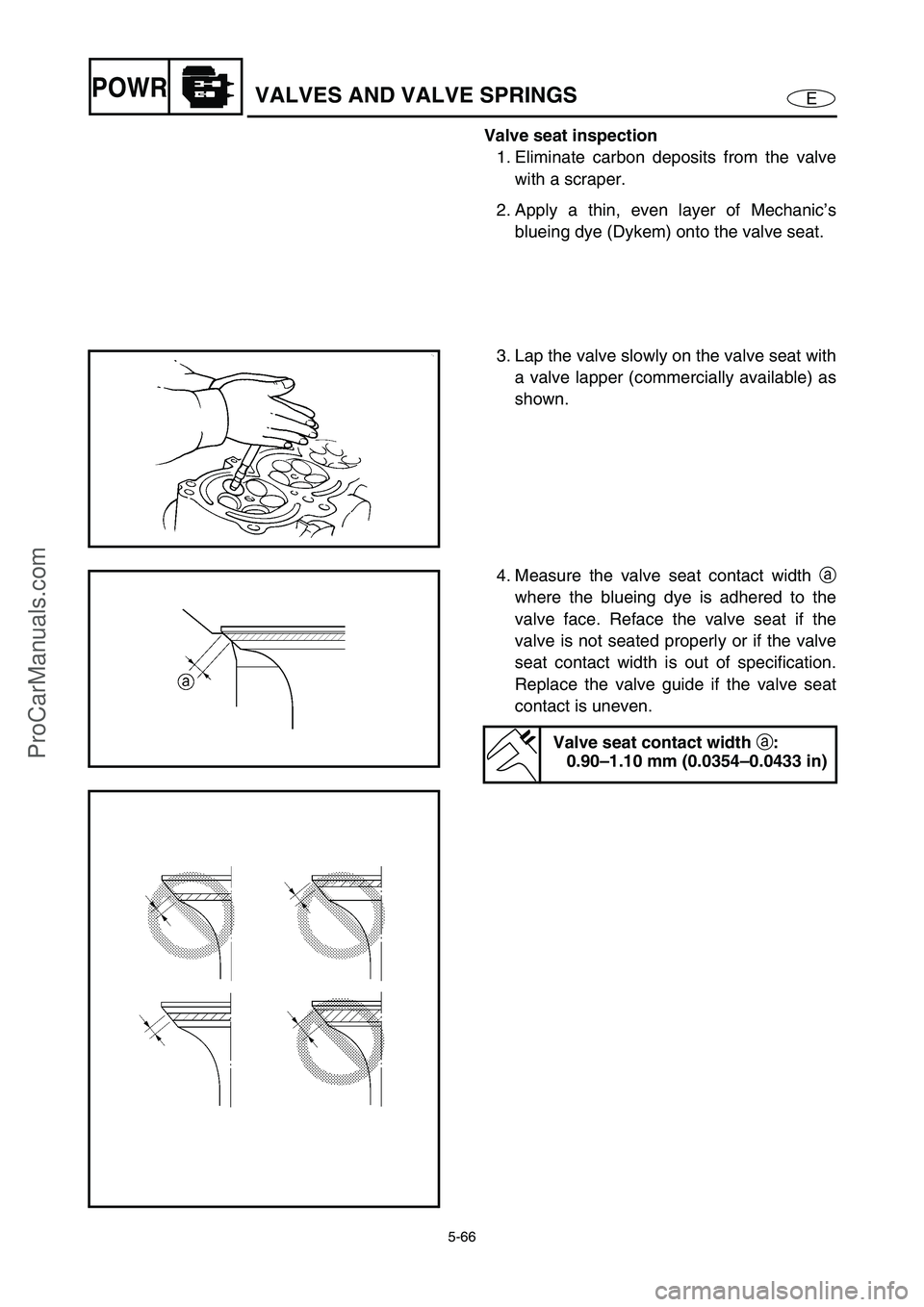

EPOWRVALVES AND VALVE SPRINGS
Valve seat inspection
1. Eliminate carbon deposits from the valve
with a scraper.
2. Apply a thin, even layer of Mechanic’s
blueing dye (Dykem) onto the valve seat.
3. Lap the valve slowly on the valve seat with
a valve lapper (commercially available) as
shown.
4. Measure the valve seat contact width a
where the blueing dye is adhered to the
valve face. Reface the valve seat if the
valve is not seated properly or if the valve
seat contact width is out of specification.
Replace the valve guide if the valve seat
contact is uneven.
Valve seat contact width
a:
0.90–1.10 mm (0.0354–0.0433 in)
ProCarManuals.com

5-67
EPOWRVALVES AND VALVE SPRINGS
Valve seat reface
1. Reface the valve seat with the valve seat
cutter.
2. Cut the surface of the valve seat with a 45°
cutter by turning the cutter clockwise until
the valve seat face has become smooth.
aSlag or rough surface
CAUTION:
Do not over cut the valve seat. Be sure to
turn the cutter evenly downward at a pres-
sure of 40–50 N (4–5 kgf, 8.8–11 lbf) to pre-
vent chatter marks.
Valve seat cutter holder:
Intake (ø4.0 mm):
90890-06811
Exhaust (ø4.5 mm):
90890-06812
Valve seat cutter:
30° (intake):
90890-06815
45° (intake):
90890-06814
60° (intake):
90890-06813
30° (exhaust):
90890-06328
45° (exhaust):
90890-06312
60° (exhaust):
90890-06315
Neway valve seat cutter kit:
YM-91044
3. Use a 30° cutter to adjust the contact width
of the top edge of the valve seat.
bPrevious contact width
30˚
b
ProCarManuals.com

5-68
EPOWRVALVES AND VALVE SPRINGS
4. Use a 60° cutter to adjust the contact width
of the bottom edge of the valve seat.
bPrevious contact width
60˚
b
5. Use a 45° cutter to adjust the contact width
of the valve seat to specification.
bPrevious contact width
cSpecified contact width
45˚
b
c
6. If the valve seat contact area is too wide
and situated in the center of the valve
face, use a 30° cutter to cut the top edge
of the valve seat, a 60° cutter to cut the
bottom edge to center the area and set its
width.
bPrevious contact width
7. If the valve seat contact area is too narrow
and situated near the top edge of the valve
face, use a 30° cutter to cut the top edge
of the valve seat. If necessary, use a 45°
cutter to center the area and set its width.
bPrevious contact width
8. If the valve seat contact area is too narrow
and situated near the bottom edge of the
valve face, use a 60° cutter to cut the bot-
tom edge of the valve seat. If necessary,
use a 45° cutter to center the area and set
its width.
bPrevious contact width
ProCarManuals.com

5-88
EPOWRCONNECTING RODS AND PISTONS
NOTE:
• Do not move the connecting rod or crank-
shaft until the clearance measurement
has been completed.
 Lubricate the bolts threads and nut seats
with molybdenum disulfide grease.
 Make sure the “Y” mark c on the con-
necting rod faces towards the front side of
the crankshaft.
 Make sure the characters d on both the
connecting rod and connecting rod cap
are aligned.
 Tighten the connecting rod nuts.
Refer to “Connecting rod and piston
installation”.
 Remove the connecting rod and big end
bearings.
Refer to “Connecting rod and piston
removal”.
 Measure the compressed Plastigauge
width e on the crankshaft pin.
If the big end oil clearance is out of speci-
fication, select replacement big end bear-
ings.
cd
e
2. Select:
 Big end bearings (P
1–P4)
NOTE:
The numbers stamped into the crankshaft web
and the numbers on the connecting rods are
used to determine the replacement big end
bearing sizes.
P4
P3P2
P1
