Page 25 of 136
1-16
E
EJU17810
Hazard information
Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monoxide,
a colorless, odorless gas that may cause
loss of consciousness and death within a
short time. Always operate the watercraft
in an open area.
Hot oil tank, muffler, and engine surfaces
can cause serious burns. Do not touch
the oil tank, muffler, or engine immedi-
ately after turning the engine off.
EJU21150
Watercraft characteristics
Jet thrust turns the watercraft. Releasing
the throttle lever completely produces
only minimum thrust. If you are traveling
at speeds above trolling, you will have
rapidly decreasing ability to steer without
throttle. This model has the Yamaha
Engine Management System (YEMS)
that includes an Off-Throttle Steering
(OTS) system. It will activate at planing
speeds should you attempt to steer the
watercraft after releasing the throttle lever.
The OTS system assists in turning by
continuing to supply some thrust while the
watercraft is decelerating, but you can
turn more sharply if you apply throttle
while turning the handlebars. The OTS
system does not function below planing
speeds or when the engine is off. Once
the engine slows down, the watercraft will
no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed. Practice turning in
an open area without obstructions until
you have a good feel for this maneuver.
This watercraft is water-jet propelled. The
jet pump is directly connected to the
engine. This means that jet thrust will pro-
duce some movement whenever the
engine is running. There is no “neutral”
position. You are in either “forward” or
“reverse,” depending upon the shift lever
position (for VX110 Deluxe).
UF1K70.book Page 16 Friday, November 19, 2004 2:42 PM
Page 26 of 136
1-17
E
For VX110 Deluxe:
Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars. You could also
damage the shift mechanism.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and bro-
ken legs, ankles, and other bones.
For VX110 Deluxe:
Reverse can be used to slow down or
stop during slow-speed maneuvering,
such as when docking. Once the engine
is idling, shift into reverse and gradually
increase engine speed. Make sure that
there are no obstacles or people behind
you before shifting into reverse.
Keep away from the intake grate 1 while
the engine is on. Items such as long hair,
loose clothing, or PFD straps can become
entangled in moving parts resulting in
severe injury or drowning.
Never insert any object into the jet thrust
nozzle 2 while the engine is running.
Severe injury or death could result from
coming in contact with the rotating parts
of the jet pump.
Stop the engine and remove the clip 3
from the engine shut-off switch 4 before
removing any debris or weeds, which may
have collected around the jet intake.
UF1K70.book Page 17 Friday, November 19, 2004 2:42 PM
Page 27 of 136
1-18
E
EJU18630
Water-skiing
You can use the watercraft for water-ski-
ing if it has the seating capacity to carry the
operator, a rearward-facing spotter, and the
water-skier when he or she is not skiing.
The watercraft must also have a cleat 1
designed to pull a ski towrope; do not attach
the towrope to any other location.
It is the watercraft operator’s responsibility
to be alert to the safety of the water-skier
and others. Know and follow all local water-
skiing regulations in effect for the waters in
which you will be operating.
The operator should be comfortable car-
rying passengers before attempting to pull a
skier.
The following are some important consid-
erations for minimizing risks while water-ski-
ing.
The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.
The skier should wear protective clothing.
Severe internal injuries can occur if water
is forced into body cavities as a result of
falling into the water. Normal swimwear
does not adequately protect against
forceful water entry into rectum or vagina.
The skier should wear a wetsuit bottom or
clothing that provides equivalent protec-
tion.
A second person should be on board as a
spotter to watch the skier; in many places
it is required by law. Let the skier direct
the operator’s control of speed and direc-
tion with hand signals.
The spotter should sit securely on the
passenger seat and hold onto the hand-
grip 2 with feet firmly on the floor of the
footwell for proper balance while facing to
the rear to watch the skier’s hand signals
and his or her condition.
UF1K70.book Page 18 Friday, November 19, 2004 2:42 PM
Page 28 of 136
1-19
E
Your control while pulling a skier is
affected by the skier’s ability, as well as
water and weather conditions.
When preparing to pull a skier, operate
the watercraft at the slowest possible
speed until the watercraft is well away
from the skier and slack in the towrope is
taken up. Make sure that the rope is not
looped around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles,
apply enough throttle to raise the skier.
Make smooth, wide turns. The watercraft
is capable of very sharp turns, which
could exceed the abilities of the skier.
Keep the skier at least 50 m (150 ft),
about twice the distance of a standard
towrope, from any potential hazard.
Be alert to the hazard of the towrope han-
dle snapping back at the watercraft when
the skier falls or is unable to get up on the
skis.
Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and
create a hazardous condition. If you must
tow another boat in an emergency situa-
tion, operate slowly and cautiously.
UF1K70.book Page 19 Friday, November 19, 2004 2:42 PM
Page 29 of 136
1-20
E
EJU10050
Safe boating rules
Your Yamaha watercraft is legally consid-
ered a powerboat. Operation of the water-
craft must be in accordance with the rules
and regulations governing the waterway on
which it is used.
EJU10060
Enjoy your watercraft
responsibly
You share the areas you enjoy when
riding your watercraft with others and with
nature. So your enjoyment includes a
responsibility to treat these other people,
and the lands, waters, and wildlife with
respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the excit-
ing splash of your wake can make waves
others won’t enjoy. Avoid riding close to
shoreline homes and waterfowl nesting
areas or other wildlife areas, and keep a
respectful distance from fishermen, other
boats, swimmers, and populated beaches.
When travel in areas like these is unavoid-
able, ride slowly and obey all laws.
Remember that pollution can be harmful
to the environment. Do not refuel or add oil
where a spill could cause damage to nature.
Remove your watercraft from the water and
move it away from the shoreline before refu-
eling. And keep your surroundings pleasant
for the people and wildlife that share the
waterways: don’t litter!
When you ride responsibly, with respect
and courtesy for others, you help ensure
that our waterways stay open for the enjoy-
ment of a variety of recreational opportuni-
ties.
UF1K70.book Page 20 Friday, November 19, 2004 2:42 PM
Page 30 of 136
E

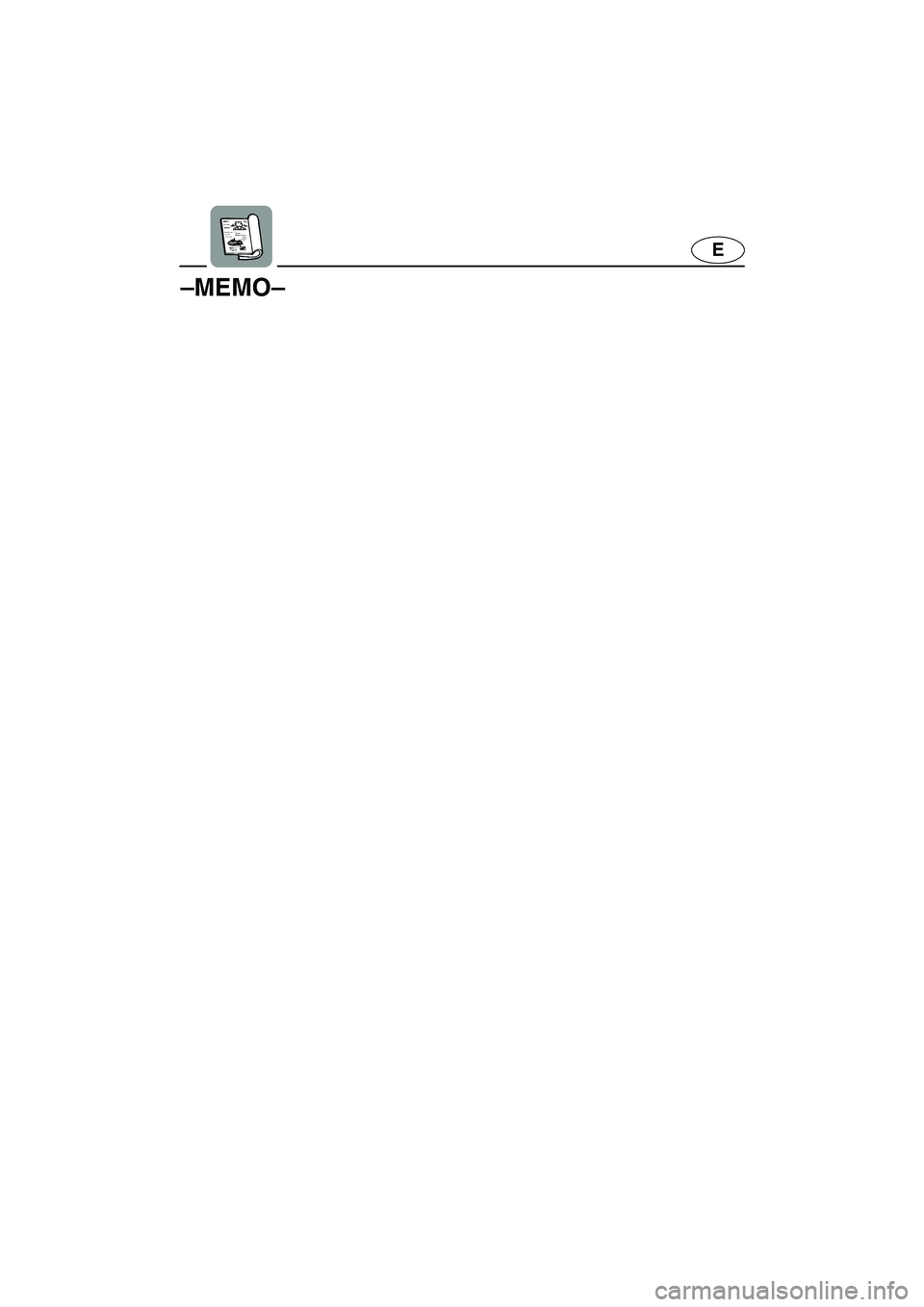

–MEMO–
UF1K70.book Page 21 Friday, November 19, 2004 2:42 PM
Page 31 of 136
E
2
EJU10070
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Seat ........................................................ 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-6
Remote control transmitter
(for VX110 Deluxe) ................................ 2-7
Engine stop switch ................................. 2-9
Engine shut-off switch ............................ 2-9
Start switch ........................................... 2-10
Throttle lever ........................................ 2-10
Cooling water pilot outlet ..................... 2-11
Steering system ................................... 2-12
Shift lever (for VX110 Deluxe) ............. 2-13
Handgrip ............................................... 2-14
Yamaha Engine Management System
(YEMS) ................................................. 2-15
Yamaha Security System/Low-RPM
mode (for VX110 Deluxe) .................... 2-15
Multifunction meter ............................... 2-18
Storage compartments ........................ 2-24
UF1K70.book Page 1 Friday, November 19, 2004 2:42 PM
Page 32 of 136
2-1
E
EJU10080
Location of main components
1Handlebars
Use to control direction.
2Seat
3Footwell
Use to place feet for balance.
To keep proper balance while facing to the rear
to watch the skier.
4Sponsons
5Gunwale
6Fuel tank filler cap
7Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
8Hood
UF1K70.book Page 1 Friday, November 19, 2004 2:42 PM
