Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.
Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.
Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.
Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.
Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules,” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-20.)
EJU13820
Recommended equipment
The following items should be carried on
board your watercraft:
Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.
Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.
Watch
A watch is helpful so you will know how
long you have been operating.
Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF1K70.book Page 15 Friday, November 19, 2004 2:42 PM
Page 31 of 136
E
2
EJU10070
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Seat ........................................................ 2-5
Hood ....................................................... 2-6
Fuel tank filler cap .................................. 2-6
Remote control transmitter
(for VX110 Deluxe) ................................ 2-7
Engine stop switch ................................. 2-9
Engine shut-off switch ............................ 2-9
Start switch ........................................... 2-10
Throttle lever ........................................ 2-10
Cooling water pilot outlet ..................... 2-11
Steering system ................................... 2-12
Shift lever (for VX110 Deluxe) ............. 2-13
Handgrip ............................................... 2-14
Yamaha Engine Management System
(YEMS) ................................................. 2-15
Yamaha Security System/Low-RPM
mode (for VX110 Deluxe) .................... 2-15
Multifunction meter ............................... 2-18
Storage compartments ........................ 2-24
UF1K70.book Page 1 Friday, November 19, 2004 2:42 PM
Page 34 of 136
2-3
E
1Start switch
Push to start the engine.
2Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
3Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
4Multifunction meter
Use to check watercraft operation.
5Rearview mirrors (VX110 Deluxe)6Shift lever (VX110 Deluxe)
Use to put the watercraft into forward or
reverse.
7Throttle lever
Use to accelerate and decelerate.
8Glove compartment
9Remote control transmitter (VX110 Deluxe)
0Engine stop switch
Push to stop the engine normally.
AEngine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
UF1K70.book Page 3 Friday, November 19, 2004 2:42 PM
Page 40 of 136
2-9
E

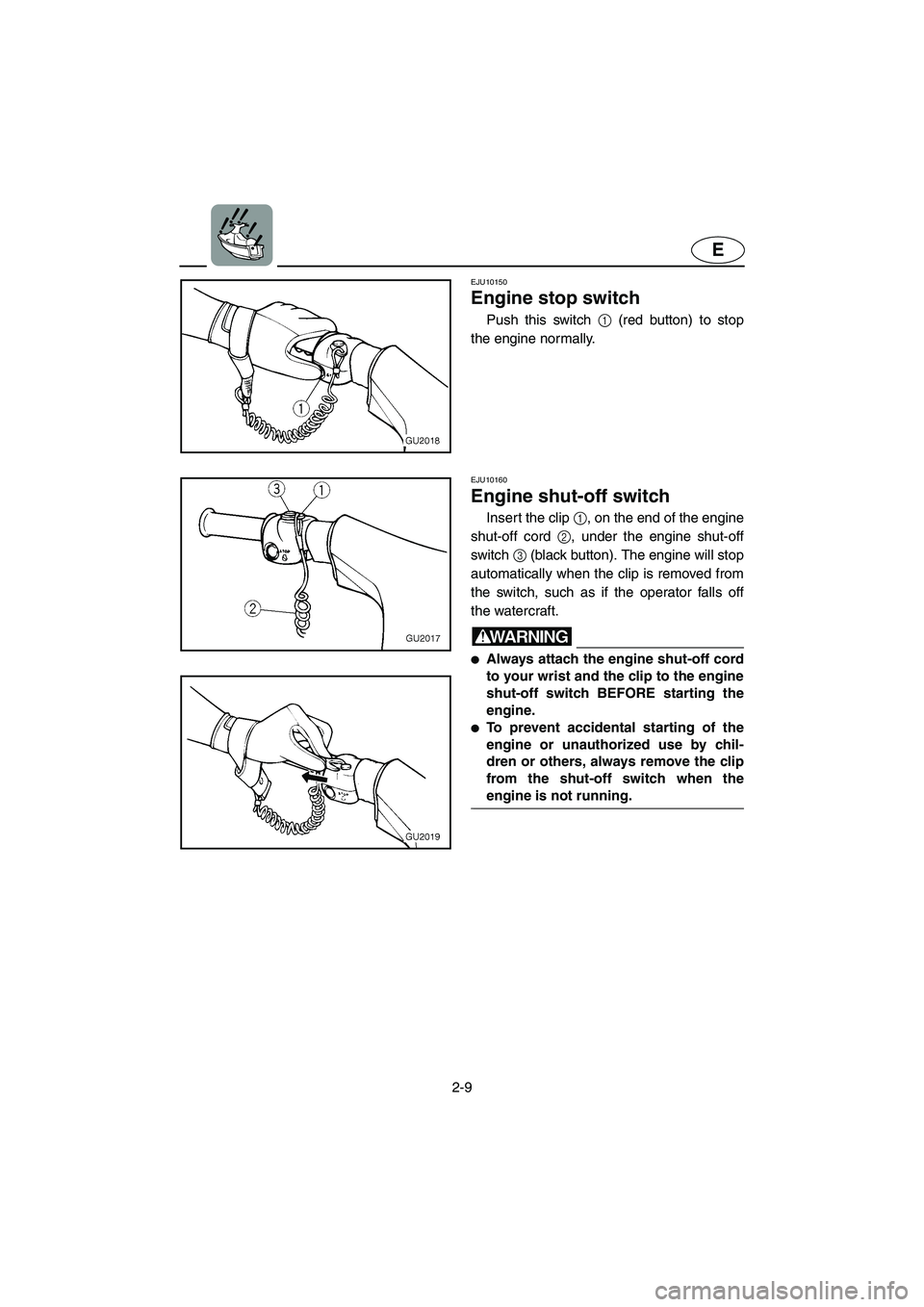

EJU10150
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
EJU10160
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING@ Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.
To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
@
UF1K70.book Page 9 Friday, November 19, 2004 2:42 PM
Page 42 of 136
2-11
E
EJU11301
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlet.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlet.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlet. If water is not
being discharged from the outlet, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and
check for the cause. (See pages 2-22 and
5-3 for more information.)
NOTE:@ If the cooling water passages are dry, it
will take about 60 seconds for the water to
reach the outlet after the engine is
started.
Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.
@
UF1K70.book Page 11 Friday, November 19, 2004 2:42 PM
Page 47 of 136
2-16
E
EJU21571
Yamaha Security System lock and
unlock modes (for VX110 Deluxe)
The lock and unlock modes of this system
can only be selected while the engine is
stopped.
When the lock button 2 is pressed, the
beeper sounds once. This indicates the lock
mode is selected and the engine cannot be
started.
The “SECURITY” indicator light 4 comes
on when the security system is in the unlock
mode and goes off when the security sys-
tem is in the lock mode.
When the unlock button 3 is pressed for
a short time, the beeper sounds two times
for the normal mode or three times for the
low-RPM mode. The “SECURITY” indicator
light will come on and the engine can be
started. (See the items in “Selecting the nor-
mal mode/low-RPM mode” for operation
mode information.)
Number of
beepsYamaha Security
System modeEngine can
be started
1 beep Lock NO
2 beepsUnlock
(normal mode)YES
3 beepsUnlock
(low-RPM mode)YES
UF1K70.book Page 16 Friday, November 19, 2004 2:42 PM
Page 48 of 136
2-17
E
EJU21581

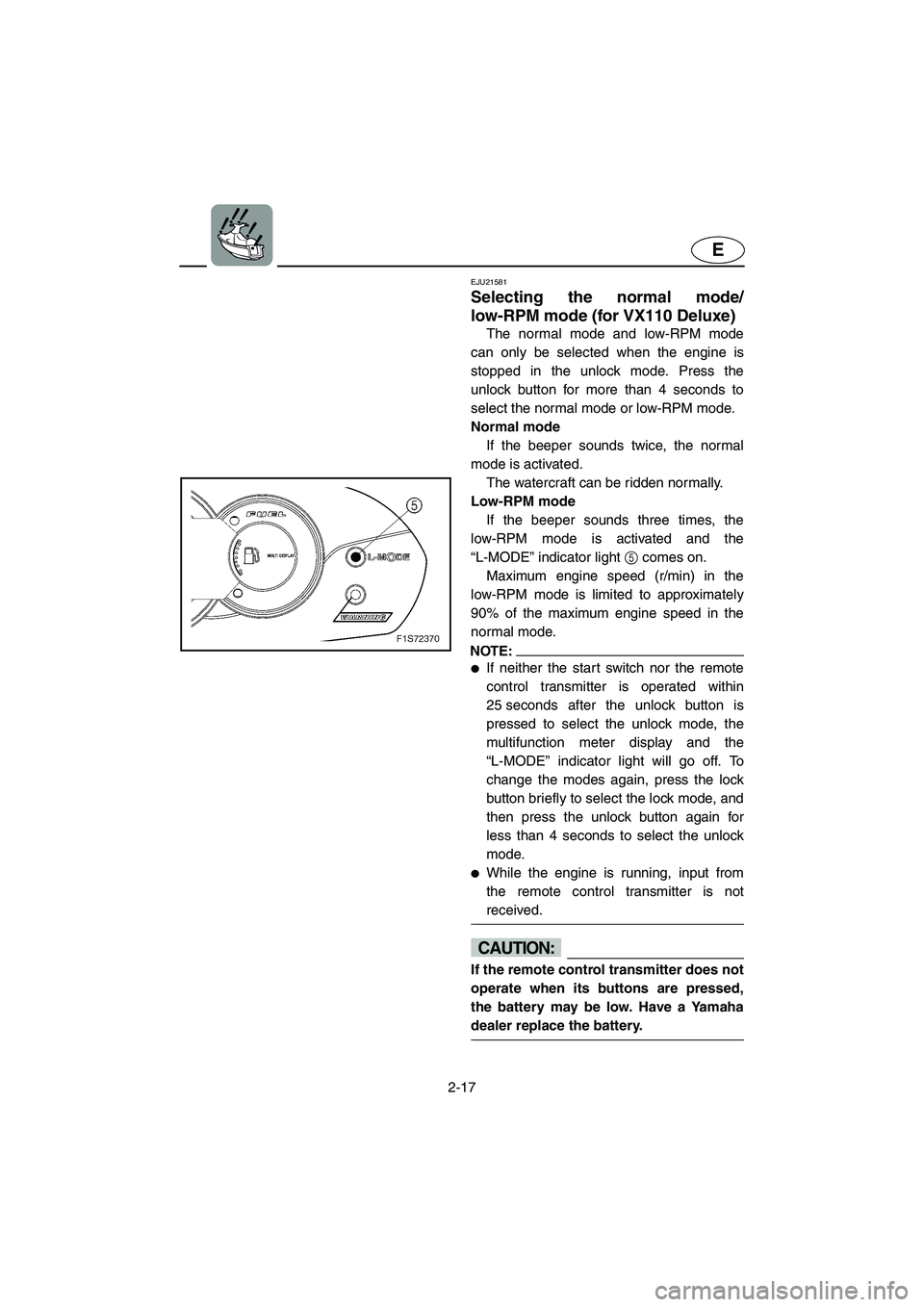

Selecting the normal mode/
low-RPM mode (for VX110 Deluxe)
The normal mode and low-RPM mode
can only be selected when the engine is
stopped in the unlock mode. Press the
unlock button for more than 4 seconds to
select the normal mode or low-RPM mode.
Normal mode
If the beeper sounds twice, the normal
mode is activated.
The watercraft can be ridden normally.
Low-RPM mode
If the beeper sounds three times, the
low-RPM mode is activated and the
“L-MODE” indicator light 5 comes on.
Maximum engine speed (r/min) in the
low-RPM mode is limited to approximately
90% of the maximum engine speed in the
normal mode.
NOTE:@ If neither the start switch nor the remote
control transmitter is operated within
25 seconds after the unlock button is
pressed to select the unlock mode, the
multifunction meter display and the
“L-MODE” indicator light will go off. To
change the modes again, press the lock
button briefly to select the lock mode, and
then press the unlock button again for
less than 4 seconds to select the unlock
mode.
While the engine is running, input from
the remote control transmitter is not
received.
@
CAUTION:@ If the remote control transmitter does not
operate when its buttons are pressed,
the battery may be low. Have a Yamaha
dealer replace the battery.
@
UF1K70.book Page 17 Friday, November 19, 2004 2:42 PM
Page 49 of 136
2-18
E
EJU20731
Multifunction meter
This meter contains the following func-
tions for help and convenience in operating
the watercraft.
1
Tachometer
2
Speedometer
3
Hour meter/Voltmeter
4
Fuel meter
5
“L-MODE” indicator light (for VX110 Deluxe)
6
Warning light
7
Fuel warning indicator
8
Engine overheat warning indicator
9
Oil pressure warning indicator
0
Check engine warning indicator
A
Select button
B
“SECURITY” indicator light (for VX110 Deluxe)
CAUTION:@ Do not run the engine for more than
15 seconds when checking the operation
of the meter on land. The engine could
overheat.
@
NOTE:@ When the engine is started, all displays
light up for 2 seconds and then the meter
starts to operate normally.
The current display will continue to oper-
ate for 25 seconds after the engine stops.
@
UF1K70.book Page 18 Friday, November 19, 2004 2:42 PM
