2005 YAMAHA SUPERJET Owners Manual

3-8
E
EJU01280
Bilge
Check for moisture and fuel residue in the
bilge.
Excessive water in the bilge can splash
into the carburetor and engine which could
cause engine damage.
EJU19690
Battery
Check the battery condition and the elec-
trolyte level.
Check that the battery leads are tightened
securely and there is no corrosion on the
battery terminals.
WARNING@
The battery must always be fully
charged and in good condition. Loss
of battery power may leave you
stranded. Never operate the watercraft
if the battery does not have sufficient
power to start the engine or if it shows
any other signs of decreased power.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
Make sure that the battery is securely
held in place.
1
Positive (+): Red lead
2
Negative (–): Black lead
3
Breather hose
UF1N73.book Page 8 Monday, May 10, 2004 10:37 AM

3-9
E
EJU01282

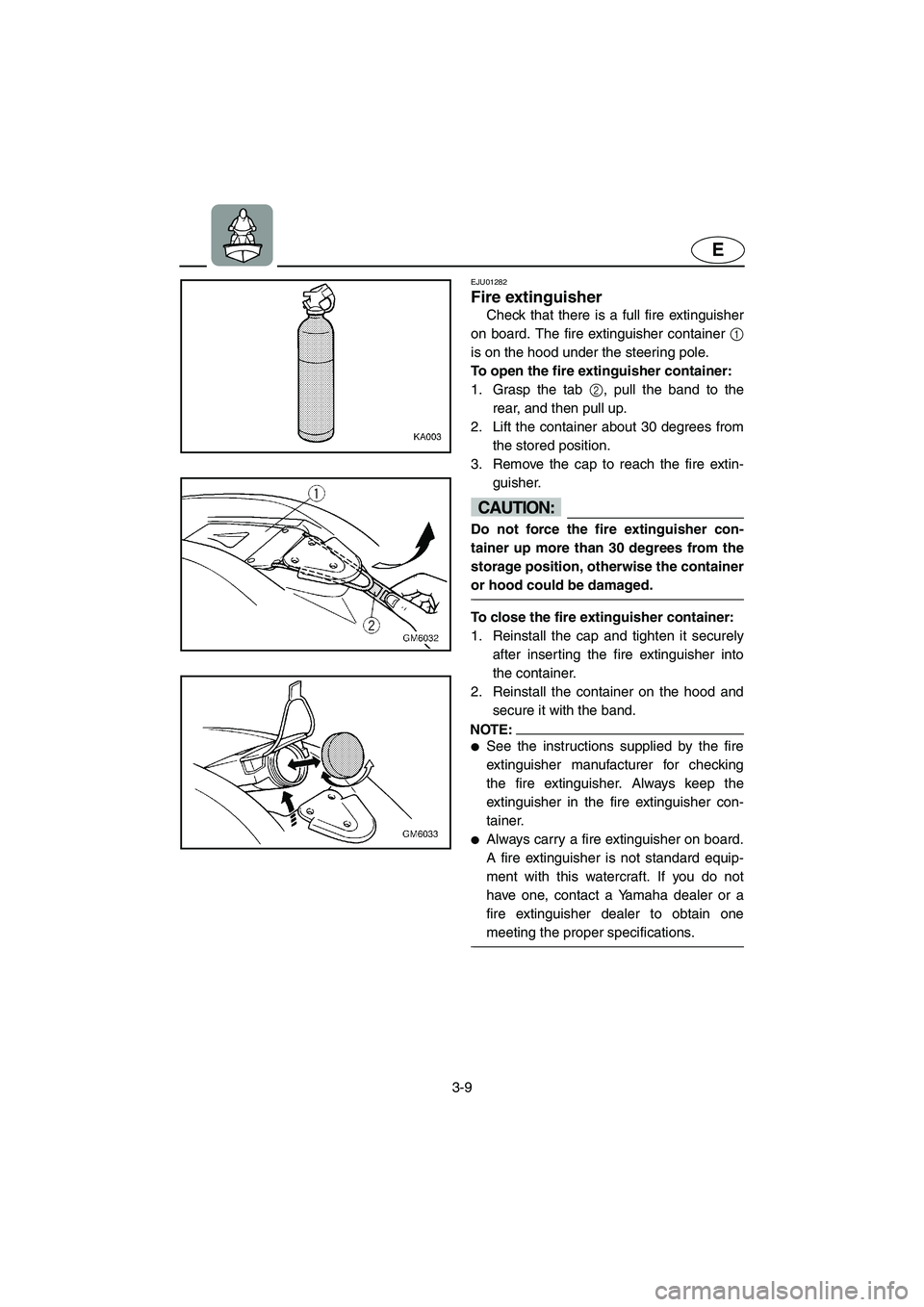

Fire extinguisher
Check that there is a full fire extinguisher
on board. The fire extinguisher container 1
is on the hood under the steering pole.
To open the fire extinguisher container:
1. Grasp the tab 2, pull the band to the
rear, and then pull up.
2. Lift the container about 30 degrees from
the stored position.
3. Remove the cap to reach the fire extin-
guisher.
CAUTION:@ Do not force the fire extinguisher con-
tainer up more than 30 degrees from the
storage position, otherwise the container
or hood could be damaged.
@
To close the fire extinguisher container:
1. Reinstall the cap and tighten it securely
after inserting the fire extinguisher into
the container.
2. Reinstall the container on the hood and
secure it with the band.
NOTE:@
See the instructions supplied by the fire
extinguisher manufacturer for checking
the fire extinguisher. Always keep the
extinguisher in the fire extinguisher con-
tainer.

Always carry a fire extinguisher on board.
A fire extinguisher is not standard equip-
ment with this watercraft. If you do not
have one, contact a Yamaha dealer or a
fire extinguisher dealer to obtain one
meeting the proper specifications.
@
UF1N73.book Page 9 Monday, May 10, 2004 10:37 AM

3-10
E
EJU01834
Throttle
Squeeze and release the throttle lever
several times to make sure that there is no
hesitation in its travel. It should be smooth
over the complete range, and spring back to
the idle position when released.
WARNING@ Before starting the engine, always check
the operation of the throttle lever.
@
EJU01057
Steering system
Check for looseness in the handlebars.
Turn them as far as possible to the right
and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Make sure that the jet thrust
nozzle also changes directions as the han-
dlebars are turned, and that there is no free
play between the handlebars and the jet
thrust nozzle.
EJU01281
Steering pole
Check for looseness in the steering pole.
Move it up and down to make sure operation
is smooth and unrestricted throughout the
whole range. Make sure the steering pole
does not have any side play.
UF1N73.book Page 10 Monday, May 10, 2004 10:37 AM

3-11
E
EJU01058
Jet unit
Carefully check the jet intake for weeds,
debris, or anything else that might restrict
the intake of water. If the intake is clogged,
cavitation could occur, reducing jet thrust,
and possibly damaging the jet pump.
In some cases, the engine may overheat
because of lack of cooling water, and dam-
age to the engine could result. Engine cool-
ing water is fed to the engine by the jet
pump. (See page 5-3 for jet intake cleaning
procedures.)
WARNING@
Keep away from intake grate while
engine is on. Items such as long hair,
loose clothing, or PFD straps can
become entangled in moving parts
resulting in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet
intake.
@
EJU01059
Engine shut-off cord (lanyard)
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged,
replace it; never try to repair it or tie it
together.
UF1N73.book Page 11 Monday, May 10, 2004 10:37 AM

3-12
E
EJU18352
Switches
CAUTION:@ Do not run the engine of the watercraft
for more than 15 seconds on land with-
out supplying water, otherwise the
engine may overheat.
@
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch 1 to start the
engine. As soon as the engine starts run-
ning, push the engine stop switch 2 to ver-
ify that the engine stops immediately.
Restart the engine, and then pull the engine
shut-off cord 5 to remove the clip 4 from
the engine shut-off switch 3 to verify that
the engine stops immediately. (See pages
2-5 to 2-6 for information on proper opera-
tion of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU01320
Cooling water pilot outlet
Check that water comes out from the out-
let while the engine is running and the
watercraft is in the water.
UF1N73.book Page 12 Monday, May 10, 2004 10:37 AM

3-13
E
EJU01283
Operation
WARNING@ Before operating your watercraft,
become familiar with all controls. Con-
sult your Yamaha dealer about any con-
trols or functions you do not fully
understand. Failure to understand how
controls work could cause an accident or
prevent you from avoiding an accident.
@
EJU01284
Engine break-in
The engine break-in period is essential to
allow the various components of the engine
to wear and polish themselves to the correct
operating clearances. This ensures proper
performance and promotes longer compo-
nent life.
CAUTION:@
For the first 5 hours or 2 tankfuls of
operation, premix fuel and oil in a 25:1
ratio.

After break-in, premix fuel and oil in a
50:1 ratio for normal operation.
@
1. Launch the watercraft and start the
engine, and then board the watercraft.
2. Run the engine at the lowest possible
speed for 5 minutes.
UF1N73.book Page 13 Monday, May 10, 2004 10:37 AM

3-14
E
3. Gradually open the throttle lever to 3/4 or
less.
4. Continue operation at 3/4 throttle or less
until the first tankful of fuel has been
used.
5. Fill the tank once more with a fuel-to-oil
ratio of 25:1, and proceed with normal
operation.
CAUTION:@ Failure to follow the engine break-in pro-
cedure properly can result in severe
damage to the engine.
@
UF1N73.book Page 14 Monday, May 10, 2004 10:37 AM

3-15
E
EJU01137
Starting the engine
WARNING@ Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monox-
ide, a colorless, odorless gas that may
cause loss of consciousness and death
within a short time. Always operate the
watercraft in an open area.
@
1. Launch the watercraft in water free from
weeds and debris and at least 60 cm
(2 ft) deep.
WARNING@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged
object, which could result in injury.
@
CAUTION:@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise pebbles or
sand could be sucked into the jet intake,
causing impeller damage or engine over-
heating.
@
2. Turn the fuel cock knob to the “ON” posi-
tion.
NOTE:@ Before starting the watercraft, after it has
been sitting, remove the fuel tank filler cap
to release any built-up pressure in the tank
due to fuel expansion.
@
UF1N73.book Page 15 Monday, May 10, 2004 10:37 AM
