2005 YAMAHA FZ6 S Owners Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU34371

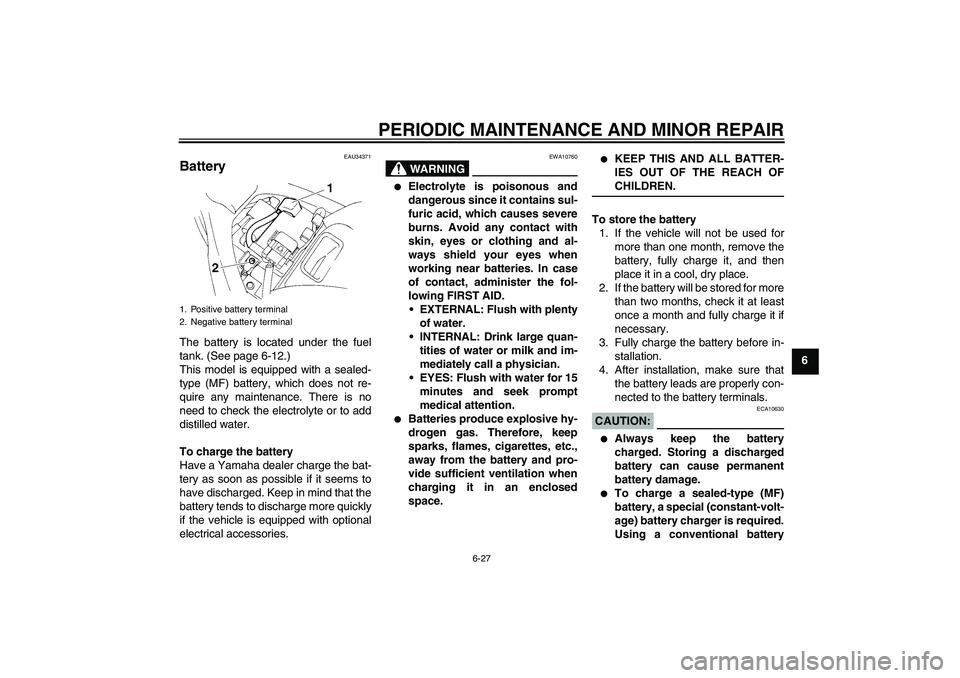

Battery The battery is located under the fuel
tank. (See page 6-12.)
This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
1. Positive battery terminal
2. Negative battery terminal
U5VXE2E0.book Page 27 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU32842
Replacing the fuses The main fuse is located under the fuel
tank. (See page 6-12.)
The fuse box is located behind panel C.
(See page 6-5.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Main fuse
2. Spare fuse
1. Fuse box
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Radiator fan fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. Electronic fuel injection fuse
7. Spare fuse
8. Parking lighting fuse
U5VXE2E0.book Page 28 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23740
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the bulb cover.
2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
3. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
Specified fuses:
Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
Parking lighting fuse:
10.0 A
1. Headlight bulb cover
2. Headlight coupler
1. Headlight bulb holder
U5VXE2E0.book Page 29 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6


Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.4. Install the headlight bulb cover,
and then connect the coupler.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU32822
Replacing the tail/brake light
bulb 1. Remove the seat. (See page
3-13.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
WARNING
EWA12301
Do not touch the muffler bracket un-til the exhaust system has cooled.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
1. Do not touch the glass part of the bulb.
1. Tail/brake light bulb socket
2. Muffler bracket cover
U5VXE2E0.book Page 30 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6 4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24201
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Screw
1. Screw
2. License plate light unit
U5VXE2E0.book Page 31 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
63. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU32830
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove panel B (if replacing the
left auxiliary light bulb) or panel A
(if replacing the right auxiliary light
bulb). (See page 6-5.)
2. Remove the auxiliary light socket
(together with the coupler) by pull-
ing it out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in.
1. License plate light bulb
2. License plate light bulb socket
1. Auxiliary light bulb
2. Auxiliary light bulb socket
U5VXE2E0.book Page 32 Wednesday, July 7, 2004 11:32 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU24360

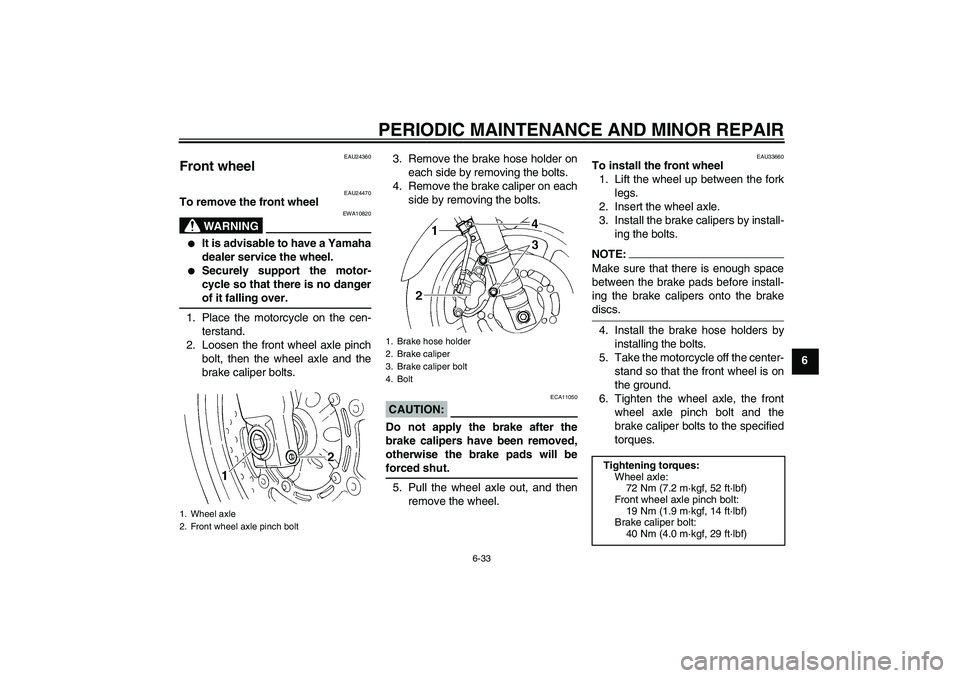

Front wheel
EAU24470
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.3. Remove the brake hose holder on
each side by removing the bolts.
4. Remove the brake caliper on each
side by removing the bolts.
CAUTION:
ECA11050
Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will beforced shut.
5. Pull the wheel axle out, and then
remove the wheel.
EAU33660
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by install-
ing the bolts.NOTE:Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brakediscs.
4. Install the brake hose holders by
installing the bolts.
5. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.
6. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.
1. Wheel axle
2. Front wheel axle pinch bolt
1. Brake hose holder
2. Brake caliper
3. Brake caliper bolt
4. Bolt
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
U5VXE2E0.book Page 33 Wednesday, July 7, 2004 11:32 AM

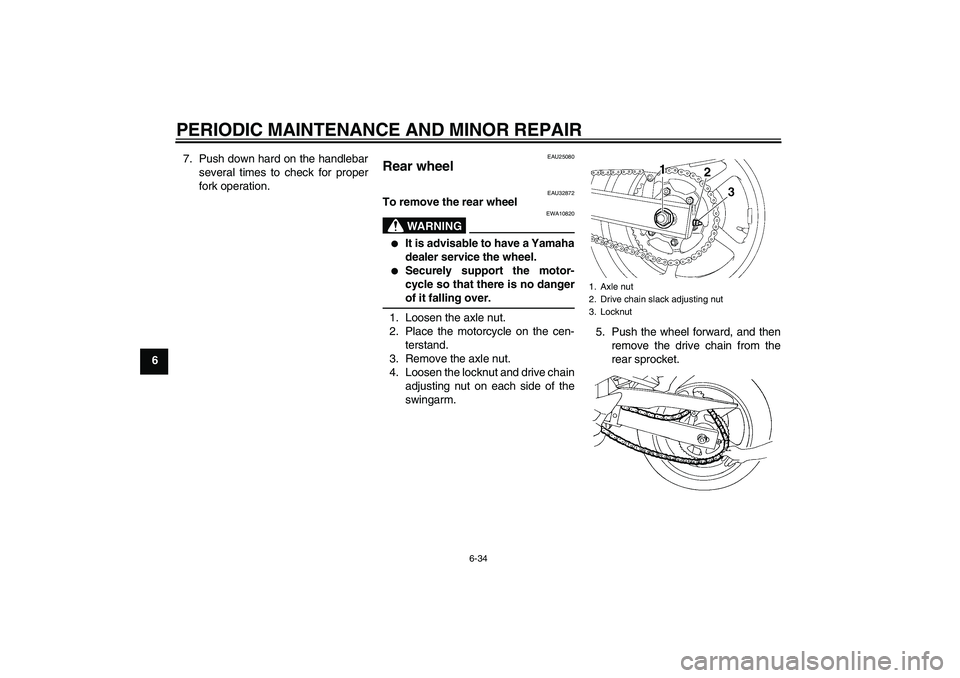

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
67. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU32872
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the axle nut.
2. Place the motorcycle on the cen-
terstand.
3. Remove the axle nut.
4. Loosen the locknut and drive chain
adjusting nut on each side of the
swingarm.5. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
1. Axle nut
2. Drive chain slack adjusting nut
3. Locknut
