2005 YAMAHA FZ6 N Owners Manual

SPECIFICATIONS
8-2
8
Gear ratio:
1st:
37/13 (2.846)
2nd:
37/19 (1.947)
3rd:
28/18 (1.556)
4th:
32/24 (1.333)
5th:
25/21 (1.190)
6th:
26/24 (1.083)Chassis:Frame type:
Diamond
Caster angle:
25.00 °
Trail:
97.5 mm (3.84 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT020F GG
Manufacturer/model:
DUNLOP/D252FRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)Manufacturer/model:
BRIDGESTONE/BT020R GG
Manufacturer/model:
DUNLOP/D252
Loading:Maximum load:
196 kg (432 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
90–196 kg (198–432 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)
U1B3E1E0.book Page 2 Thursday, July 8, 2004 11:49 AM

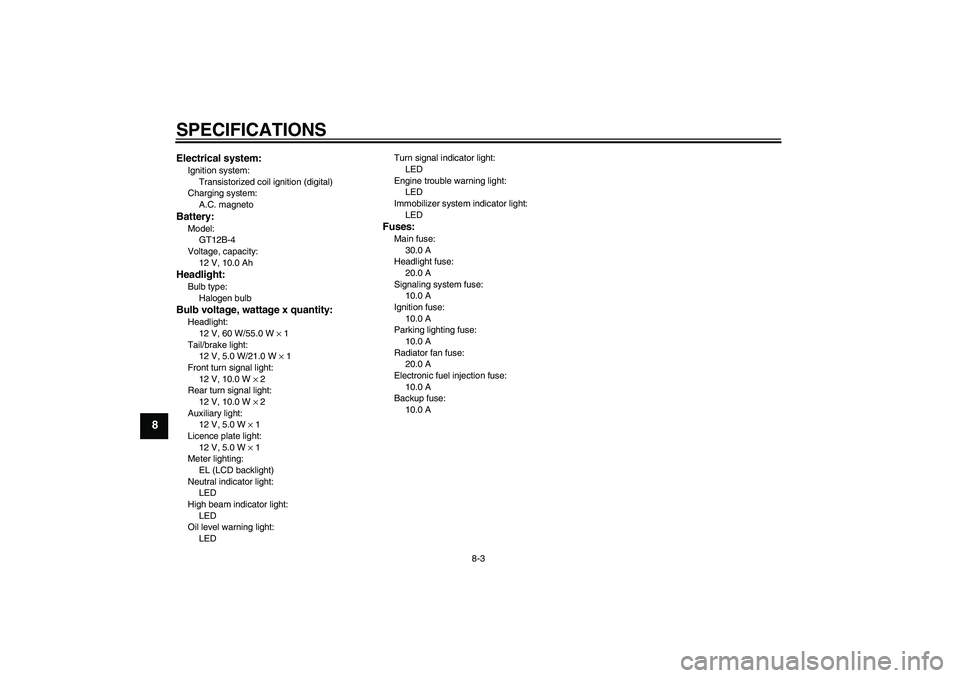

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
A.C. magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Licence plate light:
12 V, 5.0 W × 1
Meter lighting:
EL (LCD backlight)
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
20.0 A
Electronic fuel injection fuse:
10.0 A
Backup fuse:
10.0 A
U1B3E1E0.book Page 3 Thursday, July 8, 2004 11:49 AM

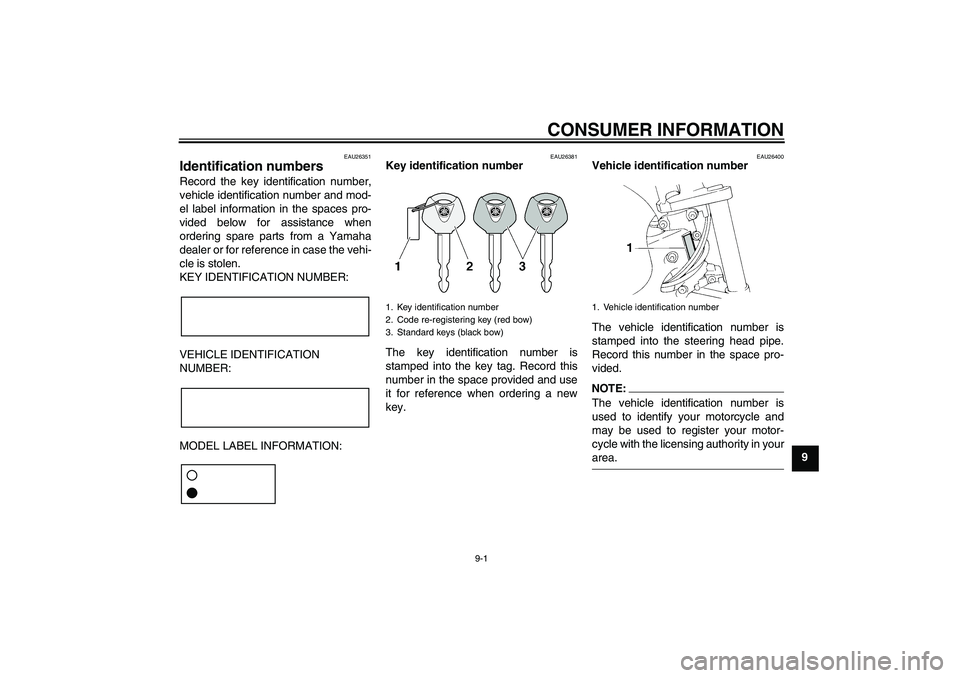

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U1B3E1E0.book Page 1 Thursday, July 8, 2004 11:49 AM

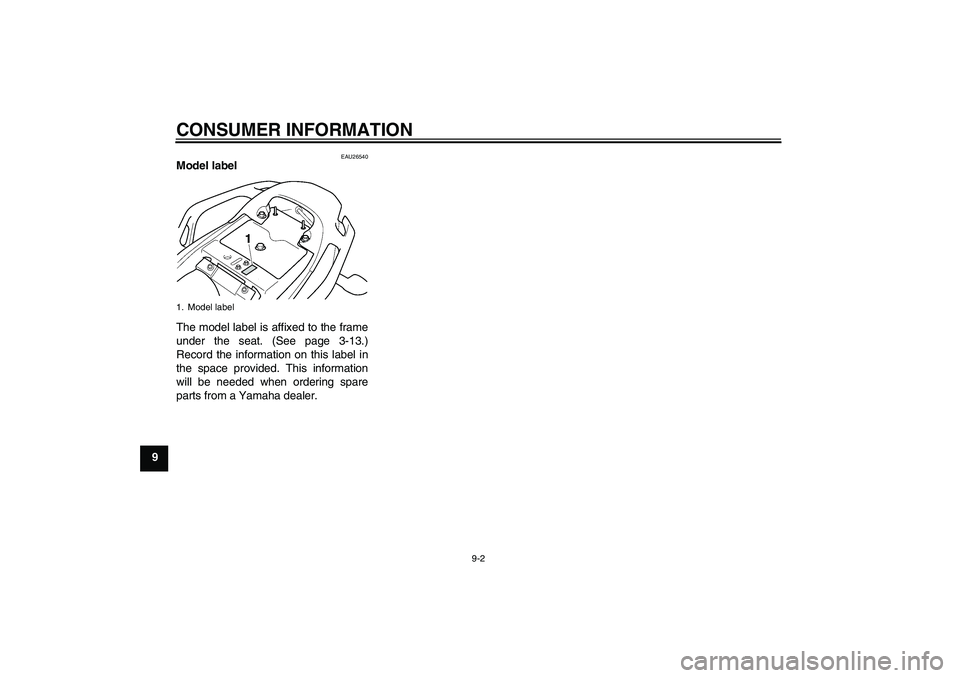

CONSUMER INFORMATION
9-2
9
EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-13.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model labelU1B3E1E0.book Page 2 Thursday, July 8, 2004 11:49 AM

INDEX
AAir filter element, replacing ................... 6-11
Anti-theft alarm (optional) ....................... 3-8
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ........................................... 3-10
Brake pedal .......................................... 3-11CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter ................................ 3-13
Clutch lever........................................... 3-10
Clutch lever free play, adjusting ........... 6-16
Coolant ................................................... 6-9DDimmer switch ........................................ 3-9
Drive chain, lubricating ......................... 6-21
Drive chain slack .................................. 6-19EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-12
Engine oil and oil filter cartridge ............. 6-6
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4FFront and rear brake pads, checking .... 6-17
Front fork, checking .............................. 6-24Fuel ....................................................... 3-12
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather hose ........................ 3-13
Fuel tank cap......................................... 3-11
Fuses, replacing .................................... 6-27
HHandlebar switches ................................. 3-8
Hazard switch.......................................... 3-9
Headlight bulb, replacing....................... 6-28
High beam indicator light......................... 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-16
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLCD tachometer ...................................... 3-5
License plate light bulb, replacing ......... 6-30MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-5
Parking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17SSafety information ................................... 1-1
Seat ...................................................... 3-13
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-15
Sidestand .............................................. 3-16
Sidestand, checking and lubricating ..... 6-23
Spark plugs, checking............................. 6-5
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-9
Steering, checking ................................ 6-25
Storage ................................................... 7-3
Storage compartment ........................... 3-14
Supporting the motorcycle .................... 6-31
Swingarm pivots, lubricating ................. 6-24TTail/brake light bulb, replacing .............. 6-29
Throttle cable free play, adjusting ......... 6-13
Throttle grip and cable,
checking and lubricating ..................... 6-22
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting charts ......................... 6-36
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-30
U1B3E1E0.book Page 1 Thursday, July 8, 2004 11:49 AM

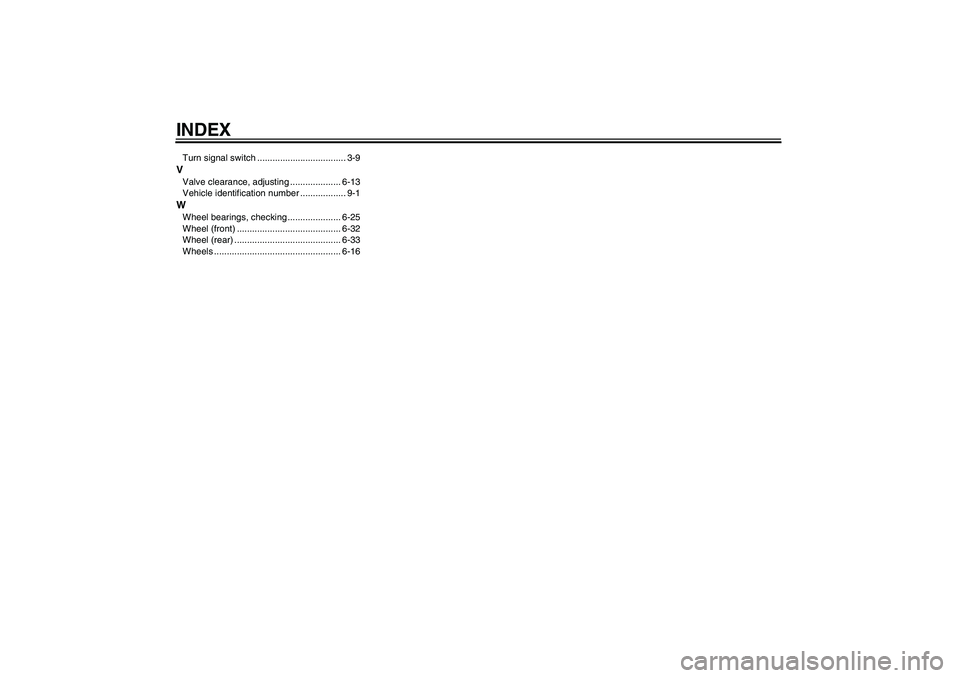

INDEXTurn signal switch ................................... 3-9VValve clearance, adjusting .................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-25
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-33
Wheels .................................................. 6-16
U1B3E1E0.book Page 2 Thursday, July 8, 2004 11:49 AM

U1B3E1E0.book Page 3 Thursday, July 8, 2004 11:49 AM

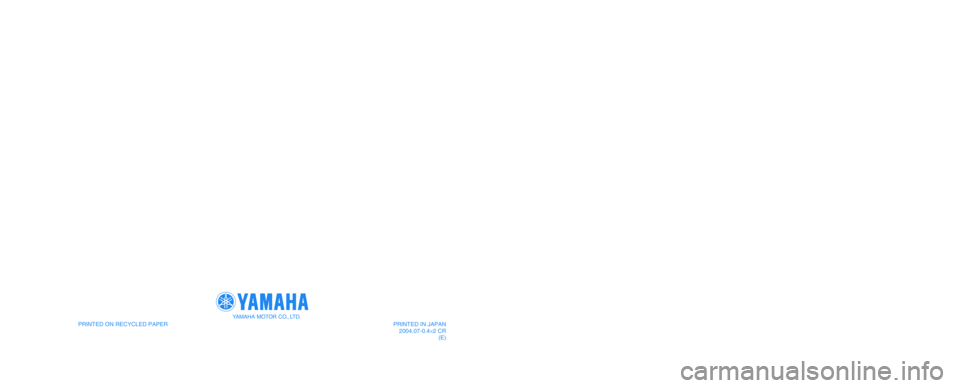

PRINTED ON RECYCLED PAPER
