2005 YAMAHA CYGNUS 125 Owners Manual

7-1
1
2
3
4
5
6
7
8
9
SCOOTER CARE AND STORAGE
EAU26090
CareWhile the open design of a scooter re-
veals the attractiveness of the technol-
ogy, it also makes it more vulnerable.
Rust and corrosion can develop even if
high-quality components are used. A
rusty exhaust pipe may go unnoticed on
a car, however, it detracts from the over-
all appearance of a scooter. Frequent and
proper care does not only comply with
the terms of the warranty, but it will also
keep your scooter looking good, extend
its life and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a plas-
tic bag after the engine has cooled
down.
2. Make sure that all caps and cov-
ers as well as all electrical couplers
and connectors, including the spark
plug cap, are tightly installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and
degreaser off with water.
Cleaning
ECA10780
cC8 88 8
8Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are used
on hard-to-remove dirt, do not
leave the cleaner on the affected
area any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
8 88 8
8Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge with
mild detergent and water to clean
plastic.
8 88 8
8Do not use any harsh chemical
products on plastic parts. Be sure
to avoid using cloths or sponges
which have been in contact with
strong or abrasive cleaning prod-ucts, solvent or thinner, fuel
(gasoline), rust removers or in-
hibitors, brake fluid, antifreeze or
electrolyte.
8 88 8
8Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and
swingarm bearings, fork and
brakes), electric components
(couplers, connectors, instru-
ments, switches and lights),
breather hoses and vents.
8 88 8
8For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as they
will cause dulling or scratching.
Some cleaning compounds for
plastic may leave scratches on
the windshield. Test the product
on a small hidden part of the
windshield to make sure that it
does not leave any marks. If the
windshield is scratched, use a
quality plastic polishing com-
pound after washing.
EAU25990
SCOOTER CARE AND STORAGE
5ML-F8199-E1ch7.pmd2004/10/04, 20:09 1

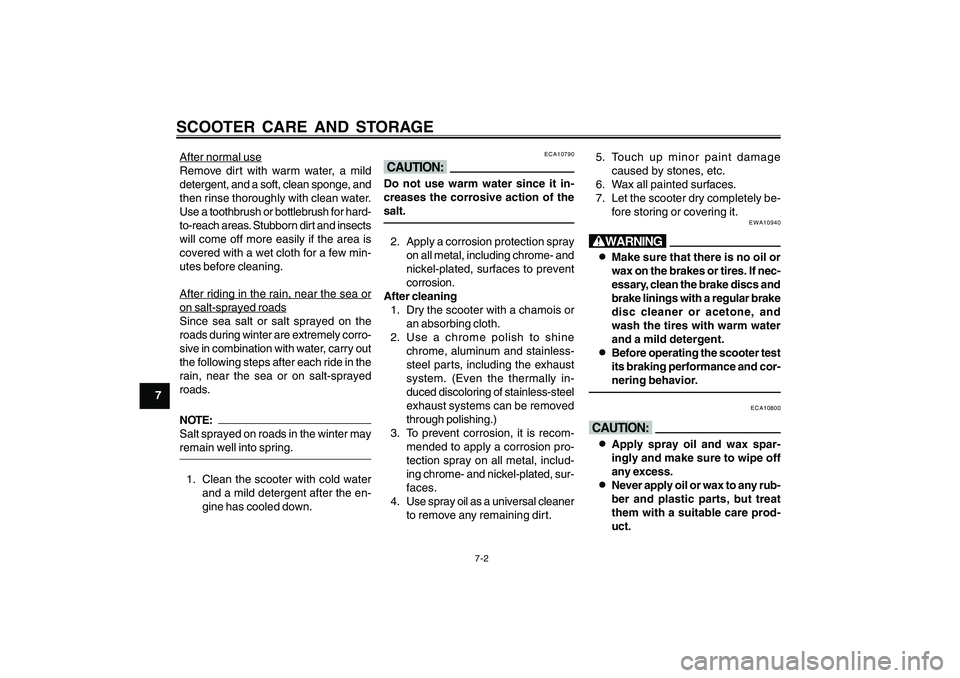

7-2
1
2
3
4
5
6
7
8
9
SCOOTER CARE AND STORAGEAfter normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge, and
then rinse thoroughly with clean water.
Use a toothbrush or bottlebrush for hard-
to-reach areas. Stubborn dirt and insects
will come off more easily if the area is
covered with a wet cloth for a few min-
utes before cleaning.After riding in the rain, near the sea oron salt-sprayed roads
Since sea salt or salt sprayed on the
roads during winter are extremely corro-
sive in combination with water, carry out
the following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:
Salt sprayed on roads in the winter may
remain well into spring.1. Clean the scooter with cold water
and a mild detergent after the en-
gine has cooled down.
ECA10790
cCDo not use warm water since it in-
creases the corrosive action of the
salt.2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the scooter with a chamois or
an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-steel
exhaust systems can be removed
through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, includ-
ing chrome- and nickel-plated, sur-
faces.
4. Use spray oil as a universal cleaner
to remove any remaining dirt.5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be-
fore storing or covering it.
EWA10940
w8 88 8
8Make sure that there is no oil or
wax on the brakes or tires. If nec-
essary, clean the brake discs and
brake linings with a regular brake
disc cleaner or acetone, and
wash the tires with warm water
and a mild detergent.
8 88 8
8Before operating the scooter test
its braking performance and cor-
nering behavior.
ECA10800
cC8 88 8
8Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
8 88 8
8Never apply oil or wax to any rub-
ber and plastic parts, but treat
them with a suitable care prod-
uct.
5ML-F8199-E1ch7.pmd2004/10/04, 20:09 2

7-3
1
2
3
4
5
6
7
8
9
SCOOTER CARE AND STORAGE
8 88 8
8Avoid using abrasive polishing
compounds as they will wear
away the paint.NOTE:
Consult a Yamaha dealer for advice on
what products to use.
EAU26300
StorageShort-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover.
ECA10820
cC8 88 8
8Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
8 88 8
8To prevent corrosion, avoid
damp cellars, stables (because of
the presence of ammonia) and
areas where strong chemicals are
stored.Long-term
Before storing your scooter for several
months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent the
fuel tank from rusting and the fuel
from deteriorating.
4. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap and
spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from
the spark plug, and then install
the spark plug and the spark plug
cap.
5ML-F8199-E1ch7.pmd2004/10/04, 20:09 3

7-4
1
2
3
4
5
6
7
8
9
SCOOTER CARE AND STORAGE
EWA10950
wTo prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.5. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
7. Cover the muffler outlet with a plas-
tic bag to prevent moisture from en-
tering it.
8. Remove the battery and fully charge
it. Store it in a cool, dry place and
charge it once a month. Do not store
the battery in an excessively cold
or warm place [less than 0 °C (30°F) or more than 30 °C (90 °F)]. For
more information on storing the
battery, see page 6-23.
NOTE:
Make any necessary repairs before stor-
ing the scooter.
5ML-F8199-E1ch7.pmd2004/10/04, 20:09 4

8-1
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
-20˚ -10˚ 0˚ 10˚ 20˚ 30˚ 40˚ 50˚
SAE 10W-30SAE 10W-40
SAE 20W-40SAE 20W-50
ZAUM00**
EAU26320
SPECIFICATIONS
EAU26339
DimensionsOverall length
1855 mm
Overall width
685 mm
Overall height
1110 mm
Seat height
770 mm
Wheelbase
1295 mm
Ground clearance
110 mm
Minimum turning radius
1900 mmWeightWith oil and fuel
121.0 kgEngineEngine type
Forced air cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
124.0 cm
3
Bore & stroke
52.4 x 57.9 mm
Compression ratio
10.00 :1
Starting system
Electric starter and kickstarter
Lubrication system
Wet sump
Engine oilType
SAE20W40
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantity
Periodic oil change
0.90 L
Without oil filter element removal
0.90 LFinal transmission oilType
SAE10W30 type SE motor oil
Quantity
0.13 LAir filterAir filter element
Oil-coated paper elementFuelRecommended fuel
Regular unleaded gasoline only
Fuel tank capacity
7.1 L
CarburetorManufacturer
Taiwan KEI HIN
Type x quantity
CVK24 x 1Spark plug(s)Manufacturer/model
NGK / CR7E
Spark plug gap
0.6-0.7 mmClutchClutch type
Dry, centrifugal automaticTransmissionPrimary reduction system
Helical gear
Primary reduction ratio
38/13 (2.923)
Secondary reduction system
Helical gear
Secondary reduction ratio
40 / 12 (3.333)
Transmission type
V-belt automatic
Operation
Centrifugal automatic typeChassisFrame type
Steel tube underbone
Caster angle
27.00 degree
Trail
90.0 mm
5ML-F8199-E1ch8.pmd2004/10/04, 20:09 1

8-2
1
2
3
4
5
6
7
8
9
SPECIFICATIONSFront tireType
Tubeless
Size
110 / 70-12 47L
Manufacturer/model
CHENG SHIN / C-922N-47LRear tireType
Tubeless
Size
120 / 70-12 58L
Manufacturer/model
CHENG SHIN / C-6007-58L
Maximum load
170 kg
(Total weight of rider, passenger, cargo and ac-
cessories)Tire air pressure (measured on cold tires)Loading condition
0-90 kg
Front
175 kPa
Rear
200 kPa
Loading condition
90-170 kg
Front
200 kPa
Rear
225 kPaFront wheelWheel type
Cast wheel
Rim size
12xMT2.75
Rear wheelWheel type
Cast wheel
Rim size
12xMT3.00Front brakeType
Single disc brake
Operation
Right hand operation
Recommended fluid
DOT 4Rear brakeType
Drum brake
Operation
Left hand operationFront suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90.0 mmRear suspensionType
Unit swing
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
95.0 mm
Electrical systemIgnition system
C.D.I.
Charging system
A.C. magnetoBatteryModel
YTX7A-BS
Voltage, capacity
12 V, 6.0 AhHeadlightBulb type
Halogen bulbBulb voltage, wattage x quantityHeadlight
12 V, 60 W/55.0 W x 1
Tail/brake light
12 V, 5.0/21.0 W x 1
Front turn signal light
12 V, 10.0 W x 2
Rear turn signal light
12 V, 16.0 W x 2
Auxiliary light
12 V, 5.0 W x 1
Meter lighting
12 V, 1.7 W x 3
High beam indicator light
12 V, 1.7 W x 1
Turn signal indicator light
12 V, 3.4 W x 1
5ML-F8199-E1ch8.pmd2004/10/04, 20:09 2

8-3
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
FusesMain fuse
30.0 A
Headlight fuse
15.0 A
Signaling system fuse
15.0 A
Ignition fuse
7.5 A
Carburetor heater fuse
7.5 A
5ML-F8199-E1ch8.pmd2004/10/04, 20:09 3

9-1
1
2
3
4
5
6
7
8
9
CONSUMER INFORMATION
EAU26351
Identification numbersRecord the key identification number,
vehicle identification number and model
label information in the spaces provided
below for assistance when ordering
spare parts from a Yamaha dealer or for
reference in case the vehicle is stolen.
KEY IDENTIFICATION NUMBER:VEHICLE IDENTIFICATION NUMBER:MODEL LABEL INFORMATION:
EAU26410
Vehicle identification numberZAUM00**
1
1. Vehicle identification numberThe vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is used
to identify your motorcycle and may be
used to register your motorcycle with
the licensing authority in your area.
CONSUMER INFORMATION
EAU26381
Key identification numberZAUM00**
1
1. Key identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when or-
dering a new key.
5ML-F8199-E1ch9.pmd2004/10/04, 20:09 1
