2005 TOYOTA MR2 SPYDER light

2342005 MR2 from Aug. ’04Prod. (OM17527U)
SB73072a
SB73073a
SB73074aSD73009
—Rear turn signal, stop/tail,
stop and backup lights

2352005 MR2 from Aug. ’04Prod. (OM17527U)
SD73010a
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—License plate lights
SB73021
SB73022
SB73023

2362005 MR2 from Aug. ’04Prod. (OM17527U)

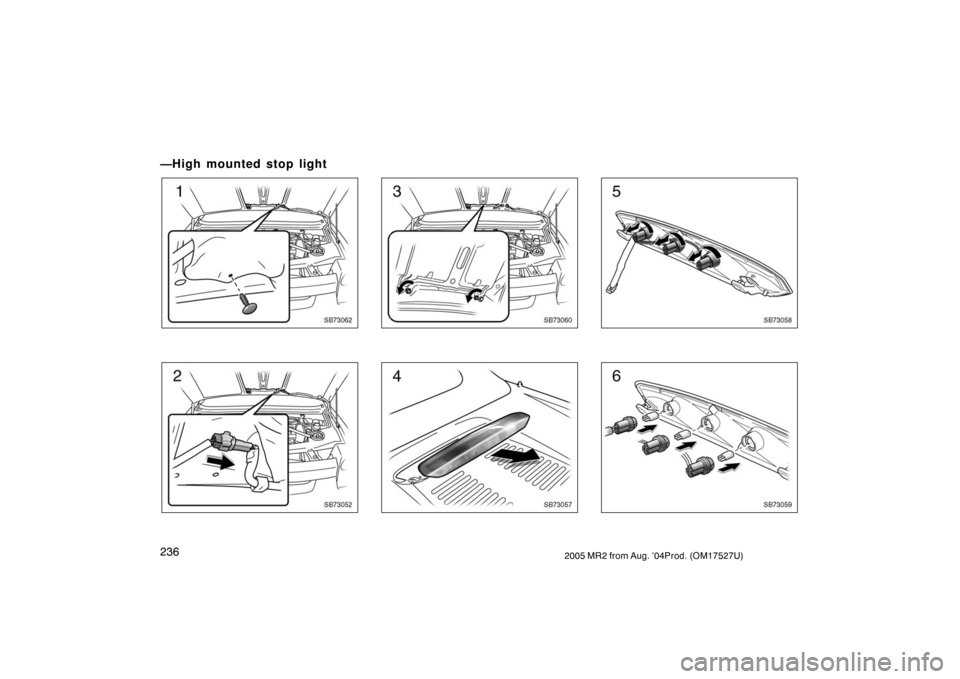

—High mounted stop light
SB73062
SB73052
SB73060
SB73057
SB73058
SB73059

2422005 MR2 from Aug. ’04Prod. (OM17527U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
10.4 (11.0, 9.2)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non−silicate, non−amine,
non−nitrite, and non−borate coolant with
long−life hybrid organic acid technology.
(Coolant with long−life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.CLUTCH (manual transmission only)
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
Vehicle with limited−slip differential
1.8 (1.9, 1.6)
Vehicle without limited−slip differential
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
SEQUENTIAL MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
Vehicle with limited−slip differential
2.1 (2.2, 1.8)
Vehicle without limited−slip differential
2.3 (2.4, 2.0)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90SEQUENTIAL MANUAL TRANSMISSION
SYSTEM
Fluid type:
Sequential M/T Fluid or equivalent
NOTICE: Using Fluid other than Toyota
Genuine Sequential M/T Fluid may
cause deterioration in shift performance
and durability, and ultimately damage
the sequential manual transmission of
your vehicle.

2452005 MR2 from Aug. ’04Prod. (OM17527U)
Fuses
SB73067
Trunk room
Fuses (type A)
1. 30 A: Spare fuse
2. 15 A: Spare fuse
3. 20 A: Spare fuse
4. RDI FAN 30 A: Electric cooling fans
5. ABS1 30 A: Anti−lock brake system
6. CDS FAN 30 A: Electric cooling fans
7. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
8. HEAD RH UPR 10 A: Right−hand
headlight (high beam)
9. WASHER 10 A: Windshield wiper and
washer
SB73025a
Trunk room
10. HTR 10 A: Air conditioning system
11. WIPER 20 A: Windshield wiper and
washer
12. ECUIG 7.5 A: Power Steering system,
anti−lock brake system
13. FANIG 7.5 A: Electric cooling fans
14. TURN 7.5 A: Turn signal lights, emer-
gency flashers
15. GAUGE 7.5 A: Power window system,
gauges and meters, back−up lights,
charging system, rear window defogger
system
16. SRS 7.5 A: SRS airbag system
SB73026b
Instrument panel
17. DEF 25 A: Rear window defogger sys-
tem
18. OBD 7.5 A: On−board diagnosis sys-
tem
19. AM1 7.5 A: “GAUGE” “ACC” “TURN”
“ECU−IG” “WIPER” “WASHER” “SRS”
“HTR 10A” “FAN−IG” fuses
20. ACC 25 A: “RADIO2” “CIG” fuses
21. DOOR 15 A: Power door lock system
22. FR FOG 15A: Front fog light
23. STOP 15 A: Stop lights, high mounted
stop light, sequential manual transmis-
sion system

2462005 MR2 from Aug. ’04Prod. (OM17527U)
SB73068a
Engine compartment
24. TAIL1 20 A: “TAIL2” “PANEL” fuses
25. D P/W 20 A: Power window system
26. P P/W 20 A: Power window system
27. RADIO1 15 A: Power antenna, audio
28. DOME 10 A: Clock
29. ECUB 10 A: Daytime running light
system, gauges and meters
30. TAIL2 10 A: Taillights, parking lights,
license plate lights, gauges and meters
31. PANEL 7.5 A: Clock, illuminations
32. RADIO2 7.5 A: Gauges and meters,
outside rear view mirror system, clock33. CIG 15 A: Cigarette lighter
34. I/UP 7.5 A: Engine idle up system
35. ALTS 7.5 A: Charging system
36. ECUB1 25 A: “ECU−B” “DOME” fuses
37. SMTB 10A: Sequential manual trans-
mission system
38. HORN 10 A: Horn
39. HAZ 15 A: Turn signal lights, emergen-
cy flashers
40. AM2 15 A: Starter system, multiport
fuel injection system/sequential multi-
port fuel injection system, SRS airbag
system
41. IG2 15 A: Ignition system, multiport
fuel injection system/sequential multi-
port fuel injection system
42. EFI1 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobilizer system
43. ETCS 15A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
44. HPU 30A: Sequential manual transmis-
sion system
45. HEAD RH LWR 10A: Right−hand head-
light (low beam)46. HEAD LH LWR 10A: Left−hand head-
light (low beam)
47. EFI2 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
48. ST 7.5 A: Starter system
49. SMTIG 10A: Sequential manual trans-
mission system
50. DRL NO.1 7.5 A: Daytime running light
system
Fuses (type B)
51. ABS2 50 A: Anti−lock brake system
52. EHPS 50 A: Power steering system
53. MAIN 40 A: Starter system, “DRL
NO.1” “HEAD LH LWR” “HEAD RH
LW R ” f u s e s
54. HTR 40 A: Air conditioning system
Fuses (type C)
55. ALT 100 A: “AM1” “D P/W” “P P/W”
“DOOR” “STOP” “EHPS” “DEF” “TAIL1”
“OBD” “HTR 40A” fuses
