2005 TOYOTA ECHO Owners Manual

2412005 ECHO from Aug. ’04 Prod. (OM52636U)
Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.

2422005 ECHO from Aug. ’04 Prod. (OM52636U)
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Front fog lights900651B
Parking·front
side marker/front
turn signal lights
1157NA8/27C
Rear turn signal
lights744021D
Rear side
marker lightsW5W5D
Stop/tail lights744321/5D
Back −up lights744021D
License plate
lightsW5W5D
High mounted
stoplight92118D
Interior light—8E
Trunk light1943.8D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Single end bulbs (amber)
D: Wedge base bulbs
E: Double end bulbs

2432005 ECHO from Aug. ’04 Prod. (OM52636U)
—Headlights
SU73036a
1. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.
SU73037a
2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
SU73057
3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

2442005 ECHO from Aug. ’04 Prod. (OM52636U)
—Front fog lights
SU73052a
1. Turn the bulb base counterclockwiseto the front of the vehicle as shown.
SU73053a
2. Pull the bulb out of the bulb base.
If the connector is tight, wiggle it.
SU73054a
3. Install a new bulb base by turning it clockwise to the front of the vehicle.

2452005 ECHO from Aug. ’04 Prod. (OM52636U)

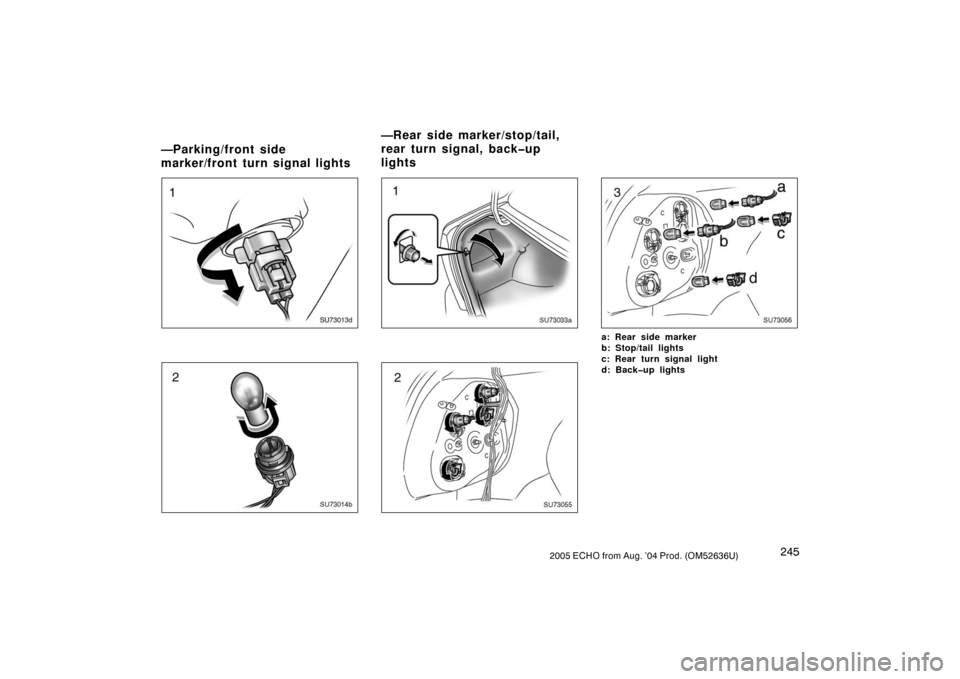

SU73013d
SU73014b
SU73033a
SU73055
SU73056
a: Rear side marker
b: Stop/tail lights
c: Rear turn signal light
d: Backup lights
—Parking/front side
marker/front turn signal lights—Rear side marker/stop/tail,
rear turn signal, backup
lights

2462005 ECHO from Aug. ’04 Prod. (OM52636U)

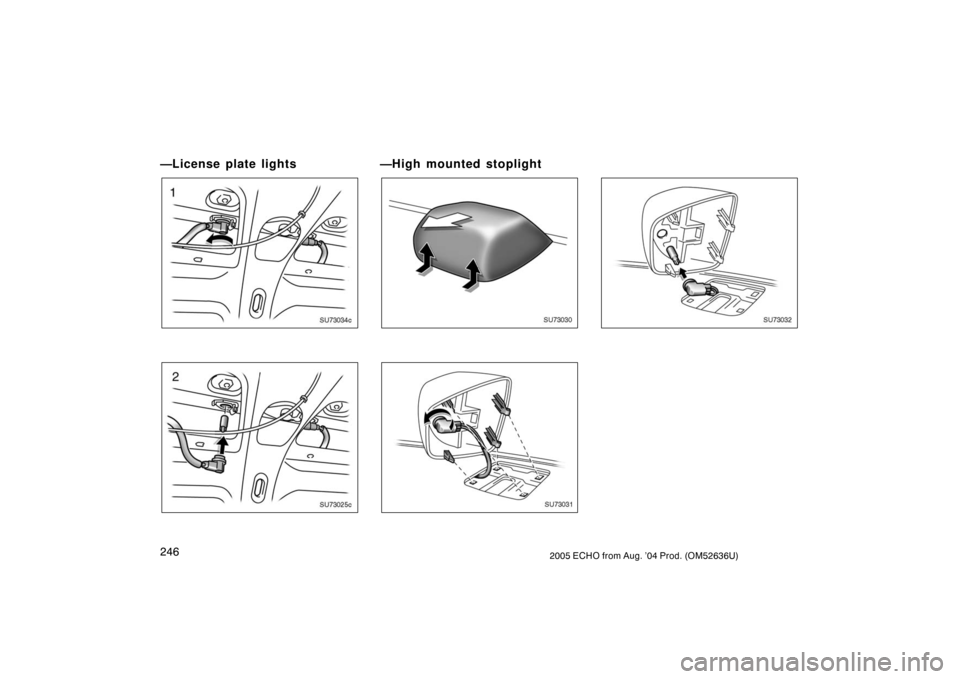

—License plate lights
SU73034c
SU73025c
—High mounted stoplight
SU73030
SU73031
SU73032

2472005 ECHO from Aug. ’04 Prod. (OM52636U)
SPECIFICATIONS
Specifications
Dimensions and weight248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2482005 ECHO from Aug. ’04 Prod. (OM52636U)
Dimensions and weight
Overall lengthmm (in.): 4180 (164.6)
Overall width mm (in.): 1660 (65.4) 1690 (66.5)
∗1
Overall height
mm (in.): 1510 (59.4)∗2
1520 (59.8)∗3
Wheelbase
mm (in.): 2370 (93.3)
Front tread mm (in.): 1440 (56.7)
Rear tread mm (in.): 1420 (55.9)
Vehicle capacity weight
(occupants+luggage) kg(lb.): 351 (775)
∗1:With Sports Fender And Rocker Panel
Extensions
∗ 2:With P175/65R14 81S tires
∗3:With P185/60R15 84T tires
Engine
Model:
1NZ− FE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 45 (11.9, 9.9)
