2005 TOYOTA ECHO trunk release

122005 ECHO from Aug. ’04 Prod. (OM52636U)
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time, parking lights, side marker lights and
tail lights flash.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is in the ignition switch,
locking cannot be performed by the
“LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. At
this time, parking lights, side marker lights
and tail lights flash twice.
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
—Activating panic mode
SU12026
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
this midway, push the “PANIC” switch
once again, unlock any door with the key
or transmitter, open the trunk with the key
or turn the ignition key from the “LOCK”
to “ON” position.
To cancel the “PANIC” mode, unlock any
door with the key or wireless remote con-
trol transmitter, or open the trunk with the
key from the “LOCK” to “ON” position.The “PANIC” mode does not work when
the key is inserted in the ignition switch.

202005 ECHO from Aug. ’04 Prod. (OM52636U)
CAUTION
Keep the trunk lid closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Lock release lever
SU12014a
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
—Internal trunk release handle
SU12061a
If a person is locked in the trunk, he/
she can pull down the phosphorescent
handle on the inside of trunk lid to
open the trunk lid.
The phosphorescent (glow−in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.

212005 ECHO from Aug. ’04 Prod. (OM52636U)
—Luggage security system
SU12055c
This system deactivates the lock re-
lease lever so that things locked in the
trunk can be protected.1. Push down the security lock levers to lock the rear seatbacks.
On vehicles with built −in child restraint,
only the left seatback has a lock lever
and can be lowered. The right seatback
cannot be folded down.
After locking the rear seatbacks, try fold-
ing them down to make sure they are
securely locked, otherwise someone could
get into the trunk by folding down a rear
seat.
SU12056a
2. After closing the trunk lid, insert the master key and turn it counterclock-
wise to deactivate the lock release
lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
Hood
SU12016a
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.

322005 ECHO from Aug. ’04 Prod. (OM52636U)
Folddown rear seat
SU13109a
(A) FOLDING DOWN REAR SEAT1. Pull up the seatback security lock lever 1 to the unlock position.
2. Pull up the lock release button 2.
3. Fold down the seatback.
Each seatback may be folded separately.
SU13004
This will enlarge the trunk as far as the
seatbacks. See “Cargo and l uggage” on
page 167 for precautions to observe for
loading luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk will not damage the
webbing of the rear center seat belt
when the left seatback is folded
down.
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing in precautions order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.

332005 ECHO from Aug. ’04 Prod. (OM52636U)
SU13110a
(B) PREVENTING DAMAGE TO REARCENTER SEAT BELT WEBBING
When folding down the left seatback,
the luggage loaded in the enlarged
trunk will damage the webbing of the
rear center seat belt. Disconnect the
rear center seat belt to prevent damage.
Insert the key into the hole (light gray)
on the buckle to release tab 1 (light
gray), and allow the belt to retract.
CAUTION
Disconnect the rear center seat belt
only under the above mentioned cir-
cumstances; do not disconnect it in
other circumstances.
SU13122a
(C) BEFORE RETURNING REAR SEAT
Before returning the seatback to the
upright position, make sure to correctly
connect the center seat belt for ready
use.
Insert tab 2 into the buckle 3.
You will hear a click when the tab locks
into the buckle.

382005 ECHO from Aug. ’04 Prod. (OM52636U)

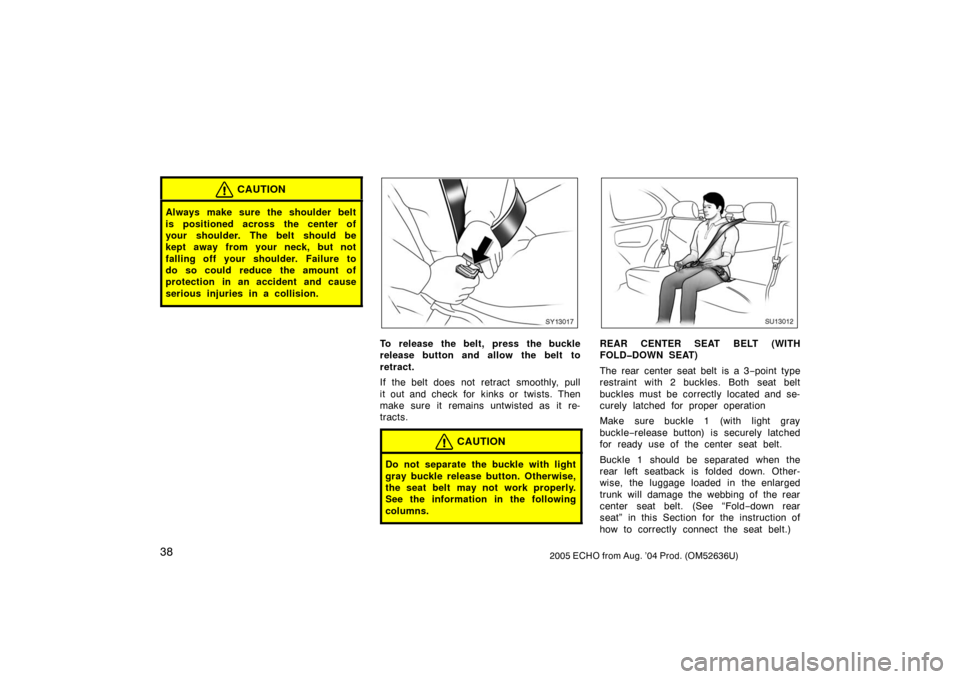

CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
SY13017
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.
CAUTION
Do not separate the buckle with light
gray buckle release button. Otherwise,
the seat belt may not work properly.
See the information in the following
columns.
SU13012
REAR CENTER SEAT BELT (WITH
FOLDDOWN SEAT)
The rear center seat belt is a 3 −point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation
Make sure buckle 1 (with light gray
buckle −release button) is securely latched
for ready use of the center seat belt.
Buckle 1 should be separated when the
rear left seatback is folded down. Other-
wise, the luggage loaded in the enlarged
trunk will damage the webbing of the rear
center seat belt. (See “Fold −down rear
seat” in this Section for the instruction of
how to correctly connect the seat belt.)

2102005 ECHO from Aug. ’04 Prod. (OM52636U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” in
Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding
−down
rear seatbacks, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure that the
belt webbings are not cut, frayed, worn or
damaged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
