2005 SUBARU LEGACY battery

3-56
Instruments and controls
Windshield wiper deicer (if equipped)
The windshield wiper deicer operates only when the
ignition switch is in the “ON” position.
Before turning on the windshield wiper deicer, remove
any snow from the windshield. To turn on the wind-
shield wiper deicer, push the button. The indicator light
located on the button lights up while the windshield
wiper deicer is operating.
The windshield wiper deicer will automatically shut off
after about 15 minutes. If the windshield wiper blades
have been deiced completely before that time, push
the button to turn it off. It also turns off when the igni-
tion switch is turned to the “ACC” or “LOCK” position.
If deicing is not complete, you have to push the button
to turn the deicer on again.
Your SUBARU dealer can set your windshield wiper
deicer for continuous operation. Contact your SUBA-
RU dealer for details.
Once the windshield wiper deicer has been set for
continuous operation, pressing the button results in
continuous operation. The windshield wiper deicer au-
tomatically stops operating if any one of the following
conditions occurs during continuous operation."
The outside temperature becomes 41 °F (5 °C) or
higher." The vehicle speed remains at 9 mph (15 km/h) or
lower for 15 minutes. " The battery voltage decreases below the permissi-
ble level.
UB3213BA

3-58
Instruments and controls
To turn on the defogger, push the button. To turn it off,
push the button again.
The indicator light located on the button lights up while
the rear window defogger is operating.
Your SUBARU dealer can set your rear window defog-
ger for continuous operation. Contact your SUBARU
dealer for details.
Once the rear window defogger has been set for con-
tinuous operation, the rear window defogger repeated-
ly operates for 15 minutes, stops for two minutes, and
again operates for 15 minutes. If the battery voltage
drops below the permissible level, continuous opera-
tion is canceled and operation stops as described be-
low."
If the battery voltage drops below the permissible
level within 15 minutes of depression of the button,
continuous operation is canceled and the rear window
defogger stops operating 15 minutes later. " If the battery voltage drops below the permissible
level after the rear window defogger has, following de-
pression of the button, operated for 15 minutes,
stopped operating for two minutes, and started operat-
ing again, the rear window defogger immediately
stops operating.
" Do not use sharp instruments or window
cleaner containing abrasives to clean the inner
surface of the rear window. They may damage
the conductors printed on the window." To prevent the battery from being dis-
charged, do not operate the defogger continu-
ously for any longer than necessary.
NOTE
If your vehicle is equipped with the outside mirror
defogger, the outside mirror defogger operates
while the rear window defogger is operating.

3-63
Instruments and controls
– CONTINUED –
switch is turned to the “ACC” or “LOCK” position. If de-
frosting or defogging is desired when you restart your
vehicle, you have to push the button to turn it on again.
NOTE "While the outside mirror defogger is operating,
the rear window defogger also operates. " When the rear window defogger has been set for
continuous operation, the outside mirror defogger
also operates continuously. Refer to the “Rear
window defogger button” section in this chapter.
To prevent the battery from being discharged,
do not operate the defogger continuously for
any longer than necessary.
Tilt steering wheel
Do not adjust the steering wheel tilt position
while driving. This may cause loss of vehicle
control and result in personal injury.
1. Adjust the seat position. Refer to the “Front seats”
section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in
UB3563CA

5-11
Audio
– CONTINUED –
the button, the radio will scan down the frequency
band (from high frequencies to low frequencies).
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. !Selecting preset stations
Presetting a station with a “preset button” allows you
to select that station in a single operation. Up to six,
AM, FM1 and FM2 stations each may be preset. ! How to preset stations
1. Press the “FM” or “AM” button to select FM1, FM2,
or AM reception. 2. Press the “ ” or “ ” side of the button or tune
the radio manually until the desired station frequency
is displayed.
3. Press one of the preset buttons for more than 1.5
seconds to store the frequency. If the button is
pressed for less than 1.5 seconds, the preceding se-
lection will remain in memory.
NOTE "
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. " If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault. ! Compact disc player operation
! To playback a compact disc
" When CD is not in the player
Hold a disc with a finger in the center hole while grip-
ping the edge of the disc, then insert it in to the slot
(with the label side up) and the player will automatical-
ly pull the disc into position.
123 456
UB5210AA

5-24
Audio
to high frequencies). If you hold down the “ ” side of
the button, the radio will scan down the frequency
band (from high frequencies to low frequencies).
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. !
Selecting preset stations
Presetting a station with a preset button allows you to
select that station in a single operation. Up to six AM,
FM1 and FM2 stations each may be preset. ! How to preset stations
1. Press the “FM” or “AM” selection button to select AM, FM1 or FM2 reception.
2. Press the “ ” or “ ” side of the button or tune
the radio manually until the desired station frequency is displayed.
3. Press one of the preset buttons for
at least 1.5 sec-
onds to store the frequency. The frequency of the sta-
tion will flash once on the display at this time. If the but-
ton is pressed for less than 1.5 seconds, the preceding
selection will remain in memory.
NOTE " If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons." If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault. ! Built-in CD changer operation
NOTE "Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shut
123 456
UB5210AA

5-43
Audio
– CONTINUED –
the button, the radio will scan down the frequency
band (from high frequencies to low frequencies).
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. !Selecting preset stations
Presetting a station with a “preset button” allows you
to select that station in a single operation. Up to six
AM, FM1 and FM2 stations each may be preset. ! How to preset stations
1. Press the “FM” or “AM” button to select FM1, FM2
or AM reception. 2. Press the “ ” or “ ” side of the button or tune
the radio manually until the desired station frequency
is displayed.
3. Press one of the preset buttons for more than 1.5
seconds to store the frequency. If the button is
pressed for less than 1.5 seconds, the preceding se-
lection will remain in memory.
NOTE "
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. " If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault. ! Built-in CD changer operation
NOTE "Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shutoff." If a disc is inserted during a radio broadcast, the
disc will interrupt the broadcast.
123 456
UB5210AA

6-2
Interior equipment
Interior equipmentInterior light
When leaving your vehicle, make sure the light is
turned off to avoid battery discharge. !
Dome light
The light switch has three positions: : The light stays on continuously.
Middle position: The light comes on when any door is
opened. The light remains on for several seconds and
gradually goes out after all doors are closed or if the
key is inserted in the ignition switch. The light also can be turned on by use of the remote
keyless entry transmitter. See the “Remote keyless
entry system (if equipped)” in chapter 2 for detailed in- formation.
The setting of the period for which the light stays on
can be changed by a SUBARU dealer.
Contact the nearest SUBARU dealer for details.
: The light stays off.
UB6500BA

6-4
Interior equipment

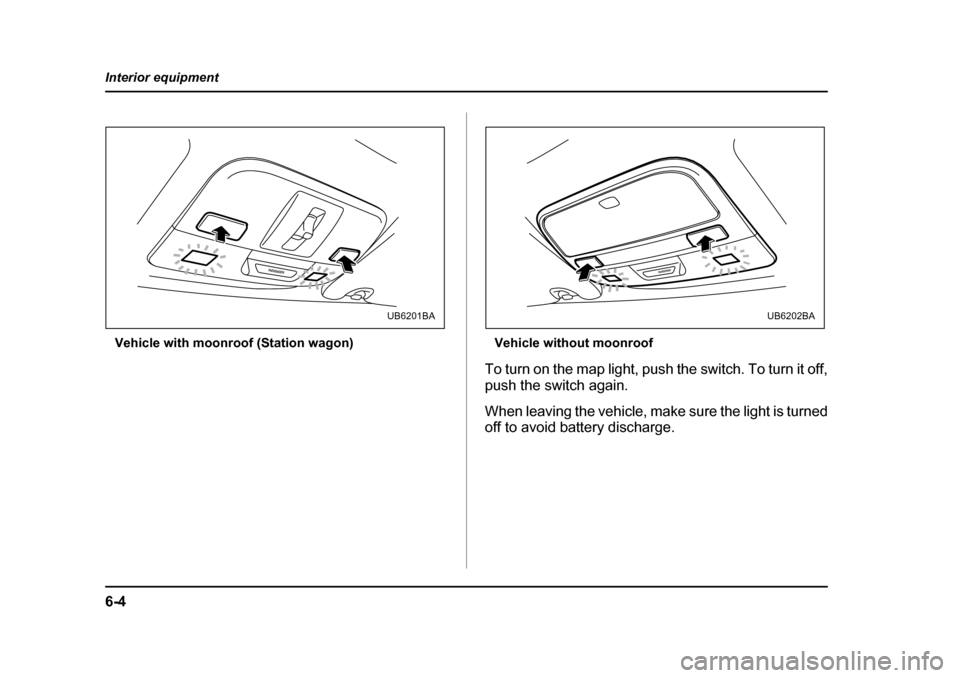

Vehicle with moonroof (Station wagon) Vehicle without moonroof
To turn on the map light, push the switch. To turn it off,
push the switch again.
When leaving the vehicle, make sure the light is turned
off to avoid battery discharge.
PASSENGER
UB6201BA
PASSENGER
UB6202BA
