01-17
FUSE AND RELAY
RODIUS 2005.07
8410-05
Driver’s

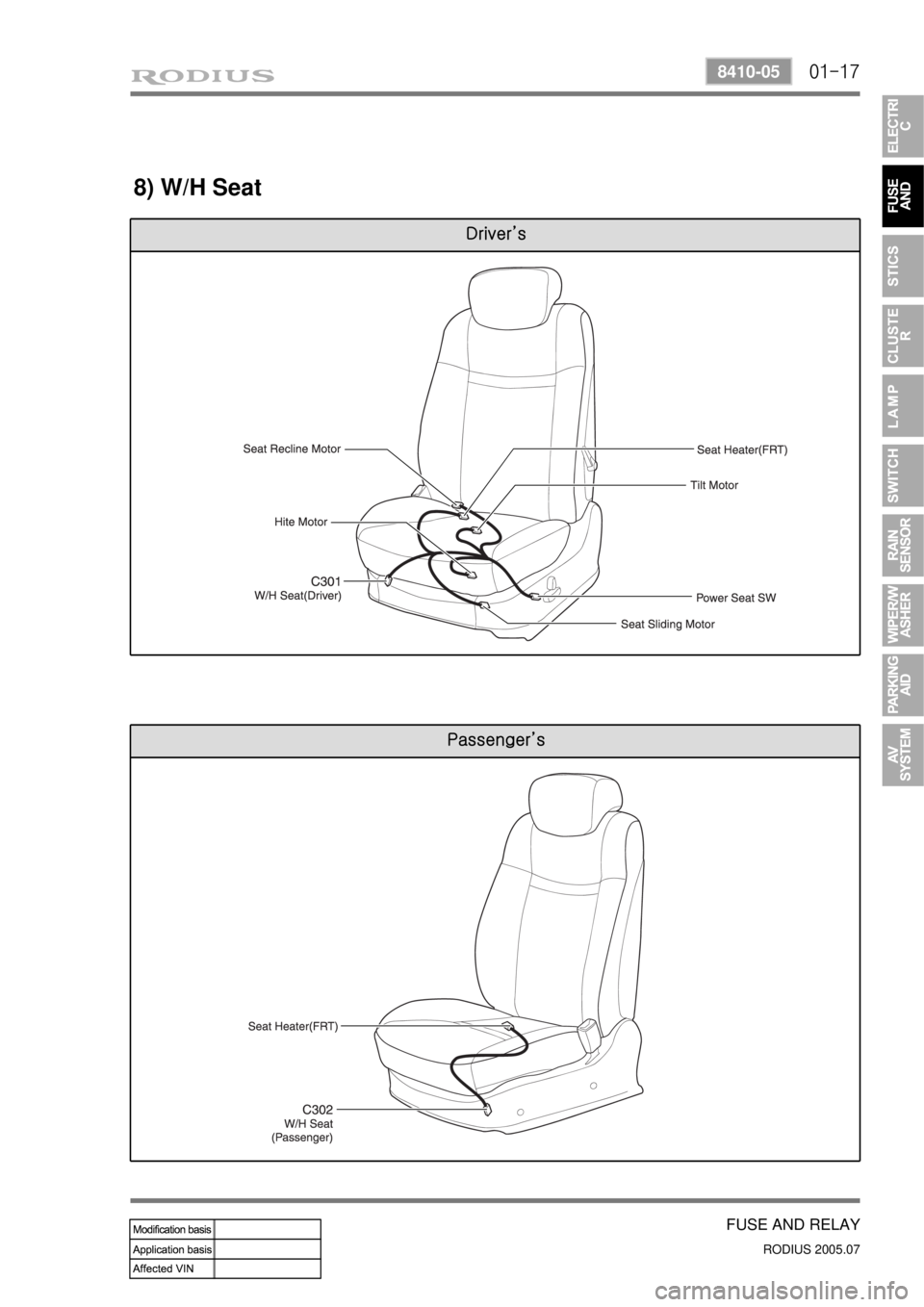

8) W/H Seat
Passenger’s

0-5
STICS
RODIUS 2005.07
8710-01
The STICS in this vehicle has similar functions with the one used in the new Rexton. Additional
function of diagnosing through SCAN-Tool has been added into new STICS.
The major difference in hardware-wise is that STICS receives vehicle collision signal from G-
sensor in the airbag module to activate automatic door unlock function when the vehicle
collided over 15 km/h of vehicle speed.
1. COMPONENTS LOCATOR
STICS / ICM module
Air bag ECU
Sends the vehicle collision
signals to STICS.
Theft deterrent horn
Installed under the battery. This
horn works only for the theft
deterrent function, panic
function, and remote starting.
SCAN-tool
SCAN-100 is used fo
r
REKES key coding and
trouble diagnosis.
REKES
Added the escort and
panic function
RK STICS
ICM module
This module contains
various relays, chime and
buzzer controlled by
STICS

0-7
STICS
RODIUS 2005.07
8710-01
3. FUNCTIONS OF RK STICS
1) Wiper Control
(1) Wiper MIST and Washer Coupled Wiper
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch for
0.2 ~ 0.59 seconds (T2) with the ignition key “ON”, and it is turned off when the
parking terminal is turned off. 1.
The wiper relay is turned on 0.3 seconds (T1) after turning “ON” the washer switch
over 0.6 seconds (T2) with the ignition key “ON”, and it is turned on three times
immediately after turning off the washer switch. 2.

0-10
RODIUS 2005.07
8710-01
STICS
Rain sensing operation point ▶
The wiper relay is turned on and the wiper motor runs one cycle when the ignition key is
turned to “ON” position (while the wiper switch is in “AUTO” position).
The wiper relay (LO) is turned on and the wiper motor runs one cycle when changing the
wiper switch to “AUTO” position from any other positions (while the ignition key is in
“ON” position). When the wiper switch is turned to “AUTO” position again from other
positions, the system drives the wiper relay (LO) to run the wiper motor one cycle only when
the rain sensor detects the “Rain Detected” signal. 1)
2)
Rain sensing sensitivity control ▶
The wiper relay is turned on and the wiper motor runs one cycle when the volume sensitivity is
increased (ex: from 0 to 1) (while the ignition key is in “ON” position, the wiper switch is
in “AUTO” position, and the wiper motor is in “Parked” position). However, the wiper
motor can be operated only when the rain sensor detects the “Rain Detected” signal.
* If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs
only one cycle.

0-12
RODIUS 2005.07
8710-01
STICS
Defective rain sensor ▶
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wipe
r
sensitivity is changed to 2 from 3 during receiving the malfunction signal (1) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 1)
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 3 from 4 during receiving the malfunction signal (2) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). 2)

0-13
STICS
RODIUS 2005.07
8710-01
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper
sensitivity is changed to 2 from 1 during receiving the malfunction signal (3) from the rain
sensor (while the ignition key is in “ON” position and the wiper switch is in “AUTO”
position). Also, the wiper relay (LO) is turned on and the wiper motor runs one cycle when
the wiper sensitivity is changed to 2 from 1 during receiving the ground fixed or IGN fixed
signal from the rain sensor. 3)

0-15
STICS
RODIUS 2005.07
8710-01
The wiper relay continues to output when the parking terminal is fixed at the ground or
IGN while the wiper relay is “ON” (INT switch = ON or Washer switch = ON) (The
output stops immediately after turning off the switch) - (1) Wiper MIST and washer coupled wiper
When turning on the washer switch while the wiper relay is operating. 1)
If the wiper relay “ON” request time is shorter than the remained “ON” time, it is
disregarded. -
(2) Speed sensitive INT (intermittent) wiper
The wiper relay continues to output for remaining “ON” time even when the INT
switch is turned off.
IGN 2 switch “ON”, INT switch “OFF”: resume the intermittent time when turning
“ON”
IGN 2 switch “OFF”, INT switch “ON”: resume the intermittent time when turning
“ON” 1)
2)
3)
(3) Controls when the wiper motor parking is defective

0-25
STICS
RODIUS 2005.07
8710-01
9) Battery Saver (Tail Lamp Auto Cut)
The tail lamp is turn on or off according to the operations of the multifunction tail lamp switch.
<007b008f008c0047009b0088009000930047009300880094009700470099008c0093008800a000470090009a0047009b009c00990095008c008b00470096008d008d0047004f0088009c009b00960047008a009c009b00500047009e008f008c0095004700
960097008c009500900095008e004700880095008b0047008a>losing the driver’s door
after removing the ignition key without turning off the tail lamp.
Tail lamp relay is turned on when inserting the ignition key into ignition switch again after
step 2 operation.
<007b008f008c0047009b0088009000930047009300880094009700470099008c0093008800a000470090009a0047009b009c00990095008c008b00470096008d008d0047004f0088009c009b00960047008a009c009b00500047009e008f008c0095004700
960097008c009500900095008e004700880095008b0047008a>losing the driver’s door
while the ignition key is removed and the tail lamp is turned on. 1.
