Instruments and Indicator/Warning Lights13
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Instruments and Indicator/Warning Lights
General view of the instrument cluster
Engine revolutions counter ⇒page 14
Coolant temperature gauge ⇒page 14
Fuel gauge ⇒page 14
Speedometer
Display:
− with counter for distance driven ⇒page 15
− with Service Interval Display ⇒page 16
− with digital clock ⇒page 17
− with Multi-functional indicator* ⇒page 18 −
with Information display* ⇒page 23
Clock-set button / reset button
When the lights are switched on, the instrument cluster is illuminated.
Fig. 2 Instrument cluster
A1
A2
A3
A4
A5
A6
s24s.book Page 13 Thursday, November 24, 2005 12:27 PM

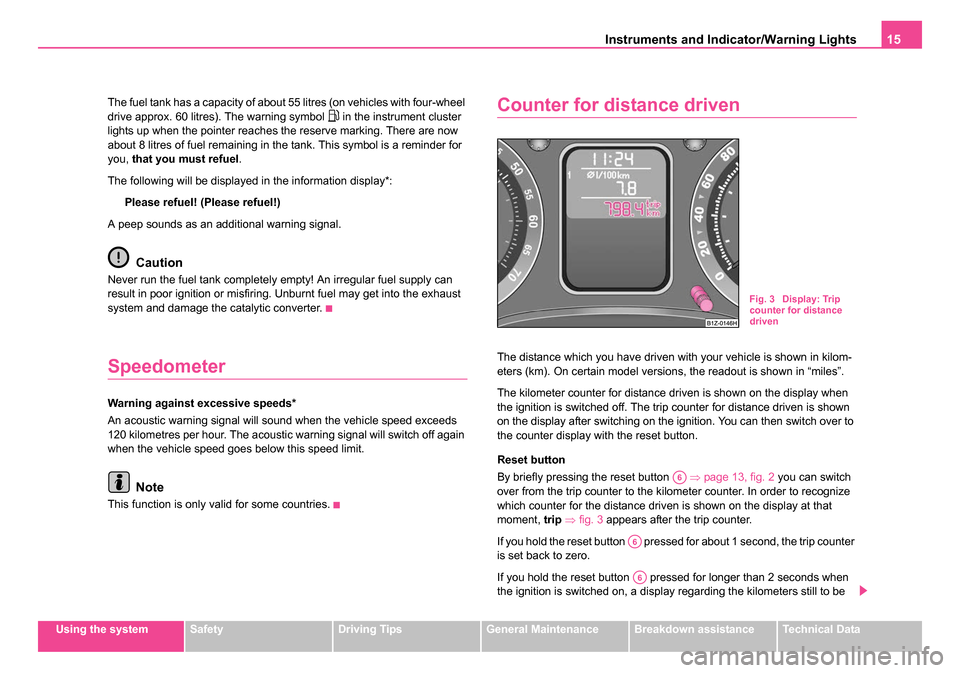

Instruments and Indicator/Warning Lights15
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The fuel tank has a capacity of about 55 litres (on vehicles with four-wheel
drive approx. 60 litres). The warning symbol
 in the instrument cluster
lights up when the pointer reaches the reserve marking. There are now
about 8 litres of fuel remaining in the tank. This symbol is a reminder for
you, that you must refuel .
The following will be displayed in the information display*:
Please refuel! (Please refuel!)
A peep sounds as an additional warning signal.
Caution
Never run the fuel tank completely empty! An irregular fuel supply can
result in poor ignition or misfiring. Unburnt fuel may get into the exhaust
system and damage the catalytic converter.
Speedometer
Warning against excessive speeds*
An acoustic warning signal will sound when the vehicle speed exceeds
120 kilometres per hour. The acoustic warning signal will switch off again
when the vehicle speed goes below this speed limit.
Note
This function is only valid for some countries.
Counter for distance driven
The distance which you have driven with your vehicle is shown in kilom-
eters (km). On certain model versions, the readout is shown in “miles”.
The kilometer counter for distance driven is shown on the display when
the ignition is switched off. The trip counter for distance driven is shown
on the display after switching on the ignition. You can then switch over to
the counter display with the reset button.
Reset button
By briefly pressing the reset button ⇒page 13, fig. 2 you can switch
over from the trip counter to the kilometer counter. In order to recognize
which counter for the distance driven is shown on the display at that
moment, trip ⇒ fig. 3 appears after the trip counter.
If you hold the reset button pressed for about 1 second, the trip counter
is set back to zero.
If you hold the reset button pressed for longer than 2 seconds when
the ignition is switched on, a display regarding the kilometers still to be
Fig. 3 Display: Trip
counter for distance
driven
A6
A6
A6
s24s.book Page 15 Thursday, November 24, 2005 12:27 PM

Instruments and Indicator/Warning Lights
16
driven and the days until the following service interval (for this the trip
counter is not set back) appears ⇒page 16.
Counter for distance driven (trip)
The counter for distance driven indicates the total distance in kilometers
or miles which the vehicle has been driven.
Trip counter for distance driven
The trip counter indicates the distance which you have driven since this
counter was last reset - in steps of 100 metres or 1/10 of a mile.
Fault display
dEF will appear as a constant text in the display if there is a fault in the
instrument cluster. Have the fault rectified as soon as possible by a
specialist workshop.
WARNING
Never seek to adjust the trip counter for distance driven while
driving for safety reasons!
Note
On vehicles without multi-functional indicator or information display, both
counts of the counters are shown simultaneously on the display.
Service Interval Display
Depending on the equipment installed in the vehicle, the text can differ
slightly on the display.
Service Interval Display
A key symbol
 appears in the counter display for distance driven about
15 days before reaching the due date for the service ⇒fig. 4 . The
remaining distance to be driven will be indicated for 10 seconds next to
the key symbol and then the remaining number of days to the due date for
the service inspection.
The following will be displayed in the information display*:
Service in ... km or... days
The kilometre indicator or the days indicator reduces in steps of 100 km
or days until the service due date is reached.
The following text appears as a flashing key symbol
 as soon as the
due date for the service is reached.
Fig. 4 Service Interval
Display: Note
s24s.book Page 16 Thursday, November 24, 2005 12:27 PM

Instruments and Indicator/Warning Lights17
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The following will be displayed in the information display*:
Service now!
The display disappears within 20 seconds after switching on the ignition.
The trip counter is also displayed after pressing the reset button for the trip
counter (for more than 1 second).
Display regarding the distance and days until the following service
interval
You can have the distance still to be driven and the days until the following
service interval displayed at any time as follows:
•Switch on the ignition and press the reset button ⇒page 13, fig. 2
for more than 2 seconds.
A key symbol
 is displayed on the display of the counter for the
distance driven. The remaining distance to be driven will be indicated for
10 seconds next to the key symbol and then the remaining number of days
to the due date for the service inspection.
Resetting Service Interval Display
We recommend having this resetting performed by a specialist garage.
Specialist garage:
•resets the memory of the display after the appropriate inspection
•makes an entry in the Service schedule
•affix the sticker with the entry of the following service interval to the
side of the dash panel on the driver's side.
The service interval displays can also be reset as follows by using the
reset button ⇒page 13, fig. 2 on the trip counter:
•Switch off the ignition, press the reset button of the trip counter for
distance driven and hold it down.
•Switch the ignition on and release the reset button. Now turn the reset
button to the right. The service interval displays are reset.
Caution
We recommend that you do not reset the Service Interval Display yourself
otherwise this can result in the service interval display being incorrectly
set, which may also result in problems with operation of your vehicle.
Note
•Never reset the display between service intervals otherwise this may
result in incorrect readouts.
•Information is retained in the Service Interval Display also after the
battery of the vehicle is disconnected.
•It is necessary to re-code the Service Interval Display if a new instru-
ment cluster is installed during repair work. This work is carried out by a
specialist garage.
•The data displayed is the same after resetting the display with flexible
service intervals (QG1) using the reset button as that for a vehicle with
fixed service intervals (QG2). We therefore recommend having the
Service Interval Display reset only by a Škoda dealer who is familiar with
the procedure for resetting the display with a vehicle system tester.
•Please refer to the brochure Service schedule for extensive informa-
tion about the service intervals.
Digital clock
A clock-set button is installed on the bottom left beside the
speedometer for adjusting the clock ⇒page 13, fig. 2 .
Set hours
– Turn the reset button to the left.
A6
A6A6
s24s.book Page 17 Thursday, November 24, 2005 12:27 PM

Instruments and Indicator/Warning Lights
18
Setting minutes
– Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons
but only when the vehicle is stationary!
Multi-functional indicator (onboard
computer)*
Introduction
The multi-functional indicator appears in the display ⇒fig. 5 or in the infor-
mation display ⇒page 23, fig. 10 depending on the equipment fitted to
your vehicle.
The multi-functional indicator offers you a range of useful information.
Note
In certain national versions the displays appear in the Imperial system of
measures.
Memory
The multi-functional indicator is equipped with two automatic memories.
The selected memory is displayed in the middle of the display field ⇒fig. 5 .
The data of the single-trip memory (memory 1) is shown if a 1 appears in
the display. A 2 shown in the display means that data relates to the total
distance memory (memory 2).
Switching of the memory takes place with the button ⇒page 19, fig. 6 .
Single-trip memory (memory 1)
The single-trip memory collates the driving information from the moment
the ignition is switched on until it is switched off. New data will also flow The outside temperature⇒ page 20
Current fuel consumption⇒page 20
Average fuel consumption⇒page 20
Range⇒page 21
Distance driven⇒page 21
Average speed⇒page 21
Driving time⇒page 21
Warning against excessive speeds*⇒page 22
Fig. 5 Multi-functional
indicator
AB
s24s.book Page 18 Thursday, November 24, 2005 12:27 PM

Instruments and Indicator/Warning Lights21
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
you to adapt your style of driving to the fuel consumption you wish to
achieve.
If you wish to determine the average fuel consumption over a certain
period of time you must first erase the memory at the start of the new
measurement using the button
⇒page 19, fig. 6 . A zero appears in the
display for the first 100 m you drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving.
Note
The amount of fuel consumed will not be indicated.
Range
The estimated range in kilometres is shown on the display. It indicates the
distance you can still drive with your vehicle based on the present level of
fuel in the tank for the same style of driving. The readout is shown in steps
of 10 km.
The fuel consumption for the last 50 km is taken as a basis for calculating
the range. If you drive in a more economical manner from this moment on,
the range will be increased accordingly.
You first drive 50 km if the readout is reset (after disconnecting the
battery) before a new readout for the range is displayed.
Distance driven
The distance driven since the memory was last erased appears in the
display ⇒page 18. If you wish to calculate the distance driven from a particular time of day you must first erase the memory at this moment in
time by pressing the button
⇒page 19, fig. 6 .
The maximum distance indicated in both switch positions is 9999 km. The
indicator is set back to null if this period is exceeded.
Average speed
The average speed since the memory was last erased is shown in the
display in km/hour ⇒page 18. If you wish to determine the average speed
over a certain period of time you must first erase the memory at the start
of the new measurement using the button ⇒page 19, fig. 6 .
A zero appears in the display for the first 100 m you drive after erasing the
memory.
The indicated value will be updated every 5 seconds while you are
driving.
Driving time
The driving time which has elapsed since the memory was last erased,
appears in the display ⇒page 18. If you wish to calculate the driving time
from a particular time of day you must first erase the memory at this
moment in time by pressing the button ⇒page 19, fig. 6 .
The maximum distance indicated in both memories is 99 hours and 59
minutes. The indicator is set back to null if this period is exceeded.
AB
AB
AB
AB
s24s.book Page 21 Thursday, November 24, 2005 12:27 PM
