2005 SKODA OCTAVIA fog light

Instruments and Indicator/Warning Lights
30
Warning lights
An overview
The warning lights indicate certain functions or faults.
Fig. 19 Instrument cluster with warning lights
Turn signal lights (to the left)⇒ page 32
Turn signal lights (to the right)⇒page 32
Main beam⇒page 32
Low beam⇒page 32
Rear fog light⇒page 32
Electronic immobiliser⇒page 32
Diesel particle filter (diesel engine)⇒page 33
Bulbs⇒page 33
s24s.book Page 30 Thursday, November 24, 2005 12:27 PM

Instruments and Indicator/Warning Lights
32
Turn signal system 
Either the left  or right  indicator light flashes depending on the posi-
tion of the turn signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails.
This does not apply when towing a trailer.
Switching on the hazard warning light system is switched on will cause all
of the turn signal lights as well as both indicator lights to flash.
Further information about the turn signal system ⇒page 68.
Main beam 
The indicator light  comes on when the main beam is selected or also
when the headlight flasher is operated.
Further information about the main beam ⇒page 68.
Low beam 
The indicator light  comes on when low beam is selected ⇒page 63.
The rear fog light 
The warning light  comes on when the rear fog lights are operating
⇒ page 65.
Electronic immobiliser 
Data is compared between the ignition key and the control unit when
switching on the ignition. The indicator light  will light up for a few
seconds when ignition key authorisation is confirmed.
The warning light will start flashing continuously if a non-authorised igni-
tion key (for example the wrong ignition key) has been used. The engine
cannot be started ⇒page 45.
It is only possible to start the engine of the vehicle with a Genuine Škoda
key with the matching code.
The following text will be displayed in the information display*: Immobilizer active
s24s.book Page 32 Thursday, November 24, 2005 12:27 PM

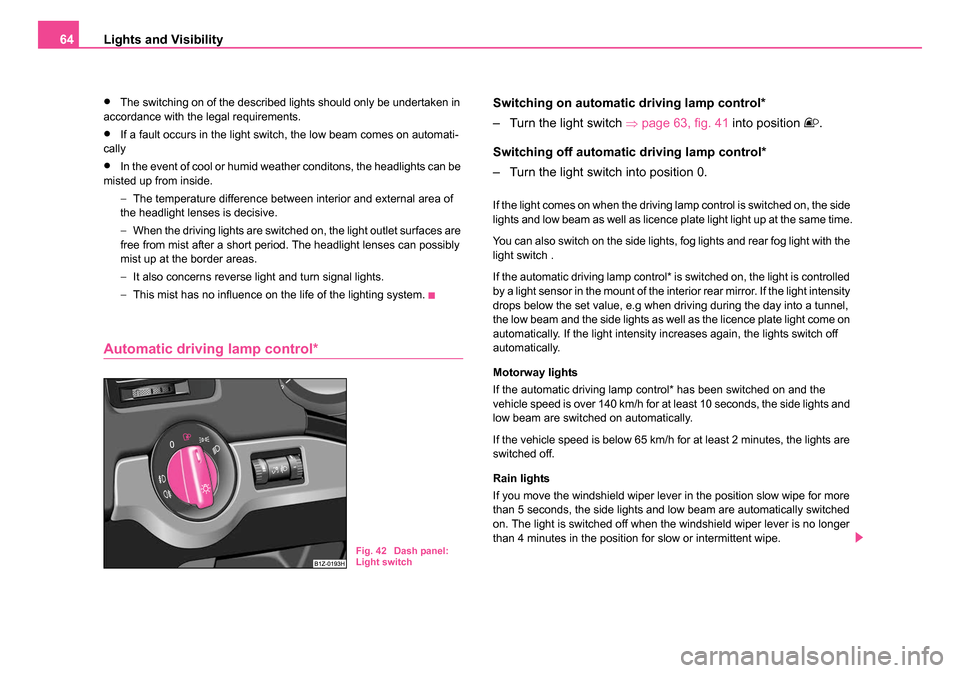

Lights and Visibility
64
•The switching on of the described lights should only be undertaken in
accordance with the legal requirements.
•If a fault occurs in the light switch, the low beam comes on automati-
cally
•In the event of cool or humid weather conditons, the headlights can be
misted up from inside.
−The temperature difference between interior and external area of
the headlight lenses is decisive.
− When the driving lights are switched on, the light outlet surfaces are
free from mist after a short period. The headlight lenses can possibly
mist up at the border areas.
− It also concerns reverse light and turn signal lights.
− This mist has no influence on the life of the lighting system.
Automatic driving lamp control*
Switching on automatic driving lamp control*
– Turn the light switch ⇒page 63, fig. 41 into position
.
Switching off automatic driving lamp control*
– Turn the light switch into position 0.
If the light comes on when the driving lamp control is switched on, the side
lights and low beam as well as licence plate light light up at the same time.
You can also switch on the side lights, fog lights and rear fog light with the
light switch .
If the automatic driving lamp control* is switched on, the light is controlled
by a light sensor in the mount of the interior rear mirror. If the light intensity
drops below the set value, e.g when driving during the day into a tunnel,
the low beam and the side lights as well as the licence plate light come on
automatically. If the light intensity increases again, the lights switch off
automatically.
Motorway lights
If the automatic driving lamp control* has been switched on and the
vehicle speed is over 140 km/h for at least 10 seconds, the side lights and
low beam are switched on automatically.
If the vehicle speed is below 65 km/h for at least 2 minutes, the lights are
switched off.
Rain lights
If you move the windshield wiper lever in the position slow wipe for more
than 5 seconds, the side lights and low beam are automatically switched
on. The light is switched off when the windshield wiper lever is no longer
than 4 minutes in the position for slow or intermittent wipe.
Fig. 42 Dash panel:
Light switch
s24s.book Page 64 Thursday, November 24, 2005 12:27 PM

Lights and Visibility65
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
The automatic driving lamp control only operates as a support. The
driver is not released from his responsibility to inspect the light
and if necessary to switch on the light depending on the light
conditions. The light sensor cannot detect for example rain or
snow. Always switch on the low beam
 under these conditions
as well as when driving in the dark!
Note
•Do not affix any stickers in front of the light sensor, so that you do not
impair its function or put it out of operation.
•The same principles as for using the automatic driving lamp control
also apply to the light which is switched on manually ⇒page 63.
Fog lights* 
Switching on the fog lights
– First of all turn the light switch ⇒fig. 43 into position
 or .
– After this pull the light switch out to the first detent .
When the fog lights are operating, the symbol  next to the light switch is
illuminated more intensely.
The rear fog light 
Switching on the rear fog light
– First of all turn the light switch ⇒fig. 43 into position
 or .
– Pull the light switch out to the second detent .
The rear fog light warning light  ⇒ page 30 lights up in the instrument
cluster when the fog light is switched off.
Only the rear fog light of the trailer lights up automatically when you are
towing a trailer using a factory-fitted towing device which is fitted with
the rear fog light.
The rear fog light is located in the rear light array on the driver's side.
Caution
The rear fog light should only be switched on if visibility is particularly poor
(conform with any varying legal provisions) to avoid dazzling vehicles
behind your vehicle.
Fig. 43 Dash panel:
Light switch
A1
A2
s24s.book Page 65 Thursday, November 24, 2005 12:27 PM

Lights and Visibility
66
Coming/Leaving Home Function*
This function makes it possible to switch on the lights for a short
time after leaving the vehicle or when approaching the vehicle.
Switching on Coming Home Function
– Switch off the ignition once the low beam is switched on.
– Leave the light switch in the position for low beam
.
– Close all the doors and the boot lid.
Switching on Leaving Home Function
– Unlock the vehicle with the radio remote control - the lights come on.
Depending on equipment fitted the function Coming/Leaving Home
switches on the following lights:
•Parking lights,
•Low beam,
•Entry lighting in the exterior mirrors,
•Licence plate light.
Coming Home Function
The function Coming Home is only switched on, if the low beam was
switched on when the ignition is on.
The lights go out 80 seconds after closing all the doors and the boot lid.
If a door or the boot lid remains open, the lights go out 80 seconds after
switching off the ignition.
The light switch remains in the position for low beam also after switching
off the Coming Home Function, all lights are automatically switched off. On vehicles fitted with automatic driving lamp control you can also switch
the light switch in the position

⇒ page 63, fig. 41 . The function Coming
Home is controlled with the light sensor in the mount of the interior rear
mirror. If the light intensity is higher than the set value of the light sensor,
the Coming Home Function is not switched on after switching off the igni-
tion.
Leaving Home Function
The function Leaving Home is controlled with the light sensor in the mount
of the interior rear mirror. If the light intensity is higher than the set value
of the light sensor, the Leaving Home Function is not switched on after
unlocking the vehicle with the radio remote control.
After unlocking the vehicle with the radio remote control, the lights come
on for 80 seconds. The Leaving Home Function is also switched off after
the ignition is switched on and after locking the vehicle.
If no door is opened within 30 seconds, the lights go out and the vehicle
is locked automatically.
Note
•If the Coming/Leaving Home Function is switched on constantly, the
battery will be heavily discharged particularly in short-haul traffic.
•The switching on of the described lights should only be undertaken in
accordance with the legal requirements.
•For vehicles fitted with fog lights you can change the illumination
period of the Coming/Leaving Home Function by means of the information
display* ⇒page 28.
s24s.book Page 66 Thursday, November 24, 2005 12:27 PM

Fuses and light bulbs295
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Bulbs H7 and H1 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
•Gas discharge bulbs* (xenon bulbs) operate with a high voltage,
professional knowledge is required - danger to life!
Caution
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
serviette or something similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.
Front headlightHalogen headlightXenon headlight
Low beamH7D1S
Main beamH1
Parking lightsW5W
Turn signalsPY21W
Fog lightsH8
Light unit (Octavia)Bulb
Reversing lightP21W
Turn signalsPY21W
Twin filament light bulb for the brake lights and
tail lightsP21/4W
Twin filament light bulb for the rear fog lights
and tail lightsP21/4W
Parking lightsW3W
Rear light unit (estate car)Bulb
Reversing light, brake lights, tail lights and rear
fog lightP21W
Turn signalsPY21W
Parking lightsW3W
OthersBulb
Side turn signal lightsLED
Licence plate lightC5W
3. Brake lightLED
Entry lightW5W
front interior lightingC10W
Reading lightsW5W
Rear interior lightingC10W
Luggage compartment lightW5W
Door warning lightC5W
Storage compartment light - front passenger
sideC3W
OthersBulb
s24s.book Page 295 Thursday, November 24, 2005 12:27 PM

Index307
replenishing . . . . . . . . . . . . . . . . . . . . . . 252
Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Engine revolutions counter . . . . . . . . . . . . . . 14
Environment . . . . . . . . . . . . . . . . . . . . . . . . 223
Environmental compatibility . . . . . . . . . 223, 227
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 Warning light . . . . . . . . . . . . . . . . . . . . . . 40
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Exhaust gases Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . 80
F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . 273
Fixing net Estate car . . . . . . . . . . . . . . . . . . . . . . . . . 95
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
For the first 1 500 kilometres . . . . . . . . . . . . 221
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 192
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . 112
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Biofuel . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . 242
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Fuel consumption . . . . . . . . . . . . . . . . . . . . 223
Saving energy . . . . . . . . . . . . . . . . . . . . 223
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . 36
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . 278
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
G
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . 142
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Glow plug system . . . . . . . . . . . . . . . . . . . . 141 Warning light . . . . . . . . . . . . . . . . . . . . . . 34
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Hazard warning light system . . . . . . . . . . . . . 68Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Hazard warning lights system . . . . . . . . . . . . 68
Head airbags . . . . . . . . . . . . . . . . . . . . . . . . 197
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . 87
Headlight cleaning system . . . . . . . . . . . . . . . 77
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . 69
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . 65
Headlight cleaning system . . . . . . . . . . . . 77
Heated windscreen washer nozzles . . . . . . . 75 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Air outlet vents . . . . . . . . . . . . . . . . . . . . 122
Auxiliary heating . . . . . . . . . . . . . . . . . . . 134
Defrosting windows . . . . . . . . . . . . . . . . 120
Recirculated air mode . . . . . . . . . . . . . . . 121
Heating of the external mirror . . . . . . . . . . . . 80
Heating the front seats . . . . . . . . . . . . . . . . . . 88
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
I
Identification data . . . . . . . . . . . . . . . . . . . . . 303
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 139
Information display . . . . . . . . . . . . . . . . . . . . . 23
Inspecting the engine oil level . . . . . . . . . . . 251
Instrument cluster . . . . . . . . . . . . . . . . . . . . . 13
Instrument lighting . . . . . . . . . . . . . . . . . . . . . 67
Interior light Luggage compartment . . . . . . . . . . . . . . . 71
Interior lighting at the front . . . . . . . . . . . . . . . . . . . . . . . . 70
at the rear . . . . . . . . . . . . . . . . . . . . . . . . . 71
Interior monitoring . . . . . . . . . . . . . . . . . . . . . 55
Interior rear-view mirror . . . . . . . . . . . . . . . . . 79
Intermittent wipe . . . . . . . . . . . . . . . . . . . . . . . 75
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . 210
s24s.book Page 307 Thursday, November 24, 2005 12:27 PM

Index309
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Power steering . . . . . . . . . . . . . . . . . . . . . . 219
Warning light . . . . . . . . . . . . . . . . . . . . . . 33
Power windows Buttons on the driver's door . . . . . . . . . . . 56
Central locking system . . . . . . . . . . . . . . . 58
Operational problems . . . . . . . . . . . . . . . . 59
Switches in front passenger door and in rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
R
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . 65
Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Rear window Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Rear window heater . . . . . . . . . . . . . . . . . . . 72
Rear-view mirror Exterior mirrors . . . . . . . . . . . . . . . . . . . . 80
Interior rear-view mirror . . . . . . . . . . . . . . 79
Recharge battery . . . . . . . . . . . . . . . . . . . . . 260
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Remote control . . . . . . . . . . . . . . . . . . . . . . . 52 Synchronisation . . . . . . . . . . . . . . . . . . . . 53
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . 288
Replacing the wiper blades . . . . . . . . . . . . . . 77
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Running in the car . . . . . . . . . . . . . . . . . . . . 221
S
Safe securing . . . . . . . . . . . . . . . . . . . . . . . . . 47
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Safety instructions Engine compartment . . . . . . . . . . . . . . . 248
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . 281
Saving electrical energy . . . . . . . . . . . . . . . . 223
Seat belt height adjuster . . . . . . . . . . . . . . . 187
Seat belt warning light . . . . . . . . . . . . . . . . . 186
Seat belts . . . . . . . . . . . . . . . . . . . . . . . 183, 188 Belt tensioners . . . . . . . . . . . . . . . . . . . . 188
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 240
fasten . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Height adjustment . . . . . . . . . . . . . . . . . 187
Safety instructions . . . . . . . . . . . . . . . . . 185
taking off . . . . . . . . . . . . . . . . . . . . . . . . . 187
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Selector lever . . . . . . . . . . . . . . . . . . . . 150, 157
Selector lever positions . . . . . . . . . . . . 150, 157
Selector lever-emergency unlocking . . . . . . 154
Selector lever-emergency unlocking (DSG) 162
Service Display . . . . . . . . . . . . . . . . . . . . . . . 16
Service Interval Display . . . . . . . . . . . . . . . . . 16
Setting temperature Heating . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Setting the clock . . . . . . . . . . . . . . . . . . . . . . 17
Shifting of gears . . . . . . . . . . . . . . . . . . . . . . 142
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 195
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 269 Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . 275
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 15
Stability system . . . . . . . . . . . . . . . . . . . . . . 213
Starting engine
after fuel tank has run empty . . . . . . . . . 141
Petrol engines . . . . . . . . . . . . . . . . . . . . . 141
Starting the engine . . . . . . . . . . . . . . . . . . . . 140 Diesel engines . . . . . . . . . . . . . . . . . . . . 141
Steering Driver-steering recommendation . . . . . . 216
Steering force assistance . . . . . . . . . . . . . . . 219
Storage compartment Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Storage compartments . . . . . . . . . . . . . . . . . 108
Storage facilities . . . . . . . . . . . . . . . . . . . . . . 108
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Switching lights on and off . . . . . . . . . . . . . . . 63
Switching off the engine . . . . . . . . . . . . . . . . 141
T
Taking care of your vehicle . . . . . . . . . . . . . 233
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Warning light . . . . . . . . . . . . . . . . . . . . . . . 39
Temperature Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Temporary spare wheel . . . . . . . . . . . . . . . . 275
s24s.book Page 309 Thursday, November 24, 2005 12:27 PM
