Fuses and light bulbs235
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Replaces fuses at the battery
– Open the positive terminal cover ⇒fig. 169 or the battery
cover ⇒page 203.
55Not assigned
56Control unit - petrol engine20
57Towing device25
58Electrical power window (at the front on the left)25
59Not assigned
60Horn for the anti-theft alarm system15
61Fuel pump - petrol engine15
62Electric sliding/tilting roof25
63Seat heaters15
64Headlight cleaning system20
65Fog lights15
66Electrical power window (at the rear on the left)25
67Not assigned
68Fresh air blower25
a)For power consumers, e.g. the radio, which can be operated with the ignition
switched off as long as the ignition key is not withdrawn.
b)For vehicles with an electrical power window systemc)It is 15 amps for a vehicle with a 1.2 litre engine.
No.Power consumerAmperes
Fig. 169 The battery:
Opening of the positive
terminal cover.
Fig. 170 The battery:
fuse cover
sqc.1.book Seite 235 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs
236
– Press the interlocks of the fuse covers ⇒page 235,
fig. 170 and open the covers.
– Press simultaneouly the interlocks of the fuse cover and push out the cover in the direction of the arrow.
– Find out which fuse belongs to the relevant component ⇒page 236, “Fuse assignment at battery - version 1”, if
necessary ⇒page 237.
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere
number.
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Note
•We recommend that you have these fuses replaced by a specialist
garage.
•Some vehicles are only fitted with the cover ⇒page 235,
fig. 170 .
Fuse assignment at battery - version 1
Certain electrical components are only standard on certain vehicle model
versions or only suppliable as optional equipment for certain models.
AA
AB
AB
No.Power consumerAmperes
1Dynamo175
2Interior11 0
3The radiator fan40
4ABS or TCS or ESP40
5Power steering50
6Glow plugsa)50
7ABS or TCS or ESP25
8The radiator fan30
9The air conditioning system5
Fig. 171 Schematic
representation of fuse
assignment at battery
sqc.1.book Seite 236 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs237
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Note
Some vehicles are fitted with another fuse box ⇒page 237, “Fuse assign-
ment at battery - version 2”.
Fuse assignment at battery - version 2
Bulbs
Replacing bulbs
The relevant lamp must always be switched off before a light bulb is
replaced.
10Engine control unit15
11Central control unit5
12Automatic gearbox5
a)Only for diesel engine 1.9/96 kW.
No.Power consumerAmperes
Fig. 172 Schematic
representation of fuse
assignment at battery
No.Power consumerAmperes
1Dynamo175
2Interior11 0
3Power steering50
4Glow plugs40
5The radiator fan40
6ABS or TCS or ESP40
7ABS or TCS or ESP25
8The radiator fan30
9Not assigned
10Central control unit5
11The air conditioning system5
12Not assigned
13Automatic gearbox5
14Not assigned
15Not assigned
16Not assigned
sqc.1.book Seite 237 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs
238
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
serviette or something similar.
Defect light bulbs should only be replaced with light bulbs of the same
type. The designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but
requires to be done by a specialist. Other parts of the vehcle must be
removed in order to change the light bulbs. This applies, in particular, to
bulbs which can only be reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a Škoda
dealer or, in exceptional cases, by calling on other professional assist-
ance.
Please note that the engine compartment is a hazardous area
⇒ page 191, “Working in the engine compartment”.
We recommend that you carry the set of light bulbs with you which was
delivered in your vehicle. Replacement light bulbs
7) are available at
Škoda dealers.
The set of light bulbs can be stowed in the spare wheel well.
Fitted with a xenon headlight
Change of light bulbs on Xenon lights (low beam lights, parking lights and
main beam lights) should be undertaken by a Škoda dealer.
Overview of bulbs
7)Replacement light bulbs are, on the other hand, part of the basic equipping of the
vehicle in some countries.
Front headlightHalogen headlightXenon headlight
Low beamH7D2S
Main beamH3H7
Parking lightsW5W
Turn signalsPY21W
Fog lightsHB4
Rear light unitBulb
Reversing lightP21W
Turn signalsPY21W
Brake lightsP21W
Parking light and rear fog lightP21/4W
OthersBulb
Side turn signal lightsWY5W
Licence plate lightC5W
3. Brake lightLED
Interior lightC10W
Reading lightsW5W
Luggage compartment lightW5W
Door warning lightW5W
Storage compartment light - front pas-
senger sideC3W
sqc.1.book Seite 238 Mittwoch, 13. April 2005 1:09 13

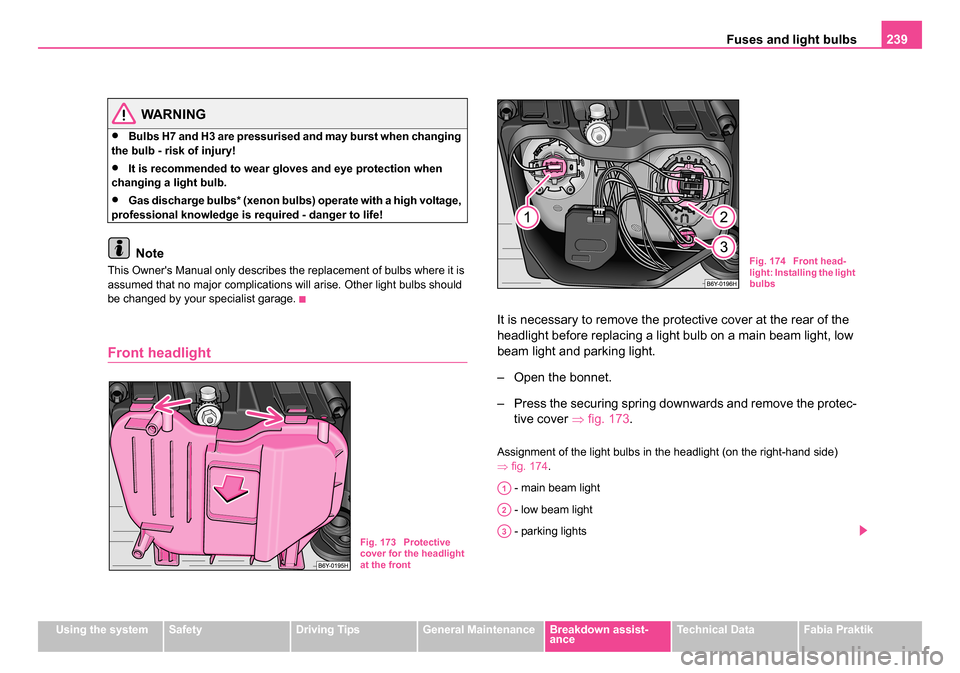

Fuses and light bulbs239
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
WARNING
•Bulbs H7 and H3 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
•Gas discharge bulbs* (xenon bulbs) operate with a high voltage,
professional knowledge is required - danger to life!
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.
Front headlight
It is necessary to remove the protective cover at the rear of the
headlight before replacing a light bulb on a main beam light, low
beam light and parking light.
– Open the bonnet.
– Press the securing spring downwards and remove the protec- tive cover ⇒fig. 173 .
Assignment of the light bulbs in the headlight (on the right-hand side)
⇒fig. 174 .
- main beam light
- low beam light
- parking lights
Fig. 173 Protective
cover for the headlight
at the front
Fig. 174 Front head-
light: Installing the light
bulbs
A1
A2
A3
sqc.1.book Seite 239 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs

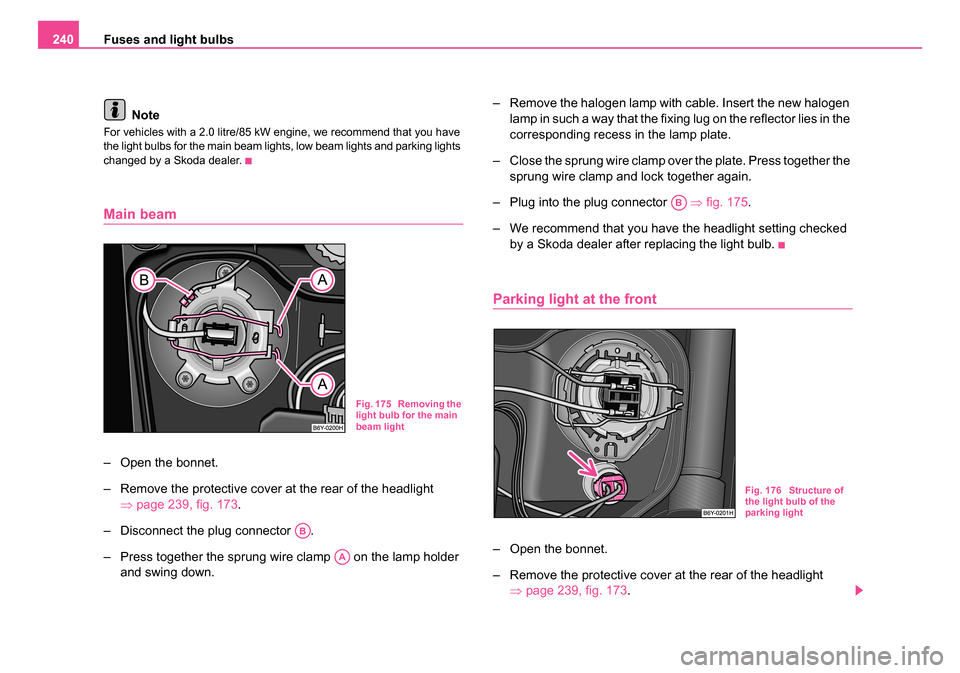

240
Note
For vehicles with a 2.0 litre/85 kW engine, we recommend that you have
the light bulbs for the main beam lights, low beam lights and parking lights
changed by a Skoda dealer.
Main beam
– Open the bonnet.
– Remove the protective cover at the rear of the headlight ⇒page 239, fig. 173 .
– Disconnect the plug connector .
– Press together the sprung wire clamp on the lamp holder and swing down. – Remove the halogen lamp with cable. Insert the new halogen
lamp in such a way that the fixing lug on the reflector lies in the
corresponding recess in the lamp plate.
– Close the sprung wire clamp over the plate. Press together the sprung wire clamp and lock together again.
– Plug into the plug connector ⇒fig. 175 .
– We recommend that you have the headlight setting checked by a Skoda dealer after replacing the light bulb.
Parking light at the front
– Open the bonnet.
– Remove the protective cover at the rear of the headlight ⇒page 239, fig. 173 .
Fig. 175 Removing the
light bulb for the main
beam light
AB
AA
AB
Fig. 176 Structure of
the light bulb of the
parking light
sqc.1.book Seite 240 Mittwoch, 13. April 2005 1:09 13

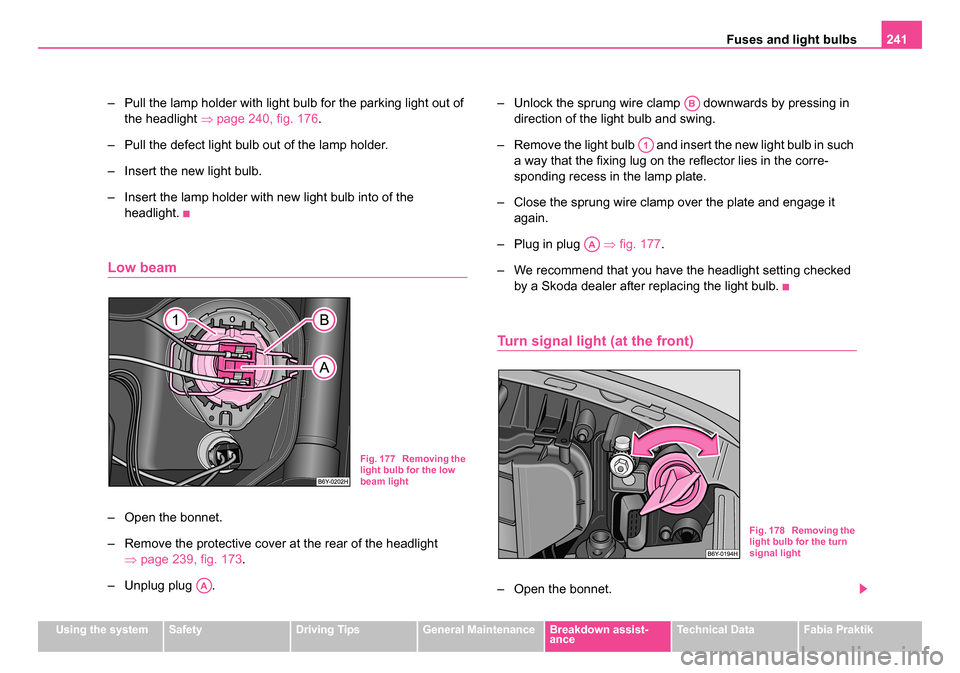

Fuses and light bulbs241
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
– Pull the lamp holder with light bulb for the parking light out of
the headlight ⇒page 240, fig. 176.
– Pull the defect light bulb out of the lamp holder.
– Insert the new light bulb.
– Insert the lamp holder with new light bulb into of the headlight.
Low beam
– Open the bonnet.
– Remove the protective cover at the rear of the headlight ⇒page 239, fig. 173 .
– Unplug plug . – Unlock the sprung wire clamp downwards by pressing in
direction of the light bulb and swing.
– Remove the light bulb and insert the new light bulb in such a way that the fixing lug on the reflector lies in the corre-
sponding recess in the lamp plate.
– Close the sprung wire clamp over the plate and engage it again.
– Plug in plug ⇒fig. 177.
– We recommend that you have the headlight setting checked by a Skoda dealer after replacing the light bulb.
Turn signal light (at the front)
– Open the bonnet.
Fig. 177 Removing the
light bulb for the low
beam light
AA
AB
A1
AA
Fig. 178 Removing the
light bulb for the turn
signal light
sqc.1.book Seite 241 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs
242
– Screw out the lamp holder and light bulb by turning it anti-clockwise ⇒page 241, fig. 178 .
– Press the defective light bulb into the socket, turn to the left and remove.
– Insert the new light bulb and turn it fully to the right.
– Insert the lamp holder with new light bulb into the headlight. Secure the lamp holder by turning it to the right.
Lighting in storage compar tment on front passenger
side*
We recommend having the light bulb replaced by a Škoda dealer. – Push in a knife or similar from the side between the light and
the glove compartment ⇒fig. 179. Lever out the light care-
fully.
– Disconnect the plug by pressing the catch from the side.
– Replace the defect light bulb.
– Recreate the plug connection.
– Press the light into the glove compartment from below.
Interior light and the reading light*
– Pull the diffusion disk (see arrow) downwards from the
housing ⇒fig. 180.
Fig. 179 Remove
lighting in storage
compartment on front
passenger side
Fig. 180 Remove inte-
rior light
