2005 SATURN VUE Owners Manual

Recovery Hook
Contact your retailer if you would like to have a recovery
hook installed on your vehicle.
The recovery hook is located at the rear of your vehicle.
It can only be used for pulling your vehicle out if it is
stuck, not for towing the vehicle.
{CAUTION:
The recovery hook, when used, is under a lot
of force. Always pull the vehicle straight out.
Never pull on the hook at a sideways angle.
The hook could break off and you or others
could be injured from the chain or cable
snapping back.
Notice:Never use the recovery hook to tow the
vehicle. Your vehicle could be damaged and it would
not be covered by warranty.
4-45
ProCarManuals.com

Loading Your Vehicle
It is very important to know how much weight your
vehicle can carry. This weight is called the vehicle
capacity weight and includes the weight of all occupants,
cargo and all nonfactory-installed options. Two labels
on your vehicle show how much weight it may properly
carry, the Tire and Loading Information label and the
Certication/Tire label.
{CAUTION:
Do not load your vehicle any heavier than the
Gross Vehicle Weight Rating (GVWR), or either
the maximum front or rear Gross Axle Weight
Rating (GAWR). If you do, parts on your
vehicle can break, and it can change the way
your vehicle handles. These could cause you
to lose control and crash. Also, overloading
can shorten the life of your vehicle.
Tire and Loading Information Label
A vehicle specic Tire and Loading Information label is
attached to the center pillar (B-pillar). With the driver’s
door open, you will nd the label attached below
the door lock post (striker). The tire and loading
information label shows the number of occupant seating
positions (A), and the maximum vehicle capacity
weight (B) in kilograms and pounds.
The Tire and Loading Information label also shows the
size of the original equipment tires (C) and the
recommended cold tire ination pressures (D). For more
information on tires and ination seeTires on page 5-55
andInation - Tire Pressure on page 5-61. Example Label
4-46
ProCarManuals.com

There is also important loading information on the
vehicle Certication/Tire label. It tells you the Gross
Vehicle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for the front and rear axle.
See “Certication/Tire Label” later in this section.
Steps for Determining Correct Load Limit
1. Locate the statement “The combined weight of
occupants and cargo should never exceed
XXX pounds” on your vehicle’s placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and
passengers from XXX kilograms or XXX pounds.
4. The resulting gure equals the available amount of
cargo and luggage load capacity. For example, if
the “XXX” amount equals 1400 lbs and there will be
ve 150 lb passengers in your vehicle, the amount
of available cargo and luggage load capacity is
650 lbs (1400−750 (5 x 150) = 650 lbs).
5. Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight
may not safely exceed the available cargo
and luggage load capacity calculated in Step 4.
6. If your vehicle will be towing a trailer, the load from
your trailer will be transferred to your vehicle.
Consult this manual to determine how this reduces
the available cargo and luggage load capacity of
your vehicle.SeeTowing a Trailer on page 4-55for important
information on towing a trailer, towing safety rules and
trailering tips.
Item Description Total
AVehicle Capacity Weight
for Example 1=1,000 lbs (453 kg)
BSubtract Occupant
Weight 150 lbs
(68 kg)×2=300 lbs (136 kg)
CAvailable Occupant and
Cargo Weight =700 lbs (317 kg) Example 1
4-47
ProCarManuals.com

Item Description Total
AVehicle Capacity Weight
for Example 2=1,000 lbs (453 kg)
BSubtract Occupant
Weight 150 lbs
(68 kg)×5=750 lbs (340 kg)
CAvailable Occupant and
Cargo Weight =250 lbs (113 kg)Item Description Total
AVehicle Capacity Weight
for Example 3=1,000 lbs (453 kg)
BSubtract Occupant
Weight 200 lbs
(91 kg)×5=1,000 lbs (453 kg)
CAvailable Occupant and
Cargo Weight =0 lbs (0 kg)
Refer to your vehicle’s tire and loading information label
for specic information about your vehicle’s capacity
weight and seating positions. The combined weight of
the driver, passengers and cargo should never
exceed your vehicle’s maximum vehicle capacity weight. Example 2
Example 3
4-48
ProCarManuals.com

Certication/Tire Label
A vehicle specic Certication/Tire label is attached to
the rear edge of the driver’s door. The label shows
the proper size and speed rating of your vehicle’s
original tires, as well as the ination pressures needed
to obtain the gross weight capacity of your vehicle.
This is called the Gross Vehicle Weight Rating (GVWR).
The GVWR includes the weight of the vehicle, all
occupants, fuel, cargo, and trailer tongue weight, if your
vehicle is pulling a trailer.
The Certication/Tire label also tells you the maximum
weights for the front and rear axles, called Gross
Axle Weight Rating (GAWR).To nd out the actual loads on your front and rear
axles, you need to go to a weigh station and weigh your
vehicle. Your retailer can help you with this. Be sure
to spread out your load equally on both sides of
the centerline.
Never exceed the GVWR for your vehicle, or the GAWR
for either the front or rear axle.
And, if you do have a heavy load, you should spread
it out.
Similar looking vehicles may have different GVWRs and
payloads. Please consult your vehicle’s Certication/Tire
label or your retailer for additional details.
{CAUTION:
Do not load your vehicle any heavier than the
Gross Vehicle Weight Rating (GVWR), or either
the maximum front or rear Gross Axle Weight
Rating (GAWR). If you do, parts on your
vehicle can break, and it can change the way
your vehicle handles. These could cause you
to lose control and crash. Also, overloading
can shorten the life of your vehicle.
Using heavier suspension components to get added
durability might not change your vehicle’s weight ratings.
4-49
ProCarManuals.com

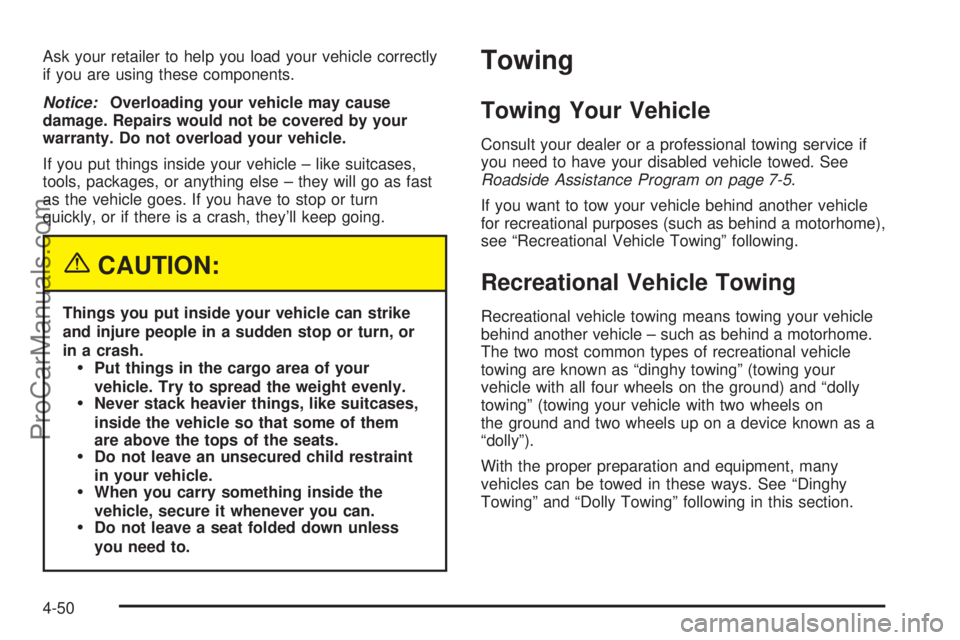

Ask your retailer to help you load your vehicle correctly
if you are using these components.
Notice:Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.
If you put things inside your vehicle – like suitcases,
tools, packages, or anything else – they will go as fast
as the vehicle goes. If you have to stop or turn
quickly, or if there is a crash, they’ll keep going.
{CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn, or
in a crash.
Put things in the cargo area of your
vehicle. Try to spread the weight evenly.
Never stack heavier things, like suitcases,
inside the vehicle so that some of them
are above the tops of the seats.
Do not leave an unsecured child restraint
in your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
Do not leave a seat folded down unless
you need to.
Towing
Towing Your Vehicle
Consult your dealer or a professional towing service if
you need to have your disabled vehicle towed. See
Roadside Assistance Program on page 7-5.
If you want to tow your vehicle behind another vehicle
for recreational purposes (such as behind a motorhome),
see “Recreational Vehicle Towing” following.
Recreational Vehicle Towing
Recreational vehicle towing means towing your vehicle
behind another vehicle – such as behind a motorhome.
The two most common types of recreational vehicle
towing are known as “dinghy towing” (towing your
vehicle with all four wheels on the ground) and “dolly
towing” (towing your vehicle with two wheels on
the ground and two wheels up on a device known as a
“dolly”).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See “Dinghy
Towing” and “Dolly Towing” following in this section.
4-50
ProCarManuals.com

Here are some important things to consider before you
do recreational vehicle towing:
What’s the towing capacity of the towing vehicle?
Be sure you read the tow vehicle manufacturer’s
recommendations.
How far will you tow? Some vehicles have
restrictions on how far and how long they can tow.
Do you have the proper towing equipment?
See your dealer or trailering professional for
additional advice and equipment recommendations.
Is your vehicle ready to be towed? Just as you
would prepare your vehicle for a long trip, you’ll
want to make sure your vehicle is prepared to be
towed. SeeBefore Leaving on a Long Trip on
page 4-36.
Dinghy Towing (All-Wheel Drive with
VTi Transaxle)
All-wheel-drive vehicles with the VTi transaxle should
not be towed with all four wheels on the ground.
To properly tow an all-wheel-drive vehicle with the VTi
transaxle, it should be placed on a platform trailer
with all four wheels off of the ground.
Dinghy Towing (Front-Wheel-Drive with
Manual Transaxle, Four-Speed
Automatic Transaxle or Five-Speed
Automatic Transaxle, and All-Wheel
Drive with Five-Speed Automatic
Transaxle)
Front-wheel-drive vehicles equipped with a manual
transaxle, four-speed automatic transaxle or ve-speed
automatic transaxle may be dinghy towed from the
front. These vehicles may also be towed by putting the
front wheels on a dolly. See “Dolly Towing” later in
this section.
All-wheel-drive vehicles with the ve-speed automatic
transaxle can be dinghy towed from the front. You
can also tow these vehicles by placing them on
a platform trailer with all four wheels off of the ground.
These vehicles cannot be towed using a dolly.
4-51
ProCarManuals.com

To tow your vehicle from the front with all four wheels
on the ground, do the following:
1. Position and attach the vehicle to tow it behind the
recreational vehicle.
2. Turn the ignition key to ACC.
3. Turn fog lamps and all accessories off.4. If your vehicle has the manual transaxle, shift your
transaxle to NEUTRAL and let the engine run for
three minutes, then turn it off.
If your vehicle has the ve-speed automatic
transaxle, shift your transaxle from AUTOMATIC
OVERDRIVE (D) to NEUTRAL (N) and let the
engine run for three minutes. Then turn it off.
Notice:Towing your vehicle after shifting the
automatic transaxle (four-speed or ve-speed) from
anything other than AUTOMATIC OVERDRIVE (D)
to NEUTRAL (N) can cause internal damage to
the automatic transaxle. Always shift the automatic
transaxle (four-speed or ve-speed) from
AUTOMATIC OVERDRIVE (D) to NEUTRAL (N) as the
last shift before towing.
5. Locate and remove the large IGN fuse from the
underhood fuse block. SeeUnderhood Fuse
Block on page 5-96.
Notice:If you tow your vehicle without performing
each of the steps listed under “Dinghy Towing,”
you could damage the automatic transaxle. Be sure
to follow all steps of the dinghy towing procedure
prior to and after towing your vehicle.
4-52
