2005 PORSCHE CAYENNE S PORSCHE CAYNNE S 2005 1.G Owners Manual

Controls, Safety, Instruments
97
Selection after warningWhen the vehicle is stationary after a tire pressure
warning, the screen changes to SELECTION AF-
TER WARNING.
fIn the menu, select the task performed.Adding air
fAfter inflating the wheel in question, select
ADD AIR.
The display returns to the basic screen after
acknowledgement.
For vehicles without air suspension
fPlease observe the chapter “REDUCING FIL-
LING PRESSURE ON VEHICLES WITHOUT AIR
SUSPENSION” on Page 304.
For vehicles with air suspension
fPlease observe the chapter “REDUCING TIRE
PRESSURE ON VEHICLES WITH AIR SUSPENSI-
ON” on Page 306.
Wheel change
fFor changing a wheel, select menu item
WHEEL CHANGE.
The display returns to the SPARE WHEEL menu
after acknowledgement.
fSelect spare wheel type.
fPlease observe the chapter “SPARE WHEEL”
on Page 91.
fPlease observe the chapter “LIFTING THE VE-
HICLE WITH A JACK” on Page 298.Sealing set
fAfter repairing the flat with the tire sealant, se-
lect menu item SEALING SET.
fPlease observe the chapter “TIRE SEALANT”
on Page 296.
fPlease observe the chapter “TIRE SEALANT/
SEALING SET” on Page 92.
The display returns to the basic screen after se-
lecting SEALING SET.
A warning appears on the multi-purpose display if
the speed limit of 50 mph (80 km/h) is exceeded.
Note on operation
If you make a selection without performing the
action described in the selection, the message
CAUTION – FLAT TYRE – CHECK TYRES will
appear again.
fCheck the tires for signs of damage and fill or
change them if necessary.

98
Controls, Safety, Instruments
Warning “When vehicle stops:
Hit selection”If you drive off after changing a wheel or inflating
the tires and neglect to make a selection in the
screen SELECTION AFTER WARNING, the following
message will appear: WHEN VEHICLE STOPS:
HIT SELECTION
fThe next time you stop the vehicle, perform
the settings in the “Selection after warning”.
Wheel change messageThe WHEEL CHANGE? CHECK SETTINGS
message appears after a wheel change, if the tire
type and tire size of the new tires have not been
set in the TYRE PRESSURE > SETTINGS menu.
When the vehicle is stationary, the display
changes to SELECTION AFTER WARNING.
fPlease observe the chapter “SELECTION
AFTER WARNING” on Page 97.
fSelect WHEEL CHANGE. The menu
automatically changes to TYRE TYPE.
fSelect the appropriate tire type and tire size.
Only if the tire type and size are selected will
the tire pressure monitoring system re-learn
the tires.
Message “Spare wheel or sealing set
operation”The message SPARE WHEEL OR SEALING SET
OPERATION? appears after switching on the
ignition if a spare wheel type (spare wheel,
collapsible spare wheel, or sealing set) was set.
fSelect YES or NO with the rocker switch.
fPress RESET switch.

Controls, Safety, Instruments
99
Ye s :
– In case of sealing-set operation, the menu
changes directly to the basic screen. All
settings are retained.
– If the vehicle is operated with a collapsible
spare wheel or spare wheel, the warning mes-
sage “SYSTEM NOT ACTIVE, WORKSHOP” is
initially displayed for 10 seconds. The system
then returns to the basic screen.
No:
The display automatically returns to the menu
TYRE PRESSURE > SETTINGS.
fSet the mounted tire set with tire type and tire
size. The system will re-learn the tires.
No monitoringIn the event of faults the tire pressure monitoring
cannot monitor the tire pressure.
The warning light on the instrument panel and a
message on the multi-purpose display light up.
Monitoring is not active when:
– the tire pressure monitoring system is faulty,
– wheel transmitters for the tire pressure
monitoring system are not present,
– temporarily after changing a wheel,
– has detected too many wheel transmitters,
– there is external interference by other radio
sources, e.g., wireless headphones,
– tire temperatures are too high.
fPlease observe the chapter “WARNING LIGHTS
AND WARNING MESSAGES” on Page 108.fAll warnings and messages in the tire pressure
monitoring system are also indicated by the
warning light in the instrument panel.
The warning light goes out as soon as all faults
are remedied.
Tire pressure monitoring system
warning light

100
Controls, Safety, Instruments
Pressure increase as the result of
temperature increaseA - Tire pressure
B - Tire temperature
C - Tire pressure for cold tires
D - Tire pressure for hot tires
E - Pressure increase as the result of temperature
increase
F - Pressure drop in faulty/leaking tires
1 - Required-pressure line
2 - Notification of tire-pressure loss
(from -3 to -6 psi/-0.2 bar to -0.4 bar)
3 - Flat-tire warning (as of -6 psi/-0,4 bar)
In accordance with physical principles, the air
pressure changes as the temperature changes.
The tire pressure increases or decreases by
around 1.5 psi (0.1 bar) for a temperature change
of 50°F (10°C).Tire pressure specificationsThe tire pressure must match the prescribed value
(required pressure).
You can find information on the tire pressure for
cold tires (68°F/20°C):
– In the TYRE PRESSURE menu (filling informa-
tion):
As a deviation from the required pressure for
each wheel if the system has learned the
values.
– In the TYRE PRESSURE menu (filling informa-
tion):
As a required pressure for each axle if the
system has not learned the values.
– And in the front left door aperture for each
wheel.
fPlease observe the chapter “TIRE PRESSU-
RES, COLD” on Page 361.
Insufficient tire pressure can cause tires to
overheat and thus be damaged – even invisibly.
Hidden tire damage is not eliminated by subse-
quently correcting the tire pressure.
fPlease observe the chapter “TIRES/WHEELS”
on Page 277.

Controls, Safety, Instruments
101
SettingsMAIN MENU > SETTINGS
The following functions can be selected in the
main menu SETTINGS:
–Clock
–Compass
– Comfort (only with vehicle stationary)
– Lights (only with vehicle stationary)
– Units (only with vehicle stationary)
– Language (only with vehicle stationary)
– Factory settings (only with vehicle stationary)
ClockMAIN MENU > SETTINGS > CLOCK
To set the clock:
fSelect time with the rocker switch.
fPress RESET switch.
fSelect the hours or minutes display with the
rocker switch.
fPress RESET switch.
fSet the time in increments of 1 h or 1 min.
fPress RESET switch.To select 12 h mode:
fSelect 12 h MODE with the rocker switch.
fPress RESET switch.
Note on operation
There is also a button on the instrument panel to
call the CLOCK menu.
fPlease observe the chapter “CLOCK” on
Page 77.

102
Controls, Safety, Instruments

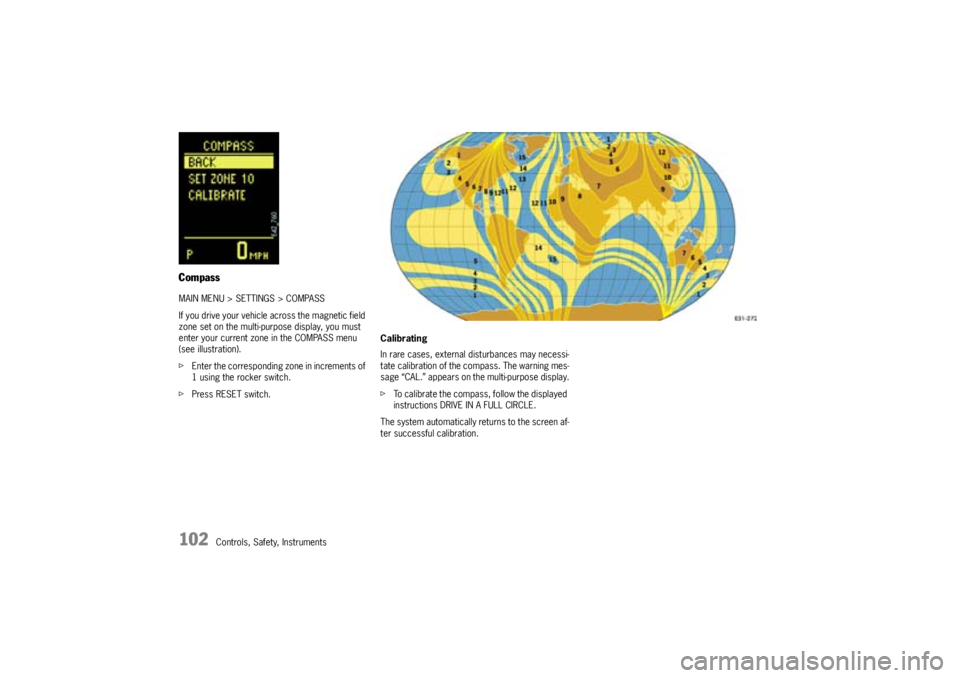

CompassMAIN MENU > SETTINGS > COMPASS
If you drive your vehicle across the magnetic field
zone set on the multi-purpose display, you must
enter your current zone in the COMPASS menu
(see illustration).
fEnter the corresponding zone in increments of
1 using the rocker switch.
fPress RESET switch.
Calibrating
In rare cases, external disturbances may necessi-
tate calibration of the compass. The warning mes-
sage “CAL.” appears on the multi-purpose display.
fTo calibrate the compass, follow the displayed
instructions DRIVE IN A FULL CIRCLE.
The system automatically returns to the screen af-
ter successful calibration.

Controls, Safety, Instruments
103
ComfortMAIN MENU > SETTINGS > COMFORT
The COMFORT menu offers the following
submenus:
–Alarm
–Door opening
–Mirrors
fSelect the entry with the rocker switch.
fPress RESET switch.
Note on operation
Comfort settings can be made only when the vehi-
cle is stationary.Alarm
MAIN MENU > SETTINGS > COMFORT > ALARM
The passenger compartment monitoring system
and the inclination sensor (protection against
towing) can be temporarily deactivated in the
ALARM menu.
When locked again, the ultrasound passenger
compartment monitoring system and inclination
sensor are activated once more.
fPlease observe the chapter “COMFORT FUNC-
TION WHEN UNLOCKING THE VEHICLE” on
Page 30.
fPlease observe the chapter “TEMPORARILY
DEACTIVATING ULTRASOUND PASSENGER
COMPARTMENT MONITORING SYSTEM AND
INCLINATION SENSOR” on Page 28.Passenger compartment
The alarm is triggered if motion is detected in the
interior with the doors closed (e.g. if a window is
broken in a theft).
fSelect INTERIOR with the rocker switch.
fPress RESET switch.
This activates/deactivates passenger com-
partment monitoring.
Inclination
The alarm is triggered if the vehicle is raised mark-
edly at one end with the doors closed (e.g. theft
attempt by towing).
fSelect ANGLE with the rocker switch.
fPress RESET switch.
This activates/deactivates the inclination sen-
sor.

104
Controls, Safety, Instruments Door opening
MAIN MENU > SETTINGS > COMFORT > DOOR
OPENING
Locking and unlocking of the doors and the form
of response when the vehicle is locked can be set
individually and stored on the respective radio re-
mote control. To d o t h i s :
1. Select the desired setting with the rocker
switch.
2. Press RESET switch.
3. Switch ignition off.
4. Close the driver's door.
5. Lock the vehicle with the radio remote control
(button1).
The settings are now stored on this radio re-
mote control.Doors
MAIN MENU > SETTINGS > COMFORT > DOOR
OPENING > DOORS
Door unlocking can be set on an individual basis.
Single door
Only the driver's door is unlocked.
The door of the access side is unlocked in
vehicles equipped with Porsche Entry & Drive.Vehicle side
Both doors on the driver's side are unlocked.
The doors on the access side are unlocked in
vehicles equipped with Porsche Entry & Drive.
All
All doors are unlocked.
Ta i l g a t e
When the TAILGATE function is active, rear access
(rear lid, rear window and spare wheel bracket) is
included in the central locking system.
Access is possible when the vehicle is stationary
and unlocked.
At speeds higher than 4 mph (6 km/h), release is
blocked until, with the vehicle stationary:
– A door is opened or
– The button in the driver's door is pulled.
When the TAILGATE function is deactivated, ac-
cess is possible only:
– Using the button in the driver's door or
– With button 2of the remote control.
