2005 PEUGEOT 207 DAG Owners Manual

1
2
34
1
177

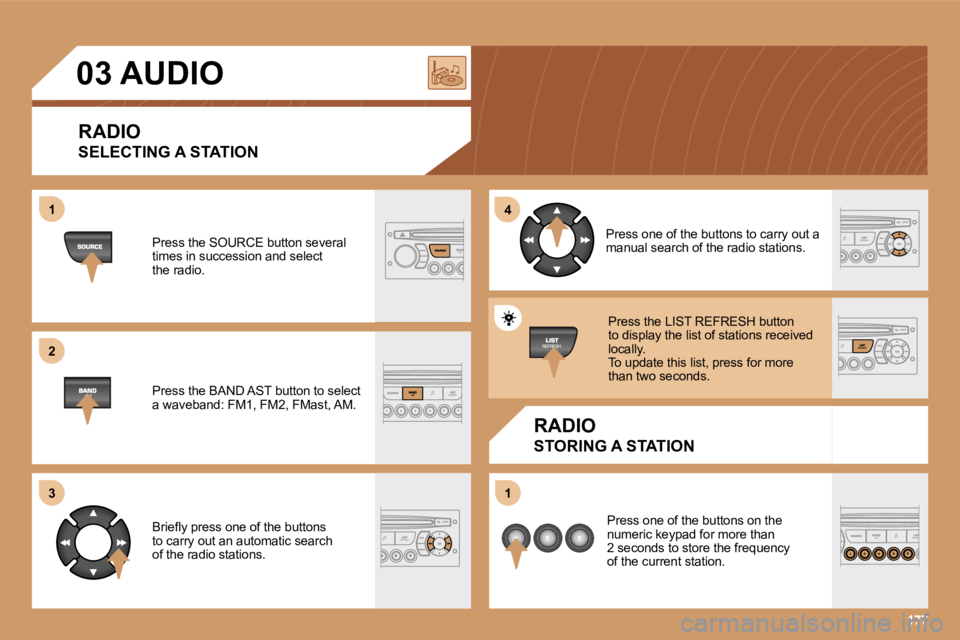

03 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select
the radio.
Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations. Press one of the buttons to carry out a
manual search of the radio stations.
Press one of the buttons on the
numeric keypad for more than
2 seconds to store the frequency
of the current station.Press the LIST REFRESH button
to display the list of stations received
locally.
To update this list, press for more
than two seconds.

1
2
3
178
1
2

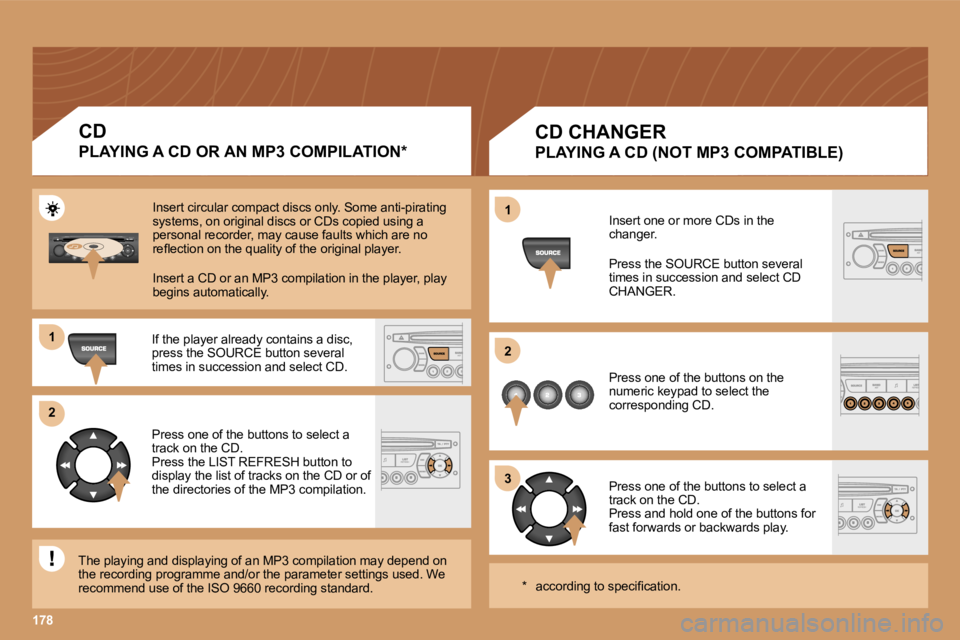

CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
CD
PLAYING A CD OR AN MP3 COMPILATION*
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, pl ay
begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD or of
the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard. * according to specification.

179
1
2
31
2
3
4 5

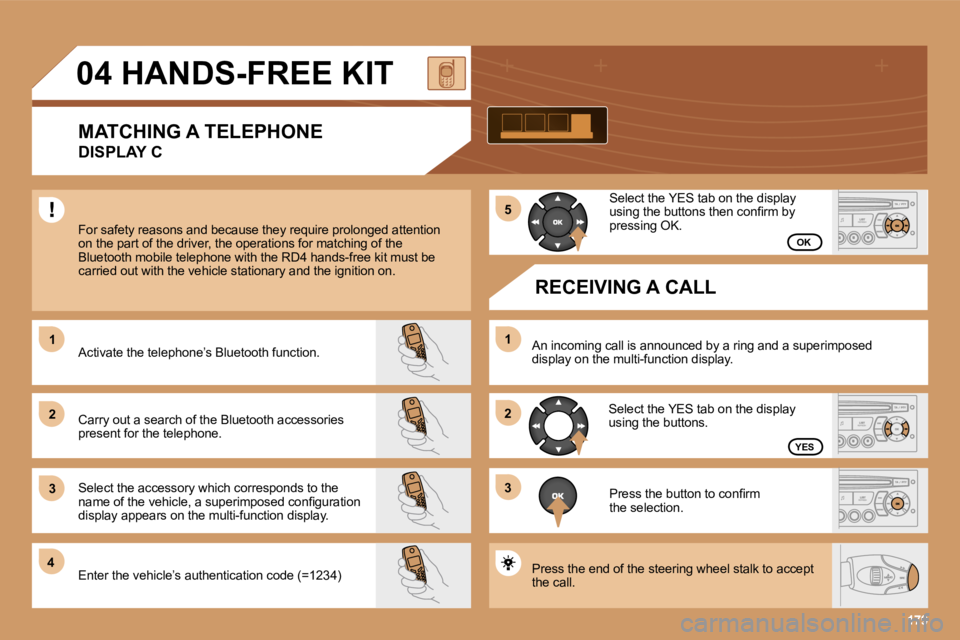

04 HANDS-FREE KIT
MATCHING A TELEPHONE
DISPLAY C
For safety reasons and because they require prolong ed attention
on the part of the driver, the operations for match ing of the
Bluetooth mobile telephone with the RD4 hands-free kit must be
carried out with the vehicle stationary and the ign ition on.
Activate the telephone’s Bluetooth function.
Carry out a search of the Bluetooth accessories
present for the telephone. RECEIVING A CALL
Select the accessory which corresponds to the
name of the vehicle, a superimposed configuration
display appears on the multi-function display.
Enter the vehicle’s authentication code (=1234) Select the YES tab on the display
using the buttons then confirm by
pressing OK.
Select the YES tab on the display
using the buttons. Press the button to confirm
the selection.
An incoming call is announced by a ring and a super
imposed
display on the multi-function display.
Press the end of the steering wheel stalk to accept
the call.
OK
YES

180
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous track.
Continuous press: fast backwards play.
Selection of the next item. Volume increase.
Volume decrease.

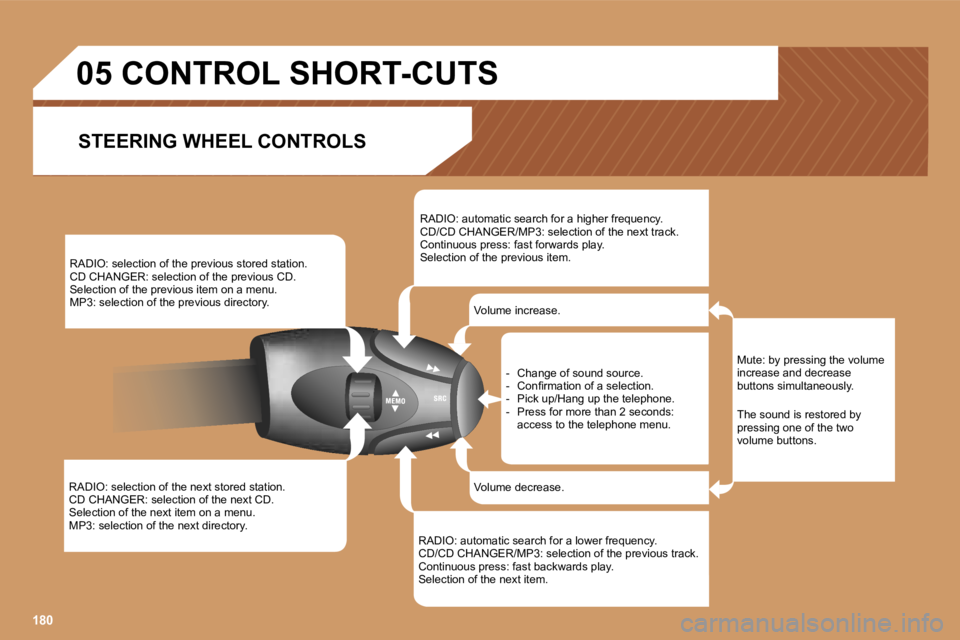

05 CONTROL SHORT-CUTS
Mute: by pressing the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
- Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
STEERING WHEEL CONTROLS

5
6
7
8
181
1
2
3
4
06 CONFIGURATIONADJUSTING THE DATE AND TIME
DISPLAY C
Press the MENU button.
Using the arrows, select
the PERSONALISATION
CONFIGURATION
function.
Press to confirm the selection.
Using the arrows, select the
DISPLAY CONFIGURATION function. Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the
ADJUST DATE AND TIME function.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION

182
123
23
122
4
34
4
4
34
4
4
34
123434
423434
1232323
1234343444234343423334233333333
3
AUDIO FUNCTIONS
FM BAND PREFERENCES alternative frequencies (RDS)activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT) activate/deactivate
AUDIO CD PREFERENCES cd changer repeat (RPT)activate/deactivate
track random play (RDM)
activate/deactivate TELEPHONE
CONSULTING DIRECTORIES telephone directory
directory list
call log call list
services directory customer contact centre
breakdown call
emergency call
CONFIGURATION deletion of a matchlist of matches
consulting matches list of matches
choice of a mobile to connect
list of mobiles
MANAGEMENT OF A COMMUNICATION switch
terminate the current call
secret modeactivate/deactivate

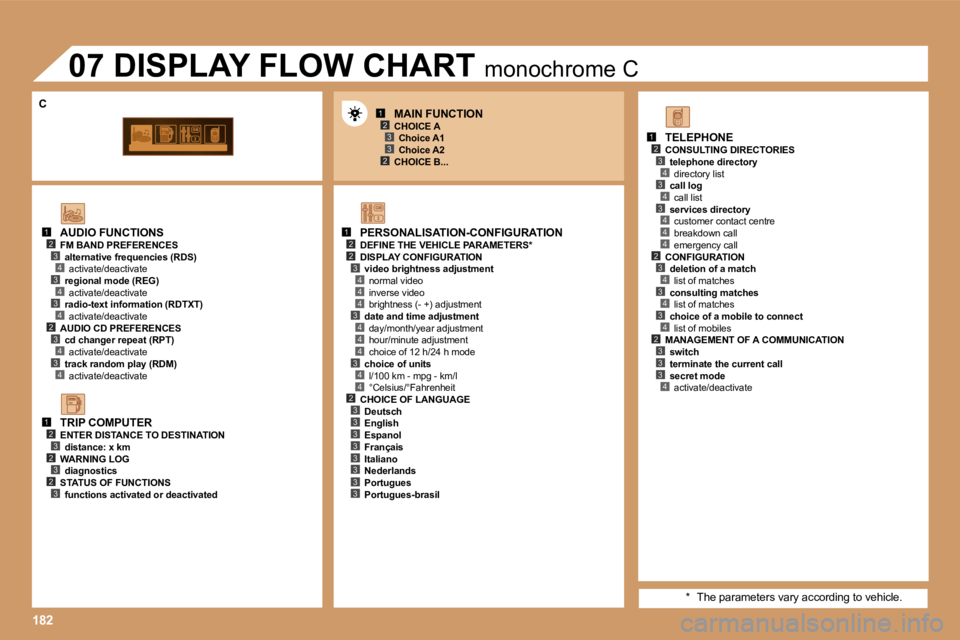

07 DISPLAY FLOW CHART
monochrome C
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS*
DISPLAY CONFIGURATION video brightness adjustmentnormal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil MAIN FUNCTION
CHOICE A Choice A1
Choice A2
CHOICE B...
TRIP COMPUTER
ENTER DISTANCE TO DESTINATION distance: x km
WARNING LOG diagnostics
STATUS OF FUNCTIONS
functions activated or deactivated
* The parameters vary according to vehicle.
C

1233233233233233
1233233
1233
1222222
12
2
2
22
22
2
122
123
23183
RADIO-CD
RDS SEARCH active
inactive
REG MODE active
inactive
INTROSCAN active
inactive
CD REPEAT
active
inactive
RANDOM PLAY
active
inactive VEHICLE CONFIG
REV WIPE ACT active
inactive
GUIDE LAMPS active
inactive LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
OPTIONS
ABANDON/CONSULT LIST OF FAULTS functions activated (or not)
warning messages
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG

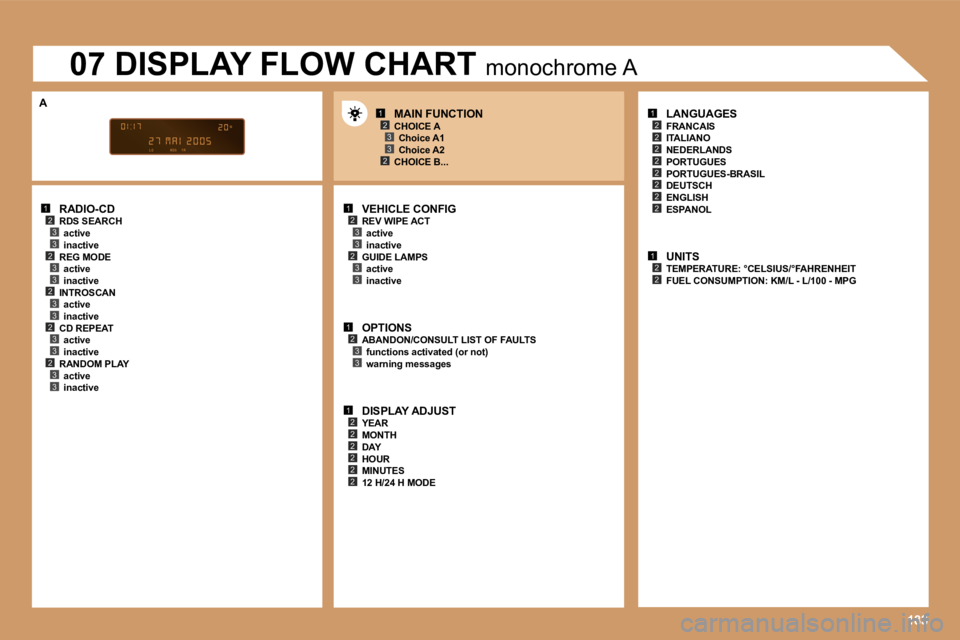

07 DISPLAY FLOW CHART
monochrome A
MAIN FUNCTION
CHOICE A
Choice A1
Choice A2
CHOICE B...
A

8
!

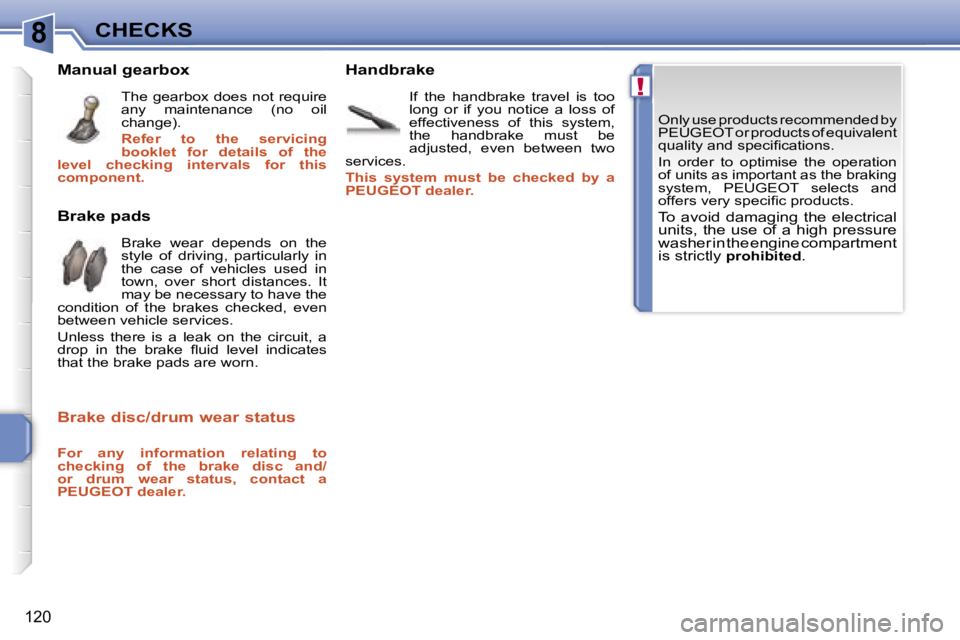

CHECKS
120
Only use products recommended by
PEUGEOT or products of equivalent
quality and specifications.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and
offers very specific products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly
prohibited.
Brake padsBrake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Handbrake
If the handbrake travel is too
long or if you notice a loss of
effectiveness of this system,
the handbrake must be
adjusted, even between two
services.
This system must be checked by a
PEUGEOT dealer.
Manual gearbox
The gearbox does not require
any maintenance (no oil
change).
Refer to the servicing
booklet for details of the
level checking intervals for this
component.
Brake disc/drum wear status
For any information relating to
checking of the brake disc and/
or drum wear status, contact a
PEUGEOT dealer.
