DTC P0340 CMP SENSOR
EC-1169
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P0340 CMP SENSORPFP:23731
DescriptionEBS011BC
The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90°
signal and sent to the ECM.
On Board Diagnosis LogicEBS011BE
NOTE:

If DTC P0340 is displayed with DTC P0652 or P0653, first perform trouble diagnosis for DTC P0652
or P0653. Refer to EC-1240, "
DTC P0652, P0653 SENSOR POWER SUPPLY" .
DTC Confirmation ProcedureEBS011BF
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position
for 5 seconds.
4. If 1st trip DTC is detected, go to EC-1171, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MBIB0618E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340Camshaft position sensor
circuitCamshaft position sensor signal is not detect by
the ECM when engine is running.

Harness or connectors
(The sensor circuit is open or
shorted.)

Camshaft position sensor
SEF817Y

EC-1170
[YD (WITH EURO-OBD)]
DTC P0340 CMP SENSOR

Wiring DiagramEBS011BG
TBWA0571E

DTC P0340 CMP SENSOR
EC-1171
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS011BH
1. CHECK STARTING SYSTEM
Turn ignition switch to START position.
Ye s o r N o
Ye s > > G O T O 2 .
No >> Check starting system. (Refer to SC-23, "
STARTING SYSTEM" .)
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
45 G/ORCamshaft position sensor
power supply[Ignition switch ON]Approximately 5.3V
47 G/R Camshaft position sensor[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.0 - 6V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 6V
66 G/YCamshaft position sensor
ground[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
67 —Sensor ground
(Sensors shield circuit)[Engine is running]

Warm-up condition

Idle speedApproximately 0.3V
MBIB0877E
MBIB0878E
Does the engine turn over?
Does the starter motor operate?

EC-1172
[YD (WITH EURO-OBD)]
DTC P0340 CMP SENSOR

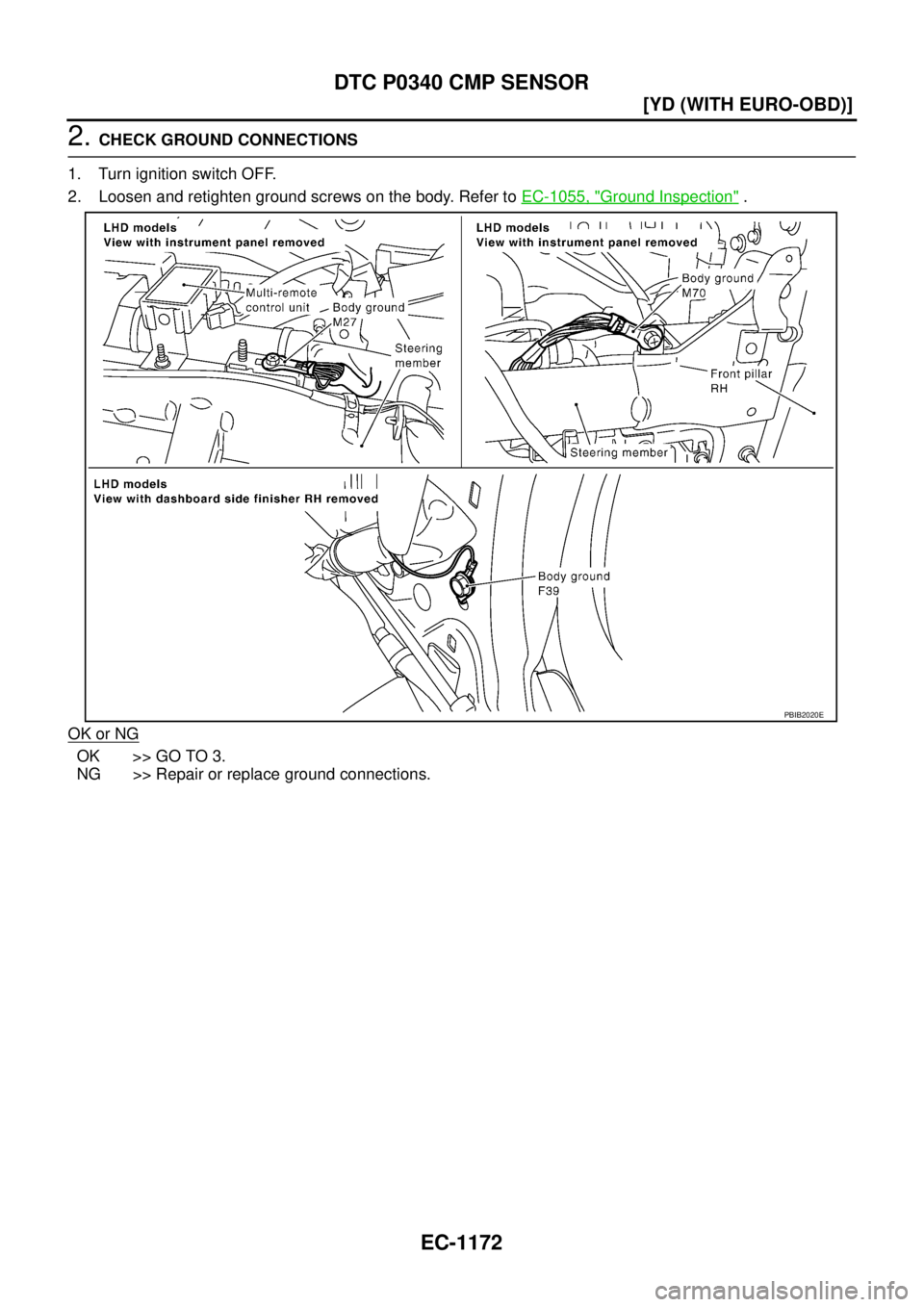

2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-1055, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
PBIB2020E
