IGNITION COIL
EM-31
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

IGNITION COILPFP:22448
Removal and InstallationEBS00KNF
REMOVAL
1. Disconnect harness connector from ignition coil.
2. Remove ignition coil.
CAUTION:
Do not drop or shock it.
INSTALLATION
Installation is the reverse order of removal.

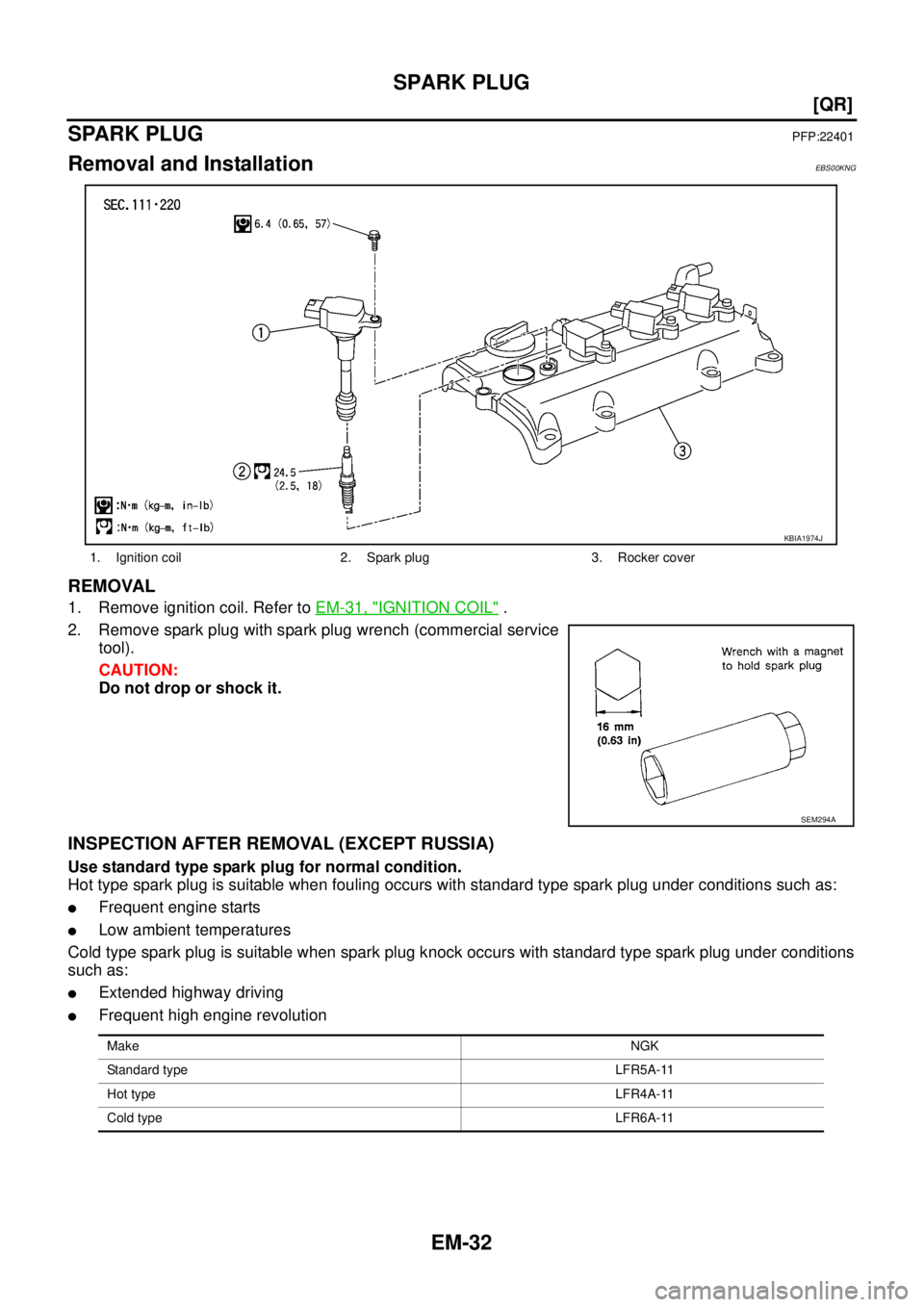

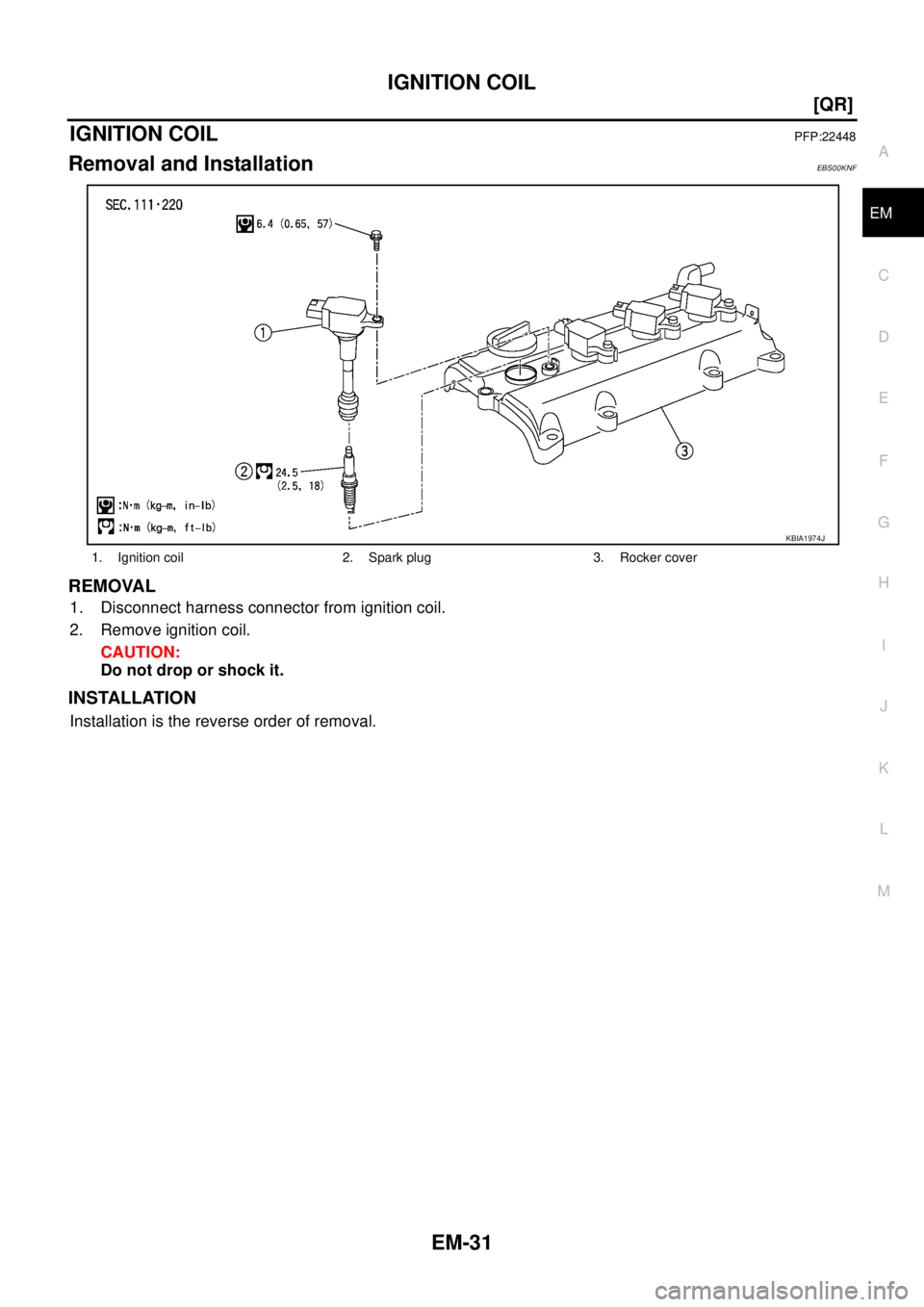

1. Ignition coil 2. Spark plug 3. Rocker cover
KBIA1974J

EM-32
[QR]
SPARK PLUG

SPARK PLUG PFP:22401
Removal and InstallationEBS00KNG
REMOVAL
1. Remove ignition coil. Refer to EM-31, "IGNITION COIL" .
2. Remove spark plug with spark plug wrench (commercial service
tool).
CAUTION:
Do not drop or shock it.
INSPECTION AFTER REMOVAL (EXCEPT RUSSIA)
Use standard type spark plug for normal condition.
Hot type spark plug is suitable when fouling occurs with standard type spark plug under conditions such as:

Frequent engine starts

Low ambient temperatures
Cold type spark plug is suitable when spark plug knock occurs with standard type spark plug under conditions
such as:

Extended highway driving

Frequent high engine revolution
1. Ignition coil 2. Spark plug 3. Rocker cover
KBIA1974J
SEM294A
MakeNGK
Standard typeLFR5A-11
Hot typeLFR4A-11
Cold typeLFR6A-11

FUEL INJECTOR AND FUEL TUBE
EM-35
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. With the sleeve side of quick connector release facing quick connector, install quick connector release
onto fuel tube.
c. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
d. Draw and pull out quick connector straight from fuel tube.
CAUTION:

Pull quick connector holding “A” position in the figure.

Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Remove PCV hose. Refer to EM-18, "
Removal and Installation (QR20DE)" .
5. Disconnect harness connector from ignition coil.
6. Remove sub-harness for fuel injector.
7. Remove electric throttle control actuator and intake manifold support. Refer to EM-18, "
Removal and
Installation (QR20DE)" .
8. Loosen mounting bolts in reverse order as shown in the figure.
9. Remove fuel tube protector.
10. Pull out fuel tube and fuel injector assembly rearward of engine.
CAUTION:

When removing, be careful to avoid any interference with fuel injector.

Use a shop cloth to absorb any fuel leaks from fuel tube.
KBIA0702E
PBIC2205E
PBIC2180E

EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE


Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

FUEL INJECTOR AND FUEL TUBE
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel feed tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
7. Install fuel feed hose to hose clamp.
8. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

EM-44
[QR]
ROCKER COVER

ROCKER COVERPFP:13264
Removal and InstallationEBS00KNI
REMOVAL
1. Disconnect PCV hose from rocker cover.
2. Remove ignition coil. Refer to EM-31, "
IGNITION COIL" .
3. Remove PCV valve and O-ring from rocker cover, if necessary.
4. Remove oil filler cap from rocker cover, if necessary.
5. Loosen bolts in reverse order shown in the figure.
6. Remove rocker cover gasket from rocker cover.
7. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
CAUTION:
Do not scratch or damage the mating surface when cleaning off old liquid gasket.

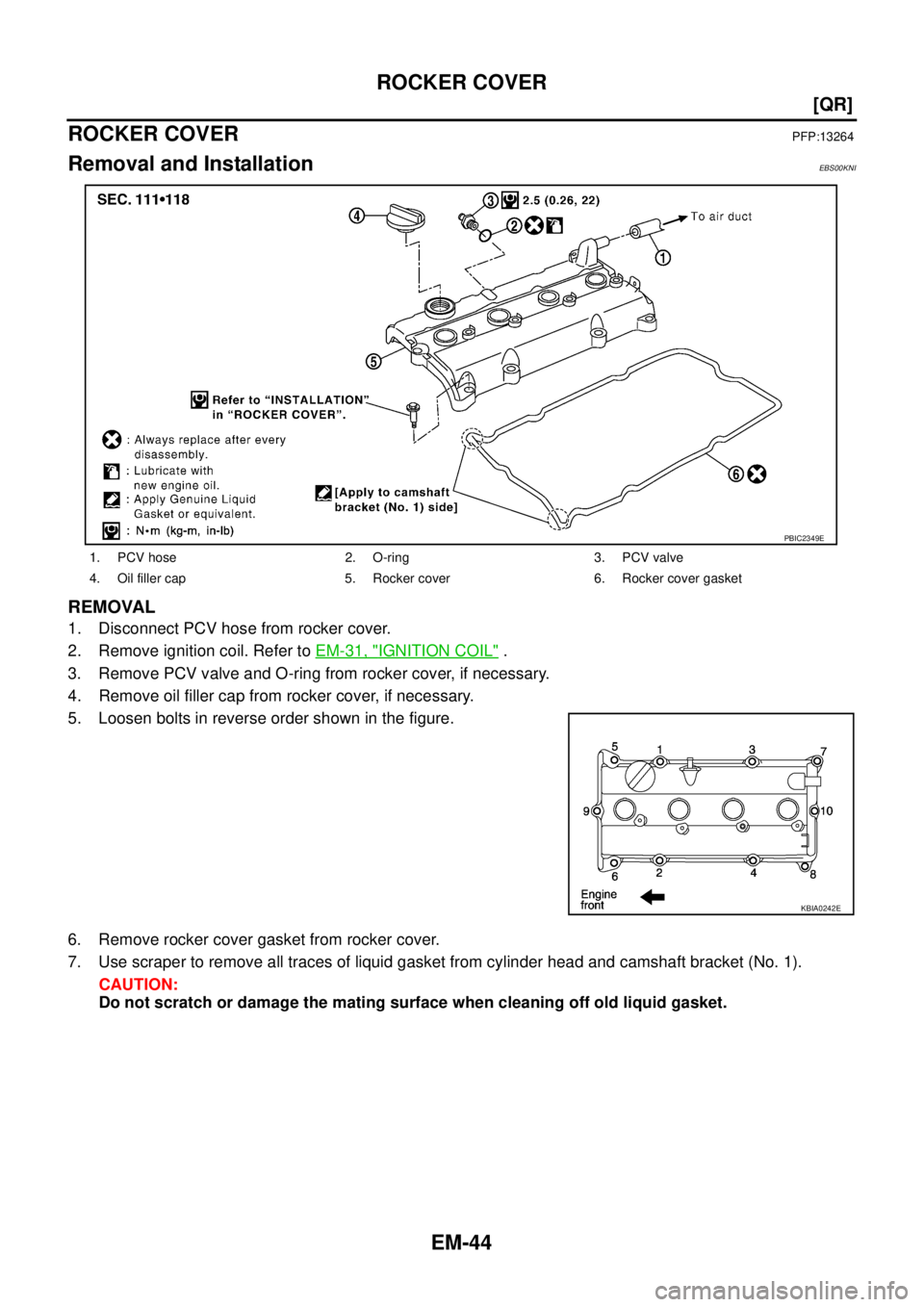

1. PCV hose 2. O-ring 3. PCV valve
4. Oil filler cap 5. Rocker cover 6. Rocker cover gasket
PBIC2349E
KBIA0242E

TIMING CHAIN
EM-47
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Hood assembly; Refer to BL-12, "HOOD" .

RH and LH undercovers

PCV hose; Refer to EM-18, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-31, "IGNITION COIL" .

Rocker cover; Refer to EM-44, "ROCKER COVER" .

Engine coolant reservoir tank; Refer to CO-12, "RADIATOR" .

Drive belt; Refer to EM-13, "REMOVAL" .

Alternator; Refer to SC-13, "CHARGING SYSTEM" .

Drive belt auto-tensioner; Refer to EM-14, "REMOVAL" .

Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove A/C compressor from engine. Temporarily secure A/C compressor to vehicle side with a rope to
avoid putting a load on them.
3. Remove bracket mounting bolts for fixing A/C piping on right strut housing and exhaust manifold cover.
Doing so simplifies moving.
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-37, "
HYDRAULIC LINE" .
5. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-37,
"HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix power steering reservoir tank vertically.
6. Install engine slingers into front left of cylinder head and rear
right of cylinder head.

Use alternator bracket mounting bolt holes for the front side.
7. Lift with hoist, and support the engine posture.
8. Remove RH engine mounting insulator and bracket. Refer to EM-81, "
ENGINE ASSEMBLY" .
9. Remove engine mounting related parts below. Refer to EM-81, "
Removal and Installation (2WD Models)"
(2WD models) or EM-85, "Removal and Installation (4WD Models)" (4WD models).

RH engine mounting insulator

Center member

Rear engine mounting bracket (2WD models)
10. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
11. Remove oil pan (upper and lower), and oil strainer. Refer to EM-27, "
OIL PAN AND OIL STRAINER" .
12. Remove intake valve timing control cover.

Loosen bolts in reverse order as shown in the figure.

U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v -
alent tool to cut liquid gasket for removal.
CAUTION:
Be careful not to damage mounting surface.
13. Pull chain guide between camshaft sprockets out through front cover.Slinger bolts:
Front
: 57.9 N·m (5.9 kg-m, 43 ft-lb)
Rear
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0271E
KBIA0085E

TIMING CHAIN
EM-55
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-17, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
