2005 NISSAN X-TRAIL Combination meter

LAN-100
[CAN]
CAN SYSTEM (TYPE 5)

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M81 terminals 4 (W) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and
4WD control unit.
4WD Control Unit Circuit InspectionEKS00LVH
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of 4WD control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check resistance between 4WD control unit harness connector
M107 terminals 8 (W) and 16 (R).
OK or NG
OK >> Replace 4WD control unit.
NG >> Repair harness between 4WD control unit and steering
angle sensor.
Combination Meter Circuit InspectionEKS00LVI
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.4 (W) - 5 (R) : Approx. 54 - 66 Ω
SKIA6870E
8 (W) - 16 (R) : Approx. 54 - 66 Ω
SKIB0043E

CAN SYSTEM (TYPE 5)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and 4WD
control unit.
CAN Communication Circuit InspectionEKS00LVJ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M75.
2. Check continuity between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M75. 22 (W) - 23 (R) : Approx. 108 - 132 Ω
SKIA9780E
94 (G/R) - 86 (GY/R) : Continuity should not exist.
PKIA9592E

CAN SYSTEM (TYPE 5)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
–Combination meter connector
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering
angle sensor

Harness between combination meter and harness connector M75
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering angle sensor

Harness between combination meter and harness connector M75
8. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-103, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-89, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LVK
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E

LAN-116
[CAN]
CAN SYSTEM (TYPE 6)

Case 8
Check combination meter circuit. Refer to LAN-124, "Combination Meter Circuit Inspection" .
Case 9
Check CAN communication circuit. Refer to LAN-125, "CAN Communication Circuit Inspection" .
PKIB9088E
PKIA9649E
PKIB9089E

LAN-124
[CAN]
CAN SYSTEM (TYPE 6)

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check resistance between 4WD control unit harness connector
M107 terminals 8 (W) and 16 (R).
OK or NG
OK >> Replace 4WD control unit.
NG >> Repair harness between 4WD control unit and steering
angle sensor.
Combination Meter Circuit InspectionEKS00LVW
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connec-
tor M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness between combination meter and 4WD
control unit. 8 (W) - 16 (R) : Approx. 54 - 66 Ω
SKIB0043E
22 (W) - 23 (R) : Approx. 108 - 132 Ω
SKIA9780E

CAN SYSTEM (TYPE 6)
LAN-125
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CAN Communication Circuit InspectionEKS00LVX
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, connector side and harness side).
–ECM
–TCM
–ESP/TCS/ABS control unit
–Steering angle sensor
–4WD control unit
–Combination meter
–Between ECM and combination meter
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector and harness connector M61.
2. Check continuity between ECM harness connector M118 termi-
nals 94 (G/R) and 86 (GY/R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between ECM and harness connector
M61.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector M118 terminals
94 (G/R), 86 (GY/R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between ECM and harness connector
M61. 94 (G/R) - 86 (GY/R) : Continuity should not exist.
PKIA9592E
94 (G/R) - Ground : Continuity should not exist.
86 (GY/R) - Ground : Continuity should not exist.
PKIA9593E

CAN SYSTEM (TYPE 6)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Steering angle sensor connector
–4WD control unit connector
–Combination meter connector
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering
angle sensor

Harness between combination meter and harness connector M75
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.

Harness between combination meter and 4WD con-
trol unit

Harness between combination meter and steering angle sensor

Harness between combination meter and harness connector M75
10. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-129, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-107, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00LVY
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT

Remove ECM and combination meter from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between combination meter terminals 22 and
23.22 (W) - 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) - Ground : Continuity should not exist.
23 (R) - Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 - 86
108 - 132
Combination meter 22 - 23
PKIA0830E

CAN SYSTEM (TYPE 7)
LAN-137
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

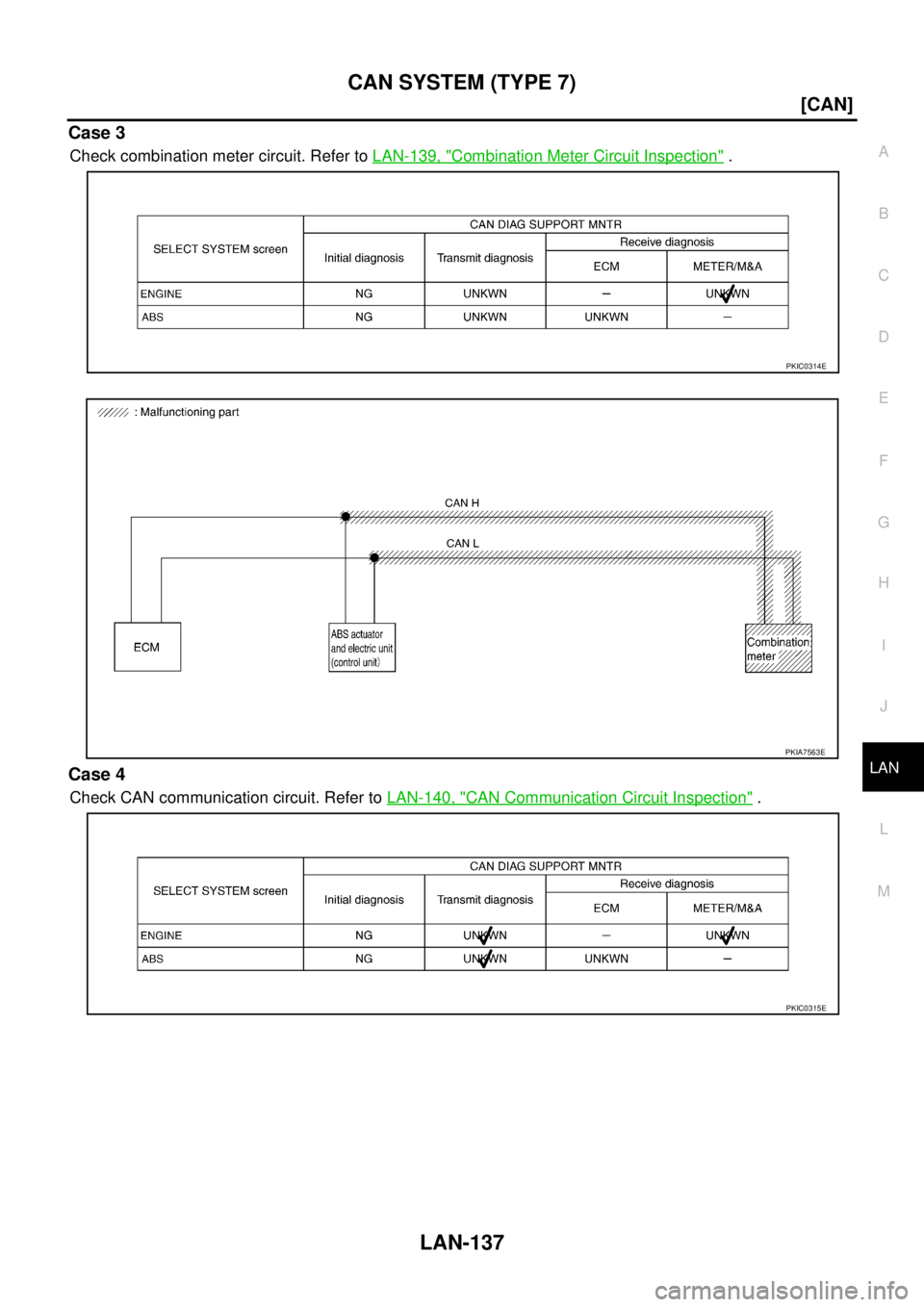

Case 3
Check combination meter circuit. Refer to LAN-139, "Combination Meter Circuit Inspection" .
Case 4
Check CAN communication circuit. Refer to LAN-140, "CAN Communication Circuit Inspection" .
PKIC0314E
PKIA7563E
PKIC0315E
