2005 NISSAN X-TRAIL battery replacement

BL-2 PRELIMINARY CHECK ....................................... 53
SYMPTOM CHART ............................................. 54
Power Supply and Ground Circuit Check ............... 55
Door Lock/Unlock Switch Check ............................ 56
Door Key Cylinder Switch Check ............................ 58
Front Door Lock Actuator (Driver Side) Check ....... 60
Front Door Lock Actuator (Passenger Side) Check ... 61
Rear Door Lock Actuator LH Check ....................... 62
Rear Door Lock Actuator RH Check ....................... 63
Back Door Lock Actuator Check ............................. 64
Door Switch Check ................................................. 65
Door Unlock Sensor Check .................................... 66
Key Switch Check ................................................... 67
Super Lock Actuator (Driver Side) Check ............... 68
Super Lock Actuator (Passenger Side) Check ....... 69
Super Lock Actuator Check / Rear LH ................... 70
Super Lock Actuator Check / Rear RH ................... 71
NATS Release Signal Check .................................. 72
Ignition Switch “ON” Circuit Check ......................... 73
MULTI-REMOTE CONTROL SYSTEM ..................... 74
Component Parts and Harness Connector Location ... 74
System Description ................................................. 75
FUNCTION .......................................................... 75
LOCK OPERATION ............................................. 75
UNLOCK OPERATION ........................................ 75
HAZARD REMINDER .......................................... 75
MULTI-REMOTE CONTROLLER ID CODE
ENTRY ................................................................ 75
Schematic ............................................................... 76
Wiring Diagram — MULTI — .................................. 77
Terminal and Reference Value for Multi-remote
Control Unit ............................................................. 80
Terminal and Reference Value for Time Control Unit ... 80
Symptom Chart ....................................................... 81
Remote Controller Battery Check ........................... 82
Power Supply and Ground Circuit Check for Time
Control Unit ............................................................. 82
Power Supply and Ground Circuit Check for Multi-
Remote Control Unit ............................................... 83
Time Control Unit Lock Signal Circuit Check .......... 84
Time Control Unit Unlock Signal Circuit Check ...... 85
Hazard Reminder Check ........................................ 86
ID Code Entry Procedure ....................................... 89
Remote Controller Battery Replacement ................ 90
FRONT DOOR LOCK ............................................... 91
Component Parts Location ..................................... 91
Component Parts Location (Super Lock) ................ 91
Inspection and Adjustment ..................................... 91
OUT SIDE HANDLE ROD ADJUSTMENT .......... 92
Removal and Installation ........................................ 92
REMOVAL ........................................................... 92
INSTALLATION .................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY ................................................... 93
ASSEMBLY ......................................................... 93
Disassembly and Assembly .................................... 93
DISASSEMBLY (SUPER LOCK) ......................... 93
ASSEMBLY ......................................................... 94
REAR DOOR LOCK .................................................. 95Component Parts Location ..................................... 95
Component Parts Location (Super Lock) ................ 95
Inspection and Adjustment ...................................... 95
OUT SIDE HANDLE ROD ADJUSTMENT .......... 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 97
Disassembly and Assembly .................................... 98
DISASSEMBLY .................................................... 98
ASSEMBLY .......................................................... 98
Disassembly and Assembly .................................... 98
DISASSEMBLY (SUPER LOCK) ......................... 98
ASSEMBLY .......................................................... 98
BACK DOOR ............................................................. 99
Fitting Adjustment ................................................... 99
VERTICAL/LATERAL CLEARANCE ADJUST-
MENT ................................................................... 99
Back Door Assembly .............................................100
REMOVAL AND INSTALLATION .......................100
INSPECTION .....................................................100
Removal and Installation of Back Door Handle ....100
REMOVAL ..........................................................100
INSTALLATION ..................................................101
Removal and Installation of Back Door Lock and
Actuator .................................................................101
REMOVAL ..........................................................101
INSTALLATION ..................................................101
Removal and Installation of Back Door Weatherstrip .102
REMOVAL ..........................................................102
INSTALLATION ..................................................102
FUEL FILLER LID OPENER ...................................103
Component Parts Location ...................................103
THEFT WARNING SYSTEM ...................................104
Wiring Diagram — THEFT —/PRI-WIRE ..............104
LHD MODELS ....................................................104
RHD MODELS ...................................................106
NATS (NISSAN ANTI-THEFT SYSTEM) .................108
Component Parts and Harness Connector Location .108
System Description ...............................................109
System Composition .............................................110
ECM Re-communicating Function ........................110
Wiring Diagram — NATS — .................................. 111
LHD MODELS .................................................... 111
RHD MODELS ...................................................113
CONSULT-II ..........................................................115
CONSULT-II INSPECTION PROCEDURE ........115
CONSULT-II DIAGNOSTIC TEST MODE FUNC-
TION ..................................................................116
HOW TO READ SELF-DIAGNOSTIC RESULTS .116
NATS SELF-DIAGNOSTIC RESULTS ITEM
CHART ...............................................................117
Work Flow .............................................................118
Trouble Diagnoses ................................................119
SYMPTOM MATRIX CHART 1 ..........................119
SYMPTOM MATRIX CHART 2 ..........................121
DIAGNOSTIC SYSTEM DIAGRAM ...................121
Diagnostic Procedure 1 .........................................121
Diagnostic Procedure 2 .........................................122
Diagnostic Procedure 3 .........................................125

BL-90
MULTI-REMOTE CONTROL SYSTEM

Remote Controller Battery ReplacementEIS008EZ
1. Remove screw on the rear of keyfob.
2. Place the key with the lower case facing up. Insert a screwdriver
wrapped with tape into “A” of the lower case and separate the
lower case from the upper case.
3. When replacing the circuit board assembly, remove circuit board
assembly from the upper case.
(Circuit board assembly: Switch rubber + Board surface)
CAUTION:
Be careful not to touch the printed circuits directly.
4. When replacing the battery
Remove battery from the lower case and replace it.
CAUTION:
When replacing battery, be sure to keep the electrode con-
tact area from dirt, grease or other foreign materials.
5. After replacement, fit the lower and upper cases together,
tighten with the screw.
CAUTION:
After replacing the battery, be sure to check that door lock-
ing operates normally using the keyfob. Battery
replacement: Coin-type lithium battery (CR2016)
PIIA9409E

LT-2 LOW BEAM OPERATION (DAYTIME LIGHT
SYSTEM CANCEL OPERATION) ....................... 41
HIGH BEAM OPERATION/FLASH-TO-PASS
OPERATION ........................................................ 42
DAYTIME LIGHT SYSTEM OPERATION ............ 42
DRIVING LAMP OPERATION ............................. 42
XENON HEADLAMP ........................................... 43
Schematic ............................................................... 44
Wiring Diagram —DTRL— ..................................... 45
Trouble Diagnoses .................................................. 50
DAYTIME LIGHT CONTROL UNIT INSPECTION
TABLE ................................................................. 50
Bulb Replacement .................................................. 50

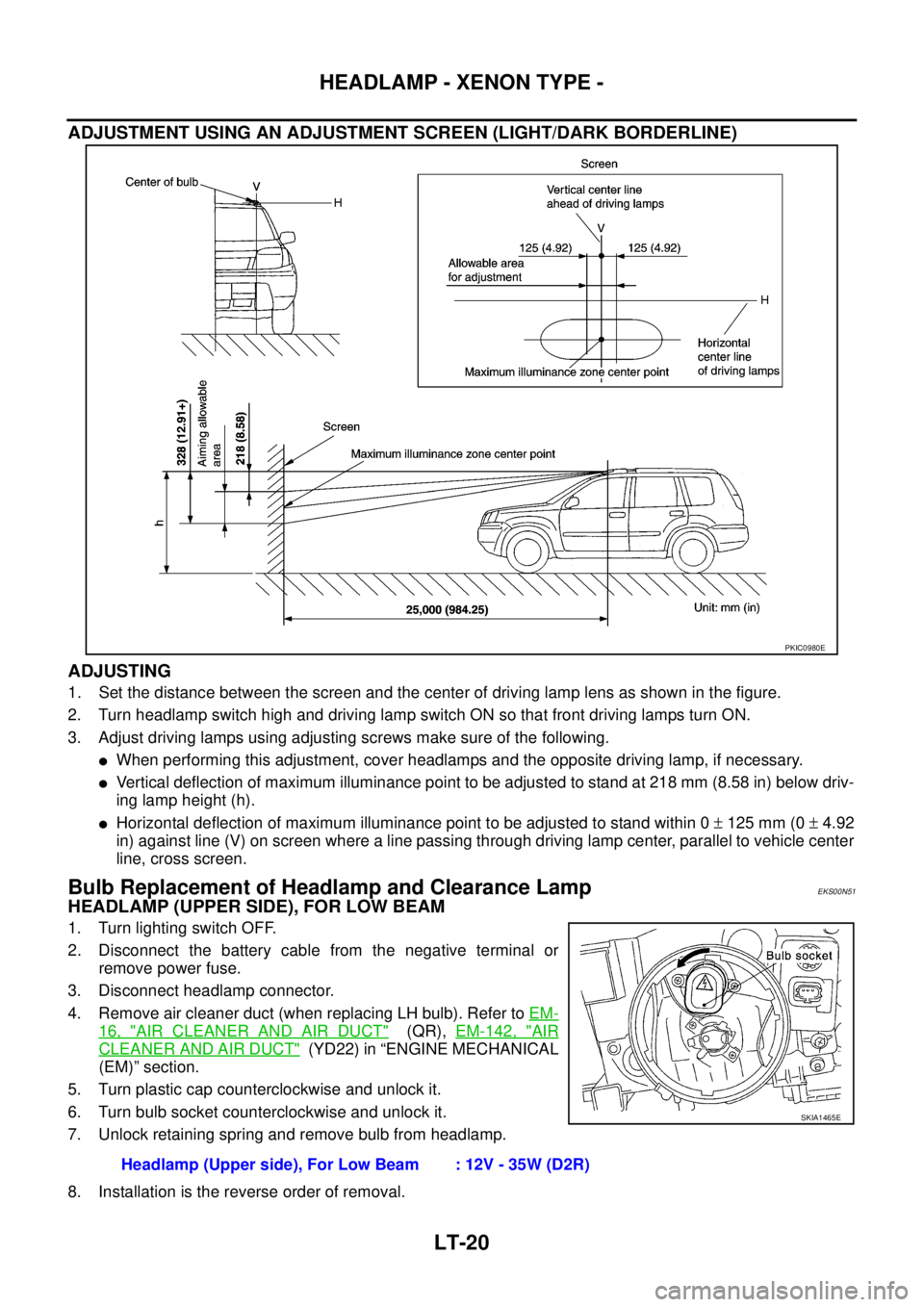

Aiming Adjustment .................................................. 50
Removal and Installation ........................................ 50
HEADLAMP (WITH DAYTIME) - CONVENTIONAL
TYPE - ....................................................................... 51
System Description ................................................. 51
DESCRIPTION .................................................... 51
LOW BEAM OPERATION (DAYTIME LIGHT
SYSTEM CANCEL OPERATION) ....................... 51
HIGH BEAM OPERATION/FLASH-TO-PASS
OPERATION ........................................................ 52
DAYTIME LIGHT SYSTEM OPERATION ............ 52
DRIVING LAMP OPERATION ............................. 52
Schematic ............................................................... 54
Wiring Diagram —DTRL— ..................................... 55
Trouble Diagnoses .................................................. 60
DAYTIME LIGHT CONTROL UNIT INSPECTION
TABLE ................................................................. 60
Bulb Replacement .................................................. 60
Aiming Adjustment .................................................. 60
Removal and Installation ........................................ 60
HEADLAMP AIMING CONTROL (MANUAL) ........... 61
Wiring Diagram — H/AIM — ................................... 61
Removal and Installation ........................................ 62
Switch Circuit Inspection ........................................ 62
HEADLAMP AIMING CONTROL (AUTO) ................ 63
Component Parts and Harness Connector Location ... 63
System Description ................................................. 63
OUTLINE ............................................................. 63
HEADLAMP AIMING CONTROL OPERATION ... 64
Schematic ............................................................... 65
Wiring Diagram — H/AIM — ................................... 66
LHD MODELS ..................................................... 66
Terminals and Reference Values of Daytime Light
Control Unit ............................................................. 68
Terminals and Reference Values for Height Sensor ... 68
How to Proceed With Trouble Diagnosis ................ 68
CONSULT-II Functions (HEADLAMP LEVELIZER) ... 69
CONSULT-II BASIC OPERATION ....................... 69
WORK SUPPORT ............................................... 70
DATA MONITOR .................................................. 70
ACTIVE TEST ..................................................... 71
SELF-DIAG RESULTS ........................................ 71
Check Aiming Control System ................................ 73
Symptom Chart ....................................................... 74
Headlamp Aiming Motor Does Not Operate (Both
Sides) ..................................................................... 74Headlamp Aiming Motor Does Not Operate (One
Side) ........................................................................ 77
DTC B2081 [INITIAL NOT DONE] .......................... 78
DTC B2082 [SENSOR OUT OF RANGE] ............... 79
DTC B2083 [SEN SIG NOT PLAUSIBLE] .............. 79
DTC B2084 [VOLTAGE UNDER LIMIT] .................. 80
DTC B2085 [LOW BEAM SIG OPEN LINE] ........... 81
DTC B2086 [FRQ. OVER LIMIT] ............................ 82
DTC B2087 [SHORT TO GROUND] ....................... 82
DTC B2088 [SHORT TO BATTERY] ...................... 84
Removal and Installation of Height Sensor ............. 86
REMOVAL ............................................................ 86
INSTALLATION .................................................... 86
TURN SIGNAL AND HAZARD WARNING LAMPS ... 87
System Description ................................................. 87
TURN SIGNAL OPERATION ............................... 87
HAZARD LAMP OPERATION ............................. 88
Wiring Diagram — TURN — ................................... 89
LHD MODELS ...................................................... 89
RHD MODELS ..................................................... 91
Trouble Diagnoses .................................................. 93
Electrical Components Inspection ........................... 93
COMBINATION FLASHER UNIT CHECK ........... 93
Bulb Replacement ................................................... 94
FRONT TURN SIGNAL LAMP ............................. 94
SIDE TURN SIGNAL LAMP ................................. 94
REAR TURN SIGNAL LAMP ............................... 94
Removal and Installation of Front Turn Signal Lamp ... 94
REMOVAL ............................................................ 94
INSTALLATION .................................................... 94
Removal and Installation of Side Turn Signal Lamp ... 95
REMOVAL ............................................................ 95
INSTALLATION .................................................... 95
Removal and Installation of Rear Turn Signal Lamp ... 95
LIGHTING AND TURN SIGNAL SWITCH ................ 96
Removal and Installation ......................................... 96
REMOVAL ............................................................ 96
INSTALLATION .................................................... 96
Switch Circuit Inspection ......................................... 96
HAZARD SWITCH ..................................................... 97
Removal and Installation ......................................... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 97
STOP LAMP .............................................................. 98
Wiring Diagram — STOP/L — ................................ 98
Bulb Replacement ................................................... 99
STOP LAMP ........................................................ 99
HIGH-MOUNTED STOP LAMP ........................... 99
Removal and Installation ......................................... 99
STOP LAMP ........................................................ 99
HIGH-MOUNTED STOP LAMP ........................... 99
BACK-UP LAMP .....................................................100
Wiring Diagram — BACK/L — ..............................100
GASOLINE ENGINE ..........................................100
DIESEL ENGINE ...............................................101
Bulb Replacement .................................................102
Removal and Installation .......................................102
PARKING, LICENSE PLATE AND TAIL LAMPS ....103
Wiring Diagram — TAIL/L — .................................103

LT-20
HEADLAMP - XENON TYPE -

ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)
ADJUSTING
1. Set the distance between the screen and the center of driving lamp lens as shown in the figure.
2. Turn headlamp switch high and driving lamp switch ON so that front driving lamps turn ON.
3. Adjust driving lamps using adjusting screws make sure of the following.

When performing this adjustment, cover headlamps and the opposite driving lamp, if necessary.

Vertical deflection of maximum illuminance point to be adjusted to stand at 218 mm (8.58 in) below driv-
ing lamp height (h).

Horizontal deflection of maximum illuminance point to be adjusted to stand within 0 ± 125 mm (0 ± 4.92
in) against line (V) on screen where a line passing through driving lamp center, parallel to vehicle center
line, cross screen.
Bulb Replacement of Headlamp and Clearance LampEKS00N51
HEADLAMP (UPPER SIDE), FOR LOW BEAM
1. Turn lighting switch OFF.
2. Disconnect the battery cable from the negative terminal or
remove power fuse.
3. Disconnect headlamp connector.
4. Remove air cleaner duct (when replacing LH bulb). Refer to EM-
16, "AIR CLEANER AND AIR DUCT" (QR), EM-142, "AIR
CLEANER AND AIR DUCT" (YD22) in “ENGINE MECHANICAL
(EM)” section.
5. Turn plastic cap counterclockwise and unlock it.
6. Turn bulb socket counterclockwise and unlock it.
7. Unlock retaining spring and remove bulb from headlamp.
8. Installation is the reverse order of removal.
PKIC0980E
Headlamp (Upper side), For Low Beam : 12V - 35W (D2R)
SKIA1465E

HEADLAMP - XENON TYPE -
LT-21
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP (LOWER SIDE), FOR HIGH BEAM
1. Turn lighting switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.
3. Disconnect headlamp connector.
4. Remove air cleaner duct (when replacing LH bulb). Refer to EM-16, "
AIR CLEANER AND AIR DUCT" ,
EM-142, "
AIR CLEANER AND AIR DUCT" (QR), EM-142, "AIR CLEANER AND AIR DUCT" (YD22) in
“ENGINE MECHANICAL (EM)” section.
5. Turn plastic cap counterclockwise and unlock it.
6. Disconnect terminal connected to bulb.
7. Unlock retaining spring and remove bulb from headlamp.
8. Installation is the reverse order of removal.
CLEARANCE LAMP
1. Turn lighting switch OFF.
2. Disconnect headlamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from headlamp.
5. Installation is the reverse order of removal.
CAUTION:

Never touch glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off. Burning may result.

Never leave bulb out of headlamp reflector for a long time because dust, moisture, smoke, etc.
may affect the performance of headlamp. When replacing bulb, be sure to replace it with new one.

When bulb is installed, be sure to install plastic cap and bulb socket securely to ensure watertight-
ness.
Bulb Replacement of Driving LampEKS00N52
1. Remove driving lamp. Refer to LT- 2 3 , "Removal and Installation
of Driving Lamp" in “HEADLAMP -XENON TYPE-”.
2. Disconnect driving lamp connector.
3. Turn bulb socket counterclockwise and unlock it.
4. Installation is the reverse order of removal.
CAUTION:

Never touch glass of bulb directly by hand. Keep grease
and other oily matters away from it. Never touch bulb by
hand while it is lit or right after being turned off. Burning
may result.

When replacing bulb, prepare new bulb first of all. Never leave bulb out of driving lamp housing
for a long period, because dust, moisture or smoke will cause performance lowering (fouling,
cloud, etc.) of driving lamp reflector and lens.
Removal and Installation of HeadlampEKS00N53
REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.Headlamp (Lower side), For High Beam : 12V - 55W (H1)
Clearance lamp : 12V - 5W
Driving lamp : 12 V - 65 W (H1R1)
PKIA3396E

LT-50
HEADLAMP (WITH DAYTIME) - XENON TYPE -

Trouble DiagnosesEKS00N5L
DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE
*: Daytime light operating: Lighting switch in OFF position with engine running.
Bulb ReplacementEKS00N5M
Refer to LT- 2 0 , "Bulb Replacement of Headlamp and Clearance Lamp" or LT- 2 1 , "Bulb Replacement of Driv-
ing Lamp" in “HEADLAMP -XENON TYPE-”.
Aiming AdjustmentEKS00N5N
Refer to LT- 1 8 , "Aiming Adjustment of Headlamp" or LT- 1 9 , "Aiming Adjustment of Driving Lamp" in “HEAD-
LAMP -XENON TYPE-”.
Removal and InstallationEKS00N5O
Refer to LT- 2 1 , "Removal and Installation of Headlamp" or LT- 2 3 , "Removal and Installation of Driving Lamp"
in “HEADLAMP -XENON TYPE-”.
Terminal
No.Wire
colorConnectionsINPUT (I)/
OUTPUT (O)Operated condition Voltage
1 G/WPower source for illumination &
tail lamp— — Battery voltage
2 LG Power source for headlamp LH — — Battery voltage
3 R/W Power source for headlamp RH — — Battery voltage
4 SB Headlamp RH OON (daytime light operating*) Battery voltage
OFF Approx. 0V
5 OR Headlamp LH OON (daytime light operating*) Battery voltage
OFF Approx. 0V
6 B/Y Start signal I Ignition switchSTART Battery voltage
ON, ACC or OFF Approx. 0V
7 BR IGN power supply — Ignition switchON or START Battery voltage
ACC or OFF Approx. 0V
8 Y/R Alternator “L” terminal I EngineRunning Battery voltage
Stopped Approx. 0V
9 B Ground — — —
10 R/L Illumination & tail lamp OON (daytime light operating*) Battery voltage
OFF Approx. 0V
11 R/L Lighting switch I1ST·2ND position Battery voltage
OFF Approx. 0V

LT-60
HEADLAMP (WITH DAYTIME) - CONVENTIONAL TYPE -

Trouble DiagnosesEKS00N5S
DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE
*: Daytime light operating: Lighting switch in OFF position with engine running.
Bulb ReplacementEKS00N5T
Refer to LT- 3 7 , "Bulb Replacement of Headlamp and Clearance lamp" or LT- 3 8 , "Bulb Replacement of Driving
Lamp" in “HEADLAMP-CONVENTIONAL TYPE-”.
Aiming AdjustmentEKS00N5U
Refer to LT- 3 5 , "Aiming Adjustment of Headlamp" or LT- 3 6 , "Aiming Adjustment of Driving Lamp" in “HEAD-
LAMP-CONVENTIONAL TYPE-”.
Removal and InstallationEKS00N5V
Refer to LT- 3 8 , "Removal and Installation of Headlamp" or LT- 3 9 , "Removal and Installation of Driving Lamp"
in “HEADLAMP-CONVENTIONAL TYPE-”.
Terminal
No.Wire
colorConnectionsINPUT (I)/
OUTPUT (O)Operated condition Voltage
1 G/WPower source for illumination &
tail lamp— — Battery voltage
2 LG Power source for headlamp LH — — Battery voltage
3 R/W Power source for headlamp RH — — Battery voltage
4 G/Y Headlamp RH OON (daytime light operating*) Battery voltage
OFF Approx. 0V
5 Y/G Headlamp LH OON (daytime light operating*) Battery voltage
OFF Approx. 0V
6 B/Y Start signal I Ignition switchSTART Battery voltage
ON, ACC or OFF Approx. 0V
7 BR IGN power supply — Ignition switchON or START Battery voltage
ACC or OFF Approx. 0V
8 Y/R Alternator “L” terminal I EngineRunning Battery voltage
Stopped Approx. 0V
9 B Ground — — —
10 R/L Illumination & tail lamp OON (daytime light operating*) Battery voltage
OFF Approx. 0V
11 R/L Lighting switch I1ST·2ND position Battery voltage
OFF Approx. 0V

IDX-3
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
EC-1641
Basic inspection .. EC-79, EC-578, EC-1012, EC-1382
Battery ................................................................. SC-4
Baulk ring (M/T) .................................... MT-23, MT-41
Blower motor .... ATC-82, ATC-87, ATC-127, MTC-15,
MTC-18
, MTC-24
Blower resistor ................................................ MTC-25
Blower unit ....................... ATC-125, MTC-22, MTC-24
BOOST - Wiring diagram ............... EC-1153, EC-1508
Boring/horning cylinder block(QR20DE-QR25DE) .......
EM-111
Brake booster .................................................... BR-23
Brake fluid change ............................................... BR-8
Brake fluid level ................................................. MA-44
Brake fluid level and line check ........................... BR-8
Brake hydraulic line ........................................... BR-10
Brake inspection ................................................ MA-44
Brake lines and cables inspection ..................... MA-44
Brake master cylinder ........................................ BR-14
Brake pedal ......................................................... BR-6
Brake switch ..... EC-405, EC-809, EC-1313, EC-1664
BRK/SW - Wiring diagram EC-406, EC-811, EC-1314,
EC-1665
Bulb specifications ............................................ LT-152
Bumper, front ....................................................... EI-14
Bumper, rear ........................................................ EI-17
C
Camshaft inspection(QR20DE-QR25DE) .......... EM-58
Camshaft inspection(YD22DDTi) .................... EM-181
Camshaft position sensor (CMPS) EC-1169, EC-1175,
EC-1525
, EC-1531
Camshaft position sensor (PHASE) .. EC-257, EC-701
Camshaft(QR20DE-QR25DE) ........................... EM-56
Camshaft(YD22DDTi) ...................................... EM-180
CAN - Wiring diagram ....... EC-134, EC-634, EC-1057,
EC-1426
, LAN-12, LAN-28, LAN-44, LAN-69, LAN-87,
LAN-105
, LAN-131, LAN-144, LAN-157
CAN (Controller Area Network) ........ LAN-11, LAN-27,
LAN-43
, LAN-68, LAN-86, LAN-104, LAN-130,
LAN-143
, LAN-156
CAN communication EC-39, EC-133, EC-552, EC-633,
EC-989
, EC-1056, EC-1365, EC-1425, AT-32, AT-97,
AT-329
, TF-45, LAN-11, LAN-27, LAN-43, LAN-68,
LAN-86
, LAN-104, LAN-130, LAN-143, LAN-156
Canister-See EVAP canister ............. EC-525, EC-965
CHARGE - Wiring diagram .................... SC-14, SC-15
Charging system ................................................ SC-13
Chassis and body maintenance ........................ MA-39
CHIME - Wiring diagram ................ DI-54, DI-57, DI-58
CIGAR - Wiring diagram .................................. WW-29
Cigarette lighter ............................................... WW-29
Circuit breaker ................................................... PG-12
CKPS - Wiring diagram EC-1059, EC-1158, EC-1164,
EC-1428
, EC-1513, EC-1520
Clearance lamp ................................................ LT-116
Clock ................................................................... DI-63
CLOCK - Wiring diagram .................................... DI-63
Closed loop control .............................. EC-36, EC-549
Clutch cover ....................................................... CL-16
Clutch disc ......................................................... CL-16
Clutch master cylinder ......................................... CL-9
Clutch operating cylinder ................................... CL-12
Clutch pedal ......................................................... CL-5
Clutch release bearing ....................................... CL-14
Clutch release mechanism ................................ CL-14
Clutch withdrawal lever ...................................... CL-14
CMPS - Wiring diagram EC-1059, EC-1170, EC-1176,
EC-1428
, EC-1526, EC-1532
Coil spring (rear) ............................................... RSU-8
Collision diagnosis .......................................... SRS-48
Combination meter ............................................... DI-4
Combination switch ............................................. LT-96
Component Location (auto A/C) ......... ATC-35, MTC-4
Compression pressure(QR20DE-QR25DE) ..... EM-70
Compression pressure(YD22DDTi) ................ EM-209
Compressor clutch removal and installation .. ATC-146
Compressor special service tool ...................... ATC-14
Condenser ..................................................... ATC-155
Connecting rod bearing clearance(QR20DE-QR25DE)
EM-109
Connecting rod bearing clearance(YD22DDTi) EM-252
Connecting rod bushing clearance(YD22DDTi) EM-246
Connecting rod(QR20DE-QR25DE) ............... EM-109
Connecting rod(YD22DDTi) .............. EM-242, EM-248
CONSULT for engine ......................... EC-103, EC-604
CONSULT-II for engine ................. EC-1034, EC-1405
Control lever (M/T) ............................................. MT-16
Control unit ..................................... ATC-120, MTC-21
Control units (terminal arrangement) ................. PG-76
Controller Area Network (CAN) ........ LAN-11, LAN-27,
LAN-43
, LAN-68, LAN-86, LAN-104, LAN-130,
LAN-143
, LAN-156
Converter housing installation ......................... AT-523
COOL/F - Wiring diagram EC-356, EC-759, EC-1127,
EC-1483
Coolant replacement(QR20DE-QR25DE) ........ MA-20
Coolant replacement(YD22DDTi) ..................... MA-30
Cooling circuit (engine)(QR20DE-QR25DE) ....... CO-7
Cooling circuit (engine)(YD22DDTi) ................. CO-30
Cooling fan ............................................ CO-19, CO-37
Cooling fan relay EC-367, EC-770, EC-1137, EC-1492
Coupling sleeve (M/T) ........................... MT-23, MT-41
Cowl top .............................................................. EI-20
Cowl top cover .................................................... EI-20
Crankcase ventilation system .......... EC-989, EC-1365
Crankcase ventilation system - See Positive crankcase
ventilation ........................................... EC-527
, EC-967
Crankshaft position sensor (POS) ..... EC-250, EC-693
Crankshaft position sensor (TDC) EC-1157, EC-1163,
EC-1512
, EC-1518
Crankshaft(QR20DE-QR25DE) ........................ EM-90
Cylinder block boring(QR20DE-QR25DE) ...... EM-112
Cylinder block boring(YD22DDTi) ................... EM-250
Cylinder block(QR20DE-QR25DE) ................... EM-89
Cylinder block(YD22DDTi) .............................. EM-230
Cylinder head bolt tightening(QR20DE-QR25DE) ........
