DRIVER INFORMATION SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Wiring Diagrams and Trouble Diagnosis .................. 3
COMBINATION METERS ........................................... 4
System Description .................................................. 4
UNIFIED CONTROL METER ................................ 4
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ........................................................ 4
POWER SUPPLY AND GROUND CIRCUIT ........ 4
WATER TEMPERATURE GAUGE ........................ 4
TACHOMETER ..................................................... 5
SPEEDOMETER ................................................... 5
FUEL GAUGE ....................................................... 5
AMBIENT TEMPERATURE INDICATOR .............. 5
CAN Communication ................................................ 6
CAN Communication Unit ........................................ 6
TYPE 1/TYPE 2 .................................................... 7
TYPE 3 .................................................................. 8
TYPE 4/TYPE 5 .................................................... 9
TYPE 6 ................................................................ 10
TYPE 7/TYPE 8 ................................................... 11
TYPE 9 ................................................................ 12
Component Parts and Harness Connector Location ... 13
Combination Meter ................................................. 14
CHECK ................................................................ 14
Schematic/LHD Models .......................................... 15
Wiring Diagram — METER —/LHD Models ........... 16
Schematic/RHD Models ......................................... 18
Wiring Diagram — METER —/RHD Models .......... 19
Terminals and Reference Value for Combination
Meter ...................................................................... 21
Meter/Gauges Operation and Odo/Trip Meter ........ 21
SELF-DIAGNOSIS FUNCTION .......................... 21
HOW TO ALTERNATE DIAGNOSIS MODE ....... 21
How to Perform Trouble Diagnosis ........................ 22
Diagnosis Flow ....................................................... 22
Power Supply and Ground Circuit Inspection ........ 23
Trouble Diagnosis Chart for Symptom ................... 24DIAGNOSIS RESULTS ....................................... 24
Fuel Level Sensor Signal Inspection [Gasoline
Engine Models] ....................................................... 25
FUEL GAUGE ..................................................... 25
LOW-FUEL WARNING LAMP ............................. 25
Fuel Level Sensor Signal Inspection [Diesel Engine
Models] ................................................................... 26
FUEL GAUGE ..................................................... 26
LOW-FUEL WARNING LAMP ............................. 26
Engine Speed Signal Inspection ............................. 28
Engine Coolant Temperature Signal Inspection ..... 28
Vehicle Speed Signal Inspection [With ESP] .......... 28
Vehicle Speed Signal Inspection [Without ESP] ..... 28
The Fuel Gauge Pointer Fluctuates, Indicator
Wrong Value or Varies ............................................ 28
The Fuel Gauge Does Not Move to FULL Position ... 29
Ambient Temperature Signal Inspection [Without
Auto A/C] ................................................................ 30
Ambient Temperature Signal Inspection [With Auto
A/C] ......................................................................... 31
Electrical Components Inspection .......................... 32
FUEL LEVEL SENSOR UNIT CHECK/GASO-
LINE ENGINE MODELS ..................................... 32
FUEL LEVEL SENSOR UNIT CHECK/DIESEL
ENGINE MODELS .............................................. 32
AMBIENT SENSOR CHECK ............................... 33
Removal and Installation for Combination Meter .... 33
REMOVAL ........................................................... 33
INSTALLATION ................................................... 33
Disassembly and Assembly for Combination Meter ... 34
DISASSEMBLY ................................................... 34
ASSEMBLY ......................................................... 34
WARNING LAMPS .................................................... 35
Schematic ............................................................... 35
Wiring Diagram — WARN —/LHD Models ............. 36
Wiring Diagram — WARN —/RHD Models ............ 44
Electrical Components Inspection .......................... 52
OIL PRESSURE SWITCH CHECK ..................... 52
DIODE CHECK ................................................... 52
A/T INDICATOR ........................................................ 53

DI-4
COMBINATION METERS

COMBINATION METERSPFP:24814
System DescriptionEKS00EGZ
UNIFIED CONTROL METER

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled by the
unified meter control unit, which is built into the combination meter.

Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter segments can be checked in diagnosis mode.

Meter/gauge can be checked in diagnosis mode.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the
combination meter and the mileage is displayed.

Ambient temperature indicator indicates signal from ambient sensor processed by combination meter.

Depressing the odo/trip meter switch toggles the mode in the following order.

The odo/trip meter display mode toggling and trip display resetting can be identified by the amount of time
that elapses from pressing the odo/trip meter switch to releasing it.

When resetting with trip A displayed, only trip A display is reset (The same way for trip B).
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 10A fuse [No. 28, located in the fuse block (J/B)]

to combination meter terminal 1.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 11, located in the fuse block (J/B)]

to combination meter terminals 2.
Ground is supplied

to combination meter terminals 21

through grounds M27 and M70.
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides an engine coolant temperature signal to combination meter for water temperature gauge with
CAN communication line.
SKIA8917E

COMBINATION METERS
DI-5
C
D
E
F
G
H
I
J
L
MA
B
DI

TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to combination meter for tachometer with CAN communication line.
SPEEDOMETER
ESP/TCS/ABS control unit (with ESP) or ABS actuator and electric unit (without ESP) provides a vehicle
speed signal to the combination meter for the speedometer with CAN communication line.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied

from grounds B8 and B18 (LHD models)

from grounds B107 and B119 (RHD models)

through terminal 1 and 4 of the fuel level sensor unit

through terminal 3 and 1 of the sub fuel level sensor unit and

to combination meter terminal 8 for the fuel gauge.
AMBIENT TEMPERATURE INDICATOR
The ambient temperature is indicated by the signal from ambient sensor.
Combination meter inputs voltage conversed from resistance which ambient sensor detects.
Indication range is between −30 and 55 °C (−22 and 131 °F). When ambient air temperature is less than −30
°C (−22 °F) or more than 55 °C (131 °F), display shows “---°C”. When indicated temperature becomes less
than 3 °C (37 °F), ambient temperature indicator flashes as a sign of warning.
Without Auto A/C
Power is supplied

through combination meter terminal 27

to ambient sensor terminal 1.
Ground is supplied

to combination meter terminal 28

through ambient sensor terminal 2.
Signal is supplied

through ambient sensor terminal 1

to combination meter terminal 27.
With Auto A/C
Power is supplied

through auto amp terminal 9

to ambient sensor terminal 1.
Ground is supplied

to combination meter terminal 28 and auto amp terminal 24

through ambient sensor terminal 2.
And combination meter receives ambient sensor signal from ambient sensor

through ambient sensor terminal 1

to combination meter terminal 27.
NOTE:
Combination meter distinguishes whether or not the combination meter terminal 29 receives voltage (auto A/C
recognition signal) from auto amp terminal 28. If the terminal receives, combination meter discerns as auto A/
C.
Indication When Turning Ignition Switch OFF

In a case that temperature detected by ambient sensor is higher than indicated temperature before turn-
ing ignition switch OFF.
–In a case of more than 3.5 hours after turning ignition switch OFF, temperature detected by ambient sen-
sor is indicated when turning ignition switch ON.

DI-6
COMBINATION METERS

–In a case of less then 3.5 hours after turning ignition switch OFF, temperature at the time of turning ignition
switch off is indicated.

In a case that temperature detected by ambient sensor is lower than indicated temperature before turning
ignition switch OFF.
–Temperature detected by ambient sensor is indicated when turning ignition switch ON.
Indication During Running
Though temperature detected by ambient sensor temporarily changed, indicating temperature continentally
indicates.

In a case that temperature detected by ambient sensor is higher than indicated temperature.
–If vehicle speed is more than 20 km/h (13 MPH), elevation of indicating temperature is limited according to
the speed until temperature detected by ambient sensor is indicated.
NOTE:
Vehicle speed 20 km/h (13 MPH): 256 sec., 25 km/h (16 MPH): 238 sec., 35 km/h (22 MPH): 200 sec., 50
km/h (31 MPH): 144 sec., 65 km/h (40 MPH): 88 sec., more than 80 km/h (50 MPH): 32 sec.
–If vehicle speed is more than 20 km/h (13 MPH), and that temperature detected by ambient sensor
becomes 8 °C (46 °F) more than indicating temperature, indicating temperature will be elevated unit the
degree becomes same as temperature detected by ambient sensor with limiting elevation of indicating
temperature 1 °C par a minute.
–If vehicle speed is less than 20 km/h (13 MPH), indicating temperature is continually kept.

In a case that temperature detected by ambient sensor is lower than indicated temperature.
–Temperature detected by ambient sensor is indicated during running.
CAN CommunicationEKS00EH0
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitEKS00OSR
Body type Wagon
Axle 4WD 2WD
Engine YD22DDTi QR20DE/QR25DE YD22DDTi QR25DE QR20DE YD22DDTi
Transmission M/T A/T M/T A/T M/T
Brake control ABS ESP ABS ESP
CAN system type 1 2 3 4 5 6 7 8 9

COMBINATION METERS
DI-9
C
D
E
F
G
H
I
J
L
MA
B
DI

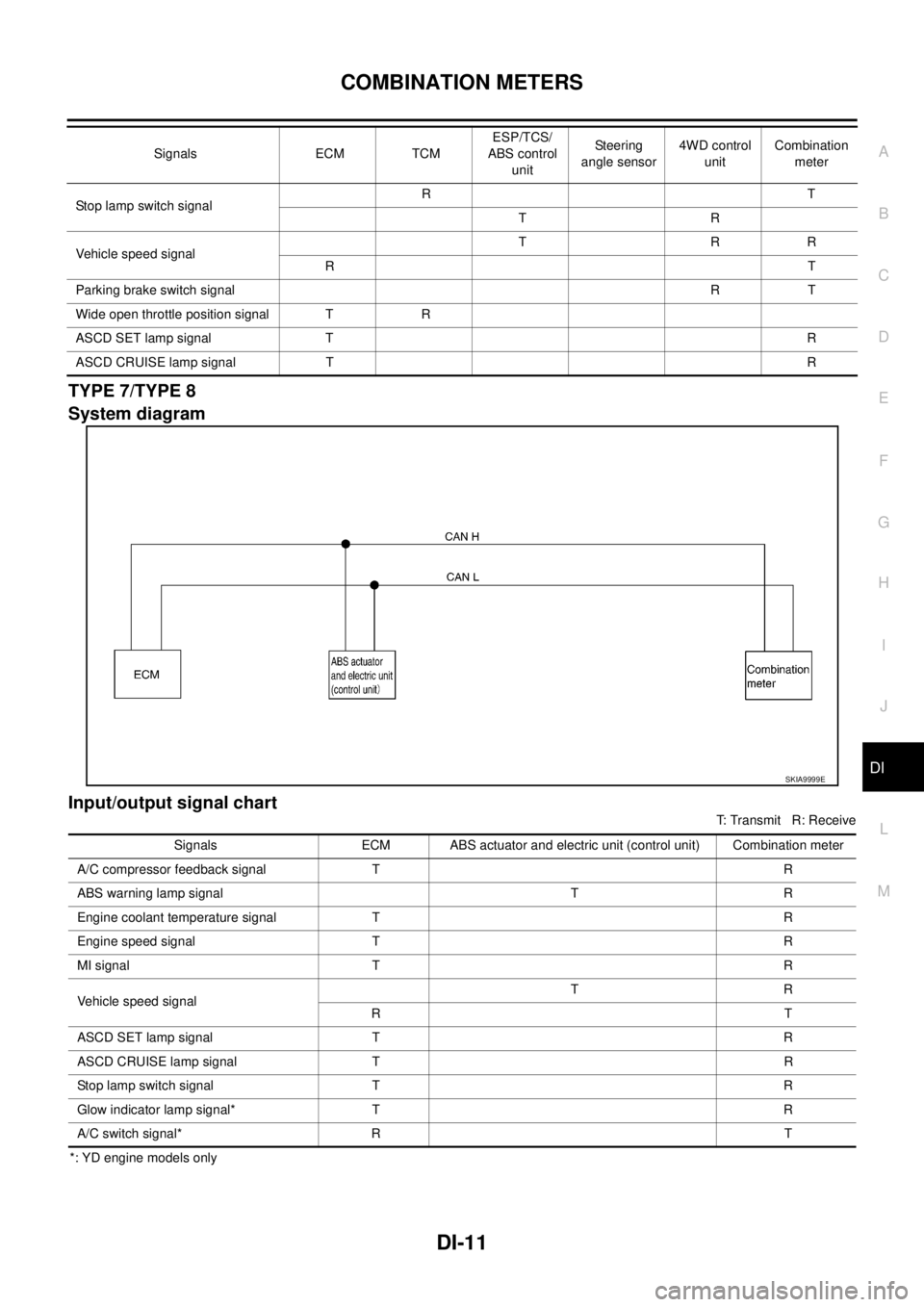

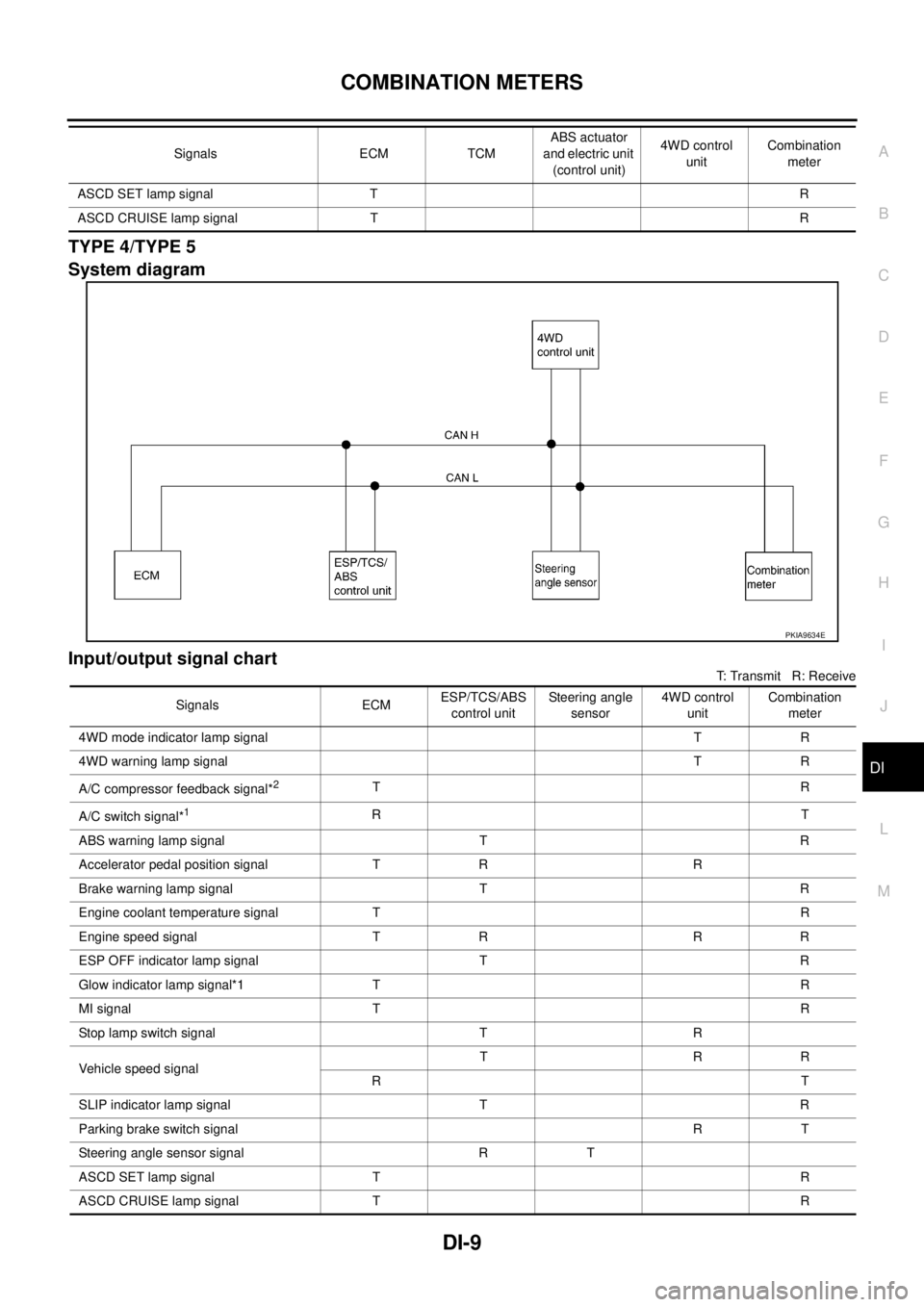

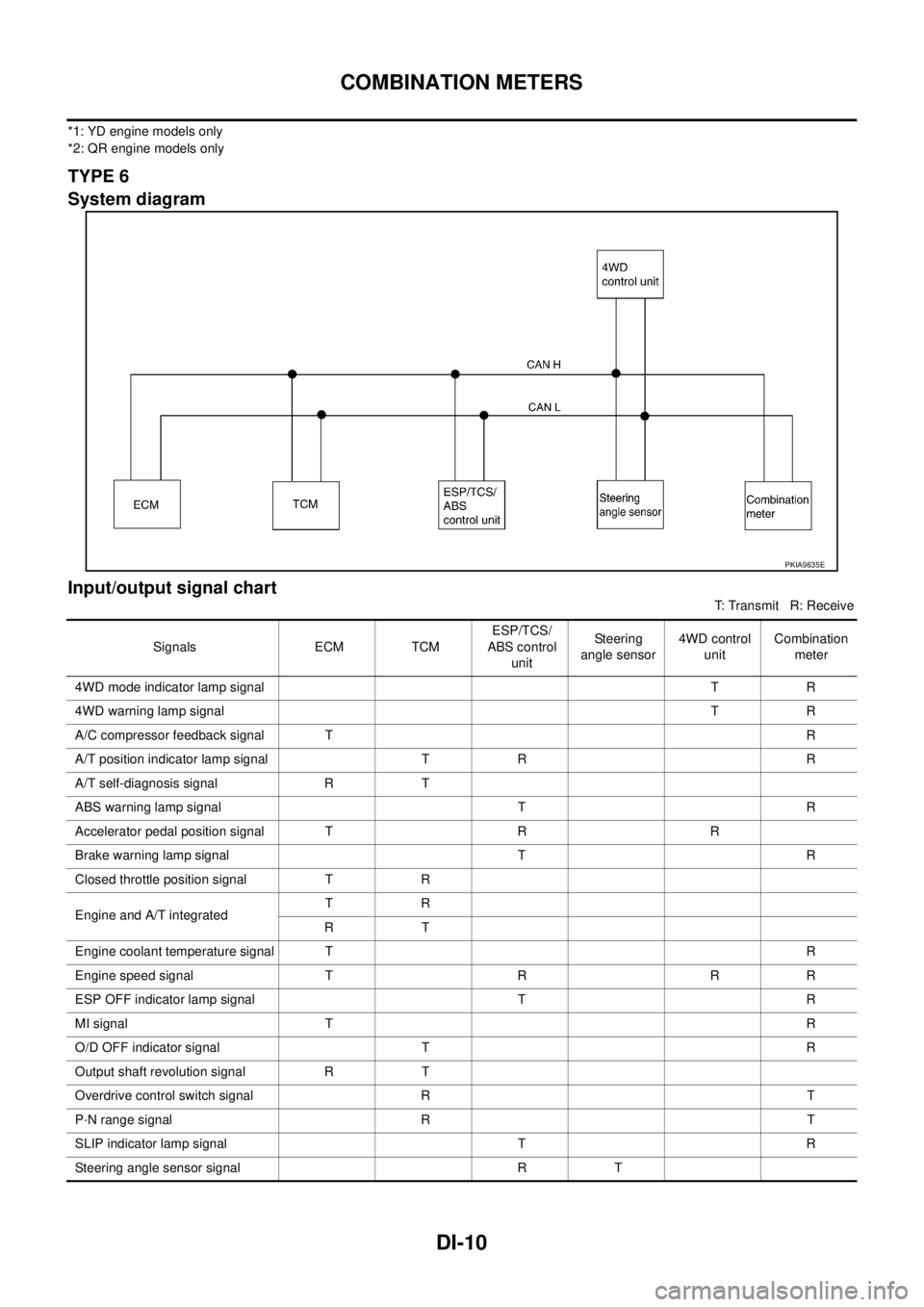

TYPE 4/TYPE 5
System diagram
Input/output signal chart
T: Transmit R: Receive ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMABS actuator
and electric unit
(control unit)4WD control
unitCombination
meter
PKIA9634E
Signals ECMESP/TCS/ABS
control unitSteering angle
sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal*
2TR
A/C switch signal*
1RT
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal*1 TR
MI signal TR
Stop lamp switch signal T R
Vehicle speed signalTRR
RT
SLIP indicator lamp signal T R
Parking brake switch signalRT
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR

DI-10
COMBINATION METERS

*1: YD engine models only
*2: QR engine models only
TYPE 6
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIA9635E
Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
4WD mode indicator lamp signalTR
4WD warning lamp signalTR
A/C compressor feedback signal TR
A/T position indicator lamp signal T R R
A/T self-diagnosis signal R T
ABS warning lamp signal T R
Accelerator pedal position signal T R R
Brake warning lamp signal T R
Closed throttle position signal T R
Engine and A/T integratedTR
RT
Engine coolant temperature signal TR
Engine speed signal T R R R
ESP OFF indicator lamp signal T R
MI signal TR
O/D OFF indicator signal T R
Output shaft revolution signal R T
Overdrive control switch signal R T
P·N range signal R T
SLIP indicator lamp signal T R
Steering angle sensor signal R T

COMBINATION METERS
DI-11
C
D
E
F
G
H
I
J
L
MA
B
DI

TYPE 7/TYPE 8
System diagram
Input/output signal chart
T: Transmit R: Receive
*: YD engine models onlyStop lamp switch signalRT
TR
Vehicle speed signalTRR
RT
Parking brake switch signalRT
Wide open throttle position signal T R
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR Signals ECM TCMESP/TCS/
ABS control
unitSteering
angle sensor4WD control
unitCombination
meter
SKIA9999E
Signals ECM ABS actuator and electric unit (control unit) Combination meter
A/C compressor feedback signal T R
ABS warning lamp signal T R
Engine coolant temperature signal T R
Engine speed signal T R
MI signal T R
Vehicle speed signalTR
RT
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Stop lamp switch signal T R
Glow indicator lamp signal* T R
A/C switch signal* R T

DI-12
COMBINATION METERS

TYPE 9
System diagram
Input/output signal chart
T: Transmit R: Receive
PKIC0343E
Signals ECM ESP/TCS/ABS control unit Steering angle sensor Combination meter
A/C switch signal RT
ABS warning lamp signal T R
Accelerator pedal position signal T R
Brake warning lamp signal T R
Engine coolant temperature signal TR
Engine speed signal T R R
ESP OFF indicator lamp signal T R
Glow indicator lamp signal TR
MI signal TR
Vehicle speed signalTR
RT
SLIP indicator lamp signal T R
Steering angle sensor signal R T
ASCD SET lamp signal TR
ASCD CRUISE lamp signal TR
