2005 MITSUBISHI 380 relay

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-188
ALL DOOR LOCK FUNCTION
.
PRESSING THE TRANSMITTER LOCK BUTTON
When the transmitter lock button is pressed, the ETACS-ECU
energizes its door lock relay to operate all the door lock actua-
tors for 0.25 second, locking all doors.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-189
DRIVER’S DOOR UNLOCK FUNCTION
.
PRESSING THE TRANSMITTER UNLOCK
BUTTON ONCE
When the transmitter unlock button is pressed once, the
ETACS-ECU energizes its door unlock relay to operate the
door lock actuator of the driver’s door for 0.25 seconds, thus
unlocking only the driver’s door.
ALL DOOR UNLOCK FUNCTION
.
PRESSING THE TRANSMITTER UNLOCK
BUTTON TWICE
When the transmitter unlock button is pressed twice, the
ETACS-ECU energizes its door unlock relay to operate the
driver’s door lock actuator and the other door lock actuators for
0.25 seconds each in succession. All the doors will be
unlocked.
NOTE: If the timed locking function is available, the doors will
be locked in 30 seconds after the initial unlocking. Therefore,
the second door unlocking should be done within 30 seconds
after that initial unlocking.
TRUNK UNLOCK FUNCTION
.
PRESSING THE TRANSMITTER TRUNK BUTTON
Press the "TRUNK" button twice within 5 seconds and the trunk
lid will be unlocked.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-195
STEP 6. Verify which horn is defective.
Q: Which horn does not sound?
Horn (HIGH) : Go to Step 7.
Horn (LOW) : Go to Step 11.
Both horns : Go to Step 15.
STEP 7. Check horn connector A-37 (HIGH) for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is horn (HIGH) connector A-37 in good condition?
YES : Go to Step 8.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.
STEP 8. Check the horn (HIGH).
Connect the battery as shown, and verify that the horn sounds.
Q: Is the horn normal?
YES : Go to Step 9.
NO : Replace the horn (HIGH). Verify that the horn sounds
normally.
STEP 9. Check horn relay connector A-06X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is horn relay connector A-06X in good condition?
YES : Go to Step 10.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.

SYMPTOM PROCEDURES

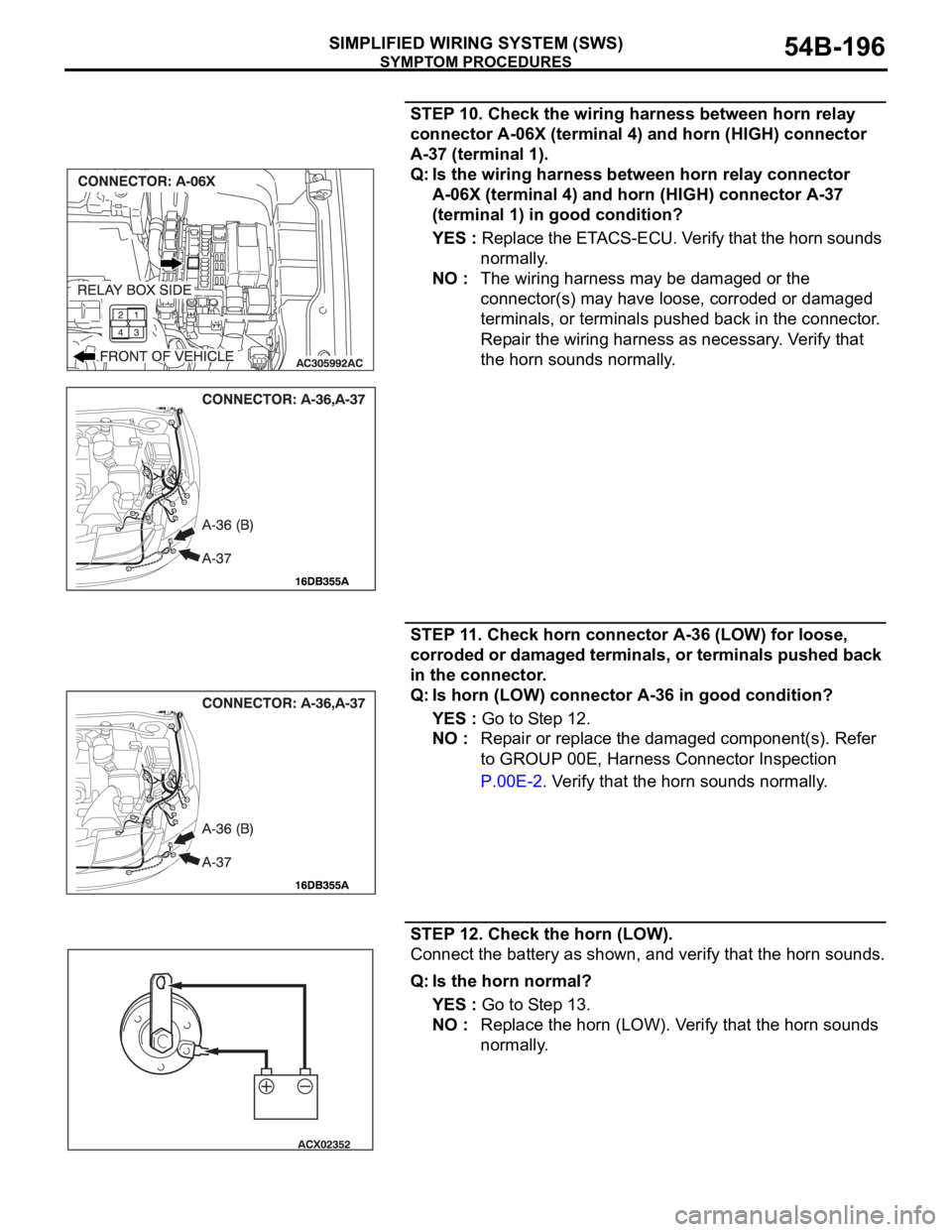

SIMPLIFIED WIRING SYSTEM (SWS)54B-196
STEP 10. Check the wiring harness between horn relay
connector A-06X (terminal 4) and horn (HIGH) connector
A-37 (terminal 1).
Q: Is the wiring harness between horn relay connector
A-06X (terminal 4) and horn (HIGH) connector A-37
(terminal 1) in good condition?
YES : Replace the ETACS-ECU. Verify that the horn sounds
normally.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.
STEP 11. Check horn connector A-36 (LOW) for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is horn (LOW) connector A-36 in good condition?
YES : Go to Step 12.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.
STEP 12. Check the horn (LOW).
Connect the battery as shown, and verify that the horn sounds.
Q: Is the horn normal?
YES : Go to Step 13.
NO : Replace the horn (LOW). Verify that the horn sounds
normally.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-197
STEP 13. Check horn relay connector A-06X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is horn relay connector A-06X in good condition?
YES : Go to Step 14.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.
STEP 14. Check the wiring harness between horn relay
connector A-06X (terminal 4) and horn (LOW) connector
A-36 (terminal 1).
Q: Is the wiring harness between horn relay connector
A-06X (terminal 4) and horn (LOW) connector A-36
(terminal 1) in good condition?
YES : Replace the ETACS-ECU. Verify that the horn sounds
normally.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-198
STEP 15. Check horn relay connector A-06X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is horn relay connector A-06X in good condition?
YES : Go to Step 16.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.
STEP 16. Check the horn relay.
Q: Is the horn relay normal?
YES : Go to Step 17.
NO : Replace the horn relay. Verify that the horn sounds
normally.
BATTERY
VOLTAGETESTER
CONNECTIONSPECIFIED
CONDITION
Not applied 1
4 Open circuit
Connect
terminal 2 to the
positive battery
terminal
Connect
terminal 3 to the
negative battery
terminal1
4 Less than 2 ohms

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-199
STEP 17. Check the battery power supply circuit to the
horn relay. Measure the voltage at horn relay connector
A-06X.
(1) Disconnect horn relay connector A-06X and measure the
voltage available at the relay box side of the connector.
(2) Measure the voltage between terminal 1 and ground, and
also between terminal 2 and ground.
The voltage should measure approximately 12 volts
(battery positive voltage).
Q: Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES : Go to Step 19.
NO : Go to Step 18.
STEP 18. Check the wiring harness between horn relay
connector A-06X (terminals 1 and 2) and the battery.
Q: Is the wiring harness between horn relay connector
A-06X (terminals 1 and 2) and the battery in good
condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.
STEP 19. Check ETACS-ECU connector C-217 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-217 in good condition?
YES : Go to Step 20.
NO : Repair or replace the damaged component(s). Refer
to GROUP 00E, Harness Connector Inspection
P.00E-2. Verify that the horn sounds normally.

SYMPTOM PROCEDURES
SIMPLIFIED WIRING SYSTEM (SWS)54B-200
STEP 20. Check the wiring harness between horn relay
connector A-06X (terminal 3) and ETACS-ECU connector
C-217 (terminal 44).
NOTE: Also check intermediate connector C-29 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-29 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection P.00E-2.
Q: Is the wiring harness between horn relay connector
A-06X (terminal 3) and ETACS-ECU connector C-217
(terminal 44) in good condition?
YES : Go to Step 21.
NO : The wiring harness may be damaged or the
connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the horn sounds normally.
