2005 MITSUBISHI 380 diagram

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-18
D-25 (2-B) POWER SEAT ASSEMBLY
D-25-1 (5-W) FRONT HEIGHT MOTOR
D-25-2 (5-B) REAR HEIGHT MOTOR
D-25-3 (4) SEAT SLIDE MOTOR
D-25-4 (5) SEAT BACK RECLINING MOTOR
D-25-5 (2) SEAT BACK LUMBAR MOTOR
D-25-6 (10) SEAT ADJUST SWITCH (RH) MEMORY> AND WITH POWER RECLINER>
D-25-7 (7) MEMORY BUTTON SWITCH
D-25-8 (4) SEAT BACK LUMBAR
POTENTIOMETER
D-25-9 (20) MEMORY SEAT MODULE
D-25-10 (16) MEMORY SEAT MODULED-25-11 (12) MEMORY SEAT MODULE (LUMBAR
AND RECLINER)
D-25-12 (12-W) MEMORY SEAT MODULE
D-25-13 (4) LUMBAR ADJUST SWITCH
D-25-14 (8) LUMBAR AND RECLINER PATCH
HARNESS AND SEAT CUSHION
PAD HARNESS COMBINATION

D-25-15 (4) LUMBAR AND RECLINER PATCH
HARNESS AND SEAT CUSHION
PAD HARNESS COMBINATION

D-25-16 (4) SEAT ADJUST SWITCH MEMORY WITHOUT POWER
RECLINER>

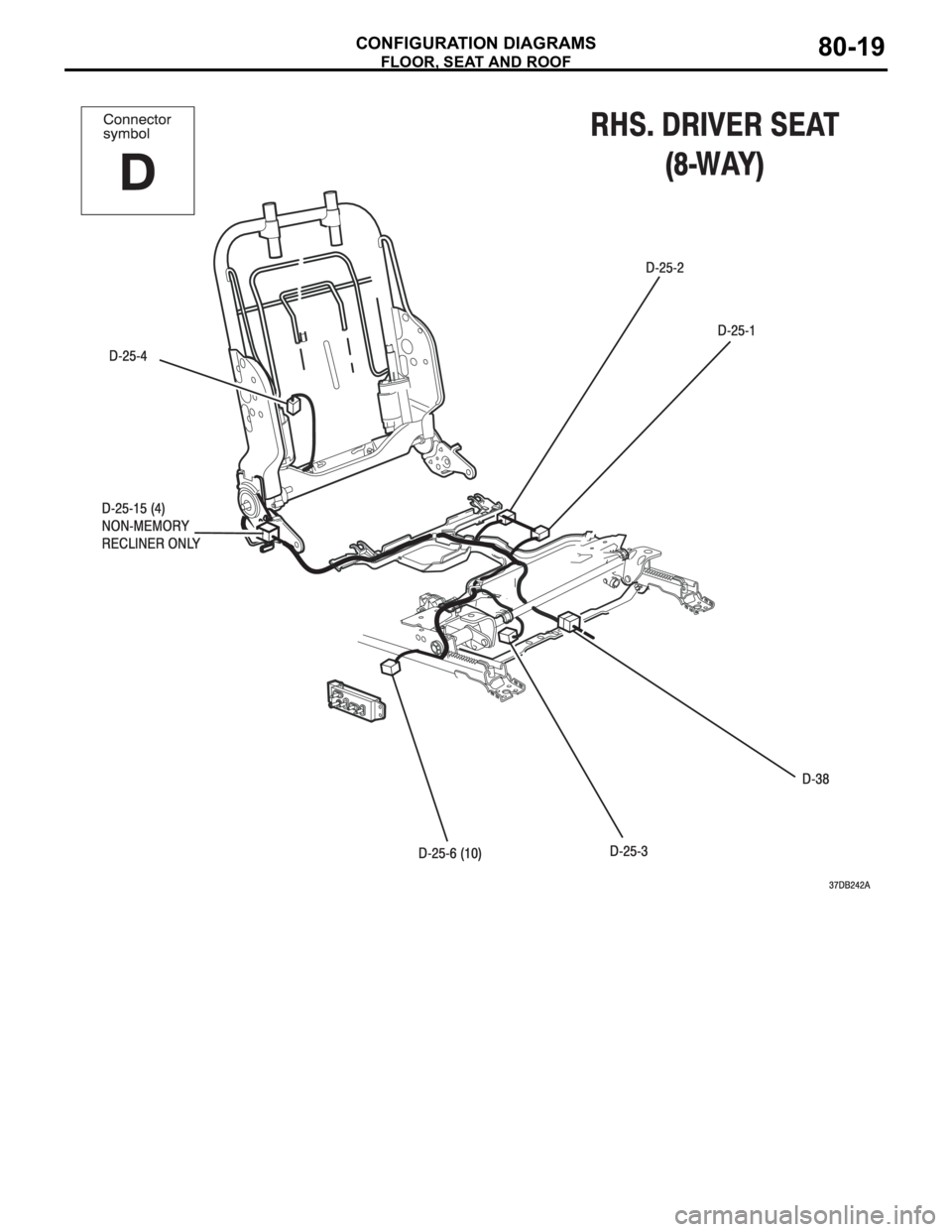

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-19

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-20

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-21

FLOOR, SEAT AND ROOF
CONFIGURATION DIAGRAMS80-22
D-26 (20-Y) SRS-ECU (FLOOR HARNESS)
D-27 (20-Y) SRS-ECU (FLOOR HARNESS)
D-28 (5-B) SEAT BELT BUCKLE SWITCH
(DRIVER’S SIDE)
D-30 (2) WHEEL SPEED SENSOR (REAR:
RH)
D-31 (2) WHEEL SPEED SENSOR (REAR:
LH)
D-32 (2-R) SIDE AIR BAG MODULE (SQUIB)
(RH)
D-33 (2-B) SEAT BELT PRETENSIONER (RH)
D-34 (3) FRONT DOOR SWITCH (RH)D-35 (2) SIDE IMPACT SENSOR (RH)
D-36 (10) FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(RH) COMBINATION
D-38 (8) POWER SEAT (MEMORY) (RH)
D-39 (2) POWER SEAT ASSEMBLY (LH)
D-39-1 (5-W) FRONT HEIGHT MOTOR
D-39-2 (5-B) REAR HEIGHT MOTOR
D-39-3 (4) SEAT SLIDE MOTOR
D-39-4 (8) SEAT ADJUST SWITCH (LH)
D-40 (1-B) CAPACITOR

DOOR
CONFIGURATION DIAGRAMS80-23
DOORM1801001400541
E-01 (3) REMOTE CONTROLLED MIRROR
(RH)
E-02 (2) FRONT DOOR SPEAKER (RH)
E-03 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (RH)
E-04 (14) POWER WINDOW MAIN SWITCH
E-05 (6-B) FRONT DOOR LOCK ACTUATOR
(RH)
E-06 (8) REAR POWER WINDOW SUB
SWITCH (RH)
E-07 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (RH)
E-08 (6-B) REAR DOOR LOCK ACTUATOR
(RH)
E-09 (3) REMOTE CONTROLLED MIRROR
(LH)
E-10 (2) FRONT DOOR SPEAKER (LH)E-11 (11) REMOTE CONTROLLED MIRROR
SWITCH
E-12 (8) FRONT POWER WINDOW SUB
SWITCH
E-13 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (LH)
E-14 (3-B) DOOR LOCK KEY CYLINDER
SWITCH
E-15 (6-B) FRONT DOOR LOCK ACTUATOR
(LH)
E-16 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (LH)
E-17 (8) REAR POWER WINDOW SUB
SWITCH (LH)
E-18 (6-B) REAR DOOR LOCK ACTUATOR (LH)

LUGGAGE COMPARTMENT
CONFIGURATION DIAGRAMS80-24
LUGGAGE COMPARTMENTM1801001500311
F-01 (2-GR) HIGH-MOUNTED STOPLIGHT

F-02 (2) HIGH-MOUNTED STOPLIGHT

F-03 (6) REAR COMBINATION LIGHT (RH)F-05 (2) TRUNK LID LATCH ACTUATOR
ASSEMBLY
F-06 (2) LICENSE PLATE LIGHTS
F-09 (6) REAR COMBINATION LIGHT (LH)
F-10 (2) FUEL DOOR LID ACTUATOR

90-1
GROUP 90
CIRCUIT DIAGRAMS
CONTENTS
HOW TO READ CIRCUIT DIAGRAMS90-3
JUNCTION BLOCK . . . . . . . . . . . . . .90-9
JOINT CONNECTOR . . . . . . . . . . . . .90-11
CENTRALISED JUNCTION . . . . . . . .90-12
POWER DISTRIBUTION SYSTEM . .90-18
STARTING SYSTEM . . . . . . . . . . . . .90-21
IGNITION SYSTEM . . . . . . . . . . . . . .90-22
CHARGING SYSTEM . . . . . . . . . . . .90-23
MULTIPOINT FUEL INJECTION (MPI)
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-24
COOLING SYSTEM . . . . . . . . . . . . . .90-29
INVECS-II 5A/T . . . . . . . . . . . . . . . . .90-30
HEADLAMPS . . . . . . . . . . . . . . . . . . .90-35
TAIL LAMP, POSITION LAMP, AND
LICENCE PLATE LAMP . . . . . . . . . .90-38
FOG LAMPS . . . . . . . . . . . . . . . . . . .90-41FRONT DOME LAMP, REAR DOME LAMP,
TRUNK LAMP AND IGNITION KEY HOLE
ILLUMINATION LAMP . . . . . . . . . . . .90-44
GLOVE BOX LAMP . . . . . . . . . . . . . .90-48
VANITY MIRROR LAMP. . . . . . . . . . .90-49
TURN-SIGNAL LAMP AND HAZARD
WARNING LAMP . . . . . . . . . . . . . . . .90-50
BACKUP LAMP . . . . . . . . . . . . . . . . .90-54
STOPLAMP. . . . . . . . . . . . . . . . . . . . .90-55
HORN . . . . . . . . . . . . . . . . . . . . . . . . .90-56
METER AND GAUGE . . . . . . . . . . . . .90-57
BRAKE WARNING LAMP, OIL
PRESSURE WARNING LAMP, FUEL
WARNING LAMP . . . . . . . . . . . . . . . .90-60
POWER WINDOWS . . . . . . . . . . . . . .90-62
CENTRAL DOOR LOCKING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-64
